Wagner
Water Pump

Model # 975 Official Wagner piston pump

Here are the diagrams and repair parts for Official Wagner 975 piston pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

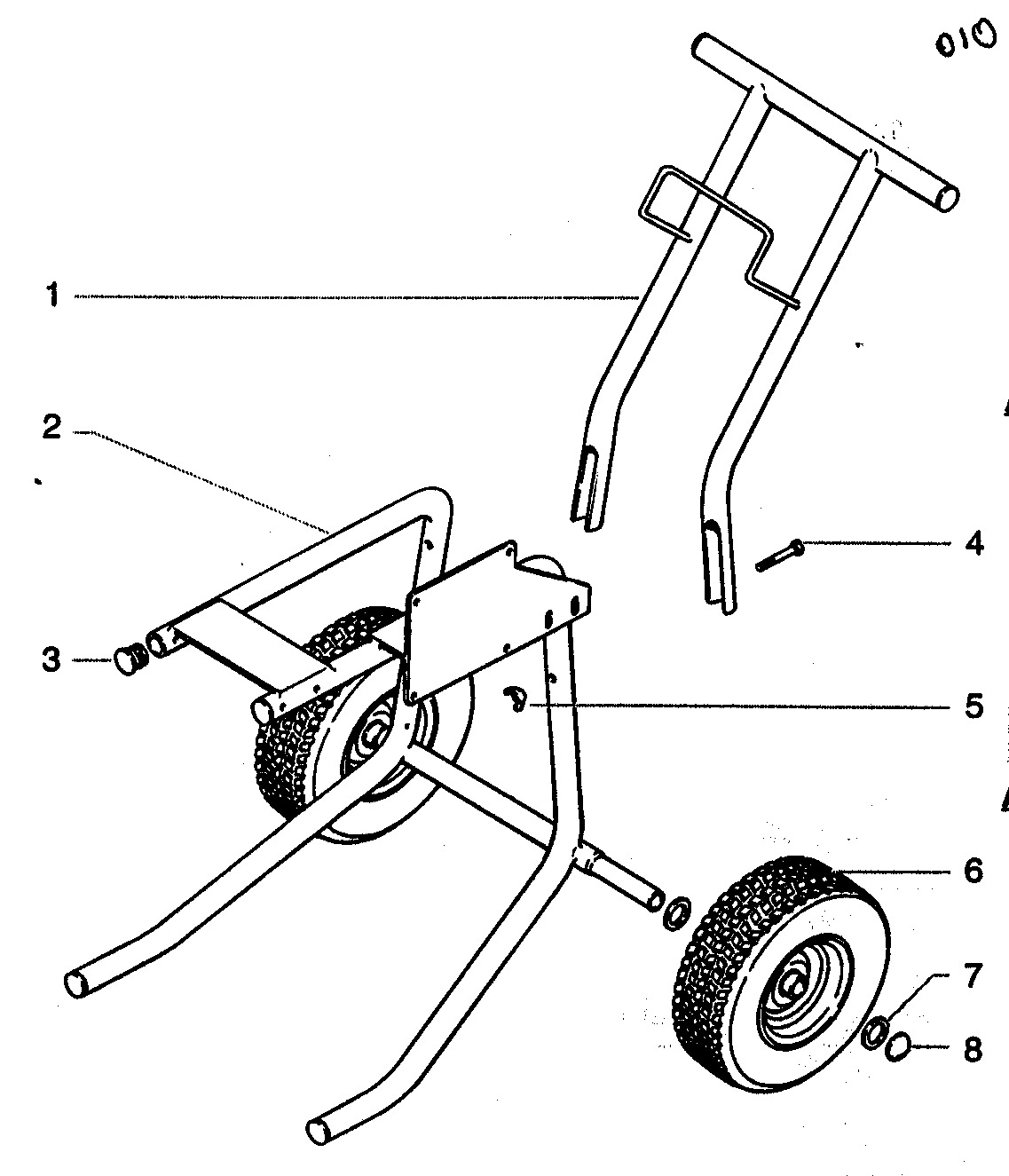

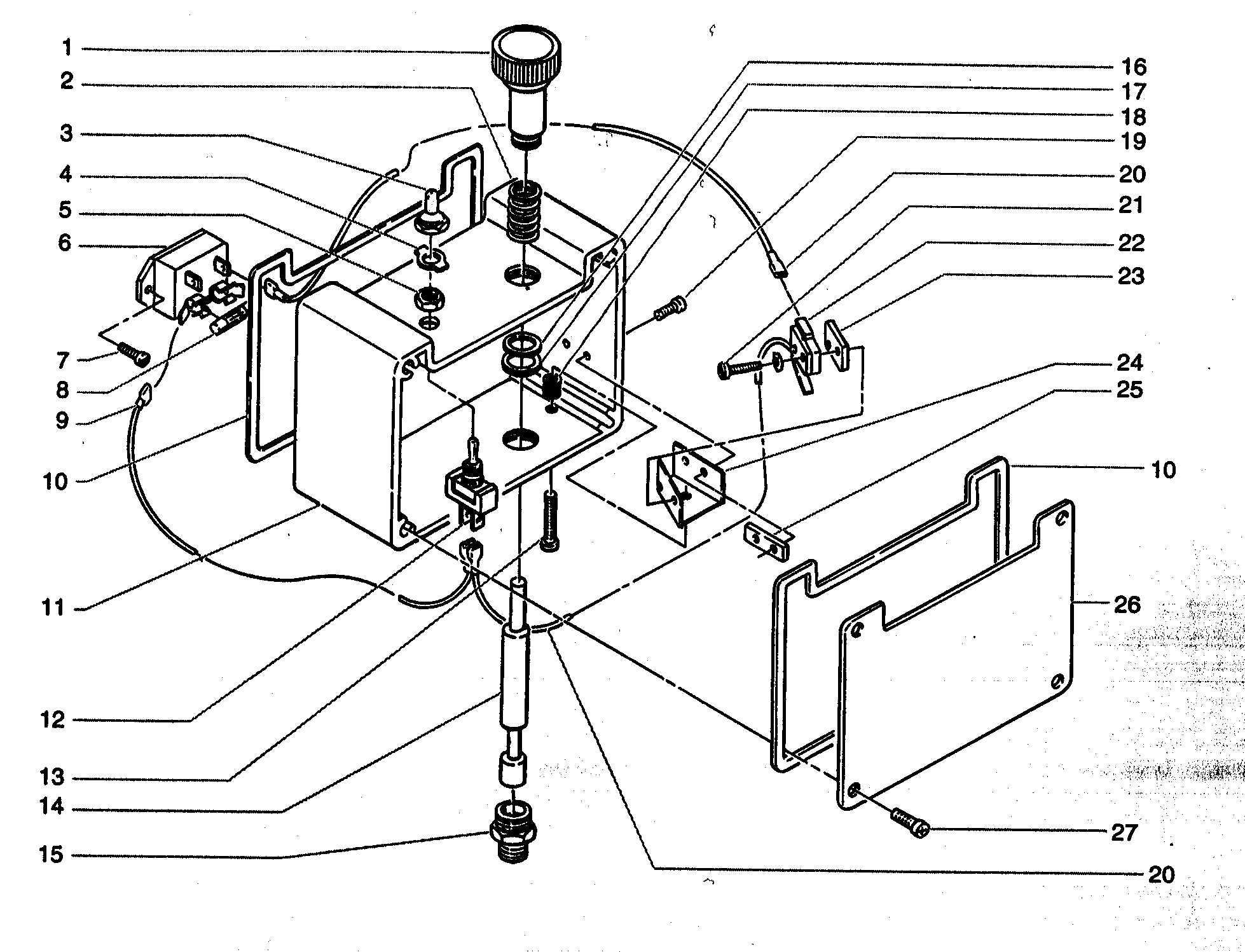

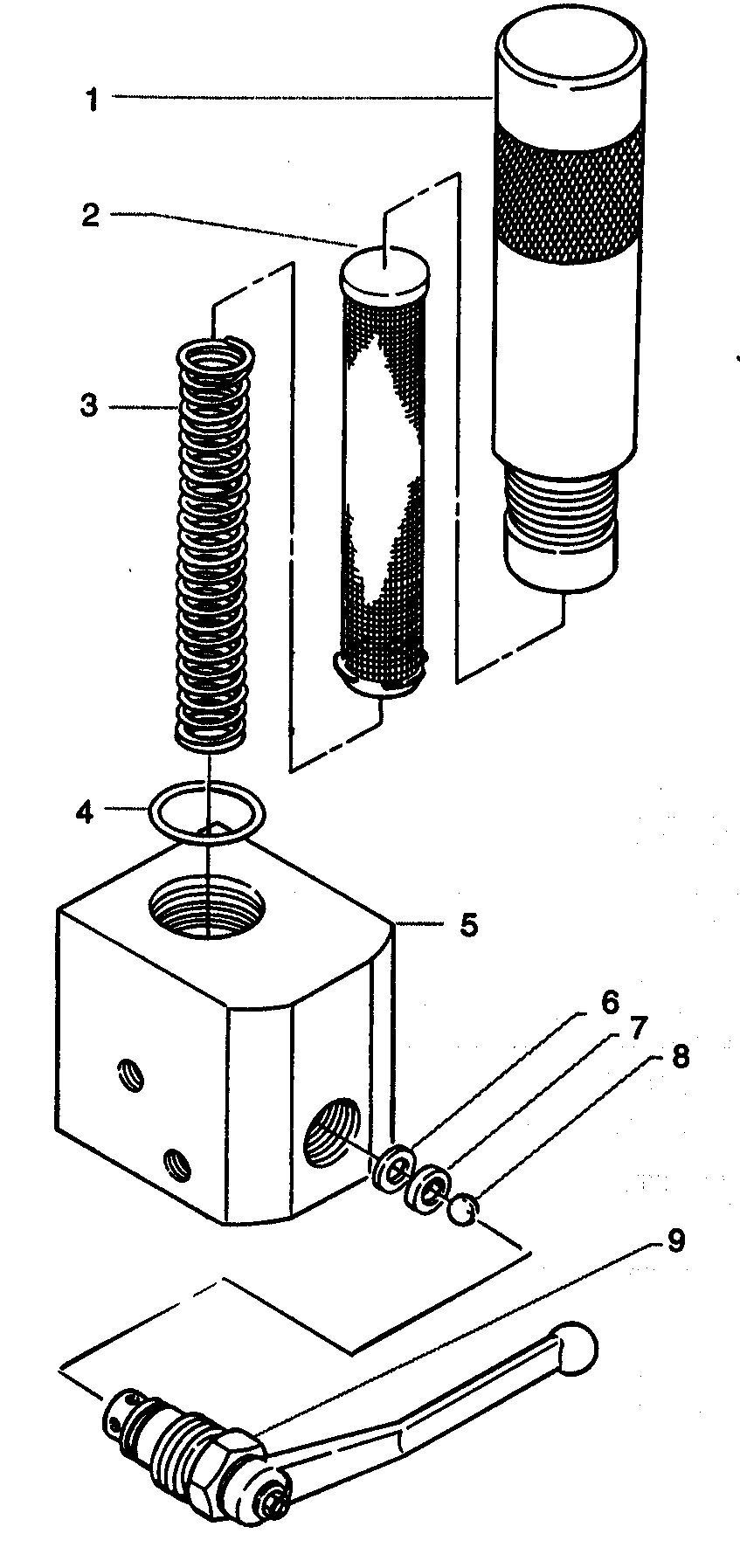

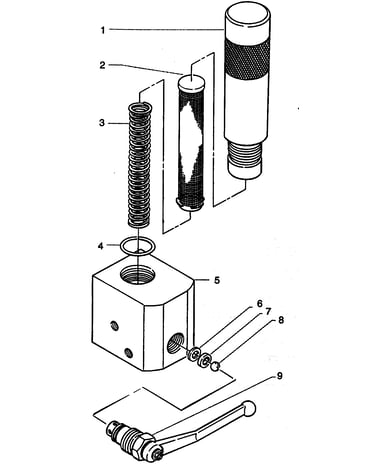

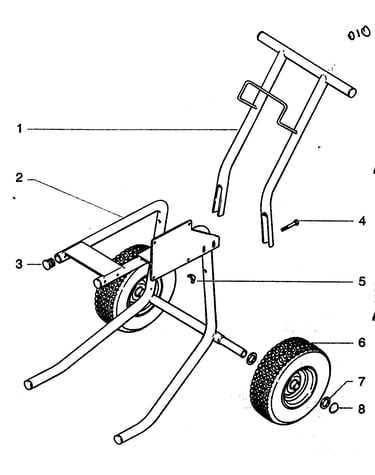

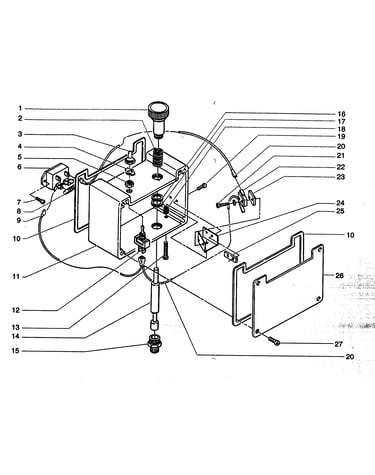

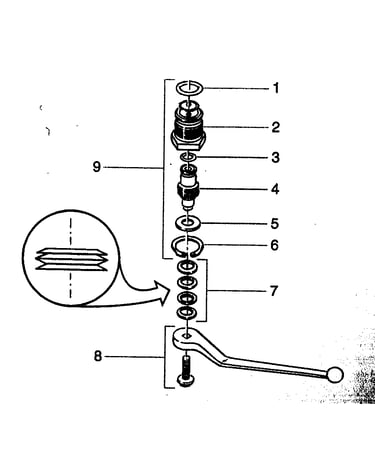

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |
Motor Brush 01694
#2

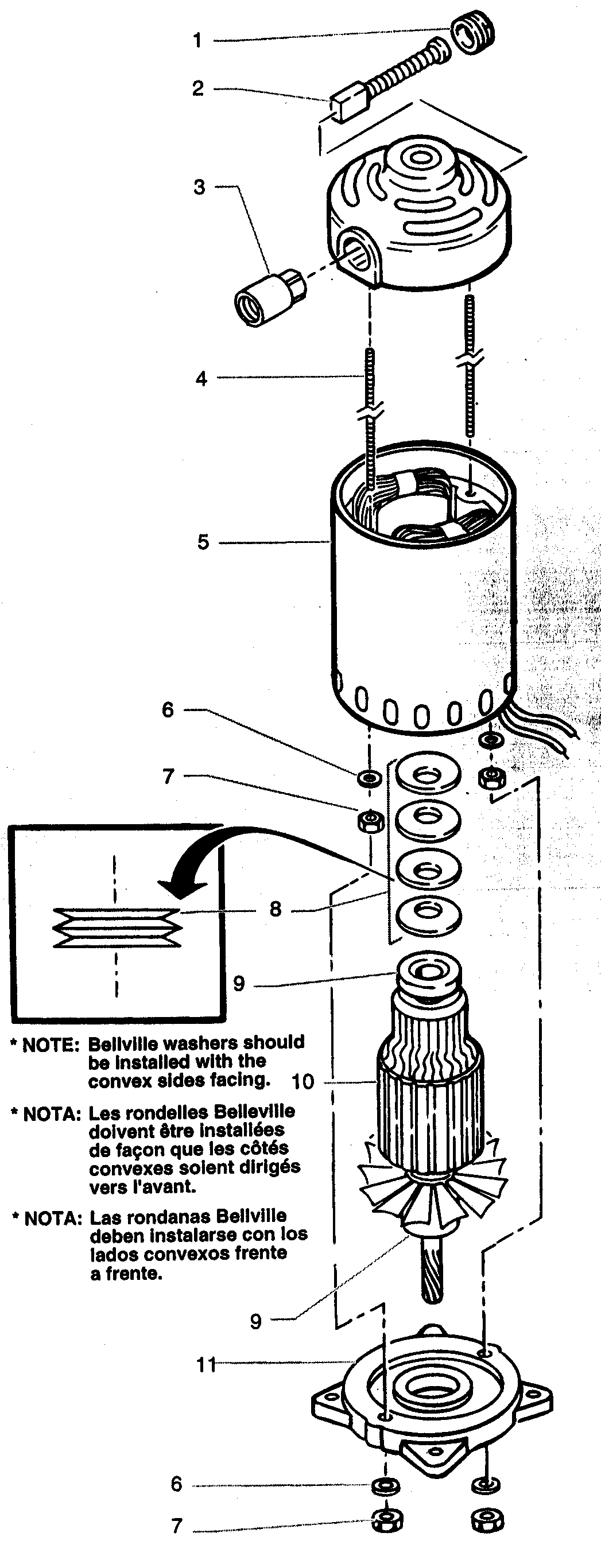

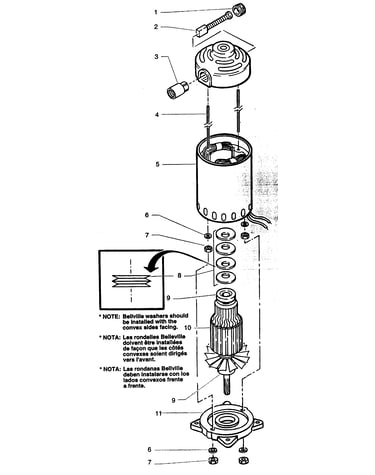

Motor assy diagram

Motor brush

Part #01694

The manufacturer no longer makes this part, and there's no substitute part

Connector 0093896
#NI

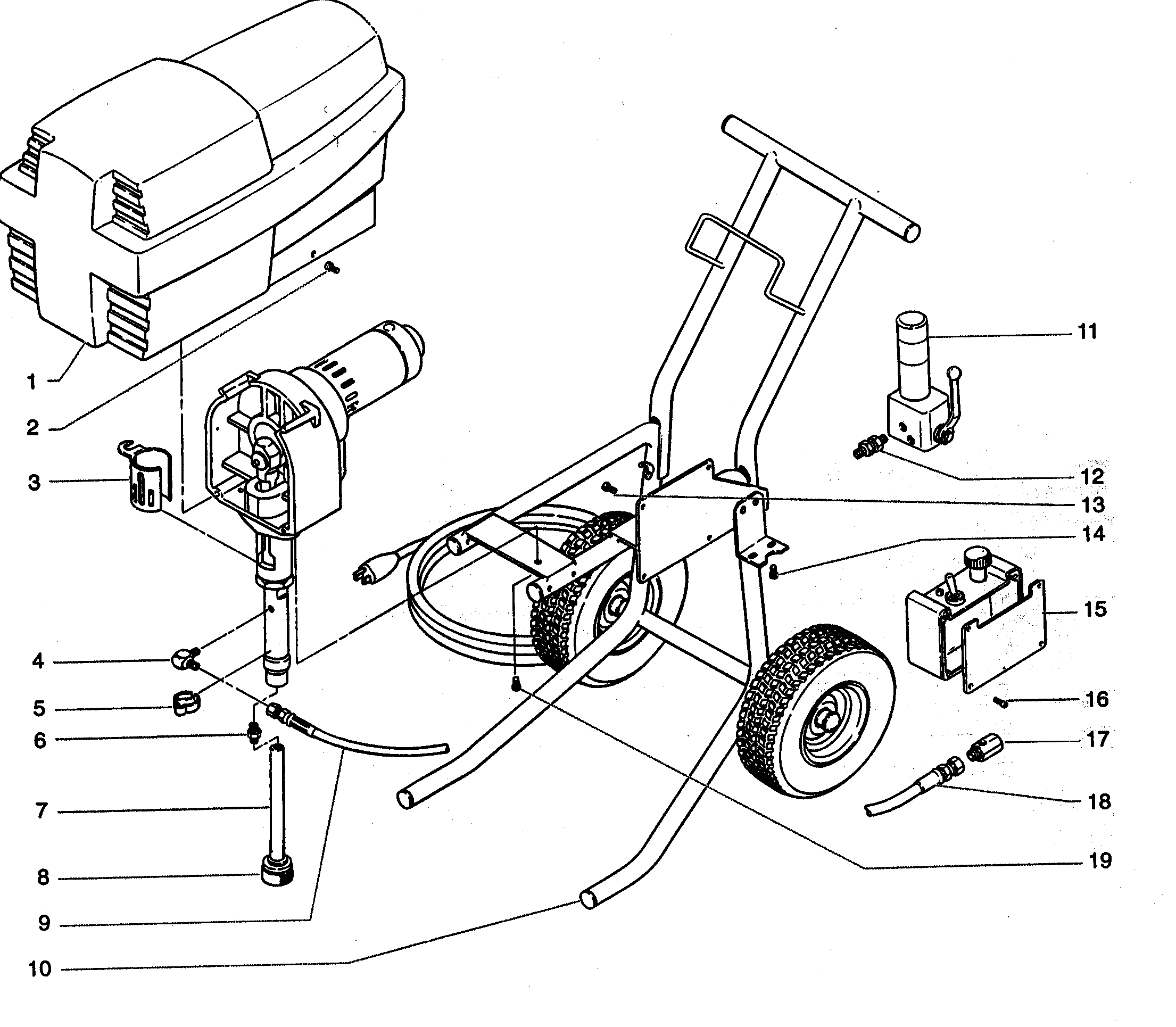

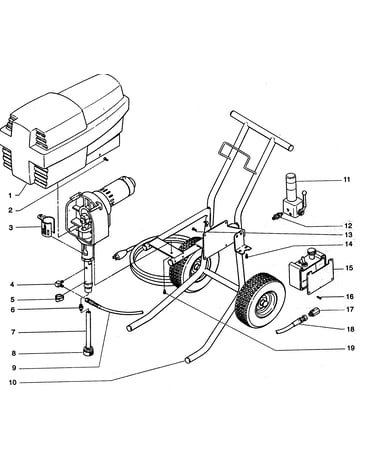

Final assy diagram

Connector

Part #0093896

The manufacturer no longer makes this part, and there's no substitute part

Stator Assembly 19498
#5

Motor assy diagram

Stator assembly

Part #19498

The manufacturer no longer makes this part, and there's no substitute part

O-ring 00203
#27

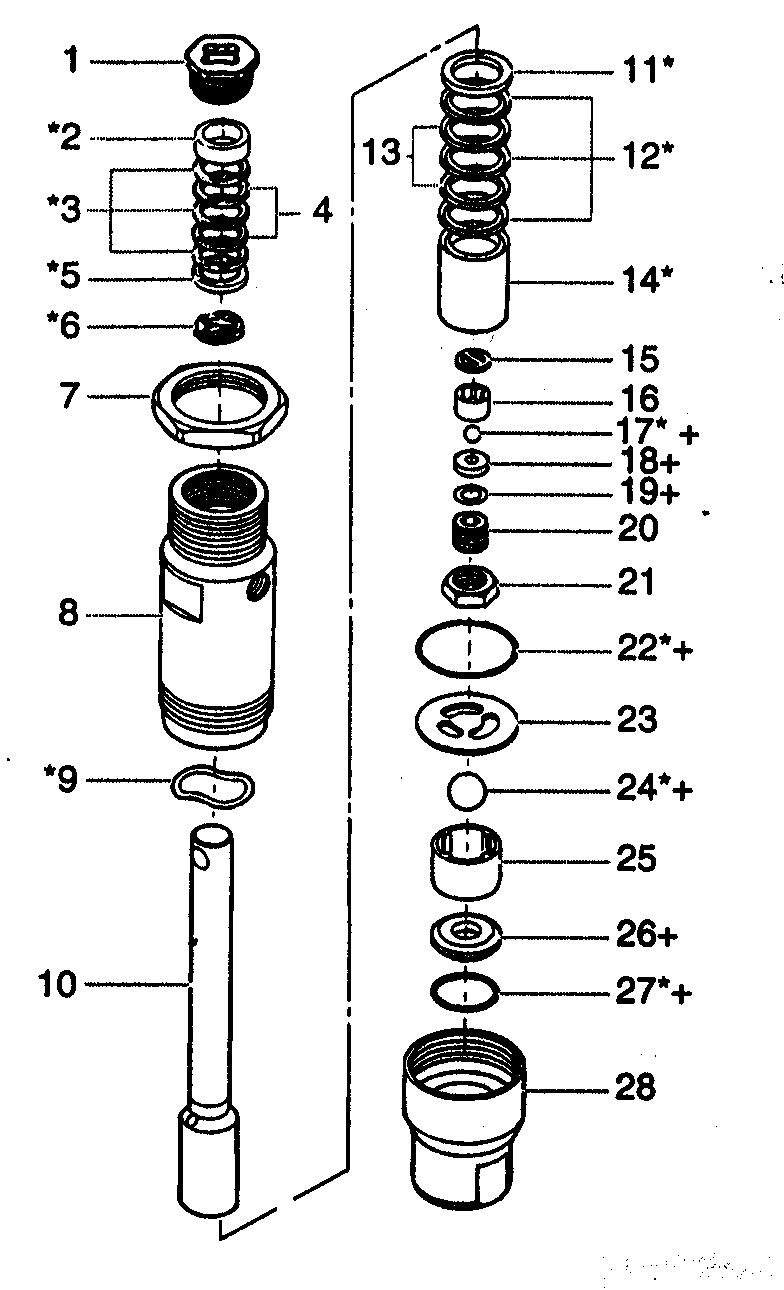

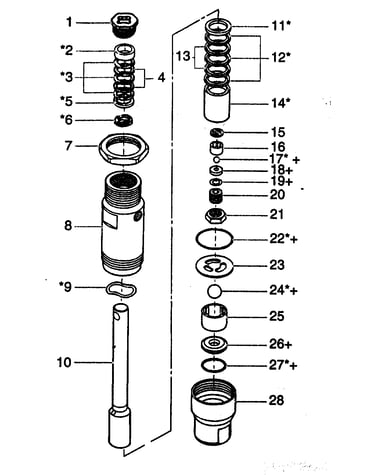

Fluid section assy diagram

O-ring

Part #00203

The manufacturer no longer makes this part, and there's no substitute part

Bolt Rod 13482
#21

Fluid section assy diagram

Bolt rod

Part #13482

The manufacturer no longer makes this part, and there's no substitute part

Slide Block 19089
#32

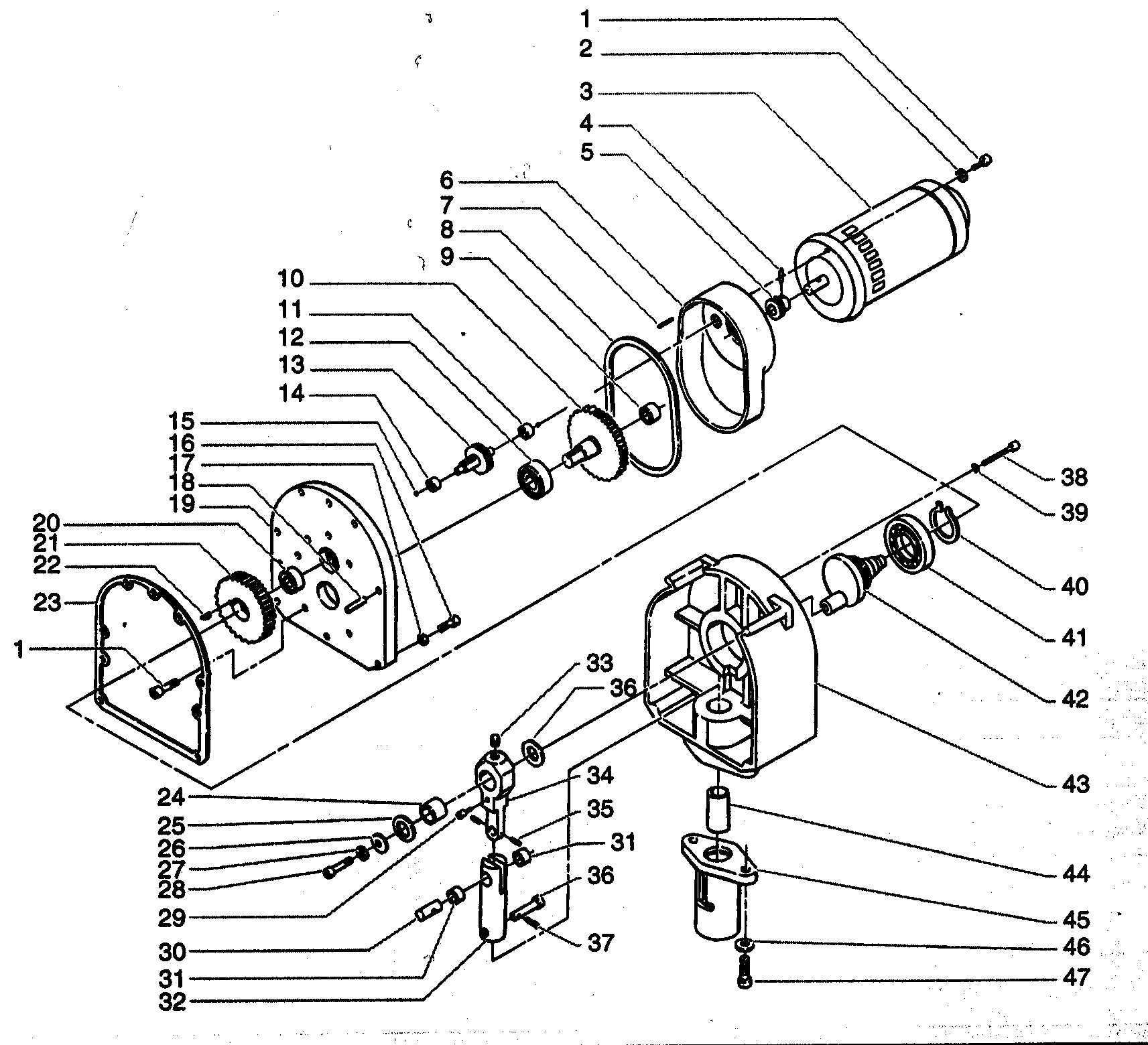

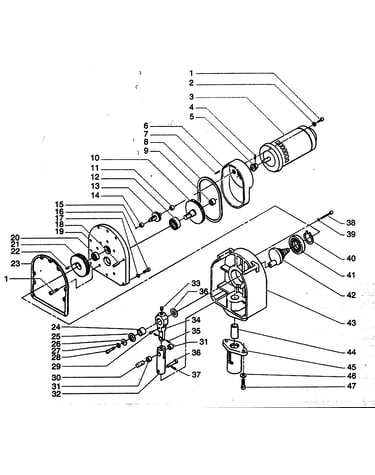

Drive assy diagram

Slide block

Part #19089

The manufacturer no longer makes this part, and there's no substitute part

Adapter 0294377
#2

Fluid section assy diagram

Adapter

Part #0294377

The manufacturer no longer makes this part, and there's no substitute part

Tee Two Gun 3/8" 0088157
#NI

Final assy diagram

Tee two gun 3/8"

Part #0088157

The manufacturer no longer makes this part, and there's no substitute part

Guide Bushing 19119
#44

Drive assy diagram

Guide bushing

Part #19119

The manufacturer no longer makes this part, and there's no substitute part

Hose Connector 3/8"x3/8"m 0088160
#NI

Final assy diagram

Hose connector 3/8"x3/8"m

Part #0088160

The manufacturer no longer makes this part, and there's no substitute part
