Model # GC2000XP Official Whirlpool garbage disposal

Here are the diagrams and repair parts for Official Whirlpool GC2000XP garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Kit, Installation (includes # 12, 13, 14, 15, 20, Instru 4211564
#22

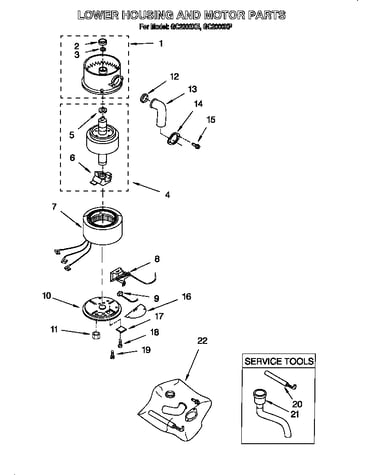

Lower housing and motor diagram

Kit, installation (includes # 12, 13, 14, 15, 20, instru

Part #4211564

The manufacturer no longer makes this part, and there's no substitute part

End Frame Assembly, Lower 4211515
#10

Lower housing and motor diagram

End frame assembly, lower

Part #4211515

The manufacturer no longer makes this part, and there's no substitute part

Screw, Backup 4211305
#6

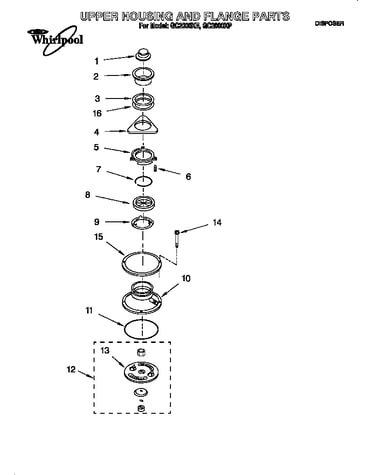

Upper housing and flange diagram

Screw, backup

Part #4211305

The manufacturer no longer makes this part, and there's no substitute part

Ground Screw 4211330
#19

Lower housing and motor diagram

Ground screw

Part #4211330

The manufacturer no longer makes this part, and there's no substitute part

Bolt, Thru 4211512
#14

Upper housing and flange diagram

Bolt, thru

Part #4211512

The manufacturer no longer makes this part, and there's no substitute part

Adapter, Sink 4211396
#21

Lower housing and motor diagram

Adapter, sink

Part #4211396

The manufacturer no longer makes this part, and there's no substitute part

Thrust Washer 4211315
#3

Lower housing and motor diagram

Thrust washer

Part #4211315

The manufacturer no longer makes this part, and there's no substitute part

Installation Instructions LIT4211614

#NI

All parts diagram

Installation instructions

Part #LIT4211614

The manufacturer no longer makes this part, and there's no substitute part

Washer 4211321
#5

Lower housing and motor diagram

Washer

Part #4211321

The manufacturer no longer makes this part, and there's no substitute part

Overload Protector 4211549
#9

Lower housing and motor diagram

Overload protector

Part #4211549

The manufacturer no longer makes this part, and there's no substitute part
