Model # 030730-00 Official Briggs & Stratton generator

Here are the diagrams and repair parts for Official Briggs & Stratton 030730-00 generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

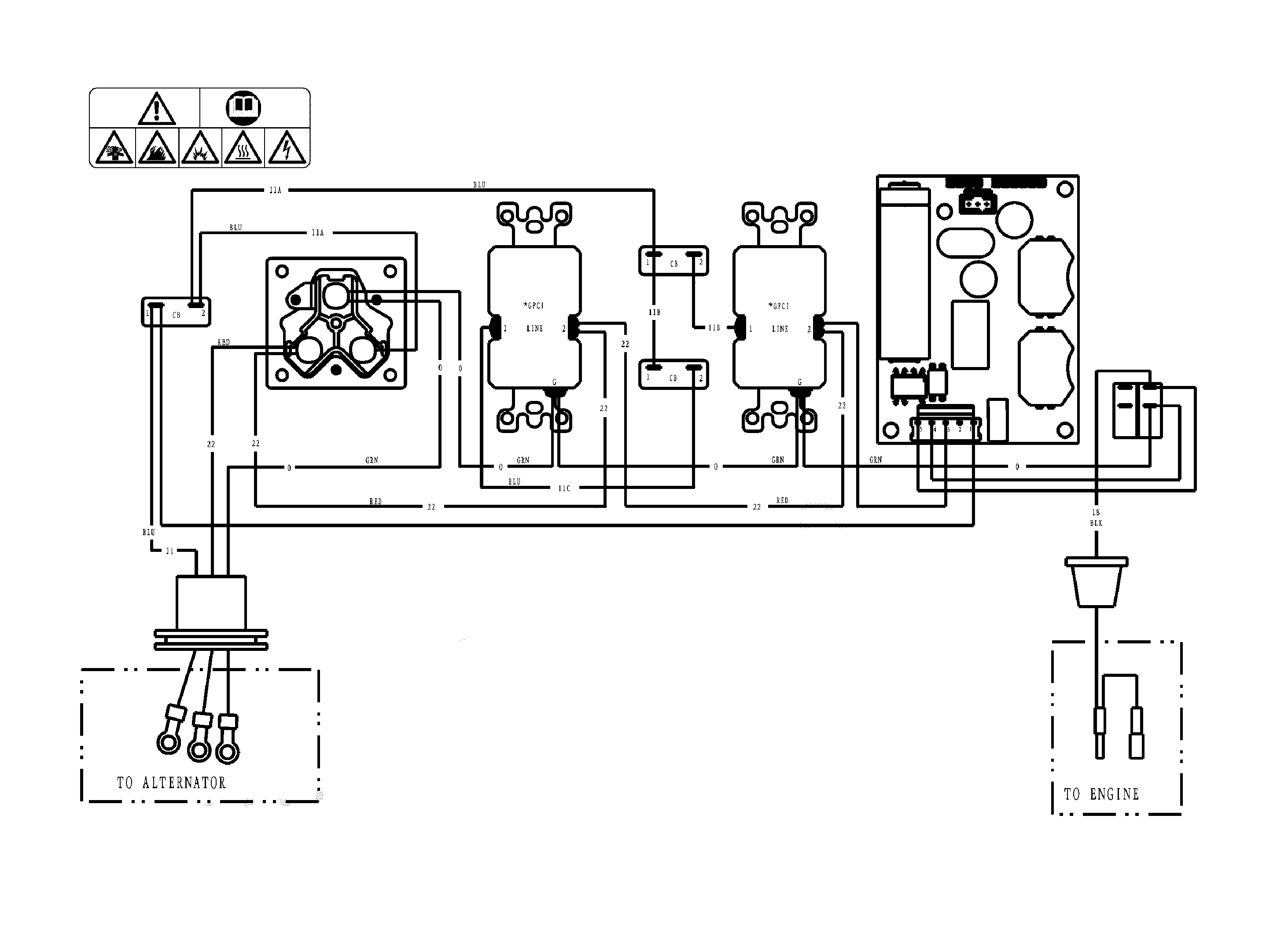

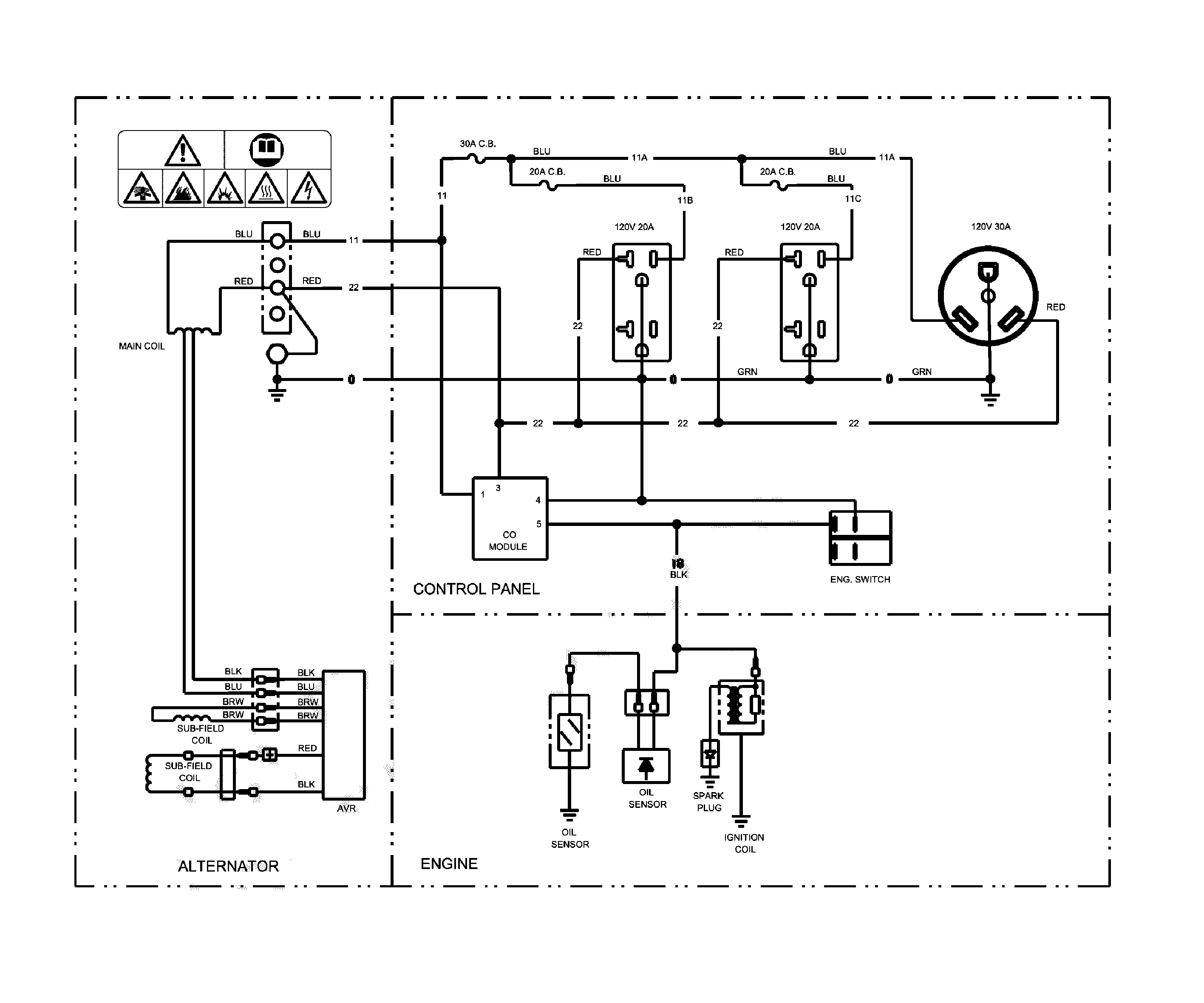

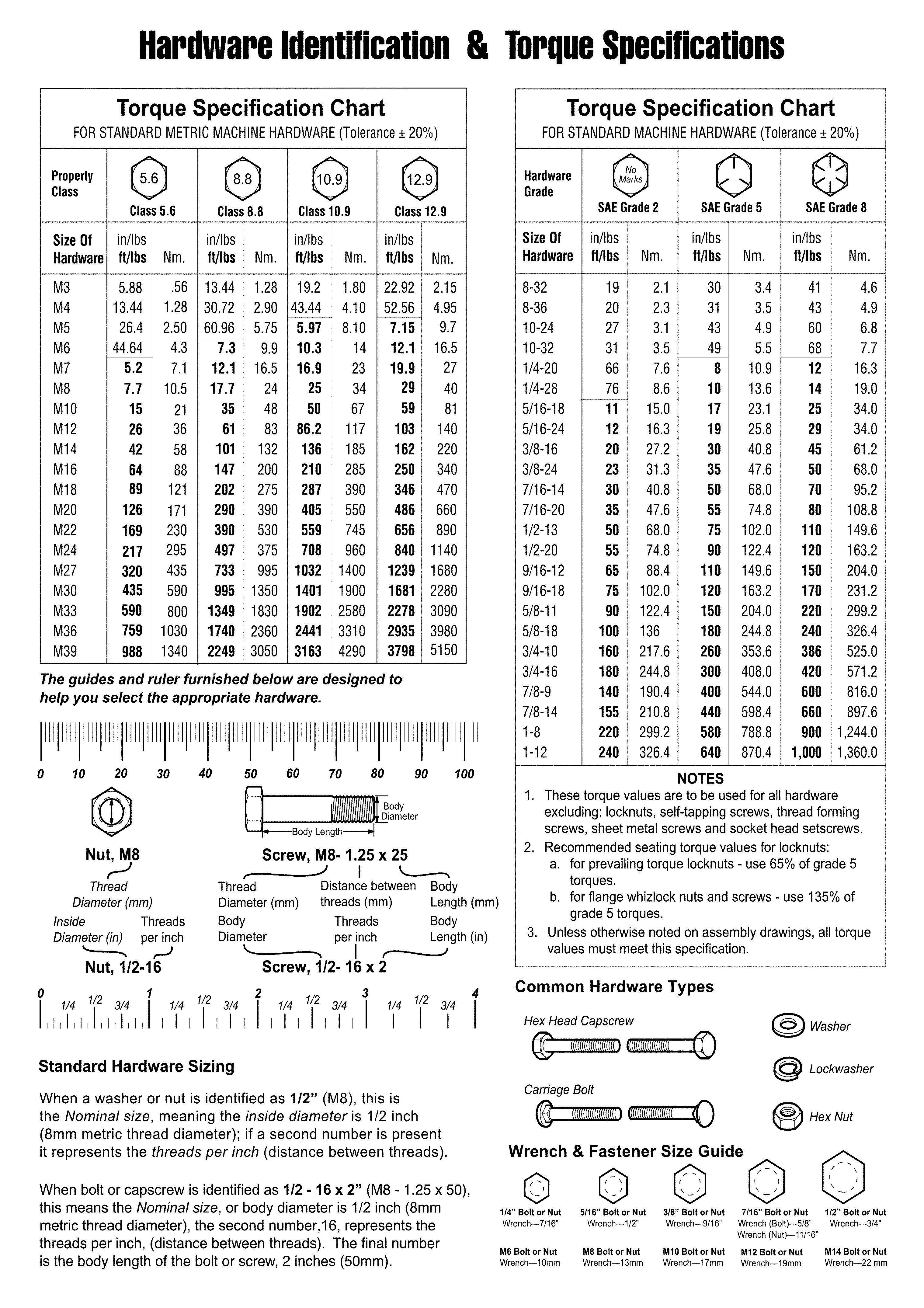

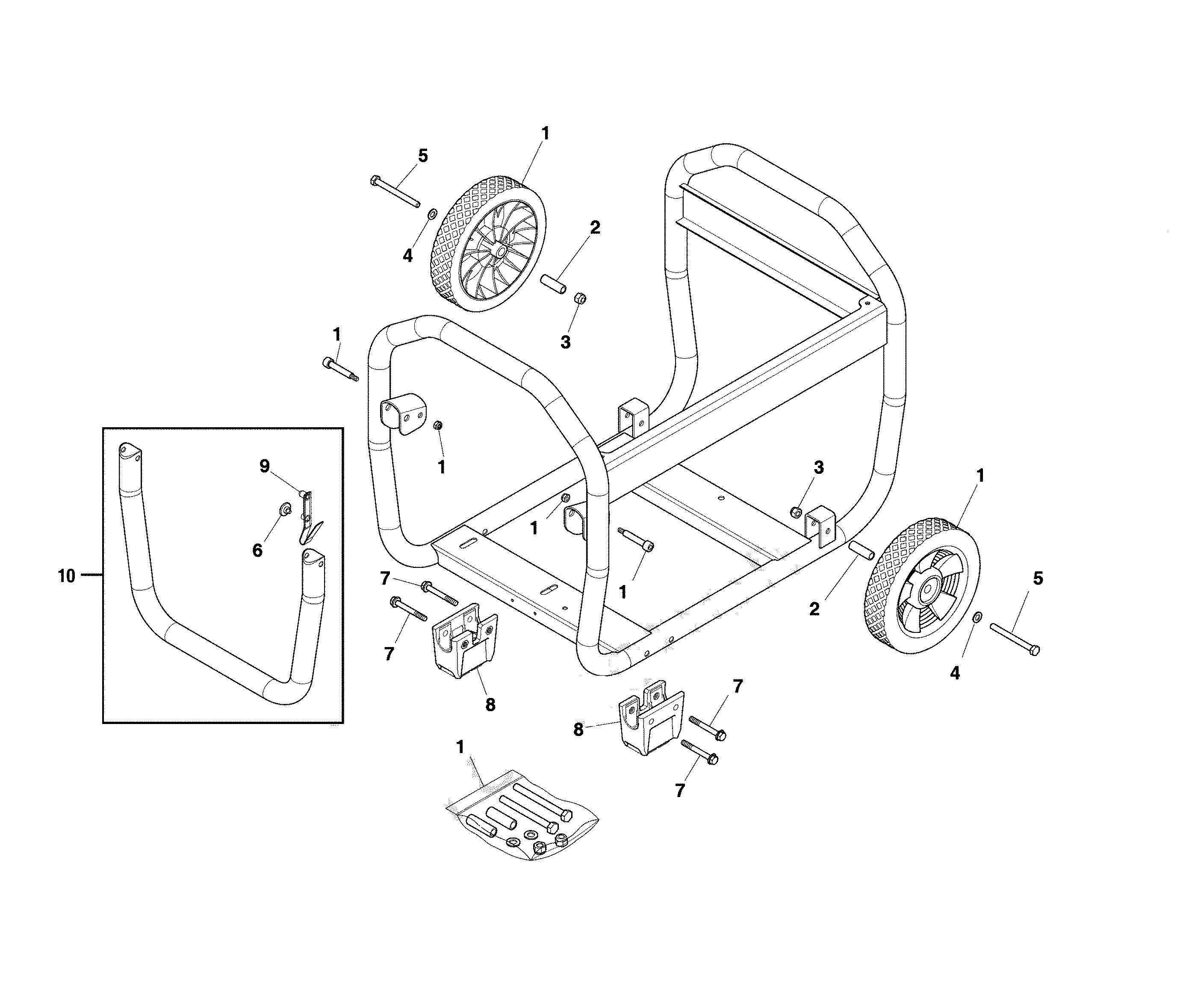

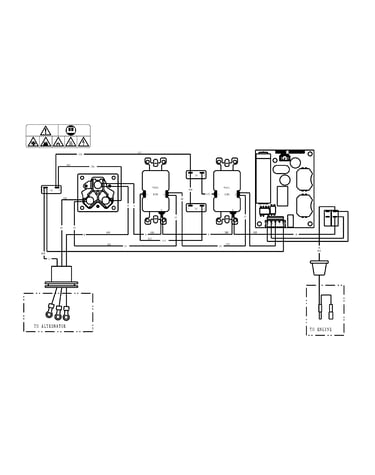

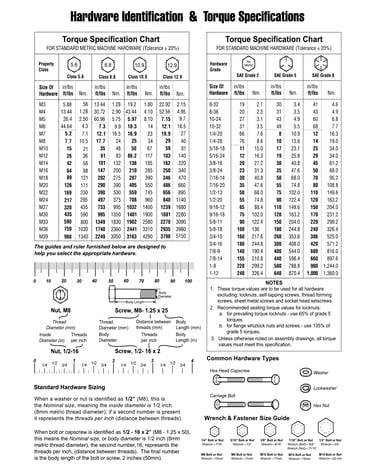

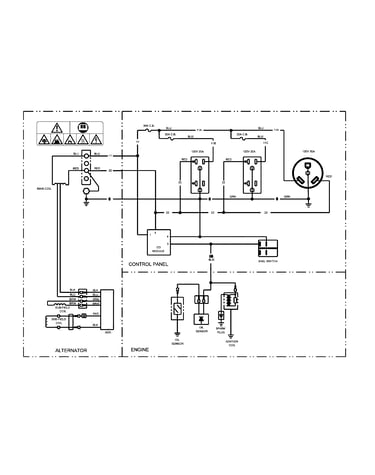

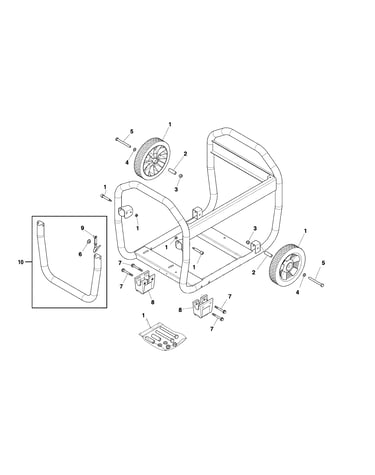

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |

Lawn & Garden Equipment Fuel Line Kit 791745
#23

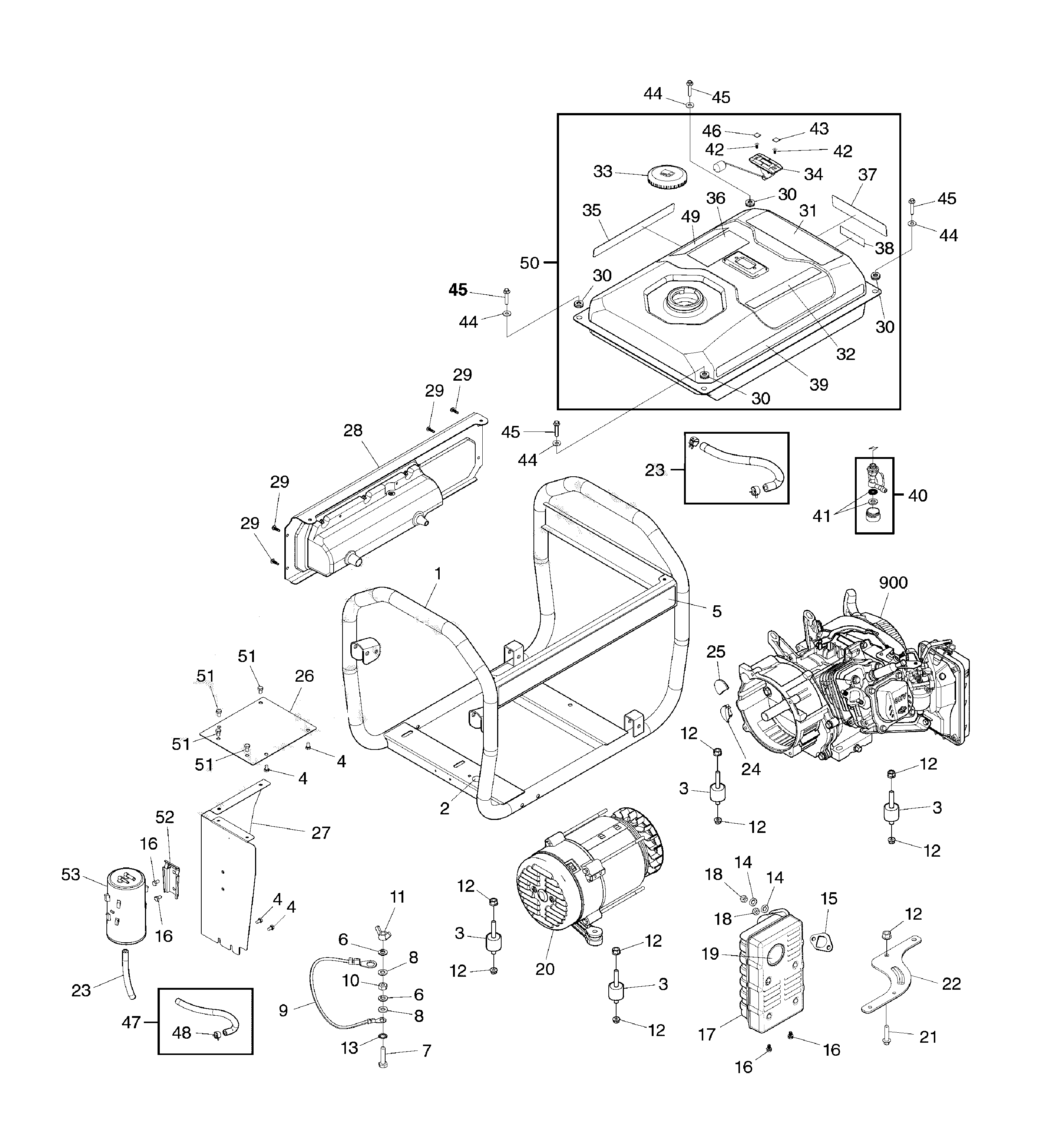

Main unit diagram

Lawn & garden equipment fuel line kit

Part #791745

This item is not returnable
$19.69
9% OFF Phone Price : $21.69
In Stock
Brush 704914
#11

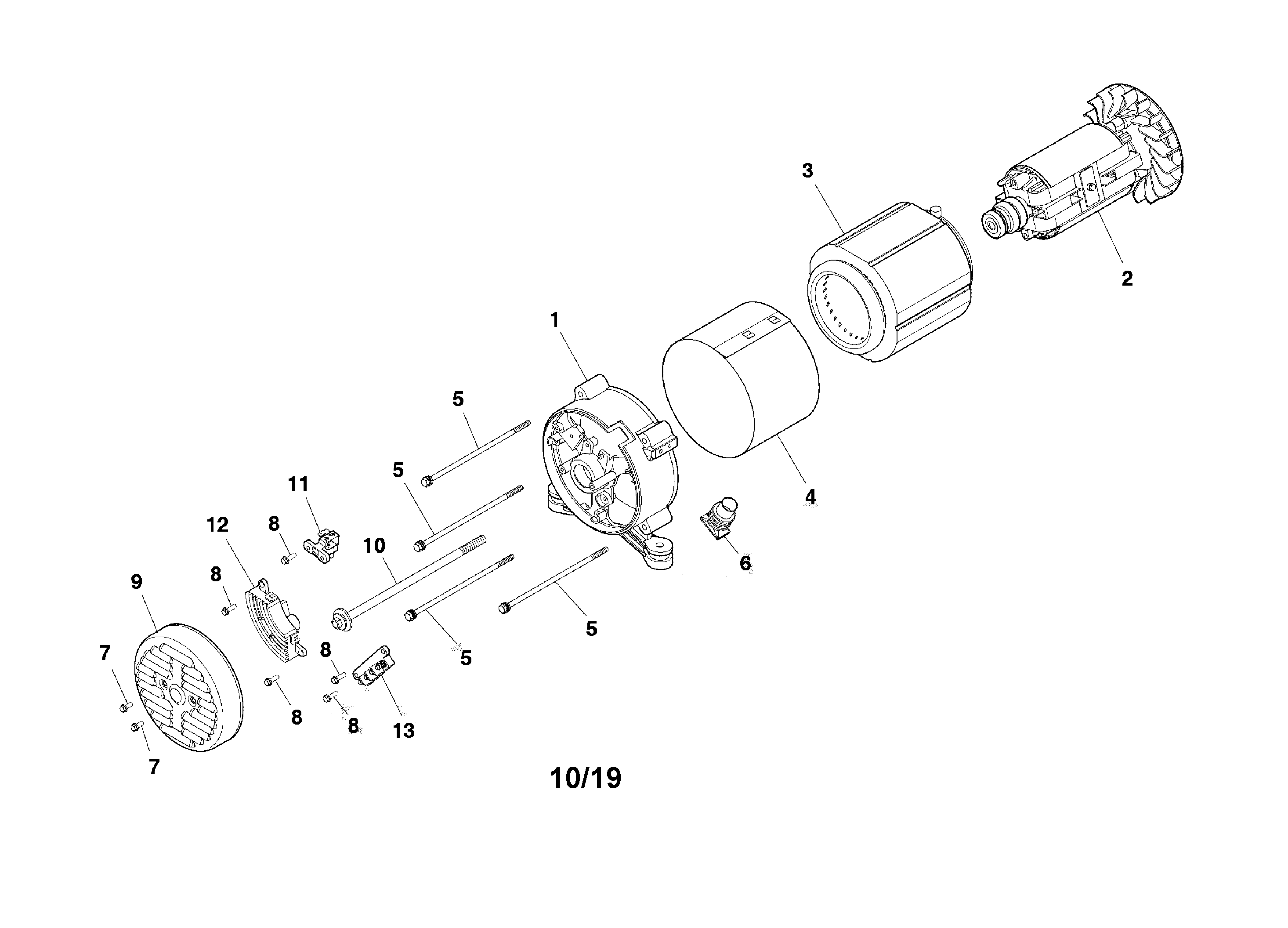

Alternator diagram

Brush

Part #704914

In Stock
Generator Voltage Regulator 705692
#12

Alternator diagram

Generator voltage regulator

Part #705692

In Stock
Generator Carbon Monoxide Sensor Module 772211
#13

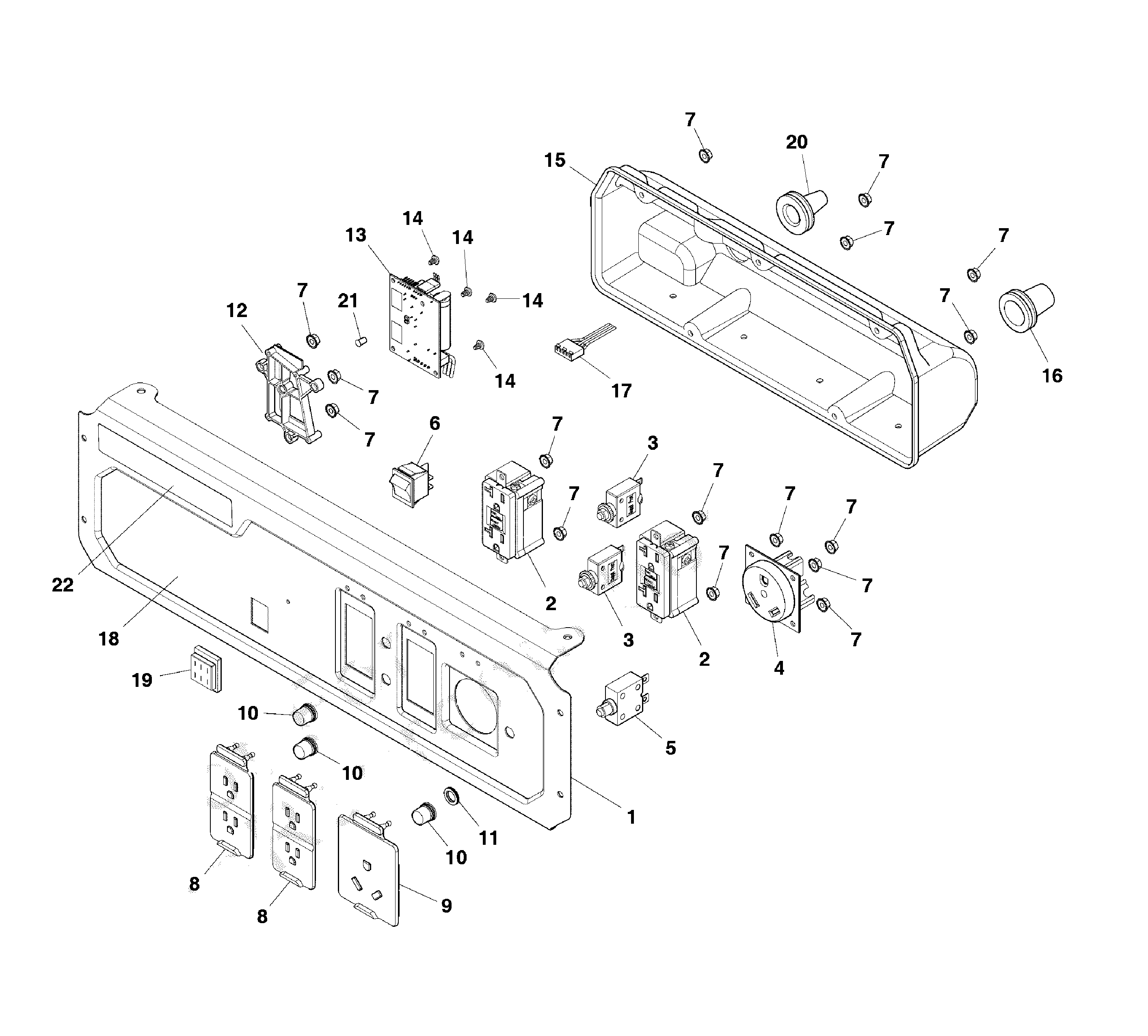

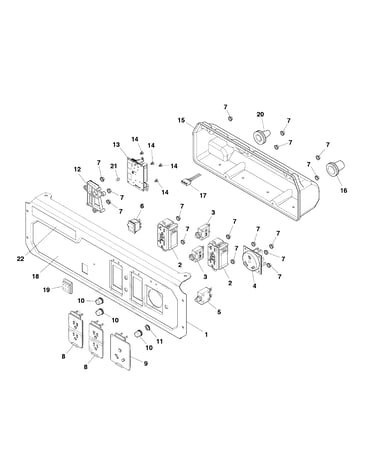

Control panel diagram

Generator carbon monoxide sensor module

Part #772211

In Stock
Lawn & Garden Equipment Lock Washer 703454
#14

Main unit diagram

Lawn & garden equipment lock washer

Part #703454

This item is not returnable
In Stock
Lawn & Garden Equipment Nut 45771GS
#18

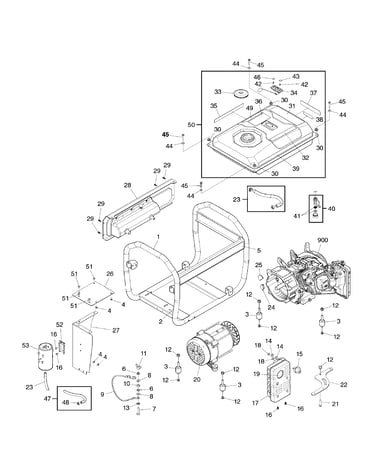

Main unit diagram

Lawn & garden equipment nut

Part #45771GS

In Stock
Fuel Gauge 704183
#34

Main unit diagram

Fuel gauge

Part #704183

In Stock
Bracket-module 772213
#12

Control panel diagram

Bracket-module

Part #772213

This item is not returnable
In Stock
Decal 772237
#32

Main unit diagram

Decal

Part #772237

In Stock
Cover 704969
#1

Alternator diagram

Cover

Part #704969

In Stock
