Model # 31511150 Official Craftsman 3/8" electric drill

Here are the diagrams and repair parts for Official Craftsman 31511150 3/8" electric drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |

Screw 1-930993-01
#38

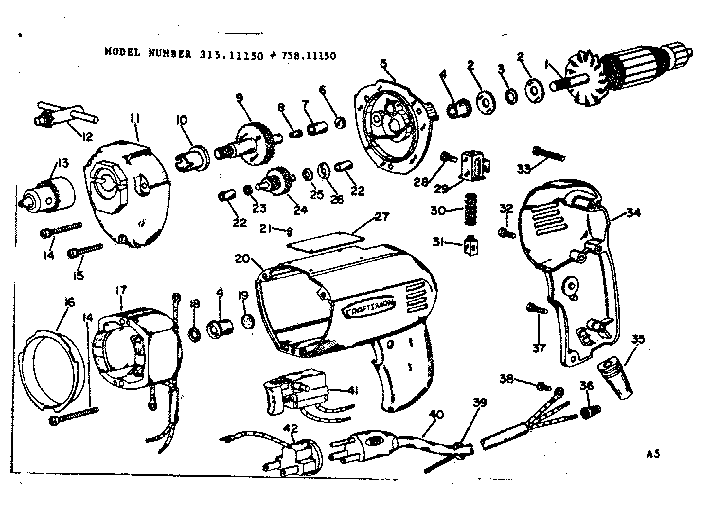

Unit parts diagram

Screw

Part #1-930993-01

The manufacturer no longer makes this part, and there's no substitute part

Motr Housng 5-623855-10
#20

Unit parts diagram

Motr housng

Part #5-623855-10

The manufacturer no longer makes this part, and there's no substitute part

Cord Comp 2-622897-01
#40

Unit parts diagram

Cord comp

Part #2-622897-01

The manufacturer no longer makes this part, and there's no substitute part

Wire Connctr 1-623173-01
#36

Unit parts diagram

Wire connctr

Part #1-623173-01

The manufacturer no longer makes this part, and there's no substitute part

Switch 2-624172-01
#41

Unit parts diagram

Switch

Part #2-624172-01

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 2-621594-00
#16

Unit parts diagram

Fan blade

Part #2-621594-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-940038-802
#33

Unit parts diagram

Screw

Part #1-940038-802

The manufacturer no longer makes this part, and there's no substitute part

Washer 1-931055-802
#23

Unit parts diagram

Washer

Part #1-931055-802

The manufacturer no longer makes this part, and there's no substitute part

Bearing 1-620613-00
#4

Unit parts diagram

Bearing

Part #1-620613-00

The manufacturer no longer makes this part, and there's no substitute part

Parts List EN-324

#NI

All parts diagram

Parts list

Part #EN-324

The manufacturer no longer makes this part, and there's no substitute part
