KitchenAid
Wine & Beverage Cooler

Model # KUBL314KSS00 Official KitchenAid refrigerator, beverage center, under counter, 24 inch

Here are the diagrams and repair parts for Official KitchenAid KUBL314KSS00 refrigerator, beverage center, under counter, 24 inch, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Gasket Door W11360668
#5

Door parts diagram

Gasket door

Part #W11360668

$47.04
In Stock
Temp Fuse As W11359415
#6

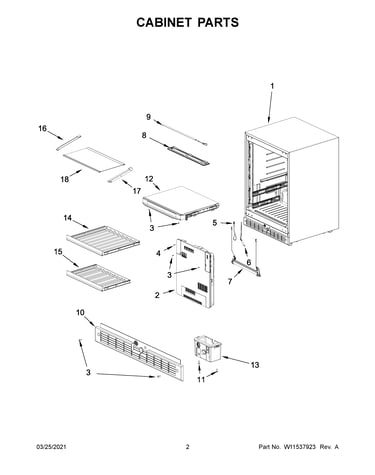

Cabinet parts diagram

Temp fuse as

Part #W11359415

$43.09 |
10% OFF Phone Price : $48.09
In Stock
Clip W10270517
#1

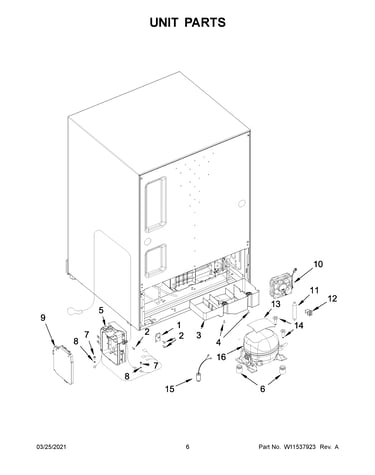

Unit parts diagram

Clip

Part #W10270517

$29.89
In Stock
Wine Rack B W11532980
#15

Cabinet parts diagram

Wine rack b

Part #W11532980

$218.18
In Stock
Fan Motor As W11360536
#10

Unit parts diagram

Fan motor as

Part #W11360536

$89.16
In Stock
Box Sw As W11359433
#13

Cabinet parts diagram

Box sw as

Part #W11359433

$101.18
In Stock
Sash Gasket W11360665
#6

Door parts diagram

Sash gasket

Part #W11360665

$121.47
In Stock
Glass Shelf W10797333
#17

Cabinet parts diagram

Glass shelf

Part #W10797333

$16.37
In Stock
Lens-light W11312450
#8

Cabinet parts diagram

Lens-light

Part #W11312450

$39.80
In Stock
Glass Tray A W11538058
#18

Cabinet parts diagram

Glass tray a

Part #W11538058

$63.84
In Stock
