Amana
Wall Oven/Microwave Combo

Model # K-880.002 Official Amana wall oven

Here are the diagrams and repair parts for Official Amana K-880002 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

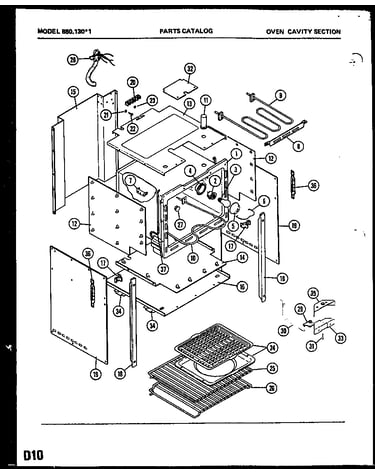

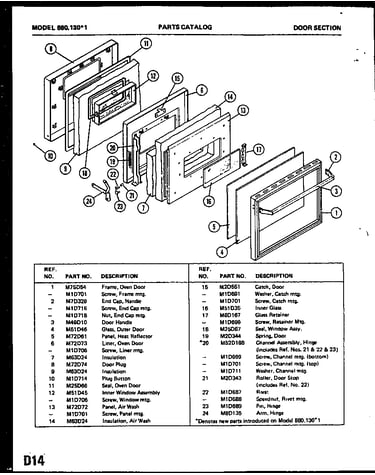

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 259 parts  |
Oven Light Switch M14D150
#10A

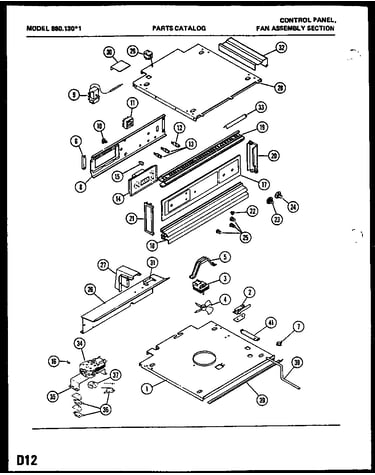

Control panel. fan assembly section (880.130*1) diagram

Oven light switch

Part #M14D150

The manufacturer no longer makes this part, and there's no substitute part

Screw Switch Mtg. M1D1
Screw switch mtg.

Part #M1D1

The manufacturer no longer makes this part, and there's no substitute part

Screw, Handle Mounting M1D618
#63B

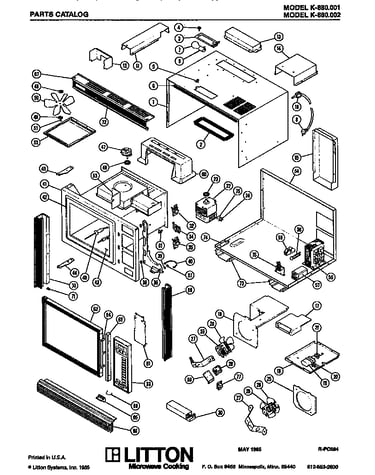

(k-880.001) (k-880.002) diagram

Screw, handle mounting

Part #M1D618

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade M35D3
#28

(k-880.001) (k-880.002) diagram

Fan blade

Part #M35D3

The manufacturer no longer makes this part, and there's no substitute part

Electronic Control Circiut Board Assembly M32R19
#61A

(k-880.001) (k-880.002) diagram

Electronic control circiut board assembly

Part #M32R19

The manufacturer no longer makes this part, and there's no substitute part

Panel, Top Casing M72D62
#28A

Control panel. fan assembly section (880.130*1) diagram

Panel, top casing

Part #M72D62

The manufacturer no longer makes this part, and there's no substitute part

Fuse M4D34
#58B

(k-880.001) (k-880.002) diagram

Fuse

Part #M4D34

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Duct, Cavity M65D145
#11A

(k-880.001) (k-880.002) diagram

Exhaust duct, cavity

Part #M65D145

The manufacturer no longer makes this part, and there's no substitute part

Guard, Intrusion M2D364
#53

(k-880.001) (k-880.002) diagram

Guard, intrusion

Part #M2D364

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer, Bracket Mtg. M1D361
#37

(k-880.001) (k-880.002) diagram

Flat washer, bracket mtg.

Part #M1D361

The manufacturer no longer makes this part, and there's no substitute part
