Whirlpool
Wall Oven/Microwave Combo

Model # WOCA7EC0HN03 Official Whirlpool electric oven/microwave combo

Here are the diagrams and repair parts for Official Whirlpool WOCA7EC0HN03 electric oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

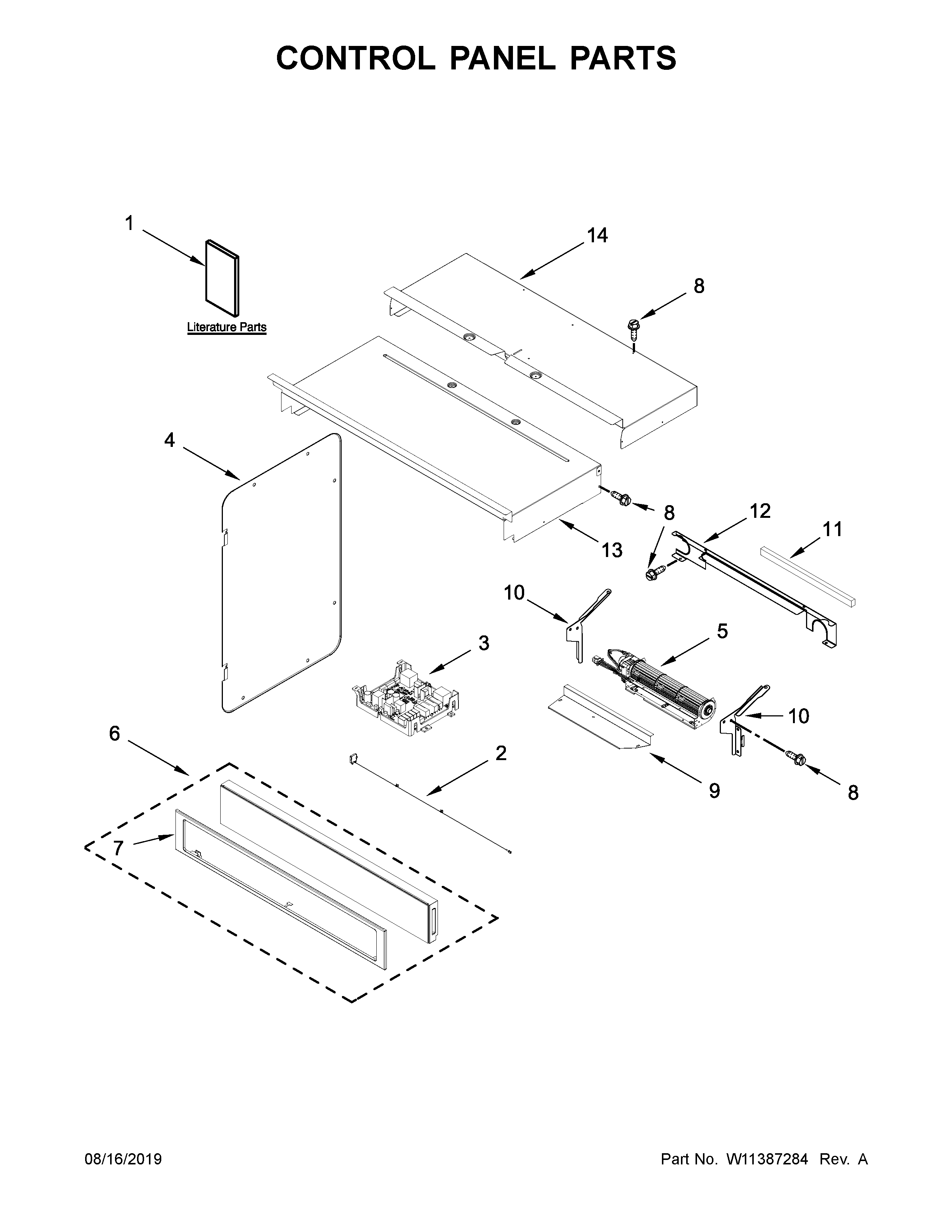

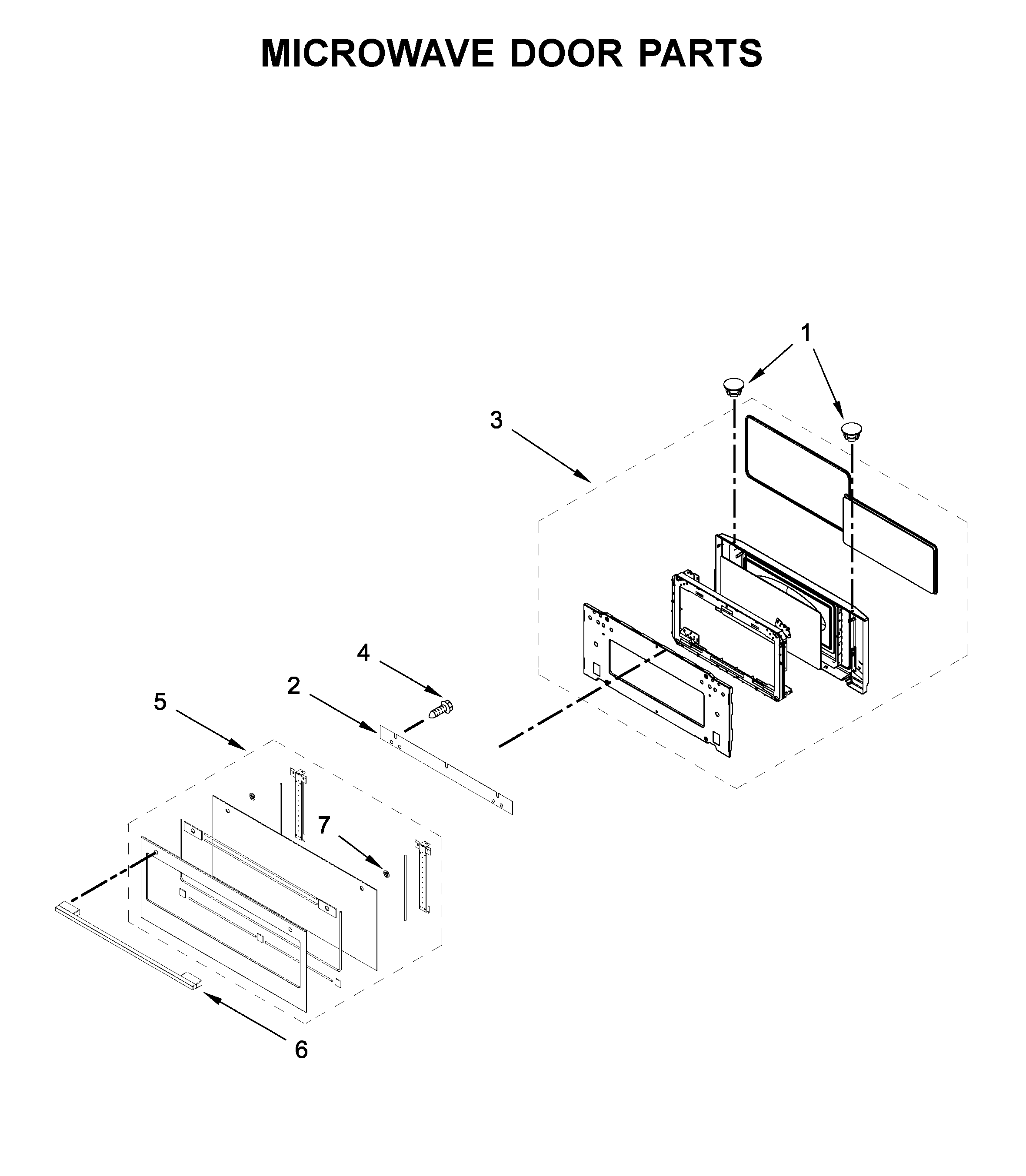

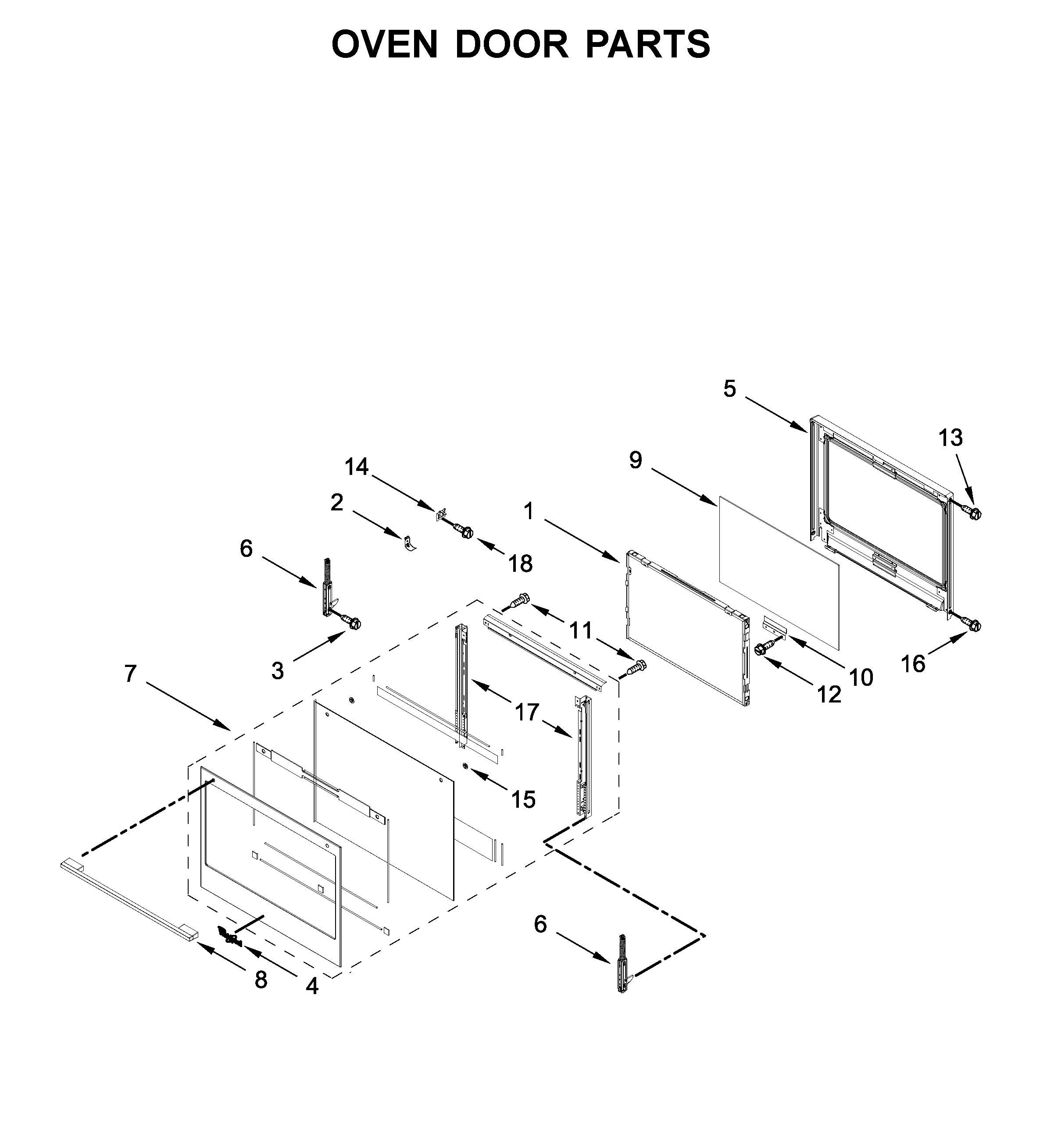

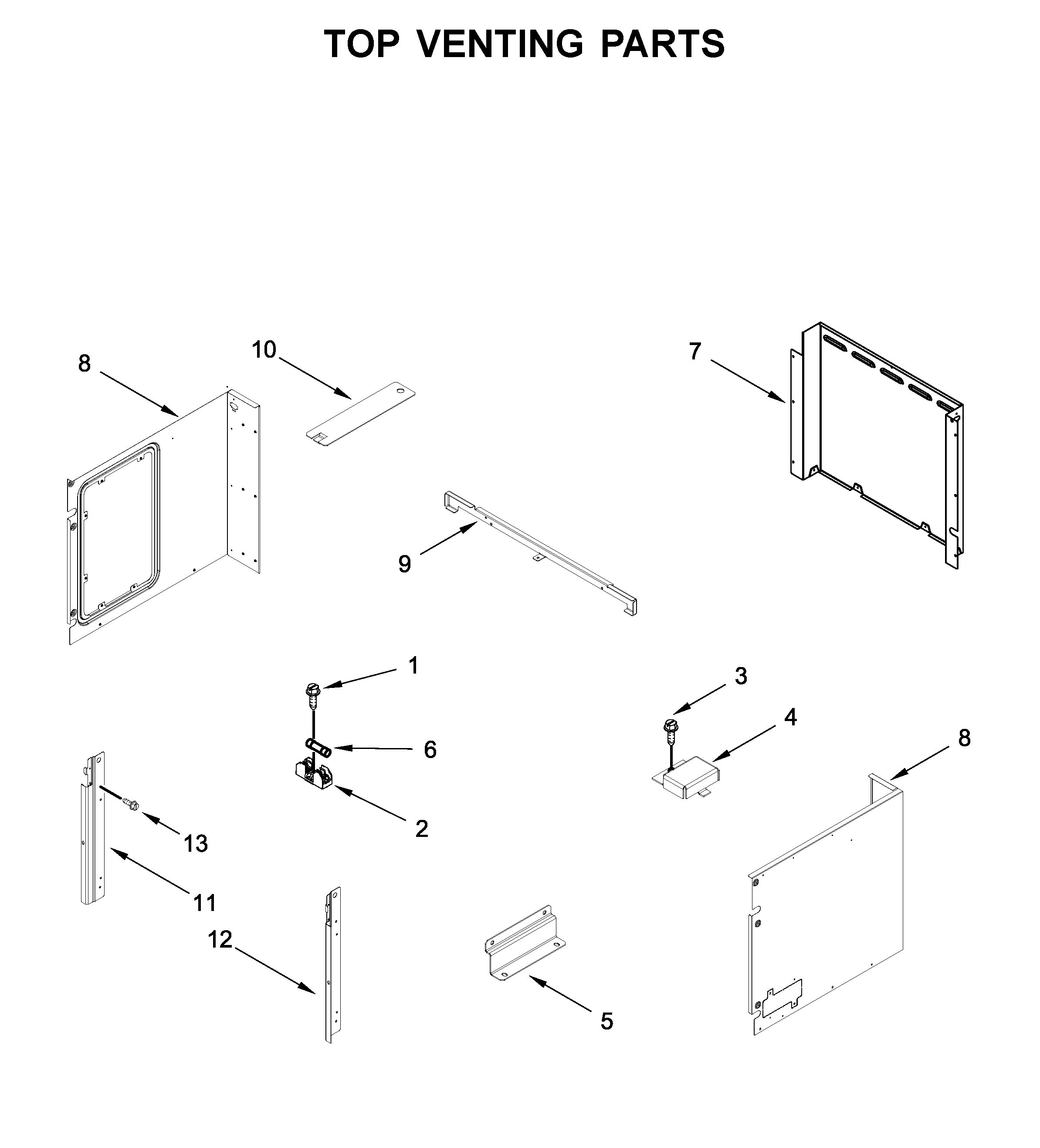

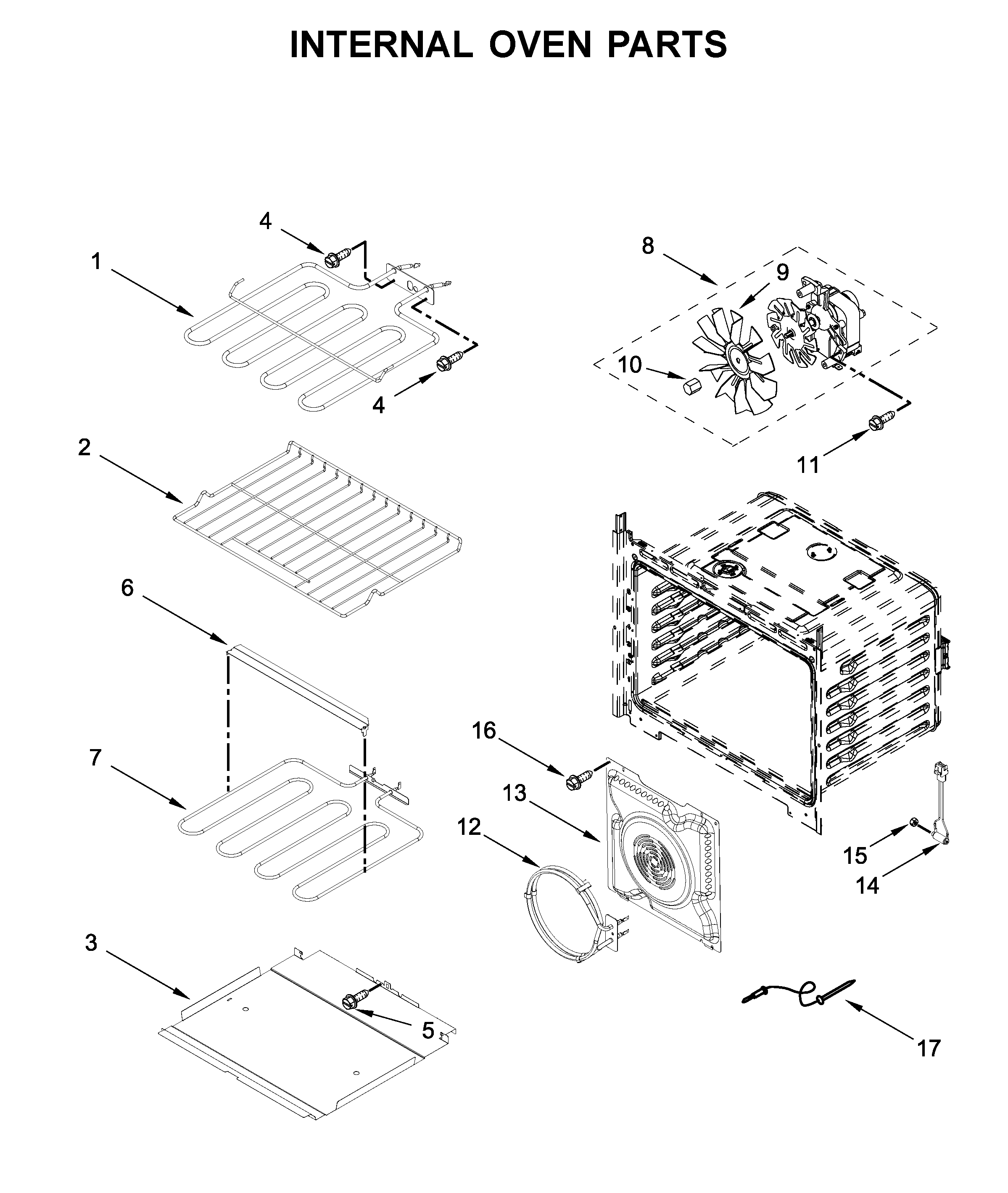

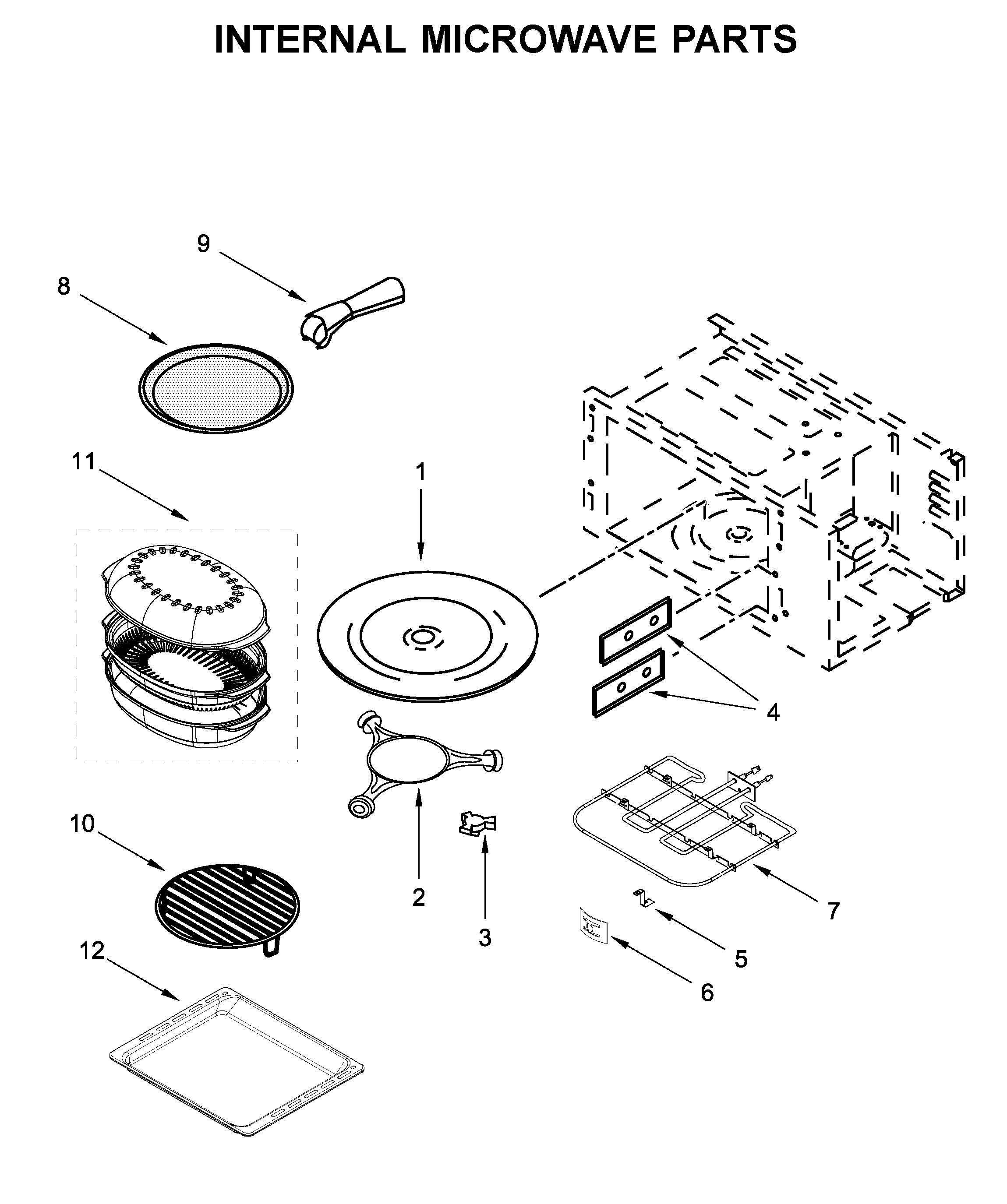

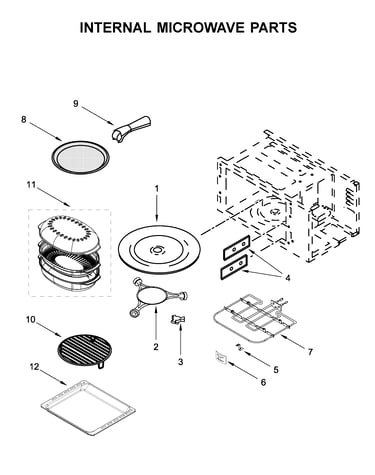

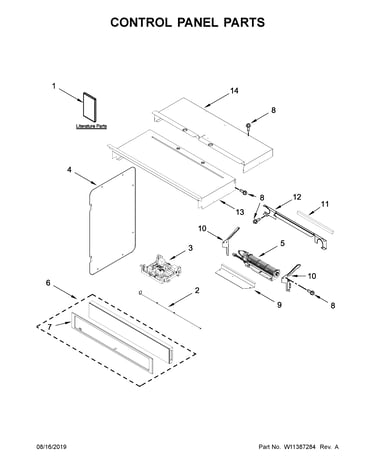

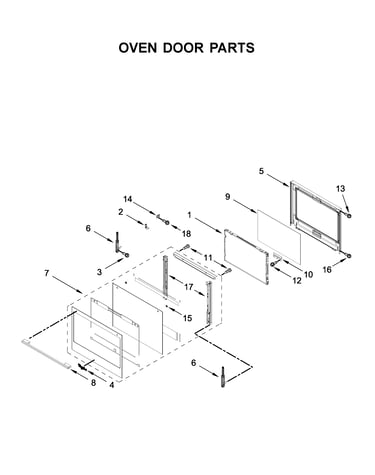

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 192 parts  |
Switch 461967848881
#15

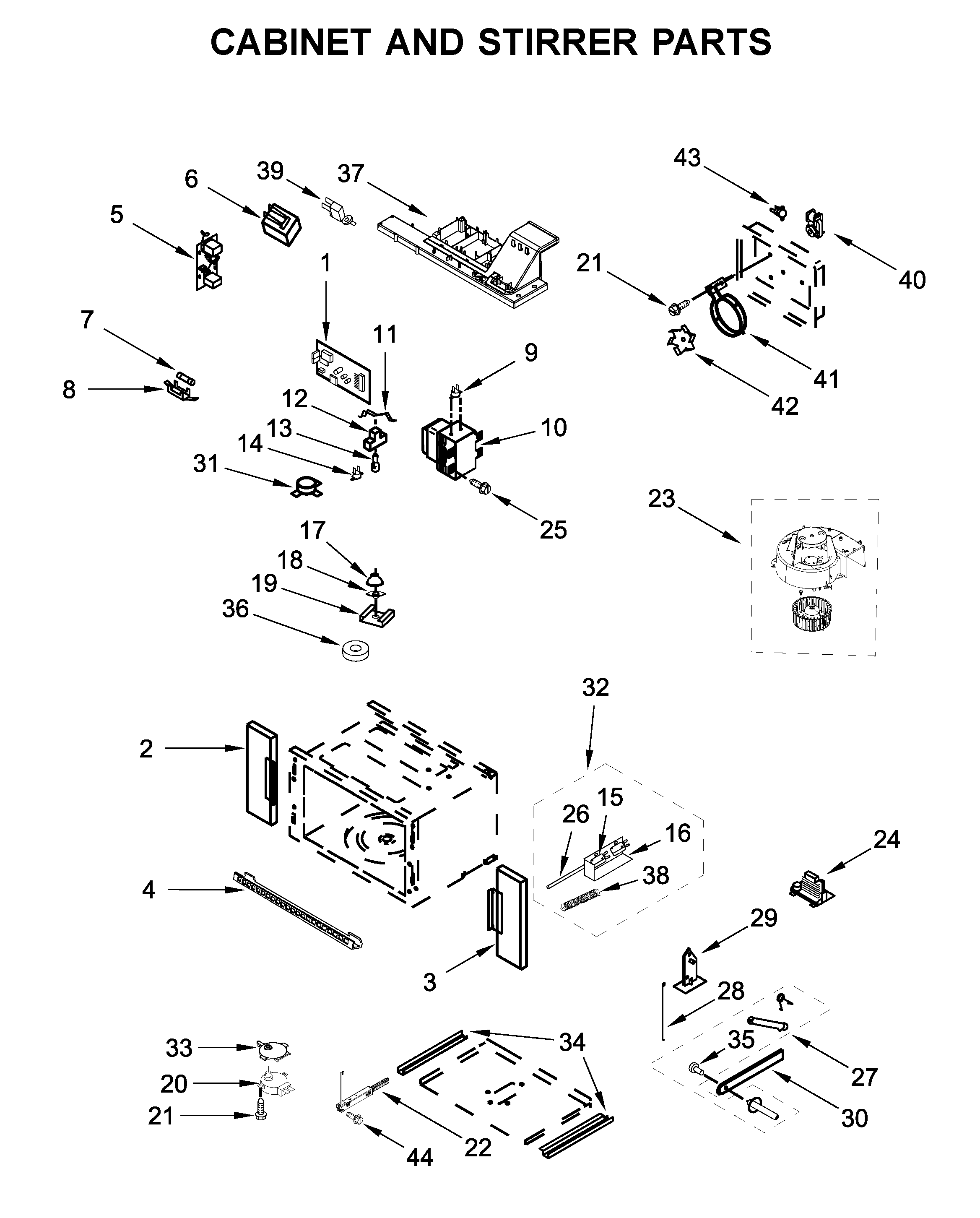

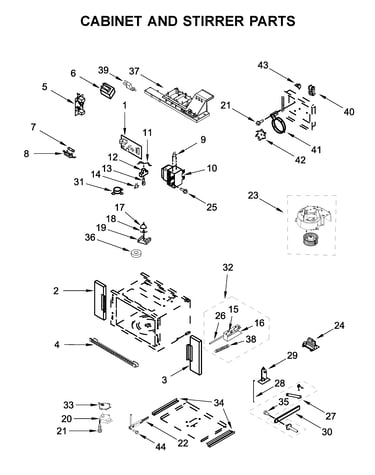

Cabinet and stirrer parts diagram

Switch

Part #461967848881

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 461967848881. Substitute parts can look different from the original.
BEST SELLER
$33.83 |
38% OFF MSRP : $55.00
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Magnetron W11226473
#10

Cabinet and stirrer parts diagram

Magnetron

Part #W11226473

Replaced by #W11346197

?
Manufacturer substitution
This part replaces W11226473. Substitute parts can look different from the original.
BEST SELLER
$164.91 |
21% OFF MSRP : $210.00
In Stock
Interlock W10358241
#32

Cabinet and stirrer parts diagram

Interlock

Part #W10358241

Replaced by #W11033422

?
Manufacturer substitution
This part replaces W10358241. Substitute parts can look different from the original.
BEST SELLER
$96.87 |
25% OFF MSRP : $130.00
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts (not included) diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
25% OFF MSRP : $12.00
In Stock
Wako Minerva W10622170
#16

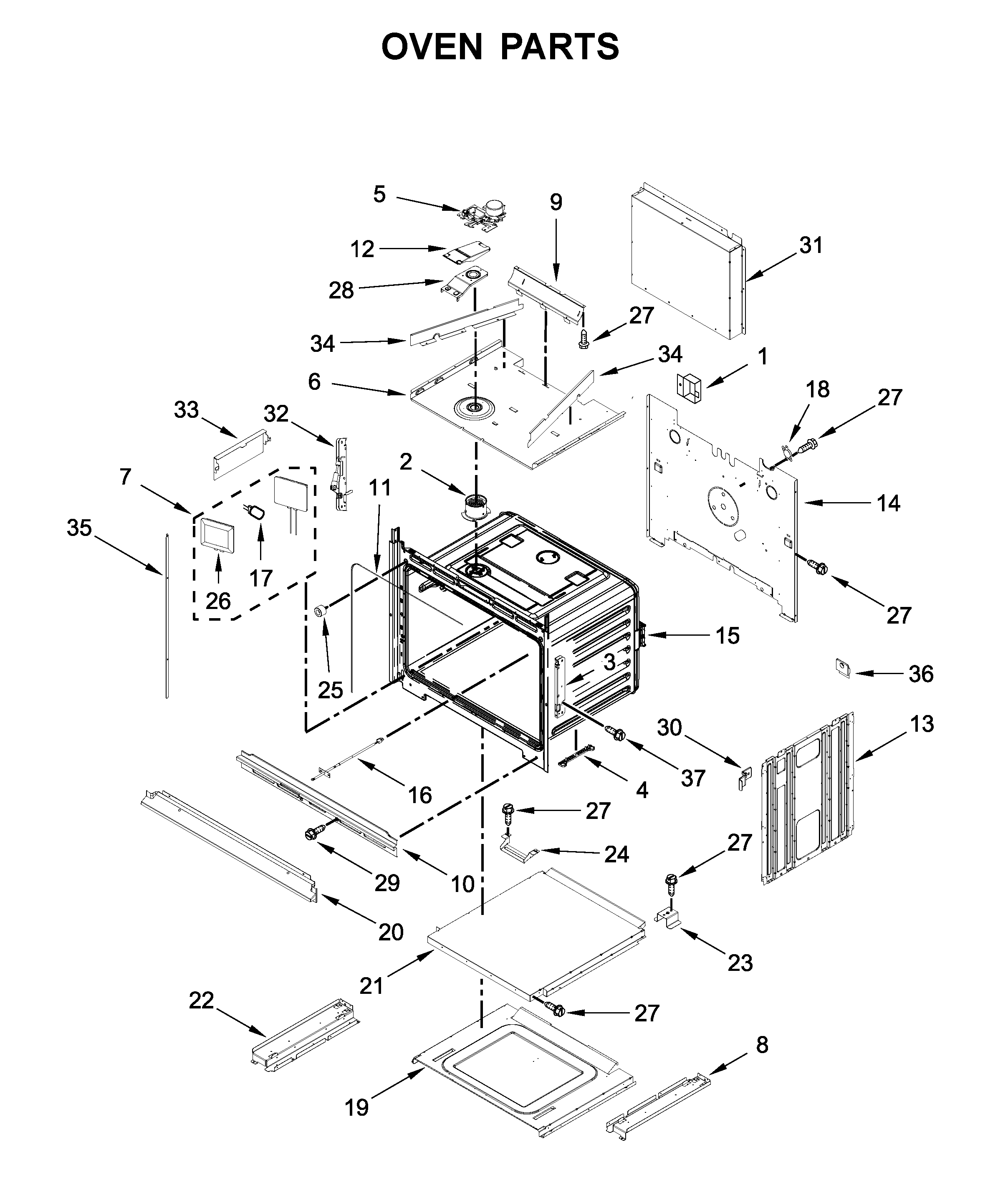

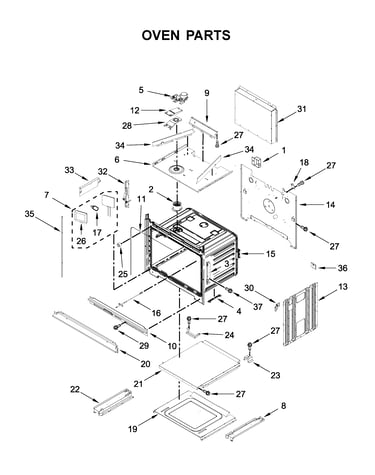

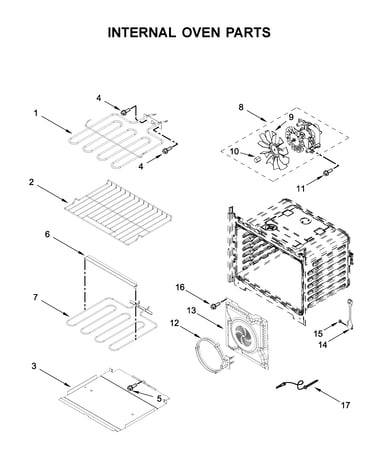

Oven parts diagram

Wako minerva

Part #W10622170

Replaced by #W10859573

?
Manufacturer substitution
This part replaces W10622170. Substitute parts can look different from the original.
BEST SELLER
$100.74 |
16% OFF MSRP : $120.00
In Stock
Lamp G4 Halo W10795595
#13

Cabinet and stirrer parts diagram

Lamp g4 halo

Part #W10795595

Replaced by #W10886919

?
Manufacturer substitution
This part replaces W10795595. Substitute parts can look different from the original.
This item is not returnable
$22.89 |
18% OFF Phone Price : $27.89
In Stock
Microwave Turntable Motor 461967848971
#20

Cabinet and stirrer parts diagram

Microwave turntable motor

Part #461967848971

Replaced by #W10911403

?
Manufacturer substitution
This part replaces 461967848971. Substitute parts can look different from the original.
$75.47 |
20% OFF MSRP : $94.00
In Stock
Inverter W11237240
#24

Cabinet and stirrer parts diagram

Inverter

Part #W11237240

Replaced by #W11325604

?
Manufacturer substitution
This part replaces W11237240. Substitute parts can look different from the original.
$151.29 |
6% OFF Phone Price : $161.29
In Stock
Door Latch W10618131
#5

Oven parts diagram

Door latch

Part #W10618131

Replaced by #W10883049

?
Manufacturer substitution
This part replaces W10618131. Substitute parts can look different from the original.
$143.75 |
24% OFF MSRP : $190.00
In Stock
