Amana VCA48B3A/P1221317C remote cooling - vca series Parts
Here are the diagrams and repair parts for Amana VCA48B3A/P1221317C remote cooling - vca series, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
SELECT DIAGRAM
Browse Parts for VCA48B3A/P1221317C Remote Cooling - VCA Series

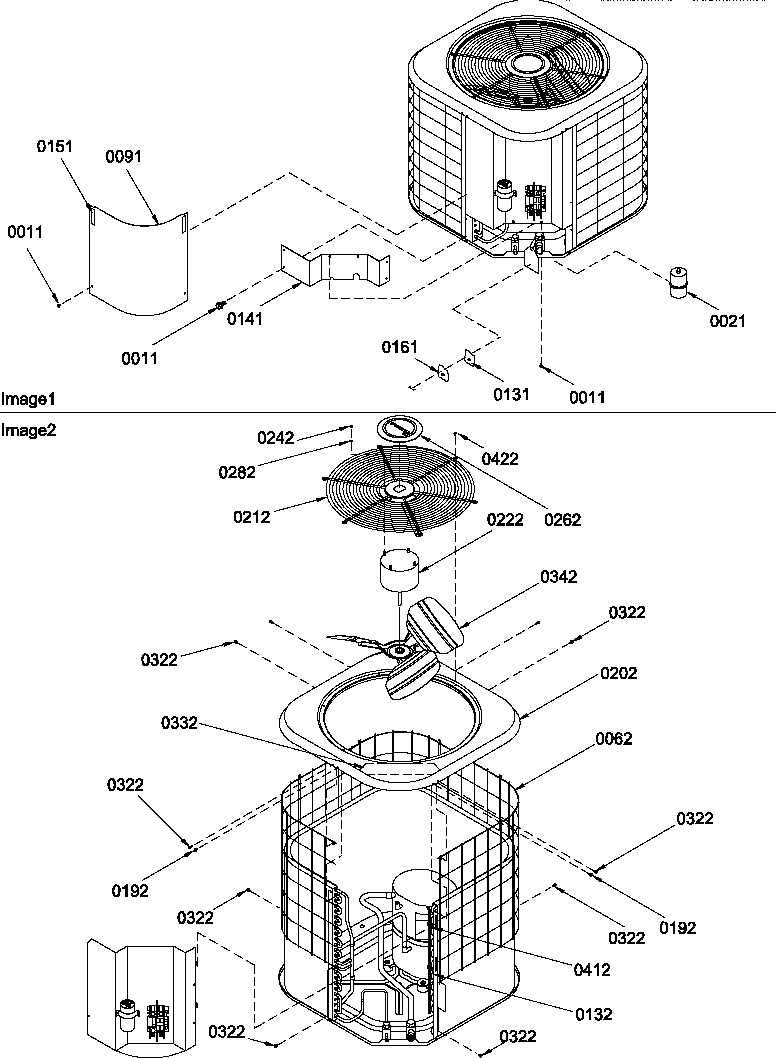

Control cover / cabinet / top diagram
Top
Part #20161203
The manufacturer no longer makes this part, and there's no substitute part
Tubing diagram
Suction Tube Assembly
Part #20180403
The manufacturer no longer makes this part, and there's no substitute part
Tubing diagram
Tube-discharge
Part #20038203
The manufacturer no longer makes this part, and there's no substitute part
Control cover / cabinet / top diagram
Grille-formed
Part #20182512
The manufacturer no longer makes this part, and there's no substitute part
Control cover / cabinet / top diagram
Piston-orif 0710
Part #11076318
The manufacturer no longer makes this part, and there's no substitute part
Control cover / cabinet / top diagram
Piston-orif 0512
Part #11076301
The manufacturer no longer makes this part, and there's no substitute part
Control cover / cabinet / top diagram
Control Cover
Part #20160403
The manufacturer no longer makes this part, and there's no substitute part

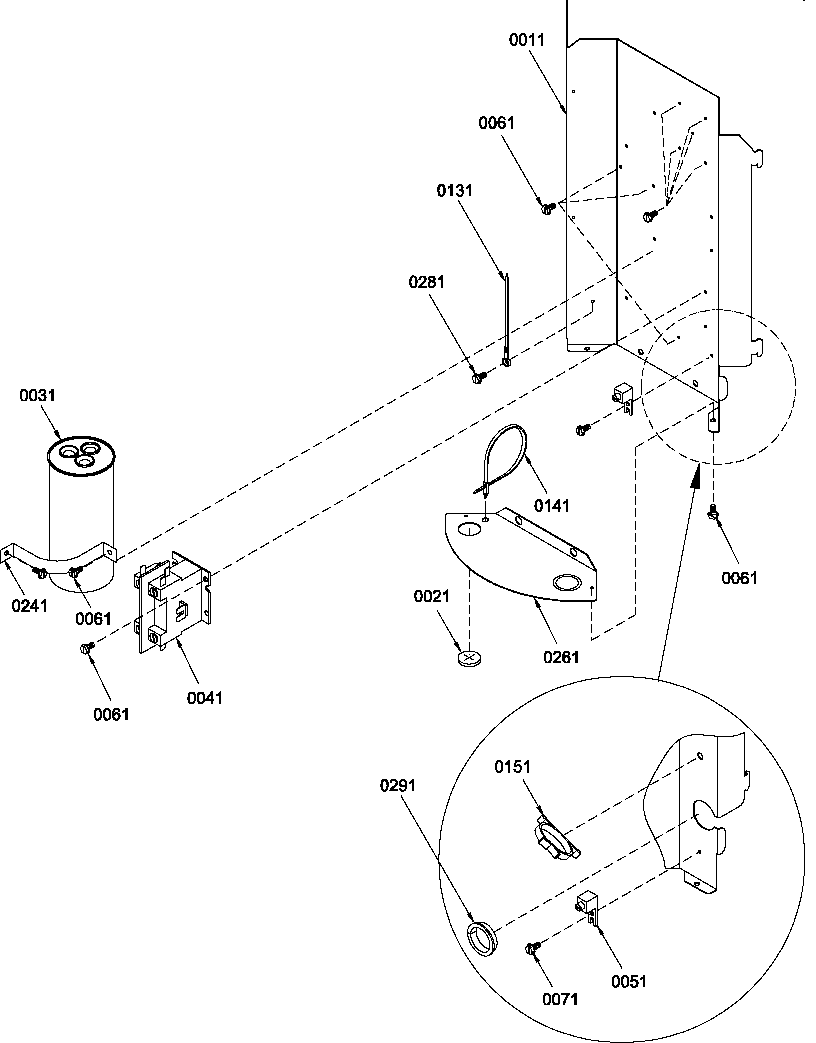

Control box diagram
Strap-capacitor
Part #C6300513
The manufacturer no longer makes this part, and there's no substitute part
Control cover / cabinet / top diagram
Control Cover
Part #20160404
The manufacturer no longer makes this part, and there's no substitute part
#141
All parts diagram
Harness-compressor
Part #11180601
The manufacturer no longer makes this part, and there's no substitute part
