Whirlpool WOEC5027LB00 electric oven/microwave combo

Whirlpool WOEC5027LB00 electric oven/microwave combo Parts

Here are the diagrams and repair parts for Whirlpool WOEC5027LB00 electric oven/microwave combo, as well as links to manuals and error code tables, if available.

By Schematic
By Part

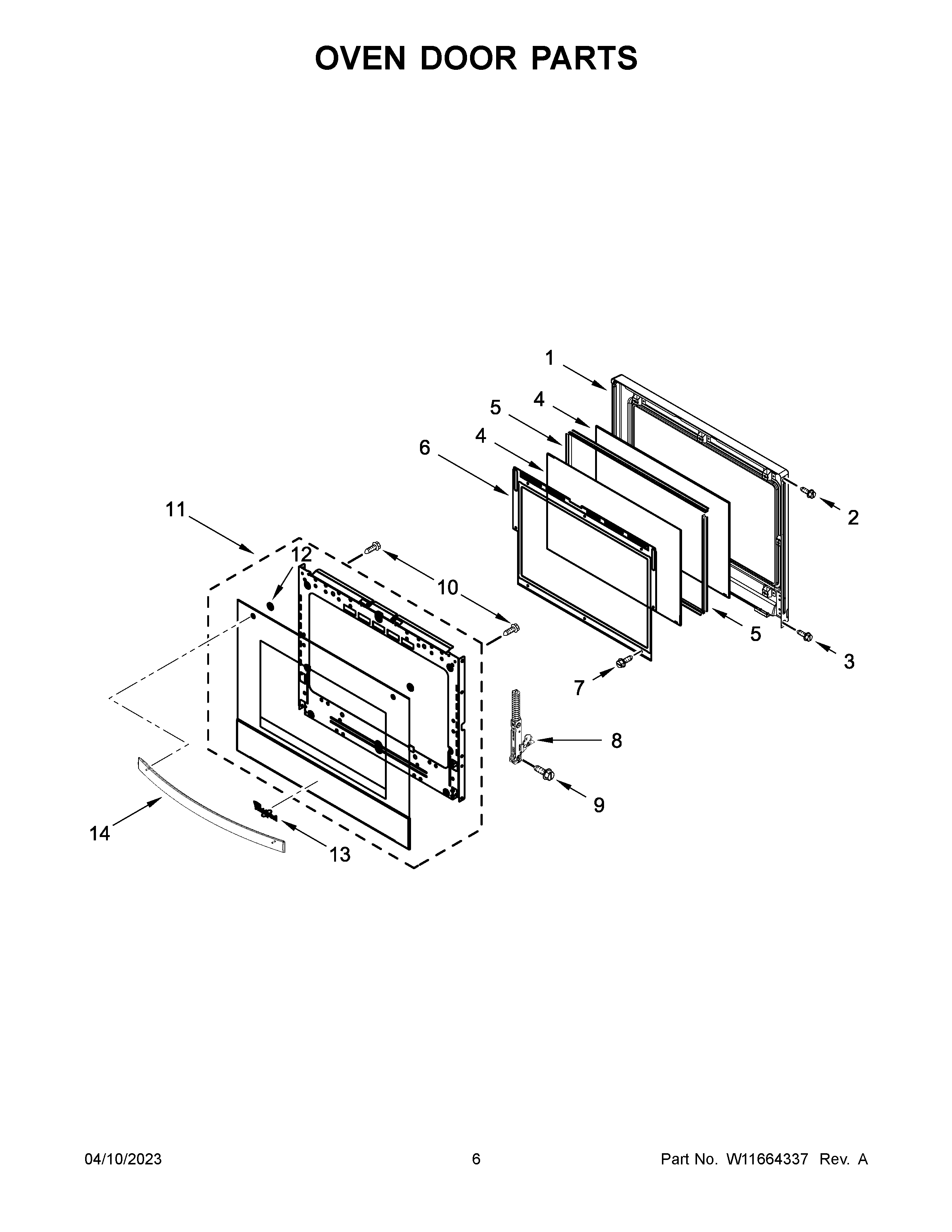

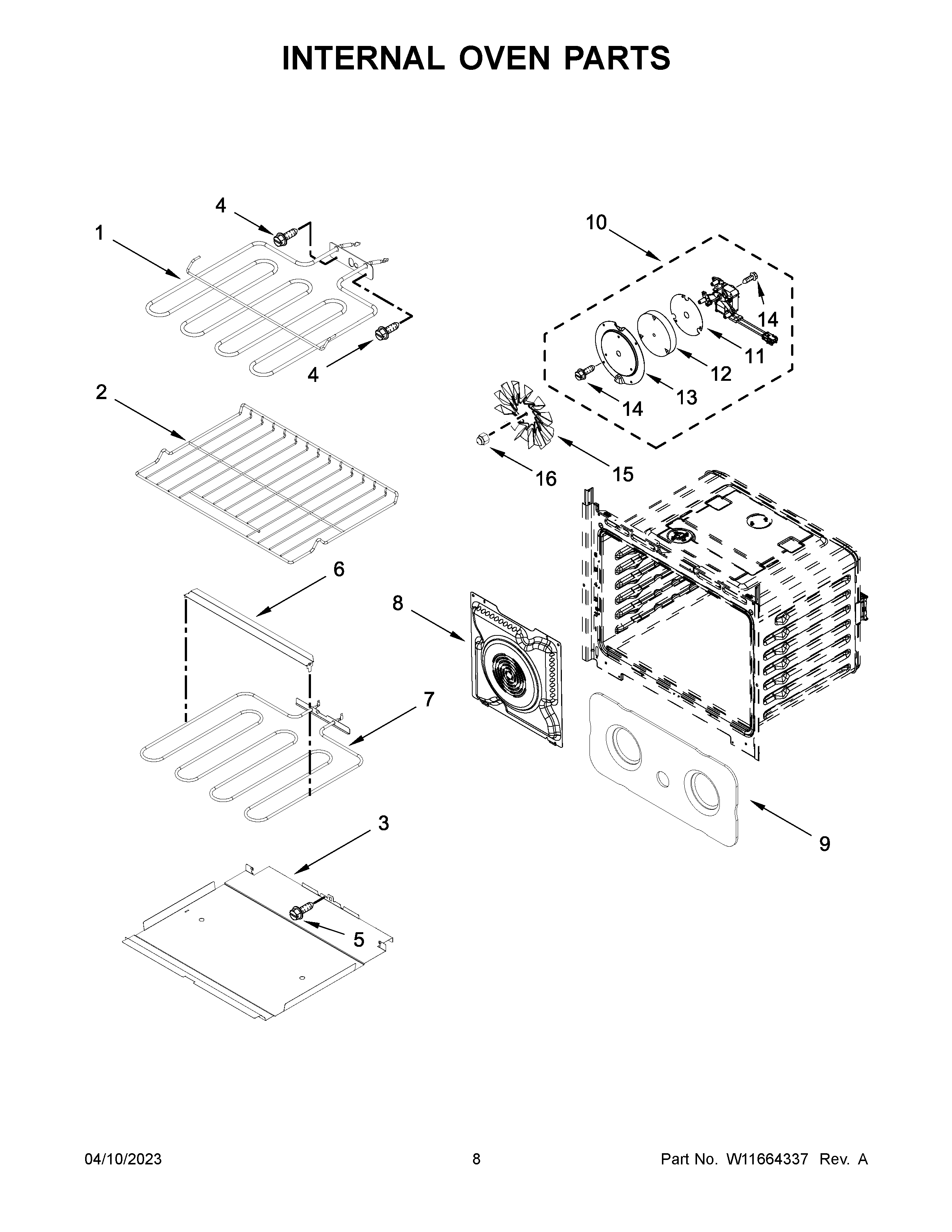

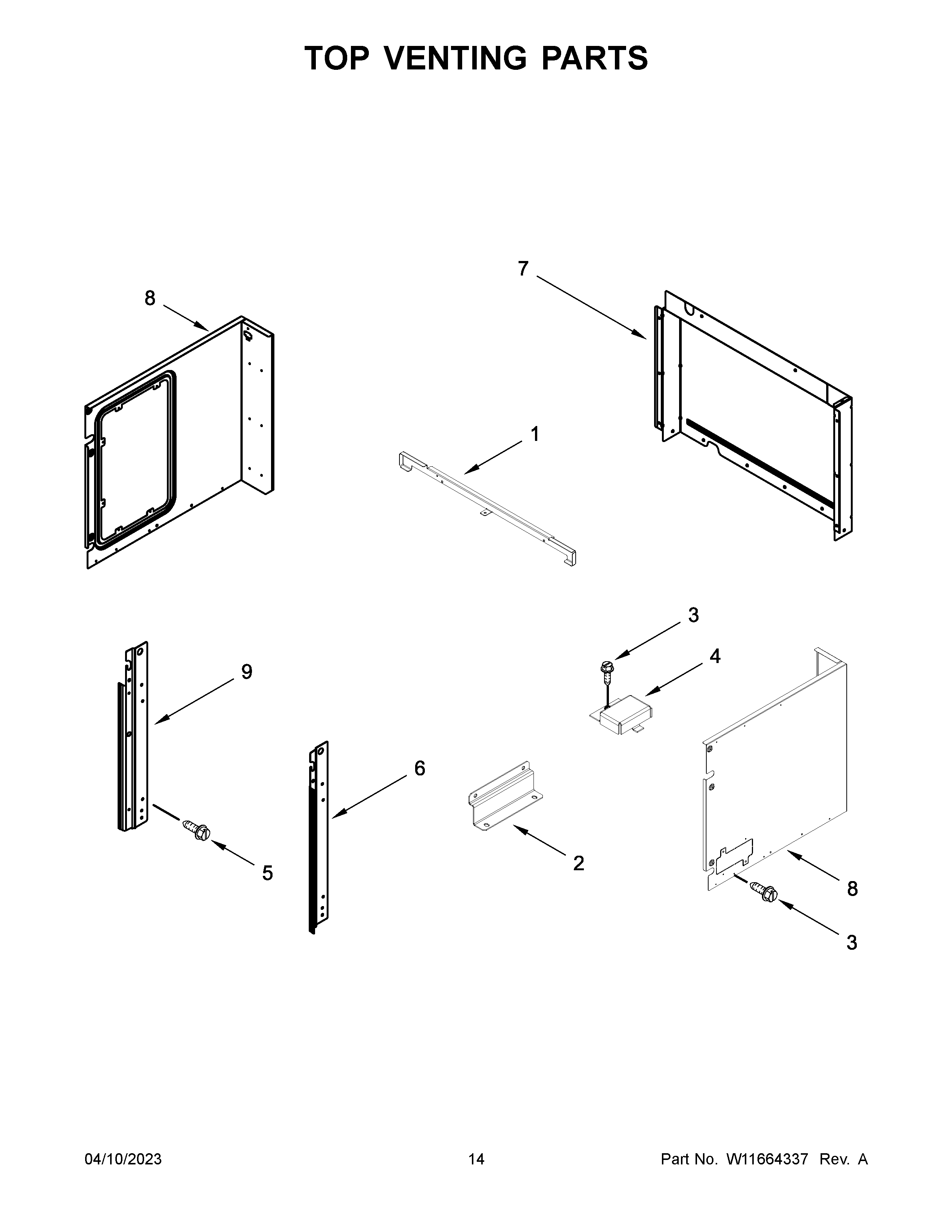

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WOEC5027LB00 Electric Oven/Microwave Combo

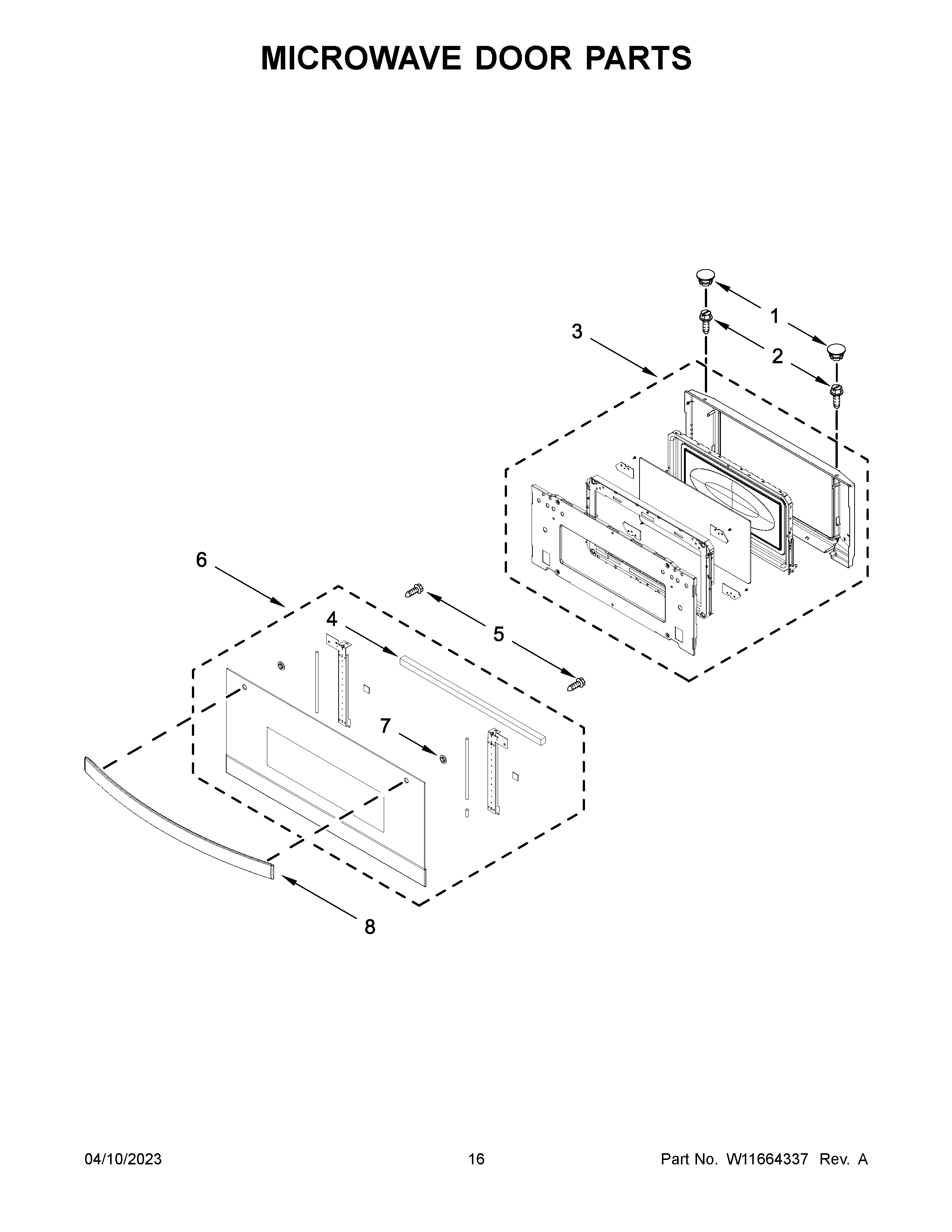

  • Microwave Door Interlock Switch for Whirlpool WOEC5027LB00 - Part W10211972

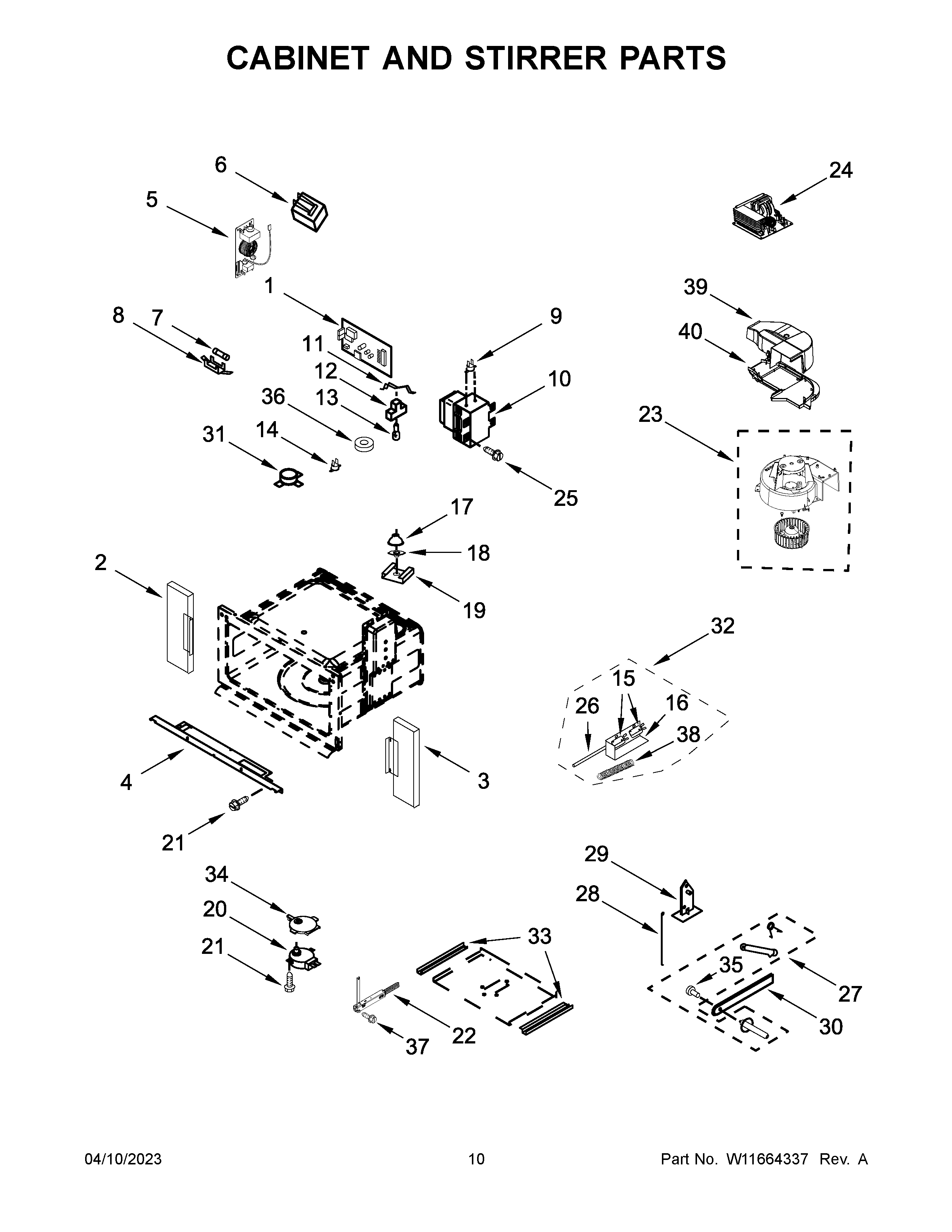

    Cabinet and stirrer parts diagram

    Switch

    Part #461967848881

    Replaced by #W10211972

    Info Icon
    Manufacturer substitution
    This part replaces 461967848881. Substitute parts can look different from the original.
    In Stock
    $36.30
    14% OFF Phone Price : $42.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Spray Paint (white) for Whirlpool WOEC5027LB00 - Part 350930

    Optional parts (not included) diagram

    Spray W

    Part #350930

    Replaced by #350930

    Info Icon
    Manufacturer substitution
    This part replaces 350930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.00
    19% OFF Phone Price : $32.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Inverter Meg for Whirlpool WOEC5027LB00 - Part W11578579

    Cabinet and stirrer parts diagram

    Inverter

    Part #W11504539

    Replaced by #W11578579

    Info Icon
    Manufacturer substitution
    This part replaces W11504539. Substitute parts can look different from the original.
    In Stock
    $232.18
    Minus Item
    Qty
    Plus Item
  • Range Oven Light Bulb for Whirlpool WOEC5027LB00 - Part W10886919

    Cabinet and stirrer parts diagram

    Lamp G4 Halo

    Part #W10795595

    Replaced by #W10886919

    Info Icon
    Manufacturer substitution
    This part replaces W10795595. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $12.07
    52% OFF Was : $25.38Info Icon
    Minus Item
    Qty
    Plus Item
  • Sensor - Rtd for Whirlpool WOEC5027LB00 - Part W11598120

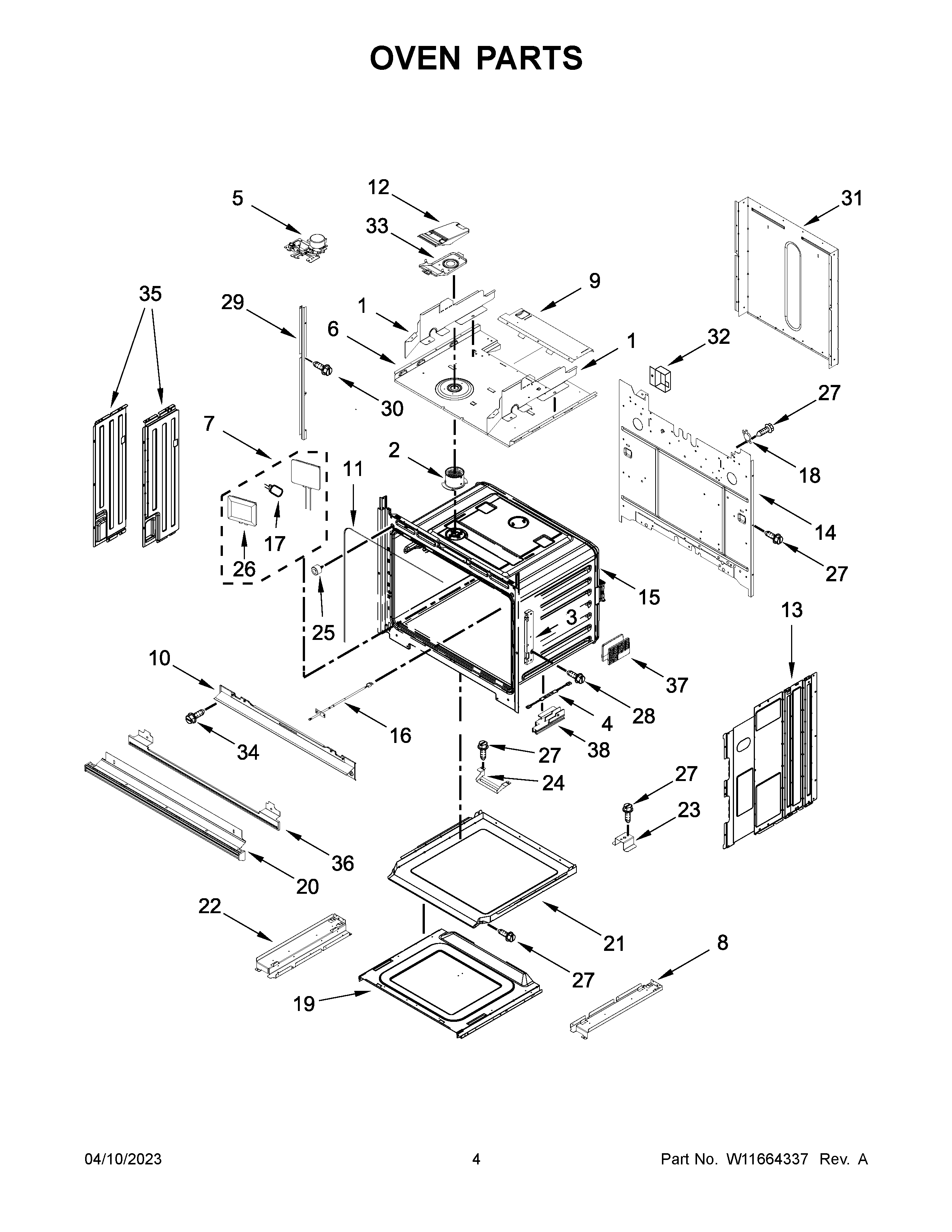

    Oven parts diagram

    Probe, Sensor

    Part #W11346074

    Replaced by #W11598120

    Info Icon
    Manufacturer substitution
    This part replaces W11346074. Substitute parts can look different from the original.
    In Stock
    $27.26
    18% OFF Phone Price : $33.26Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Waveguide Cover for Whirlpool WOEC5027LB00 - Part W10915651

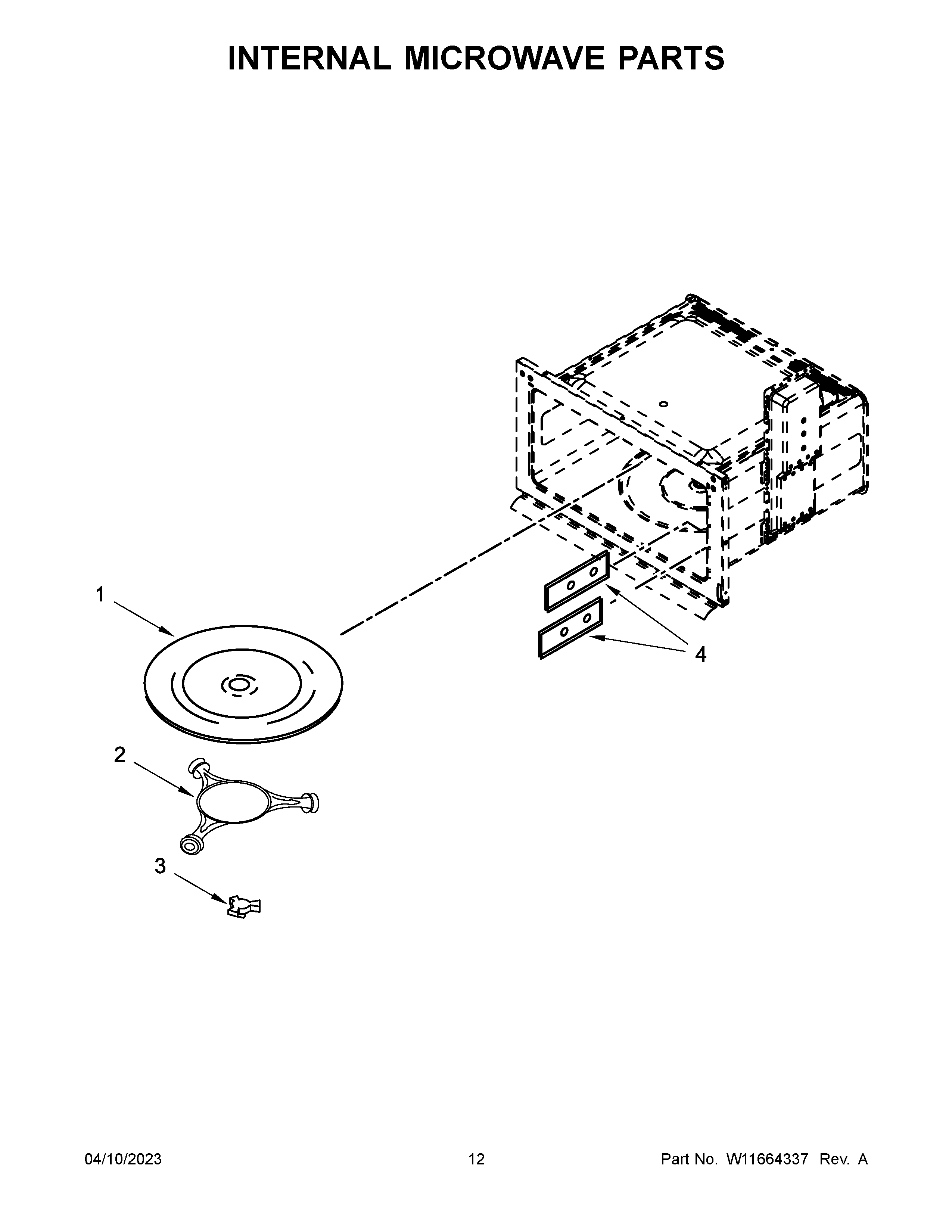

    Internal microwave parts diagram

    O Mica Plate

    Part #461967451001

    Replaced by #W10915651

    Info Icon
    Manufacturer substitution
    This part replaces 461967451001. Substitute parts can look different from the original.
    In Stock
    $48.49
    11% OFF Phone Price : $54.49Info Icon
    Minus Item
    Qty
    Plus Item
  • Fuse for Whirlpool WOEC5027LB00 - Part W11188752

    Cabinet and stirrer parts diagram

    Fuse Mda 20a

    Part #241908600053

    Replaced by #W11188752

    Info Icon
    Manufacturer substitution
    This part replaces 241908600053. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $11.41
    15% OFF Phone Price : $13.41Info Icon
    Minus Item
    Qty
    Plus Item
  • Ctrl-coperni for Whirlpool WOEC5027LB00 - Part W11649350

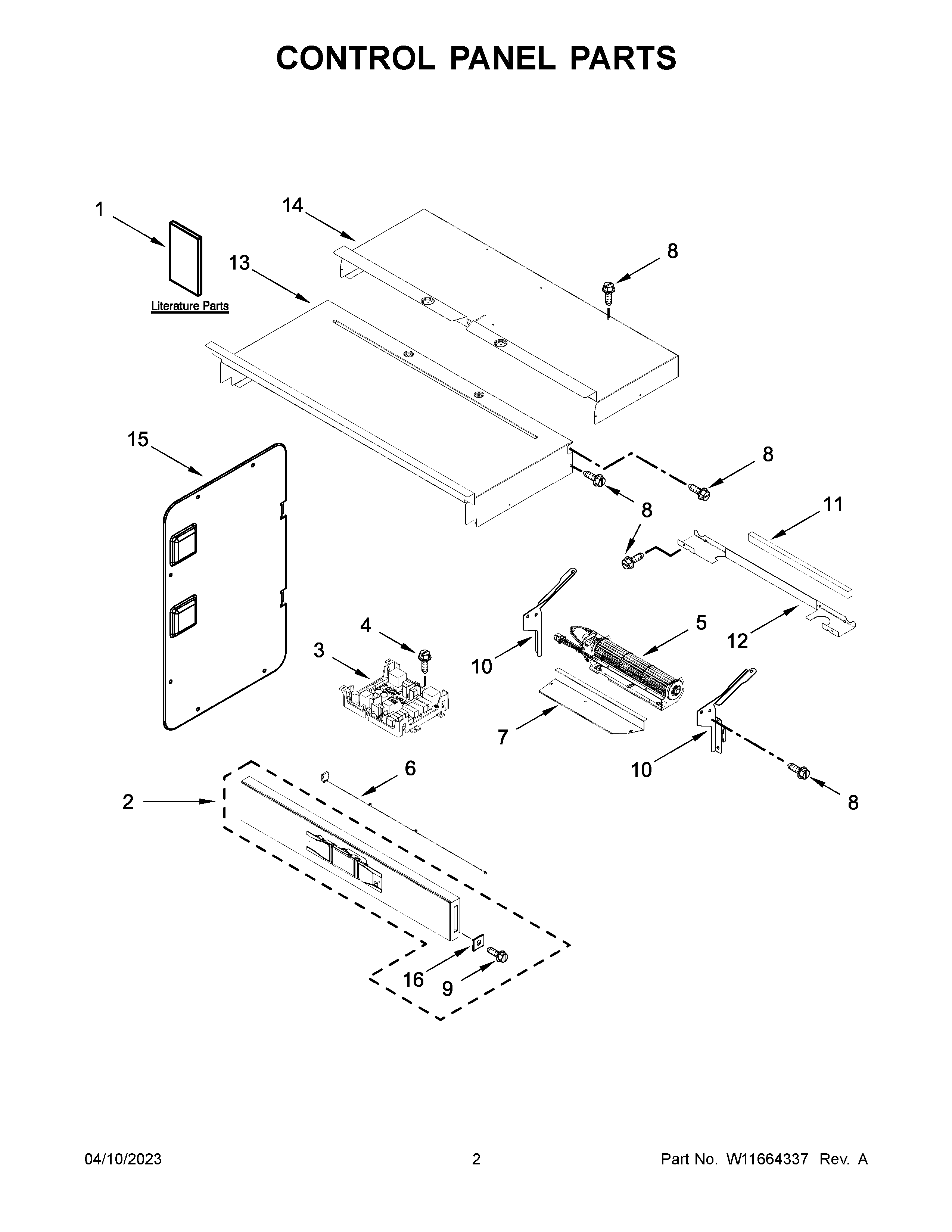

    Control panel parts diagram

    Ctrl-coperni

    Part #W11585754

    Replaced by #W11649350

    Info Icon
    Manufacturer substitution
    This part replaces W11585754. Substitute parts can look different from the original.
    In Stock
    $234.25
    Minus Item
    Qty
    Plus Item
  • Microwave Humidity Sensor for Whirlpool WOEC5027LB00 - Part W11233913

    Cabinet and stirrer parts diagram

    Temperature Sensor

    Part #461967846741

    Replaced by #W11233913

    Info Icon
    Manufacturer substitution
    This part replaces 461967846741. Substitute parts can look different from the original.
    In Stock
    $84.54
    7% OFF Phone Price : $90.54Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Touch-up Paint, 0.6-oz (black) for Whirlpool WOEC5027LB00 - Part 72032

    Optional parts (not included) diagram

    Touch-up Paint (black)

    Part #72032

    Replaced by #72032

    Info Icon
    Manufacturer substitution
    This part replaces 72032. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $11.08
    15% OFF Phone Price : $13.08Info Icon
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Appliance Touch-up Paint 72017

Appliance Touch-up Paint

Part #72017
This item is not returnable
In Stock
$31.61
Minus Item
Qty
Plus Item
Appliance Touch-up Paint, 6-oz (citrine White) 261900

Appliance Touch-up Paint, 6-oz (citrine White)

Part #261900
In Stock
$34.36
15% OFF Phone Price : $40.36Info Icon
Minus Item
Qty
Plus Item
