Model # 517473110 Official Sears lightweight bicycle

Here are the diagrams and repair parts for Official Sears 517473110 lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Chain 3690
#61

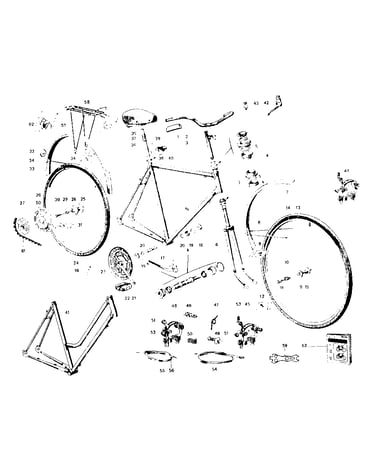

Unit parts diagram

Chain

Part #3690

The manufacturer no longer makes this part, and there's no substitute part

Handlebar 7246
#2

Unit parts diagram

Handlebar

Part #7246

The manufacturer no longer makes this part, and there's no substitute part

Frame Enamel (for Men) (green) 61416
#40

Unit parts diagram

Frame enamel (for men) (green)

Part #61416

The manufacturer no longer makes this part, and there's no substitute part

Front Derailleur 681

#NI

All parts diagram

Front derailleur

Part #681

The manufacturer no longer makes this part, and there's no substitute part

Blocking Collar 0 1" 1/10 4062
#38

Unit parts diagram

Blocking collar 0 1" 1/10

Part #4062

The manufacturer no longer makes this part, and there's no substitute part

Rear Reflector 1750
#32

Unit parts diagram

Rear reflector

Part #1750

The manufacturer no longer makes this part, and there's no substitute part

Balls (3/16") 50340
#11

Unit parts diagram

Balls (3/16")

Part #50340

The manufacturer no longer makes this part, and there's no substitute part

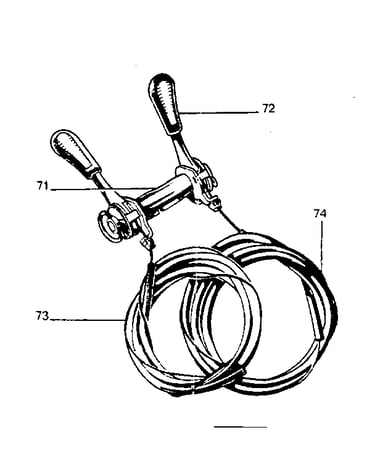

Double Lever Assembly - Selecting Levers For Front And Rear On The Handlebar With Front And Rear Derailleur Cables 00010682
#71

Derailleur levers diagram

Double lever assembly - selecting levers for front and rear on the handlebar with front and rear derailleur cables

Part #00010682

The manufacturer no longer makes this part, and there's no substitute part

Rear Axle Nut Set (consist Of Nut And Washer (2 Of Each) 1523932
#31

Unit parts diagram

Rear axle nut set (consist of nut and washer (2 of each)

Part #1523932

The manufacturer no longer makes this part, and there's no substitute part

Rear Brake Compl. (for Ladies) 13873
#46

Unit parts diagram

Rear brake compl. (for ladies)

Part #13873

The manufacturer no longer makes this part, and there's no substitute part
