Amana PTH09325JF/P1169424R packaged terminal air conditioner Parts

Here are the diagrams and repair parts for Amana PTH09325JF/P1169424R packaged terminal air conditioner, as well as links to manuals and error code tables, if available.

Amana PTH09325JF/P1169424R packaged terminal air conditioner
By Schematic
By Part

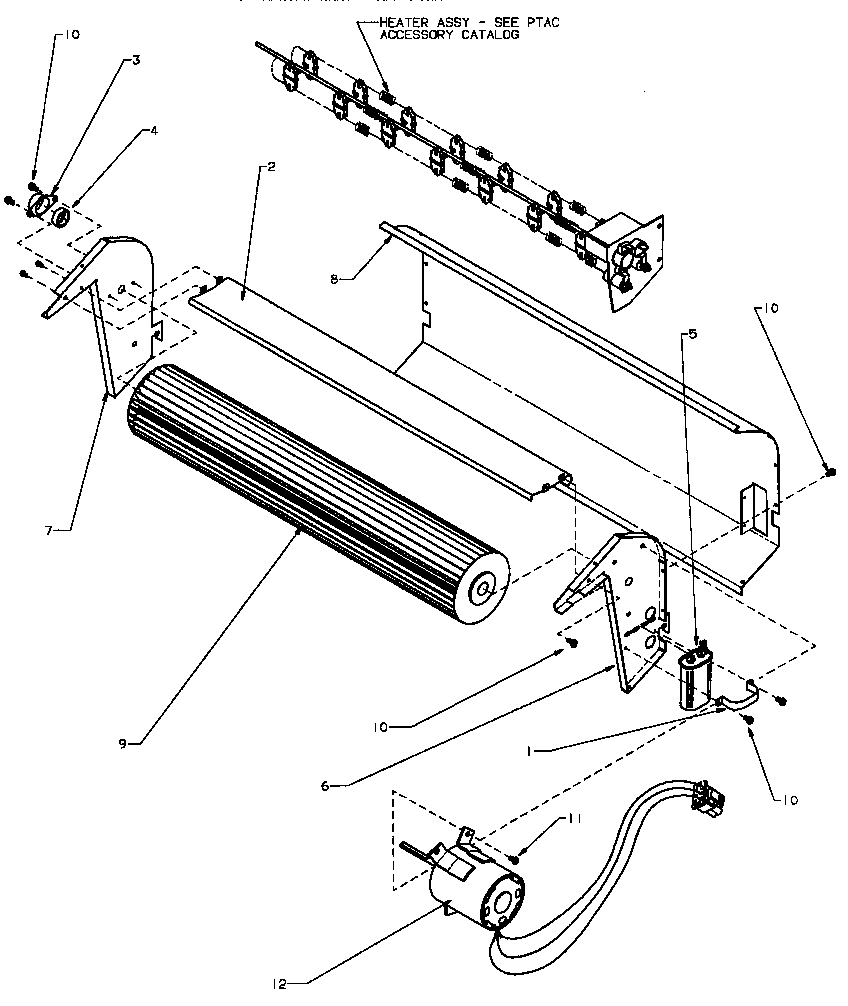

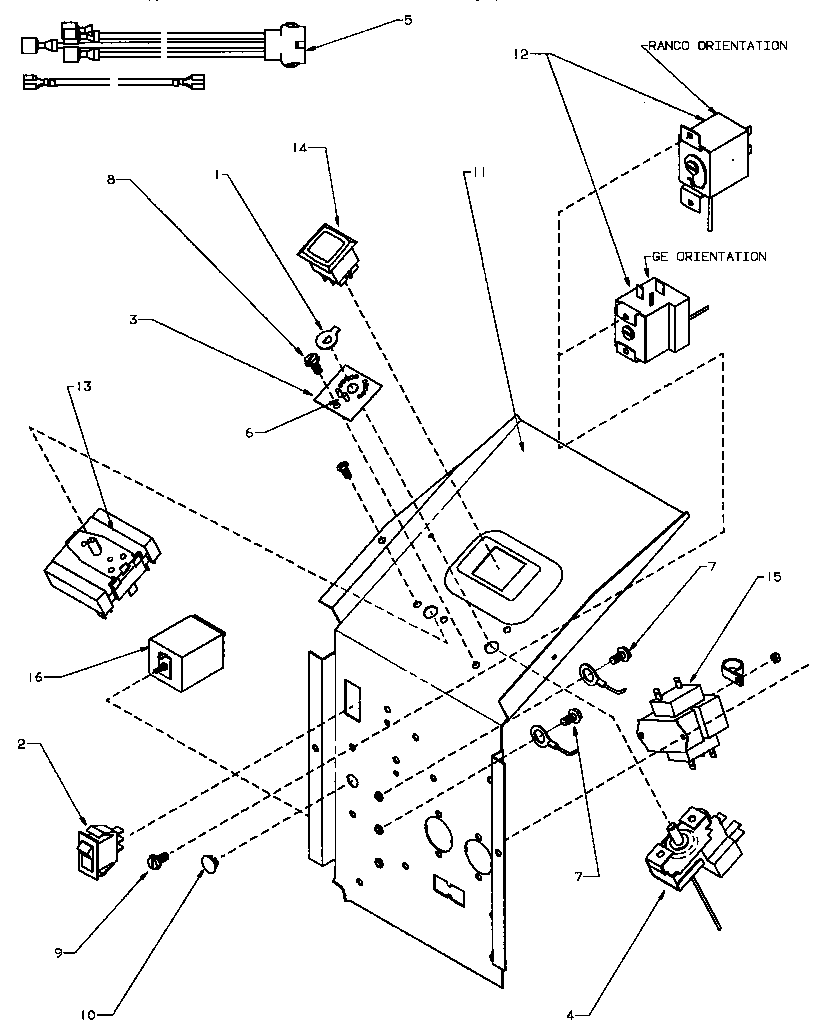

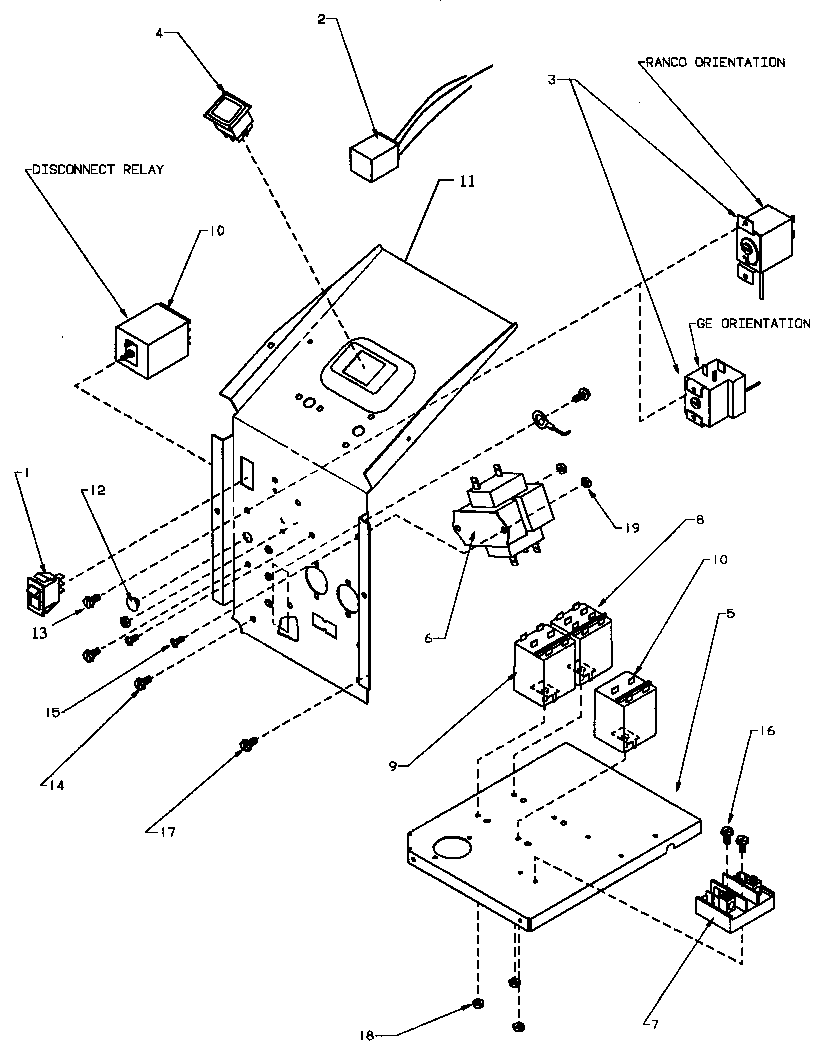

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for PTH09325JF/P1169424R Packaged Terminal Air Conditioner

  • Tube Evaporator for Amana PTH09325JF/P1169424R - Part 10047501

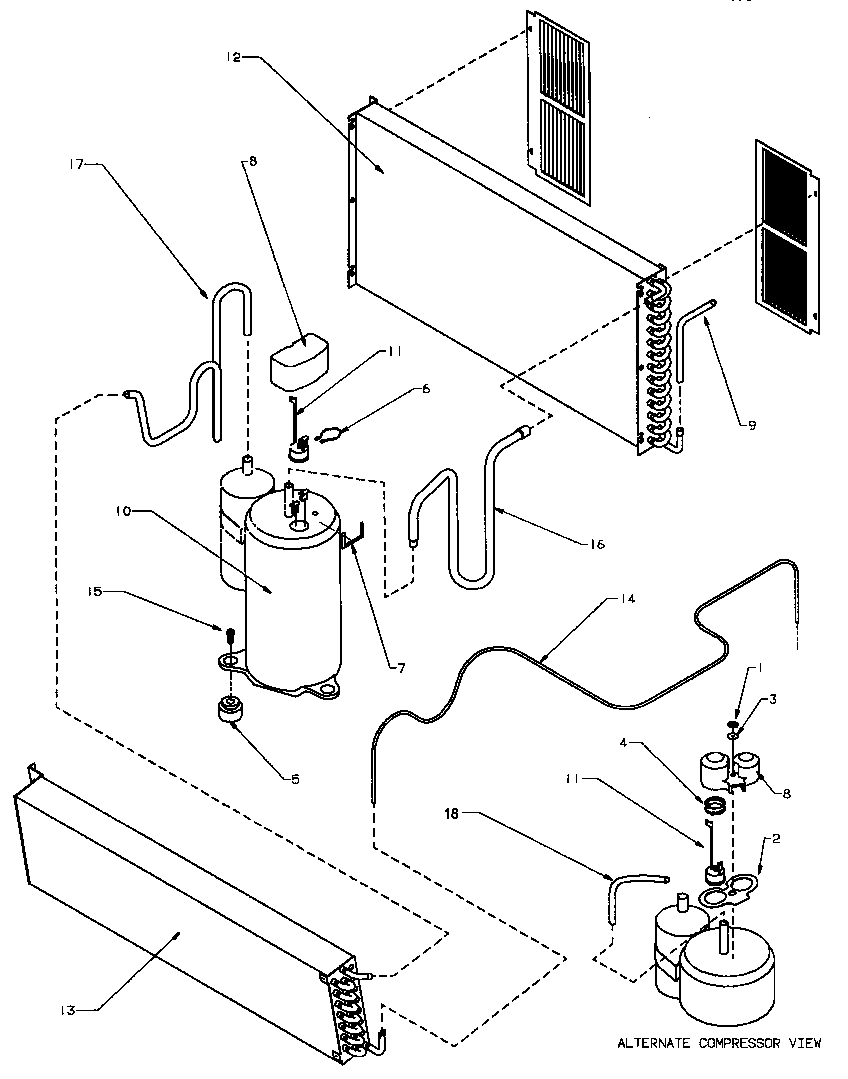

    Heat pump models-refrigeration system (ptc09300jc/p1169217r) (ptc09335jfp/p1169422r) (ptc09435jf/p1169321r) (pth07425j/p1169159r) (pth09325jf/p1169424r) (pth09425jr/p1169322r) diagram

    Tube Evaporator

    Part #10047501

    The manufacturer no longer makes this part, and there's no substitute part

  • Discharge Tube for Amana PTH09325JF/P1169424R - Part 10512201

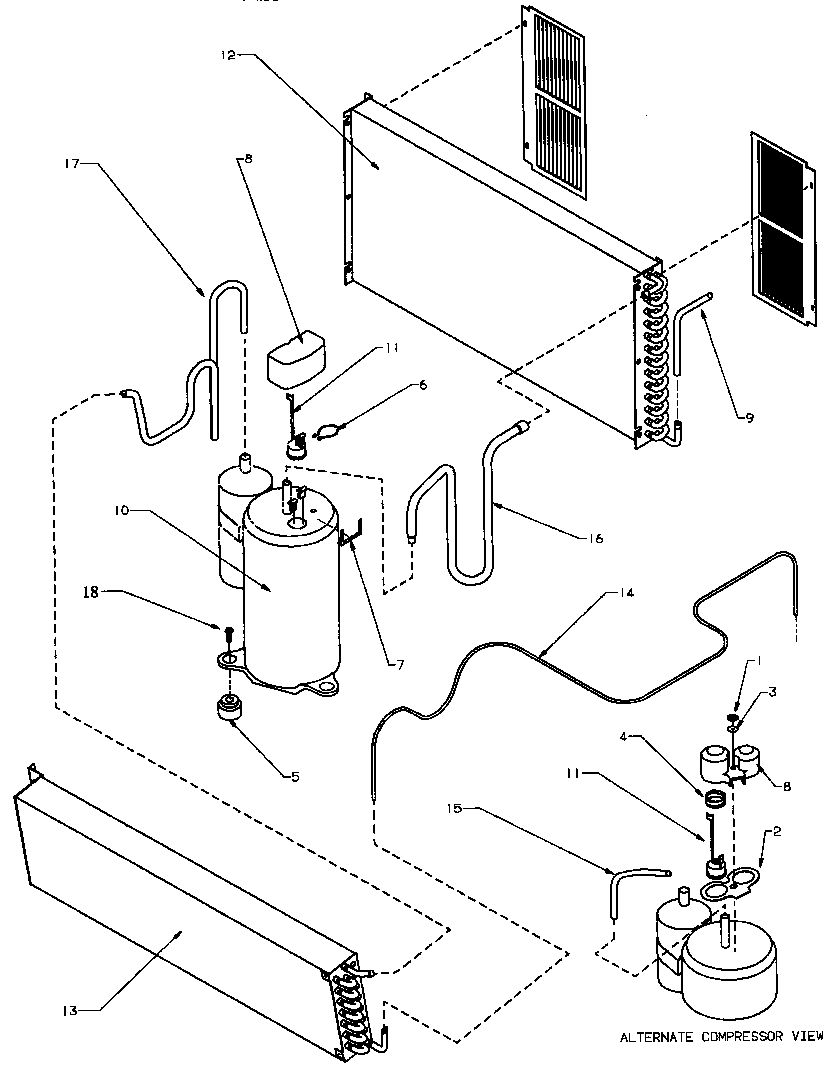

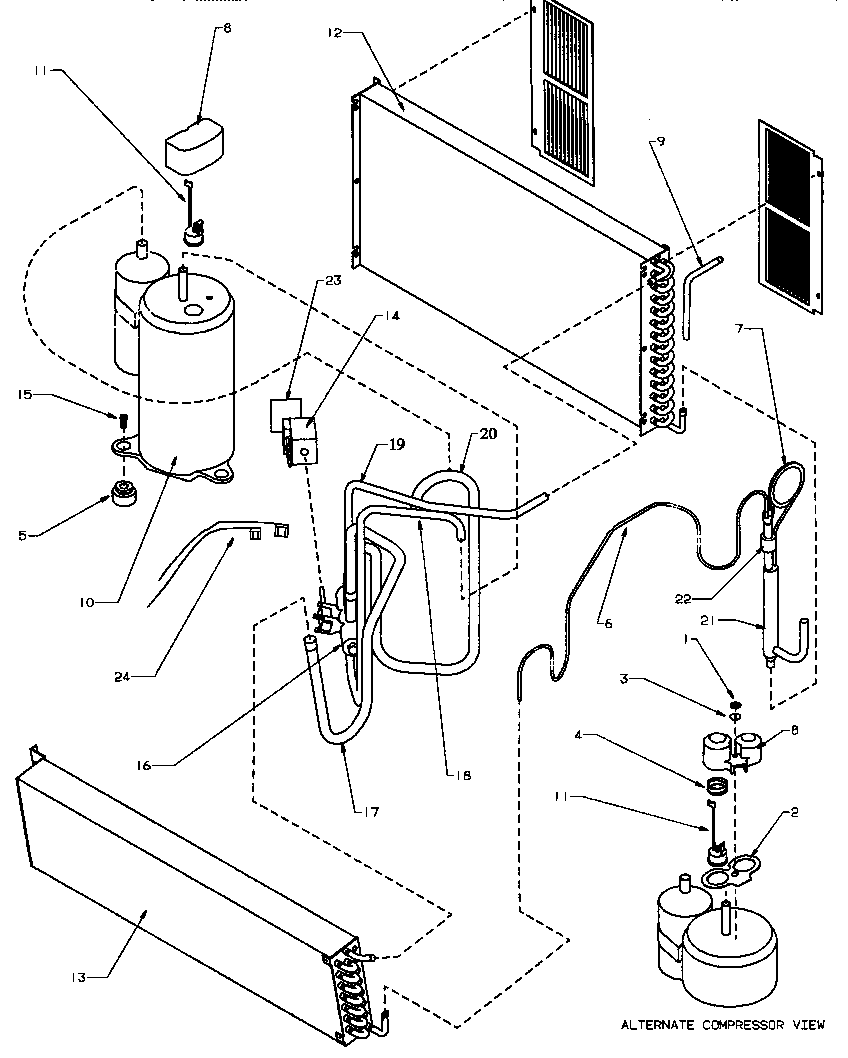

    Heat pump models-refrigeration system (ptc12335jfp/p1169423r) (ptc15300jc/p1169218r) (pth12425jr/p1169323r) (pth12450j/p1169160r) (pth15350jf/p1169425r) diagram

    Discharge Tube

    Part #10512201

    The manufacturer no longer makes this part, and there's no substitute part

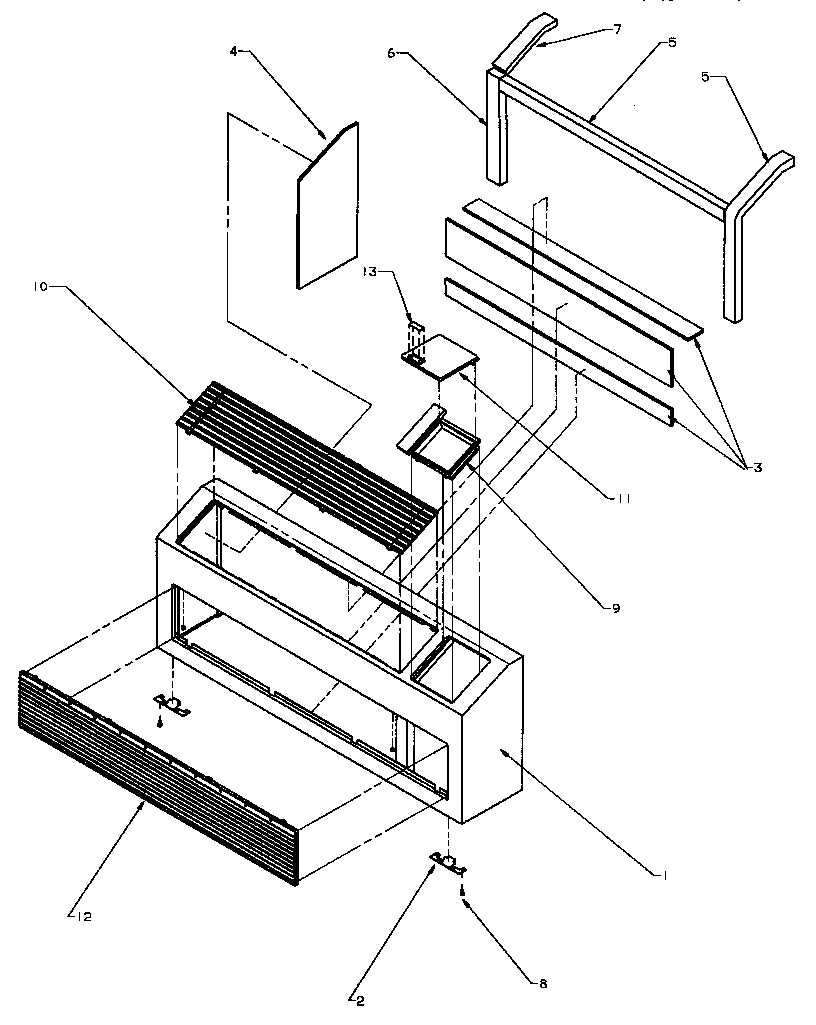

  • Escutcheon for Amana PTH09325JF/P1169424R - Part 10647703

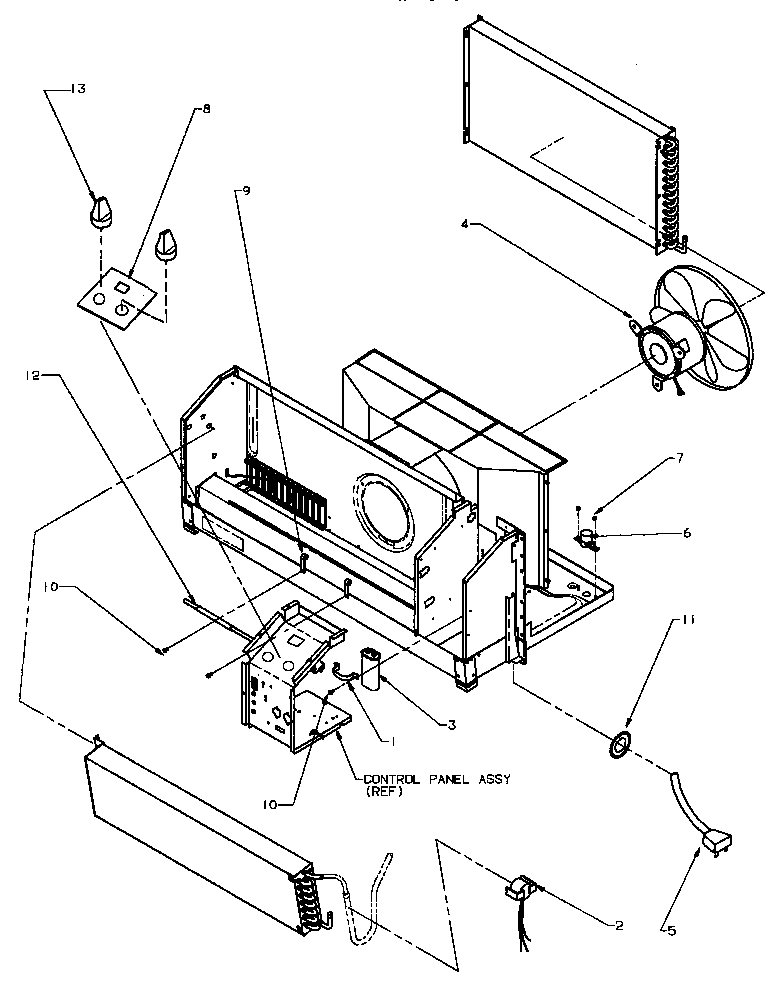

    Miscellaneous chassis assembly parts diagram

    Escutcheon

    Part #10647703

    The manufacturer no longer makes this part, and there's no substitute part

  • Air Control for Amana PTH09325JF/P1169424R - Part D9815601

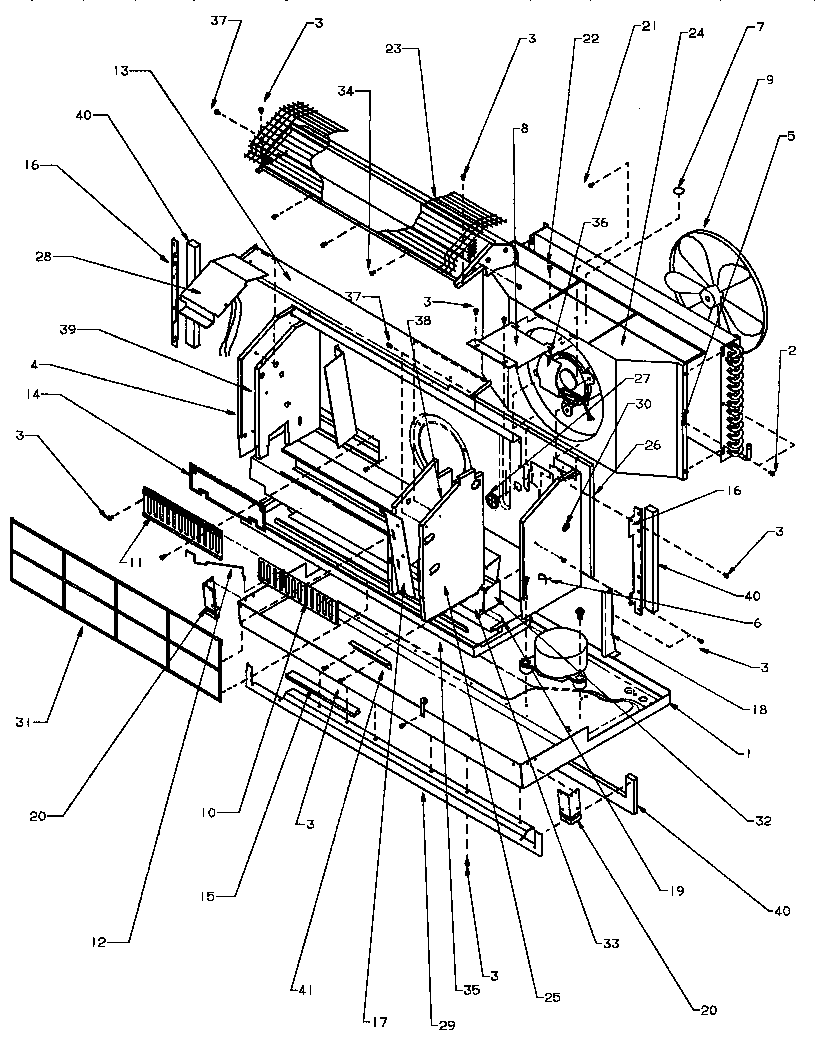

    Chassis assembly diagram

    Air Control

    Part #D9815601

    The manufacturer no longer makes this part, and there's no substitute part

  • Owner's Manual for Amana PTH09325JF/P1169424R - Part 10305504

    #NI

    All parts diagram

    Owner's Manual

    Part #10305504

    The manufacturer no longer makes this part, and there's no substitute part

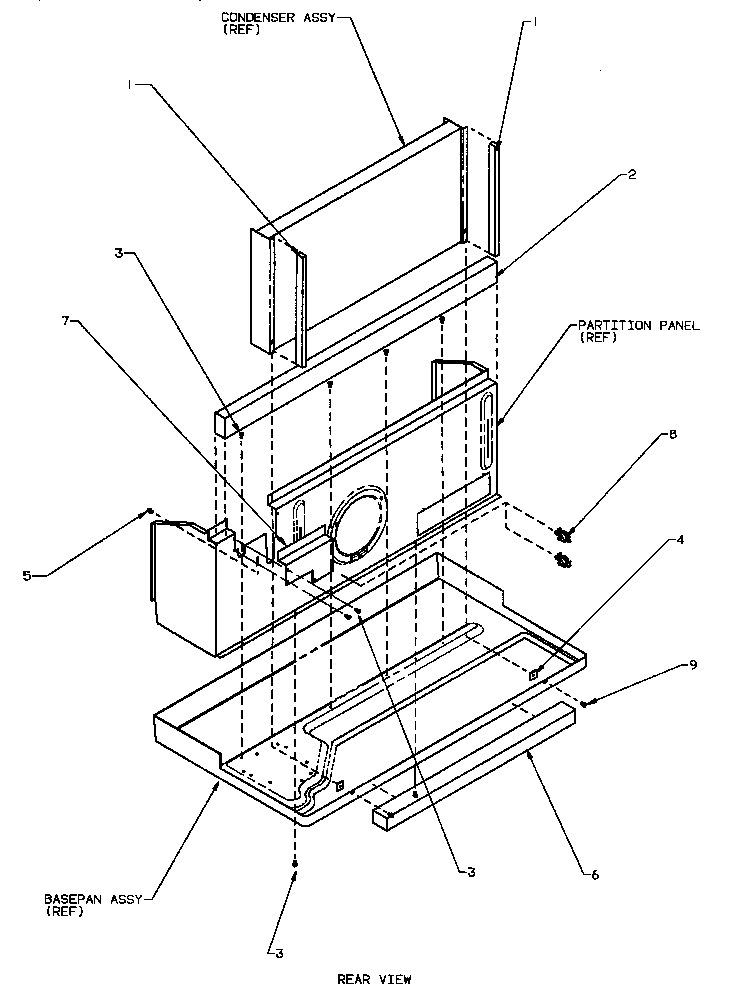

  • Gasket for Amana PTH09325JF/P1169424R - Part 10839711

    Chassis assembly (con't) diagram

    Gasket

    Part #10839711

    The manufacturer no longer makes this part, and there's no substitute part

  • Pp Exit Cove for Amana PTH09325JF/P1169424R - Part C6494805

    Chassis assembly (con't) diagram

    Pp Exit Cove

    Part #C6494805

    The manufacturer no longer makes this part, and there's no substitute part

  • Overload for Amana PTH09325JF/P1169424R - Part D6961614

    Heat pump models-refrigeration system (ptc09300jc/p1169217r) (ptc09335jfp/p1169422r) (ptc09435jf/p1169321r) (pth07425j/p1169159r) (pth09325jf/p1169424r) (pth09425jr/p1169322r) diagram

    Overload

    Part #D6961614

    The manufacturer no longer makes this part, and there's no substitute part

  • Condenser for Amana PTH09325JF/P1169424R - Part 10049302

    Condenser

    Part #10049302

    The manufacturer no longer makes this part, and there's no substitute part

  • Speed Nut for Amana PTH09325JF/P1169424R - Part M0287211

    Chassis assembly diagram

    Speed Nut

    Part #M0287211

    The manufacturer no longer makes this part, and there's no substitute part
