Model # KCDC250S0 Official KitchenAid garbage disposal

Here are the diagrams and repair parts for Official KitchenAid KCDC250S0 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Screw 4211346
#14

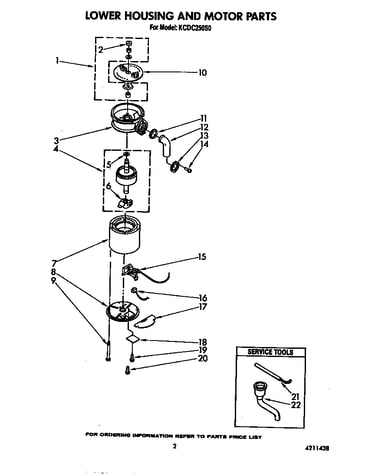

Lower housing and motor diagram

Screw

Part #4211346

Replaced by #WP8204624

?
Manufacturer substitution
This part replaces 4211346. Substitute parts can look different from the original.
$9.78
In Stock
Stopper 4211332
#1

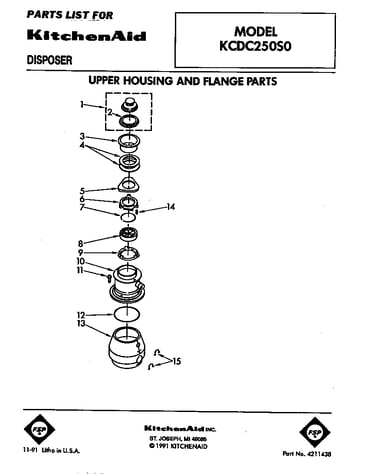

Upper housing and flange diagram

Stopper

Part #4211332

Replaced by #4211577

?
Manufacturer substitution
This part replaces 4211332. Substitute parts can look different from the original.
$25.99 |
16% OFF Phone Price : $30.99
In Stock
Seal 4211302
#4

Upper housing and flange diagram

Seal

Part #4211302

Replaced by #WP4211302

?
Manufacturer substitution
This part replaces 4211302. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Washer 4211321
#5

Lower housing and motor diagram

Washer

Part #4211321

$8.19
In Stock
Garbage Disposal Mounting Flange 4211304
#6

Upper housing and flange diagram

Garbage disposal mounting flange

Part #4211304

$55.09
In Stock
Garbage Disposal Drain Tube (replaces 4211370, 4323154, Y752553) 4211317
#12

Lower housing and motor diagram

Garbage disposal drain tube (replaces 4211370, 4323154, y752553)

Part #4211317

$29.89
In Stock
Flange 4211301
#3

Upper housing and flange diagram

Flange

Part #4211301

$46.27
In Stock
Actuator 4211322
#6

Lower housing and motor diagram

Actuator

Part #4211322

$37.96
In Stock
Adapter 4211396
#22

Lower housing and motor diagram

Adapter

Part #4211396

$240.89
In Stock
Ring 4211306
#7

Upper housing and flange diagram

Ring

Part #4211306

This item is not returnable
$7.49
In Stock
