LXI 471505310 stereo cassette tape player with am/fm stereo radio Parts

Here are the diagrams and repair parts for LXI 471505310 stereo cassette tape player with am/fm stereo radio, as well as links to manuals and error code tables, if available.

LXI 471505310 stereo cassette tape player with am/fm stereo radio
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 471505310 Audio Equipment

  • Power Cord for LXI 471505310 - Part 4-28051

    #NI

    All parts diagram

    Power Cord

    Part #4-28051

    The manufacturer no longer makes this part, and there's no substitute part

  • Heat Sinker for LXI 471505310 - Part 4-28199

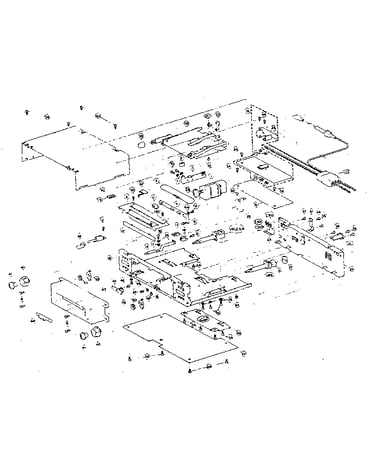

    General assembly diagram

    Heat Sinker

    Part #4-28199

    The manufacturer no longer makes this part, and there's no substitute part

  • Holder (a), Terminal for LXI 471505310 - Part 4-28025

    General assembly diagram

    Holder (a), Terminal

    Part #4-28025

    The manufacturer no longer makes this part, and there's no substitute part

  • Tapping Screw for LXI 471505310 - Part 4-28090

    General assembly diagram

    Tapping Screw

    Part #4-28090

    The manufacturer no longer makes this part, and there's no substitute part

  • (102-2) Garanty Card for LXI 471505310 - Part 4-28244

    #NI

    All parts diagram

    (102-2) Garanty Card

    Part #4-28244

    The manufacturer no longer makes this part, and there's no substitute part

  • Stereo System Tape Deck for LXI 471505310 - Part 4-28003

    General assembly diagram

    Stereo System Tape Deck

    Part #4-28003

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for LXI 471505310 - Part 4-28299

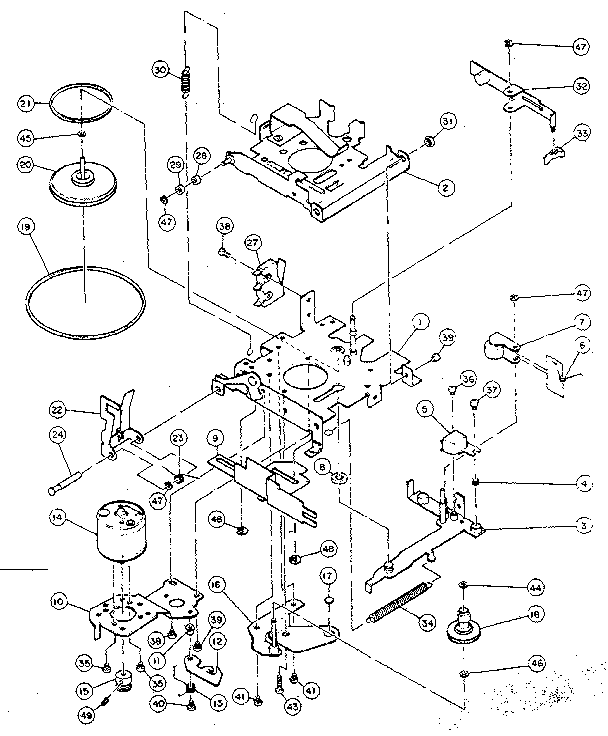

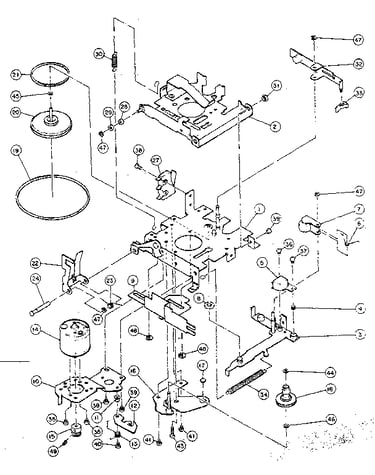

    Tape mechanism assembly diagram

    Screw

    Part #4-28299

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor for LXI 471505310 - Part 4-28267

    Tape mechanism assembly diagram

    Motor

    Part #4-28267

    The manufacturer no longer makes this part, and there's no substitute part

  • Holder, Volume Shaft for LXI 471505310 - Part 4-28022

    General assembly diagram

    Holder, Volume Shaft

    Part #4-28022

    The manufacturer no longer makes this part, and there's no substitute part

  • Dial Guide for LXI 471505310 - Part 4-28069

    General assembly diagram

    Dial Guide

    Part #4-28069

    The manufacturer no longer makes this part, and there's no substitute part
