Craftsman
Power Drill

Model # 315104970 Official Craftsman 3/8" drill

Here are the diagrams and repair parts for Official Craftsman 315104970 3/8" drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Switch 990837-000
#8

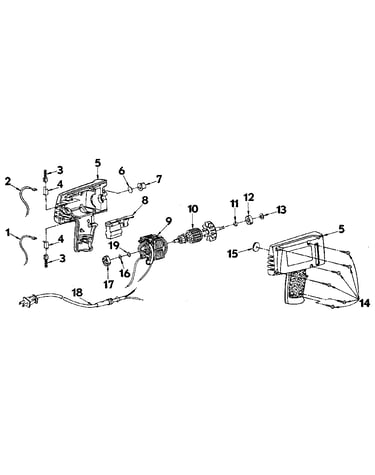

Housing assembly diagram

Switch

Part #990837-000

The manufacturer no longer makes this part, and there's no substitute part

Sl Bearing 607122-002
#2

Gear assembly diagram

Sl bearing

Part #607122-002

The manufacturer no longer makes this part, and there's no substitute part

Washer 703493-095
#14

Gear assembly diagram

Washer

Part #703493-095

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 968691-001
#1

Gear assembly diagram

Logo plate

Part #968691-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 703429-819
#13

Housing assembly diagram

Washer

Part #703429-819

The manufacturer no longer makes this part, and there's no substitute part

Cord Assembly 990499-015
#18

Housing assembly diagram

Cord assembly

Part #990499-015

The manufacturer no longer makes this part, and there's no substitute part

Thrust Disc 616103-802
#6

Housing assembly diagram

Thrust disc

Part #616103-802

The manufacturer no longer makes this part, and there's no substitute part

Key Holder 622943-000
#8

Gear assembly diagram

Key holder

Part #622943-000

The manufacturer no longer makes this part, and there's no substitute part

Gr. Housing 610099-004
#7

Gear assembly diagram

Gr. housing

Part #610099-004

The manufacturer no longer makes this part, and there's no substitute part

Ball 703774-003
#4

Gear assembly diagram

Ball

Part #703774-003

The manufacturer no longer makes this part, and there's no substitute part
