KitchenAid KOEC530PWH01 electric oven/microwave combo Parts

Here are the diagrams and repair parts for KitchenAid KOEC530PWH01 electric oven/microwave combo, as well as links to manuals and error code tables, if available.

KitchenAid KOEC530PWH01 electric oven/microwave combo
By Schematic
By Part

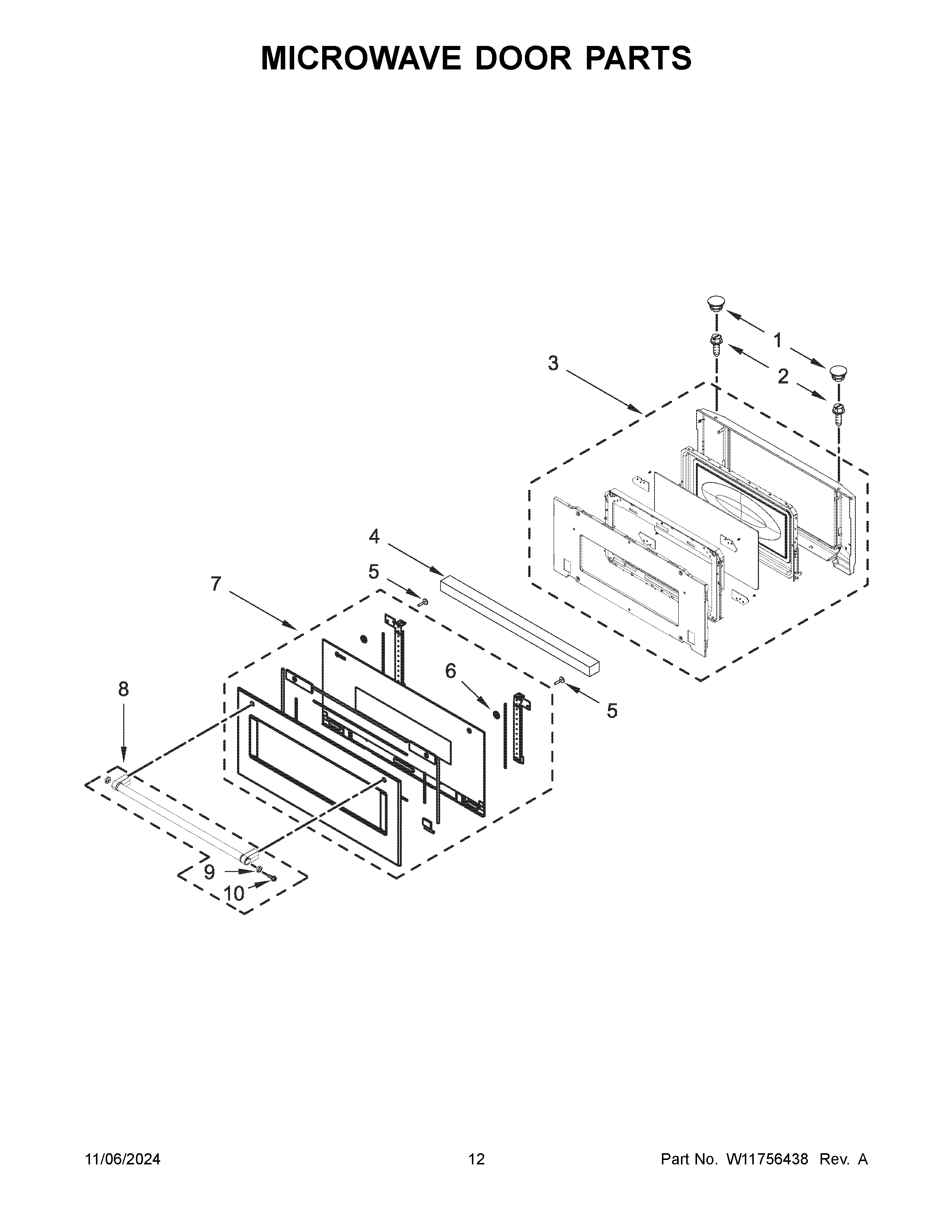

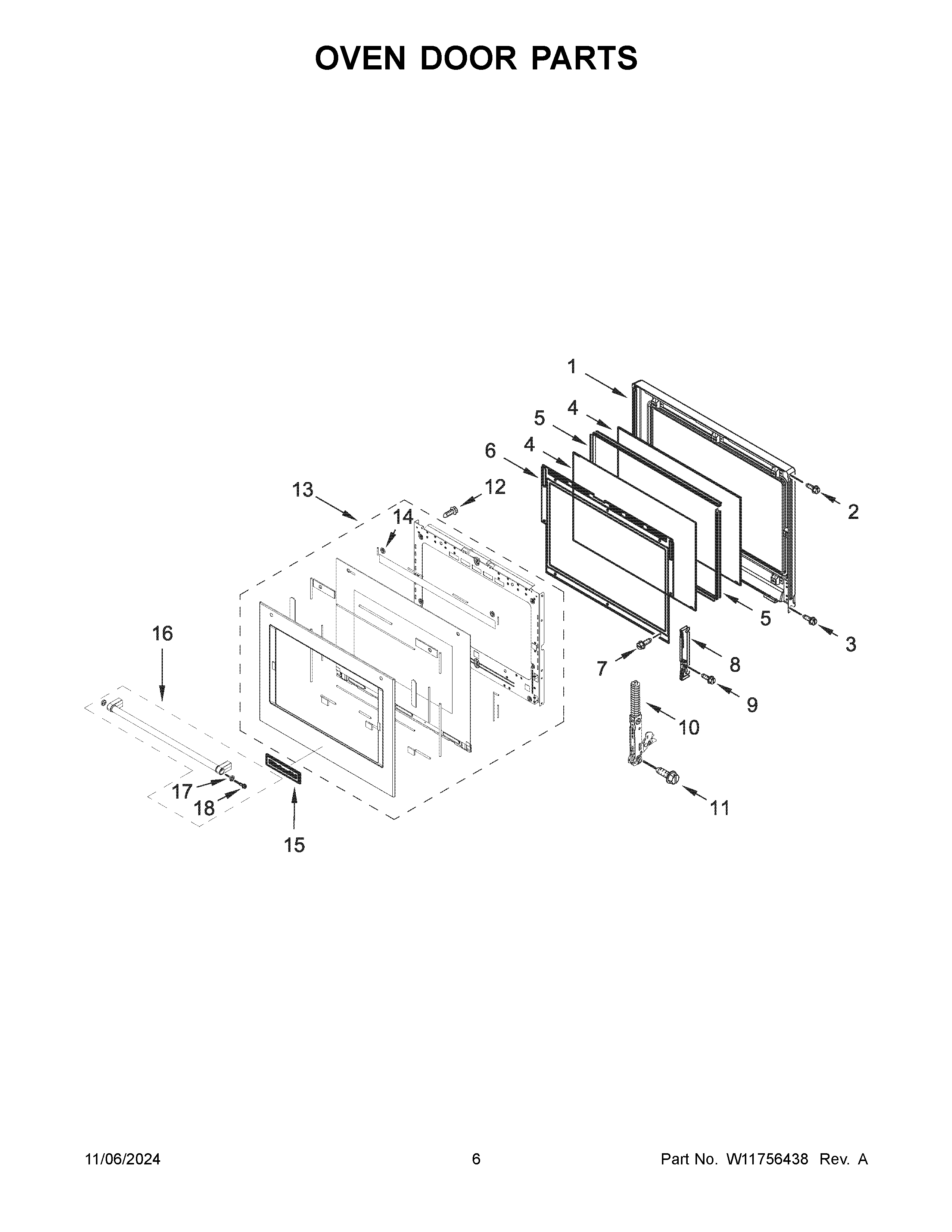

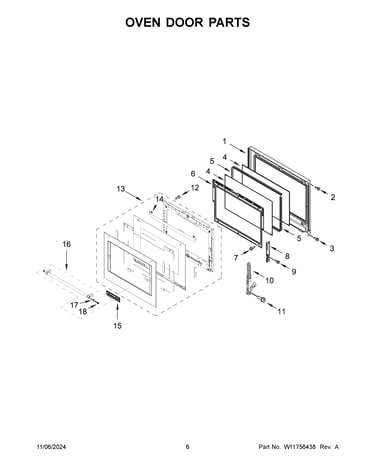

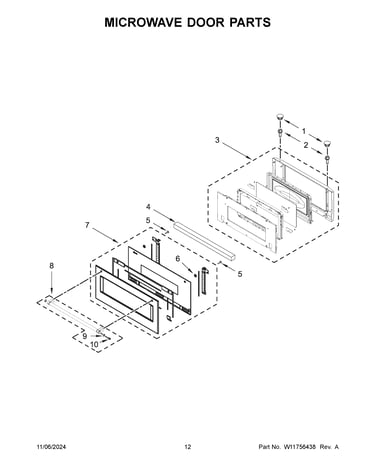

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KOEC530PWH01 Electric Oven/Microwave Combo

  • Microwave Door Interlock Switch for KitchenAid KOEC530PWH01 - Part W10211972

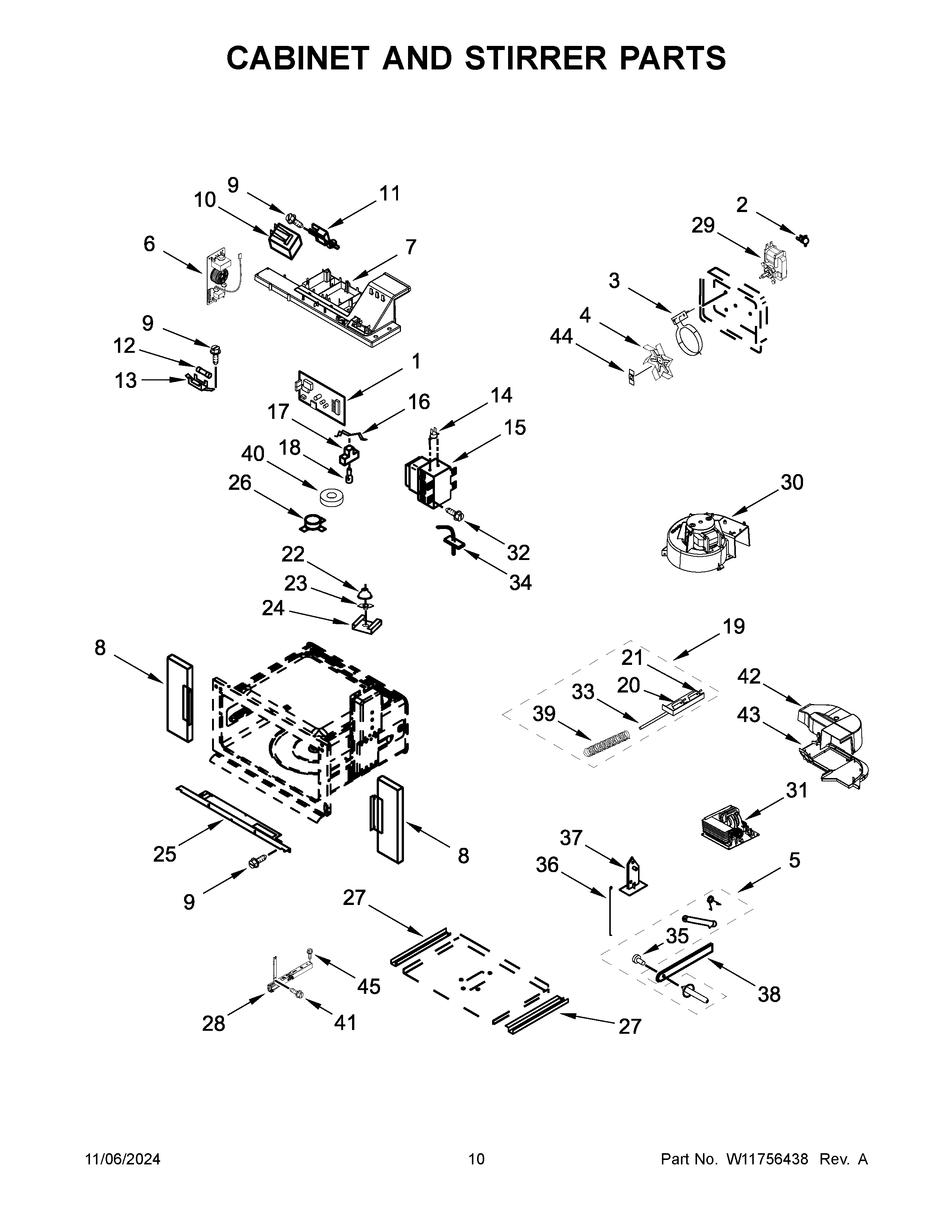

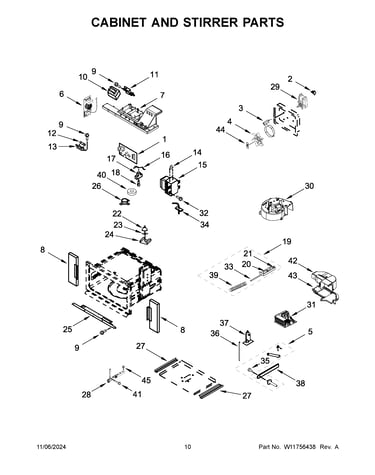

    Cabinet and stirrer parts diagram

    Switch

    Part #461967848881

    Replaced by #W10211972

    Info Icon
    Manufacturer substitution
    This part replaces 461967848881. Substitute parts can look different from the original.
    In Stock
    $37.39
    14% OFF Phone Price : $43.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Control Board for KitchenAid KOEC530PWH01 - Part W11448962

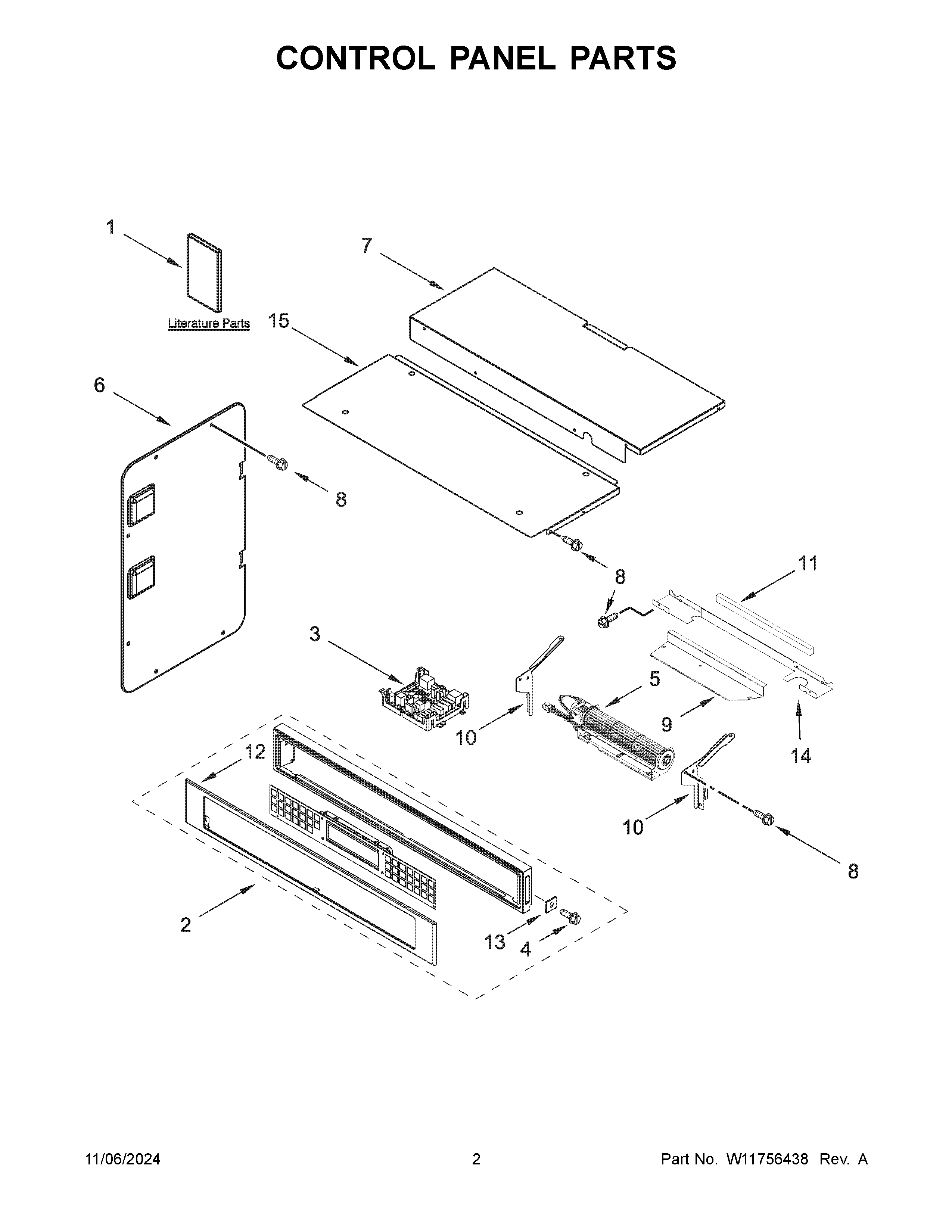

    Control panel parts diagram

    Copernicus C

    Part #W11249218

    Replaced by #W11448962

    Info Icon
    Manufacturer substitution
    This part replaces W11249218. Substitute parts can look different from the original.
    In Stock
    $185.63
    6% OFF Phone Price : $197.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Spray Paint (white) for KitchenAid KOEC530PWH01 - Part 350930

    Optional parts (not included) diagram

    Spray W

    Part #350930

    Replaced by #350930

    Info Icon
    Manufacturer substitution
    This part replaces 350930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.78
    18% OFF Phone Price : $32.78Info Icon
    Minus Item
    Qty
    Plus Item
  • Inverter Meg for KitchenAid KOEC530PWH01 - Part W11578579

    Cabinet and stirrer parts diagram

    Inverter

    Part #W11504539

    Replaced by #W11578579

    Info Icon
    Manufacturer substitution
    This part replaces W11504539. Substitute parts can look different from the original.
    In Stock
    $241.18
    Minus Item
    Qty
    Plus Item
  • Microwave Turntable Motor for KitchenAid KOEC530PWH01 - Part W10911403

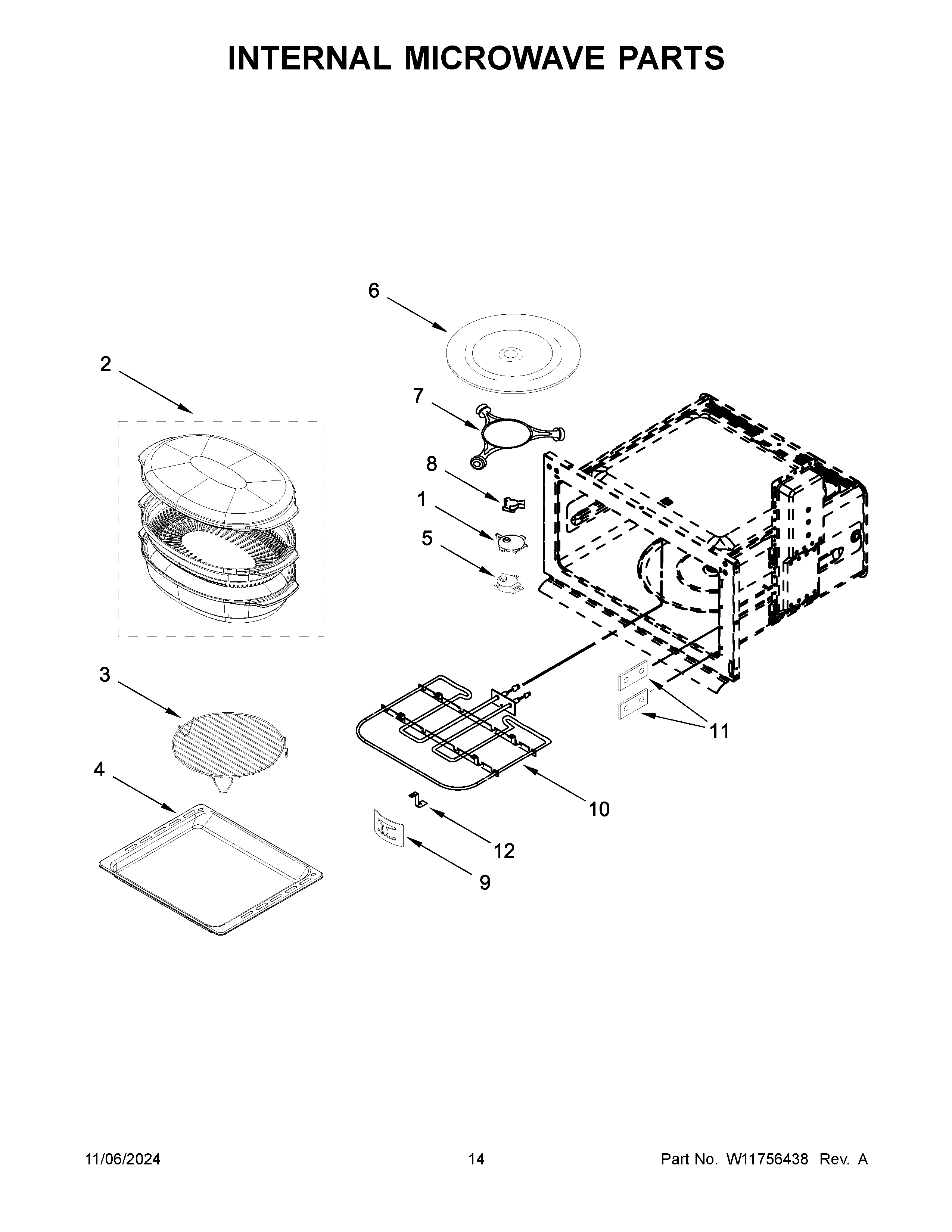

    Internal microwave parts diagram

    Microwave Turntable Motor

    Part #461967848971

    Replaced by #W10911403

    Info Icon
    Manufacturer substitution
    This part replaces 461967848971. Substitute parts can look different from the original.
    In Stock
    $89.68
    6% OFF Phone Price : $95.68Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Light Bulb for KitchenAid KOEC530PWH01 - Part W10886919

    Cabinet and stirrer parts diagram

    Lamp G4 Halo

    Part #W10795595

    Replaced by #W10886919

    Info Icon
    Manufacturer substitution
    This part replaces W10795595. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $12.07
    14% OFF Phone Price : $14.07Info Icon
    Minus Item
    Qty
    Plus Item
  • Sensor - Rtd for KitchenAid KOEC530PWH01 - Part W11598120

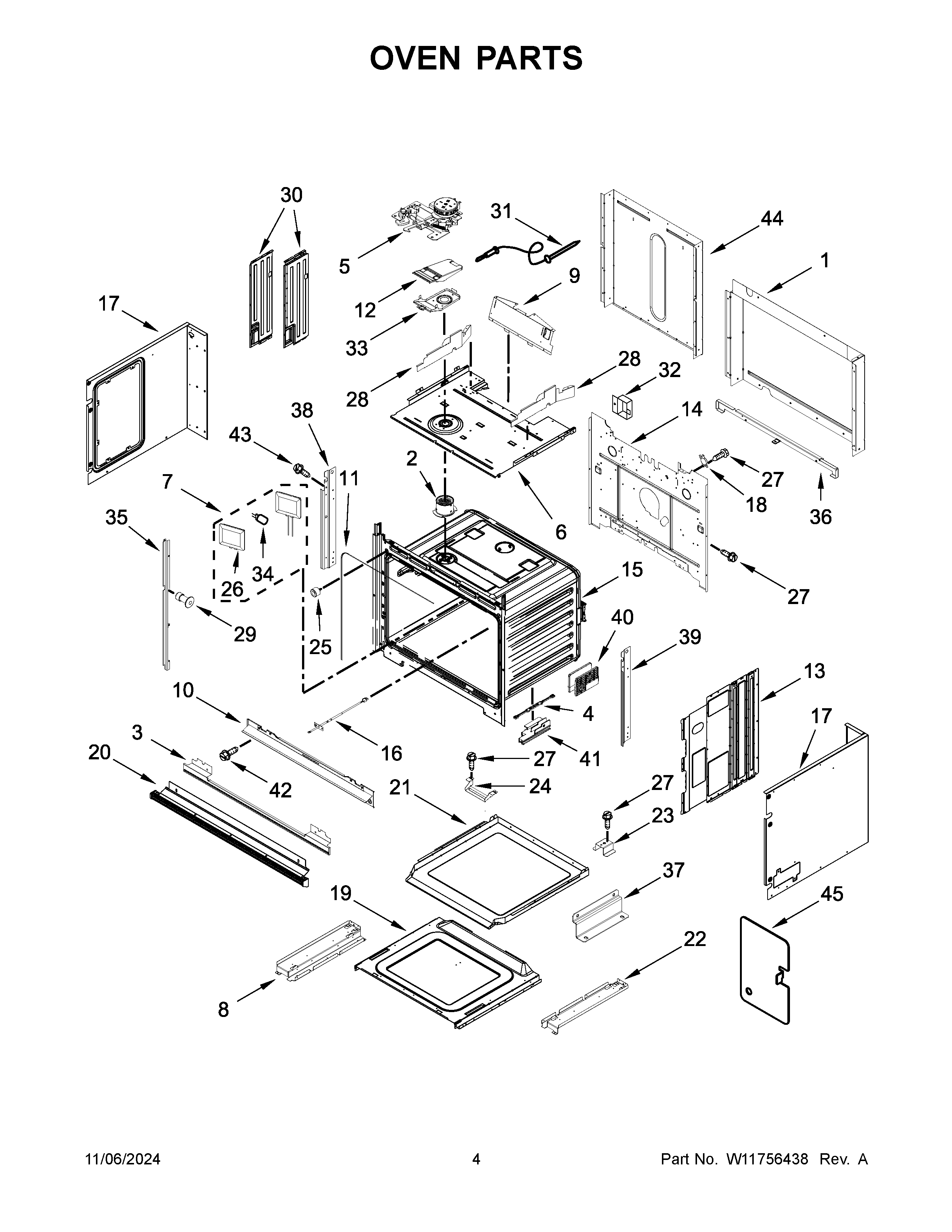

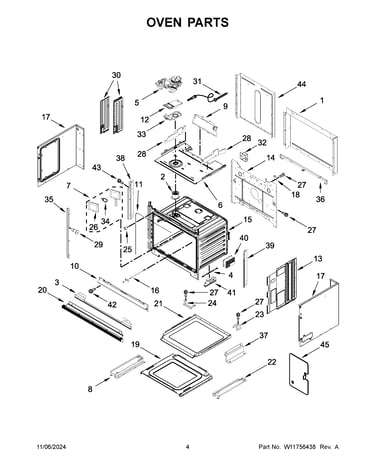

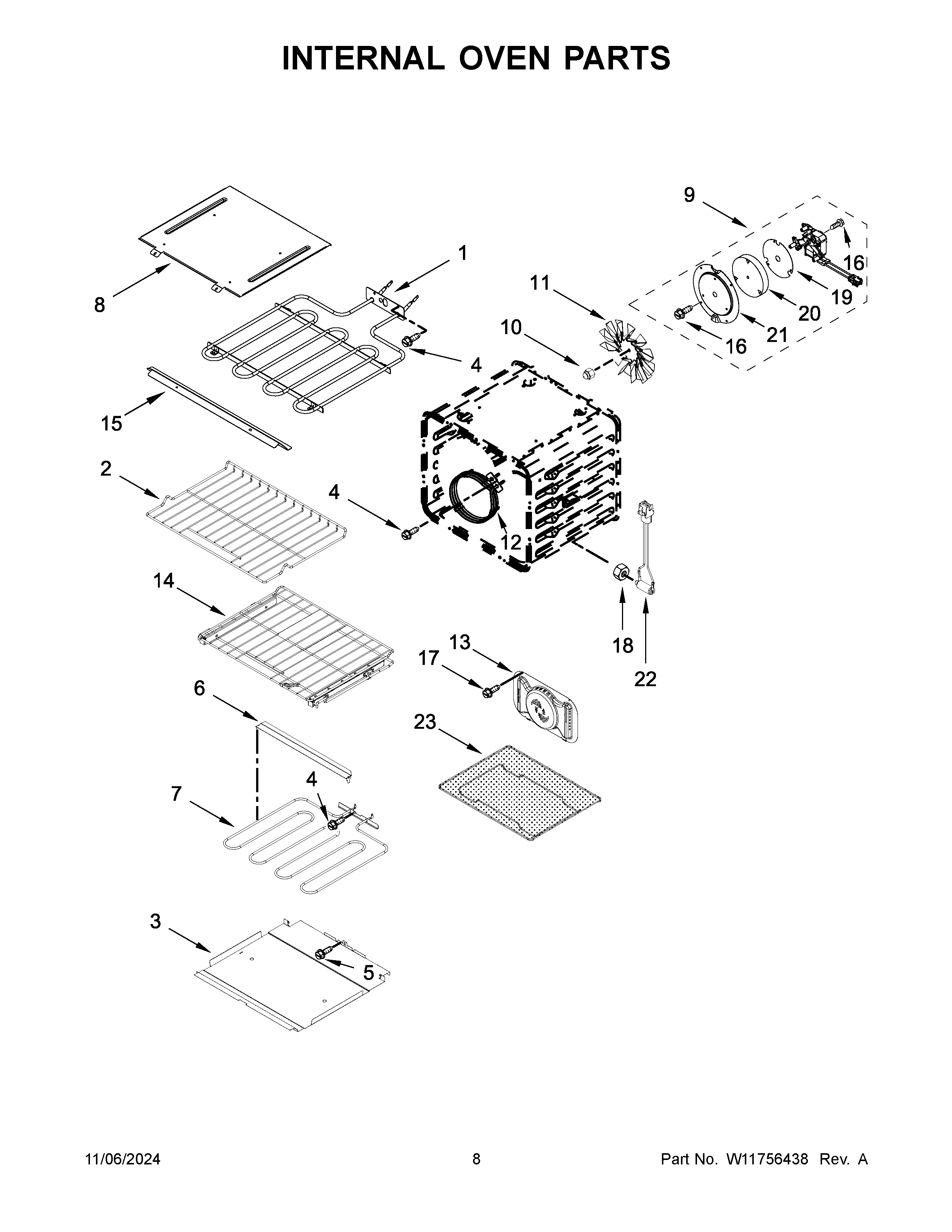

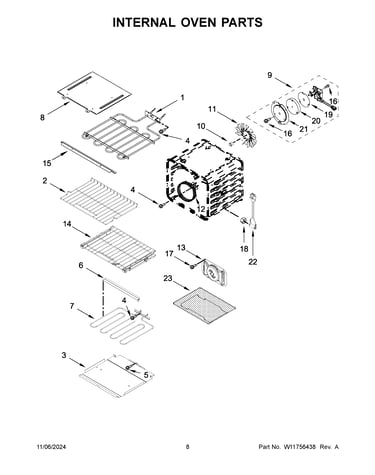

    Oven parts diagram

    Probe, Sensor

    Part #W11346074

    Replaced by #W11598120

    Info Icon
    Manufacturer substitution
    This part replaces W11346074. Substitute parts can look different from the original.
    In Stock
    $27.26
    18% OFF Phone Price : $33.26Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Waveguide Cover for KitchenAid KOEC530PWH01 - Part W10915651

    Internal microwave parts diagram

    O Mica Plate

    Part #461967451001

    Replaced by #W10915651

    Info Icon
    Manufacturer substitution
    This part replaces 461967451001. Substitute parts can look different from the original.
    In Stock
    $48.49
    11% OFF Phone Price : $54.49Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Element Clip for KitchenAid KOEC530PWH01 - Part W11724411

    Internal microwave parts diagram

    Whirlpool Wall Oven Microwave Element Clip

    Part #461967753871

    Replaced by #W11724411

    Info Icon
    Manufacturer substitution
    This part replaces 461967753871. Substitute parts can look different from the original.
    In Stock
    $70.97
    Minus Item
    Qty
    Plus Item
  • Microwave Electronic Control Board for KitchenAid KOEC530PWH01 - Part W11325786

    Cabinet and stirrer parts diagram

    Apcb Power C

    Part #W11289998

    Replaced by #W11325786

    Info Icon
    Manufacturer substitution
    This part replaces W11289998. Substitute parts can look different from the original.
    In Stock
    $211.63
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Appliance Touch-up Paint 72017

Appliance Touch-up Paint

Part #72017
This item is not returnable
In Stock
$39.58
Minus Item
Qty
Plus Item
Appliance Touch-up Paint, 6-oz (citrine White) 261900

Appliance Touch-up Paint, 6-oz (citrine White)

Part #261900
In Stock
$34.36
15% OFF Phone Price : $40.36Info Icon
Minus Item
Qty
Plus Item
