Sears 502474491 27" lightweight bicycle Parts

Here are the diagrams and repair parts for Sears 502474491 27" lightweight bicycle, as well as links to manuals and error code tables, if available.

Sears 502474491 27" lightweight bicycle
By Schematic

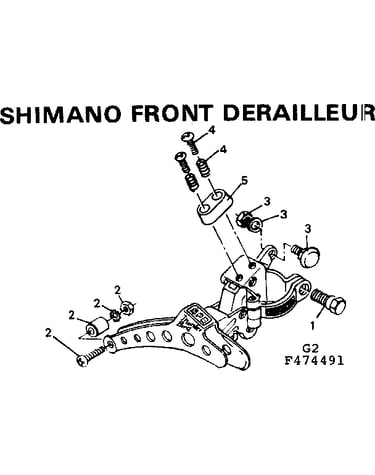

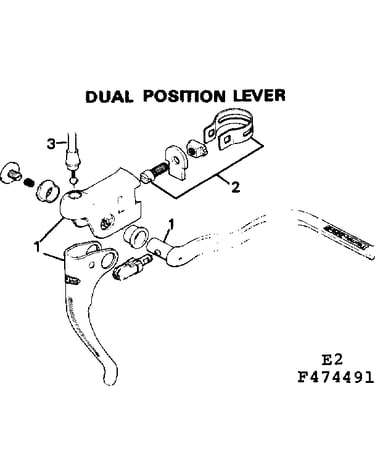

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for502474491 27" Lightweight Bicycle

  • Brake Shoe for Sears 502474491 - Part 308697

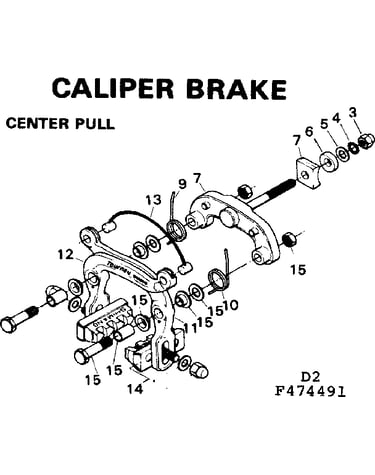

    Caliper brake diagram

    Brake Shoe

    Part #308697

    The manufacturer no longer makes this part, and there's no substitute part

  • Sprkt Cluste for Sears 502474491 - Part 27652

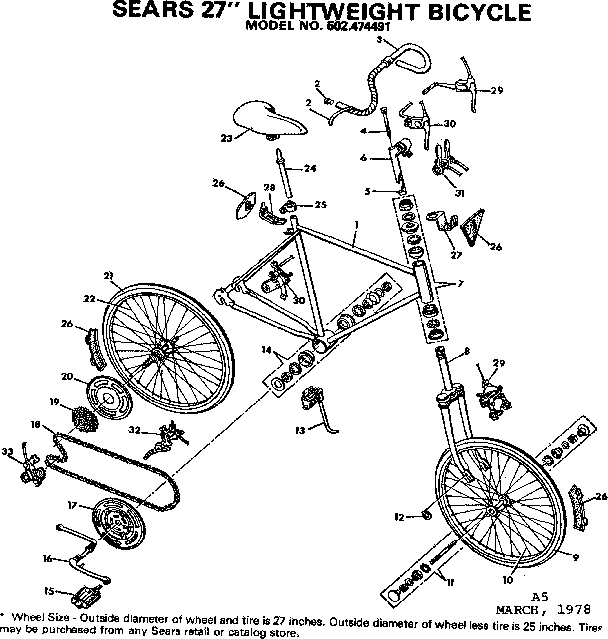

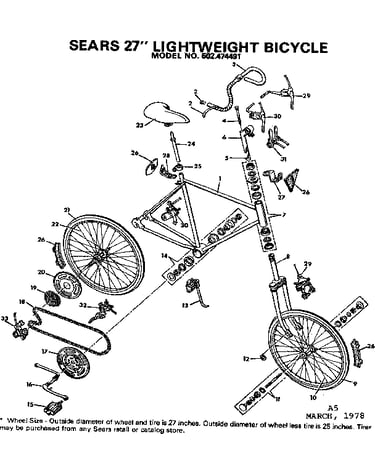

    Unit parts diagram

    Sprkt Cluste

    Part #27652

    The manufacturer no longer makes this part, and there's no substitute part

  • Flange Nut for Sears 502474491 - Part 300869

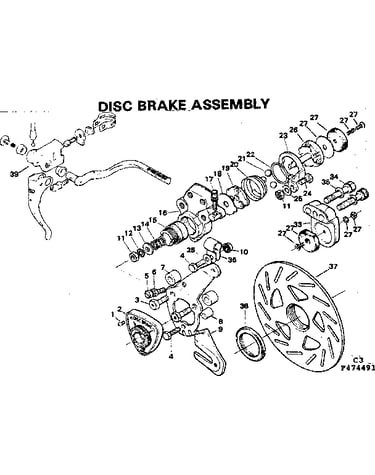

    Disc brake assembly diagram

    Flange Nut

    Part #300869

    The manufacturer no longer makes this part, and there's no substitute part

  • Plate for Sears 502474491 - Part 300896

    Disc brake assembly diagram

    Plate

    Part #300896

    The manufacturer no longer makes this part, and there's no substitute part

  • Hanger for Sears 502474491 - Part 304220

    Caliper brake diagram

    Hanger

    Part #304220

    The manufacturer no longer makes this part, and there's no substitute part

  • Axle Comp for Sears 502474491 - Part 300983

    #NI

    All parts diagram

    Axle Comp

    Part #300983

    The manufacturer no longer makes this part, and there's no substitute part

  • Cage Plate O for Sears 502474491 - Part 300907

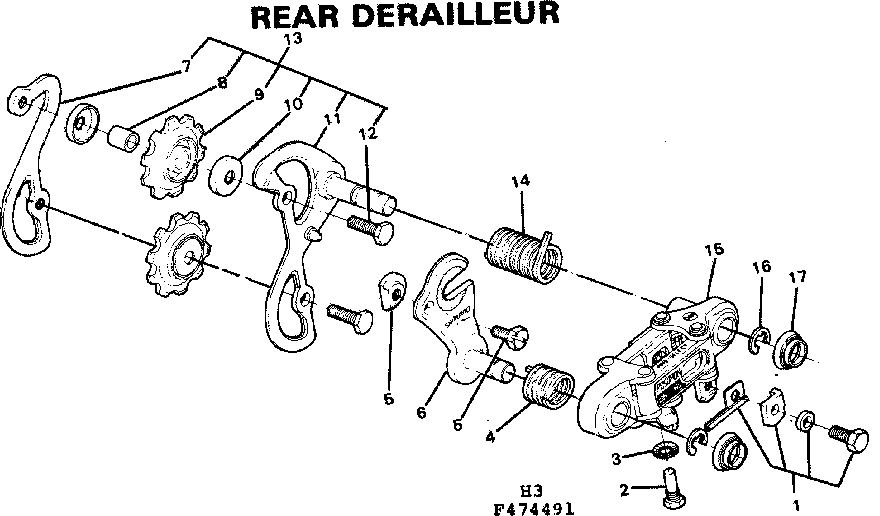

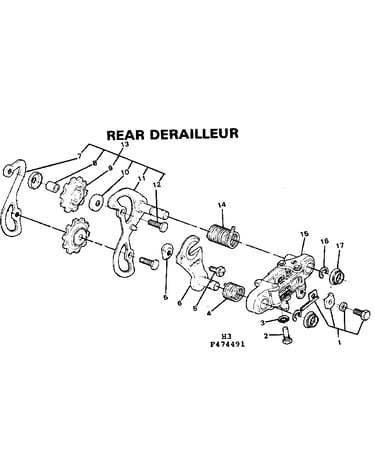

    Rear derailleur diagram

    Cage Plate O

    Part #300907

    The manufacturer no longer makes this part, and there's no substitute part

  • Washer for Sears 502474491 - Part 302094

    Caliper brake diagram

    Washer

    Part #302094

    The manufacturer no longer makes this part, and there's no substitute part

  • Frame for Sears 502474491 - Part 32241BDJ

    Unit parts diagram

    Frame

    Part #32241BDJ

    The manufacturer no longer makes this part, and there's no substitute part

  • Lock Washer for Sears 502474491 - Part 19X4

    Caliper brake diagram

    Lock Washer

    Part #19X4

    The manufacturer no longer makes this part, and there's no substitute part
