Kenmore 34471320 radiant fan-forced electric heater Parts

Here are the diagrams and repair parts for Kenmore 34471320 radiant fan-forced electric heater, as well as links to manuals and error code tables, if available.

Kenmore 34471320 radiant fan-forced electric heater
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 34471320 Radiant Fan-Forced Electric Heater

  • Cut-off for Kenmore 34471320 - Part 1002400-168

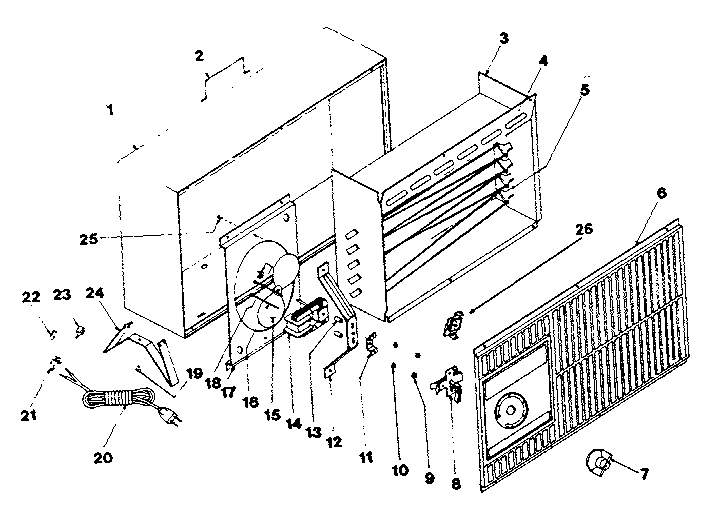

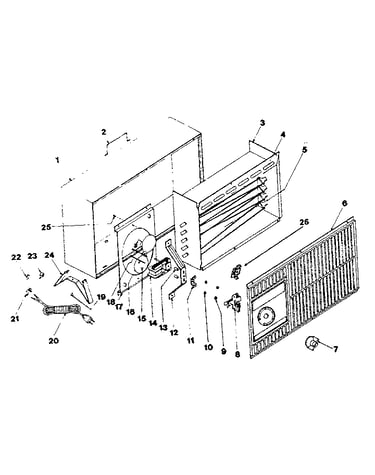

    Replacement parts diagram

    Cut-off

    Part #1002400-168

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor for Kenmore 34471320 - Part 93914-1

    Replacement parts diagram

    Motor

    Part #93914-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Reflector for Kenmore 34471320 - Part 91427-2

    Replacement parts diagram

    Reflector

    Part #91427-2

    The manufacturer no longer makes this part, and there's no substitute part

  • Nut for Kenmore 34471320 - Part 2491018

    Replacement parts diagram

    Nut

    Part #2491018

    The manufacturer no longer makes this part, and there's no substitute part

  • Bracket for Kenmore 34471320 - Part 28654

    Replacement parts diagram

    Bracket

    Part #28654

    The manufacturer no longer makes this part, and there's no substitute part

  • Knob for Kenmore 34471320 - Part 1002190-1

    Replacement parts diagram

    Knob

    Part #1002190-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Relief for Kenmore 34471320 - Part 1001541

    Replacement parts diagram

    Relief

    Part #1001541

    The manufacturer no longer makes this part, and there's no substitute part

  • Mount for Kenmore 34471320 - Part 9415761

    Replacement parts diagram

    Mount

    Part #9415761

    The manufacturer no longer makes this part, and there's no substitute part

  • Rivet for Kenmore 34471320 - Part 135739

    Replacement parts diagram

    Rivet

    Part #135739

    The manufacturer no longer makes this part, and there's no substitute part

  • Terminal for Kenmore 34471320 - Part 28053

    #NI

    All parts diagram

    Terminal

    Part #28053

    The manufacturer no longer makes this part, and there's no substitute part
