Model # AR072 Official Dwyer compact refrigerator

Here are the diagrams and repair parts for Official Dwyer AR072 compact refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

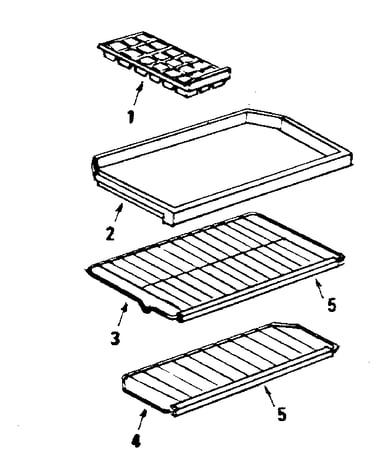

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Bolt 301868
Bolt

Part #301868

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Evaporator 301901
#4

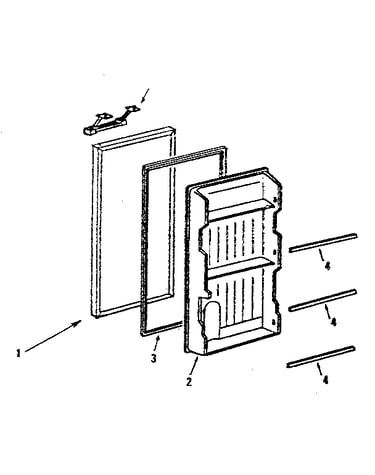

Door diagram

Refrigerator door evaporator

Part #301901

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 301884
#14

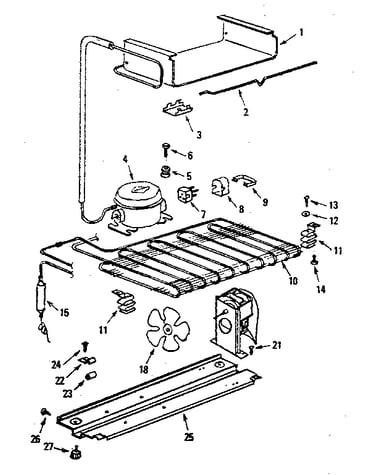

Cooling unit diagram

Refrigerator screw

Part #301884

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 301900
#3

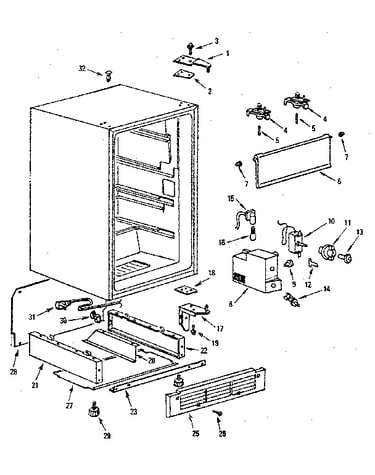

Liner diagram

Refrigerator screw

Part #301900

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Energy Guide 301915

#NI

All parts diagram

Refrigerator energy guide

Part #301915

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Spacer 301179
#9

Liner diagram

Refrigerator spacer

Part #301179

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Power Cord 301879
#31

Liner diagram

Refrigerator power cord

Part #301879

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Condenser Fan Motor Bracket Screw 301890
#24

Cooling unit diagram

Refrigerator condenser fan motor bracket screw

Part #301890

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Fan Motor 301926
#16

Cooling unit diagram

Refrigerator fan motor

Part #301926

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Pin 300853
#5

Liner diagram

Refrigerator pin

Part #300853

The manufacturer no longer makes this part, and there's no substitute part
