Frigidaire
Wall Oven/Microwave Combo

Model # FCWM2727ABA Official Frigidaire wall oven/microwave combo

Here are the diagrams and repair parts for Official Frigidaire FCWM2727ABA wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

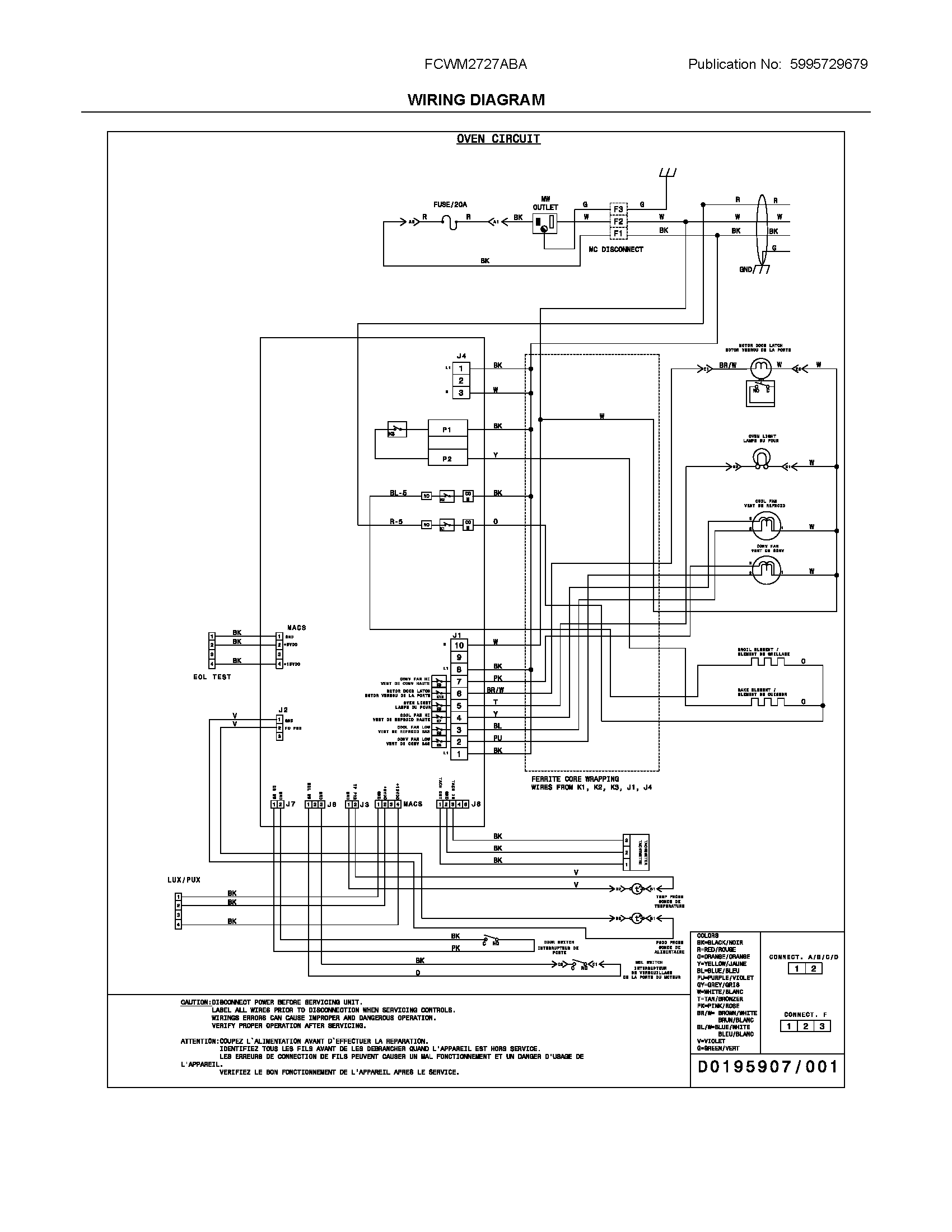

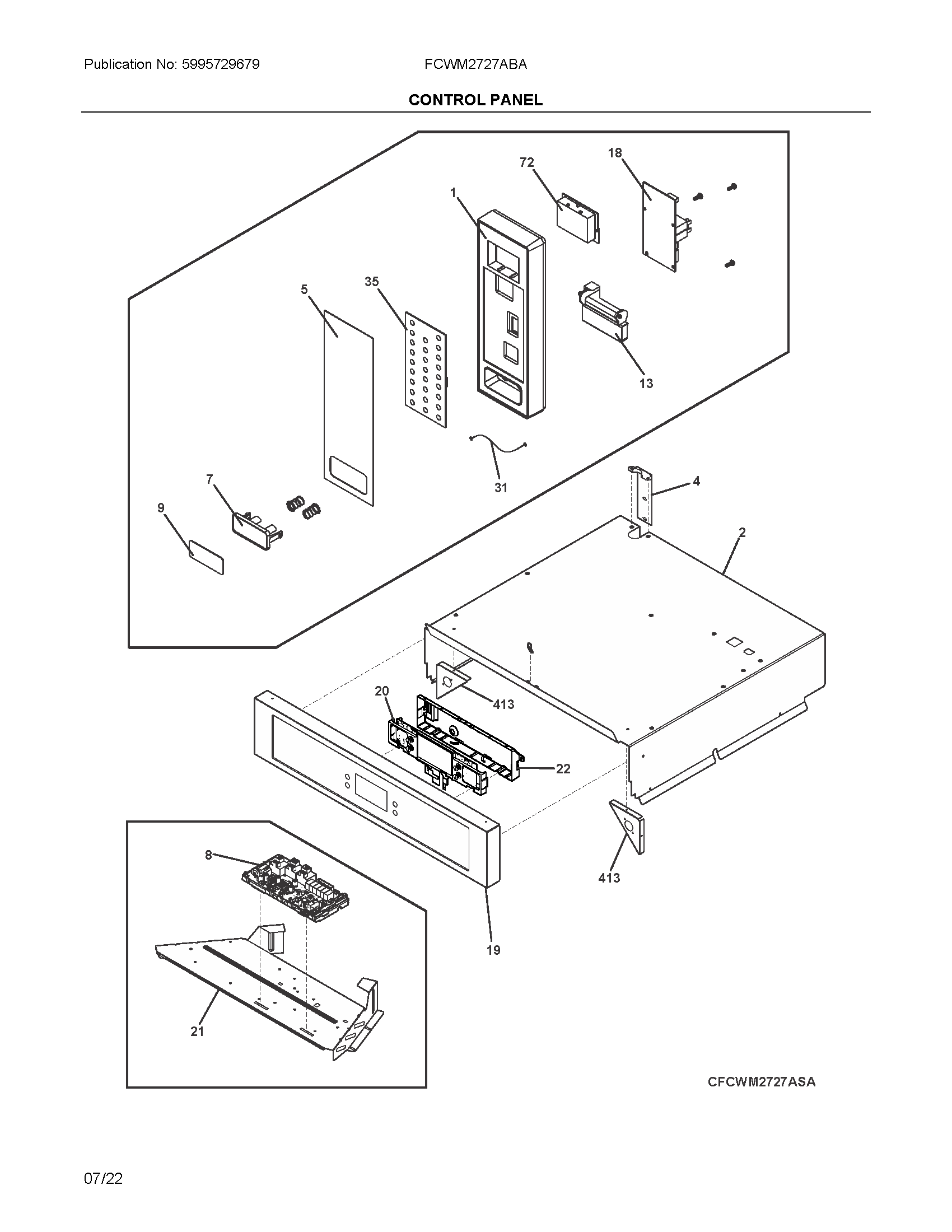

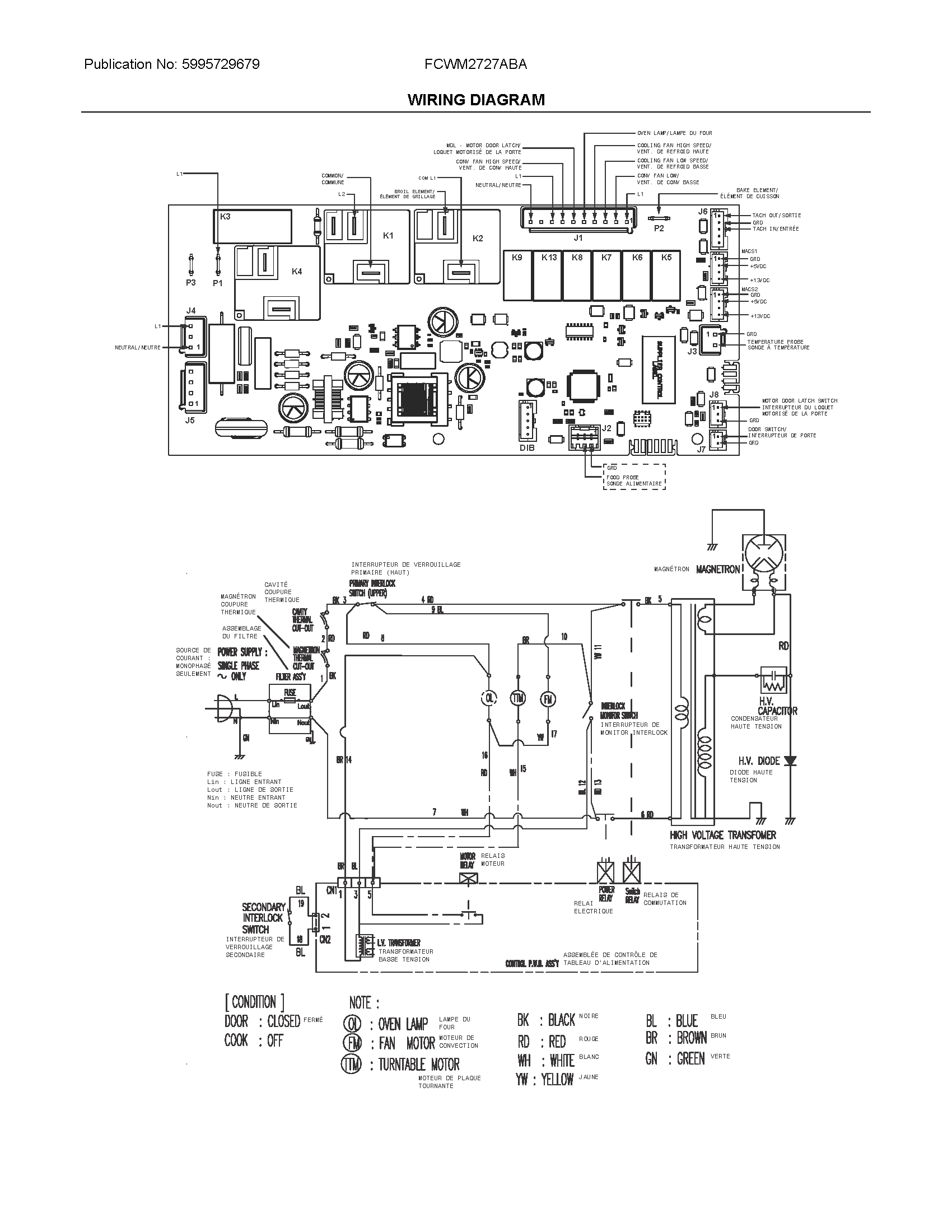

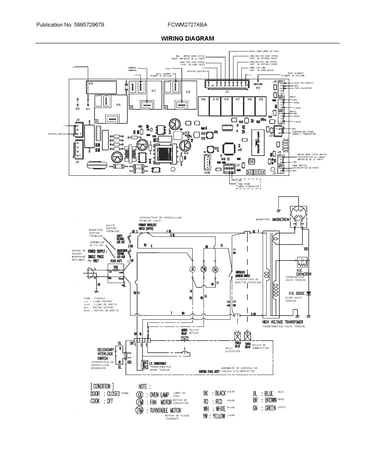

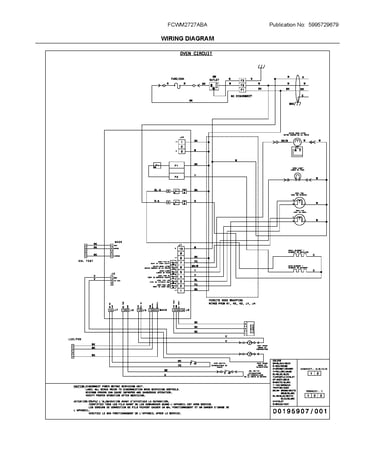

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |

Range Oven Temperature Sensor (replaces 5304504897) 5304525427
#37

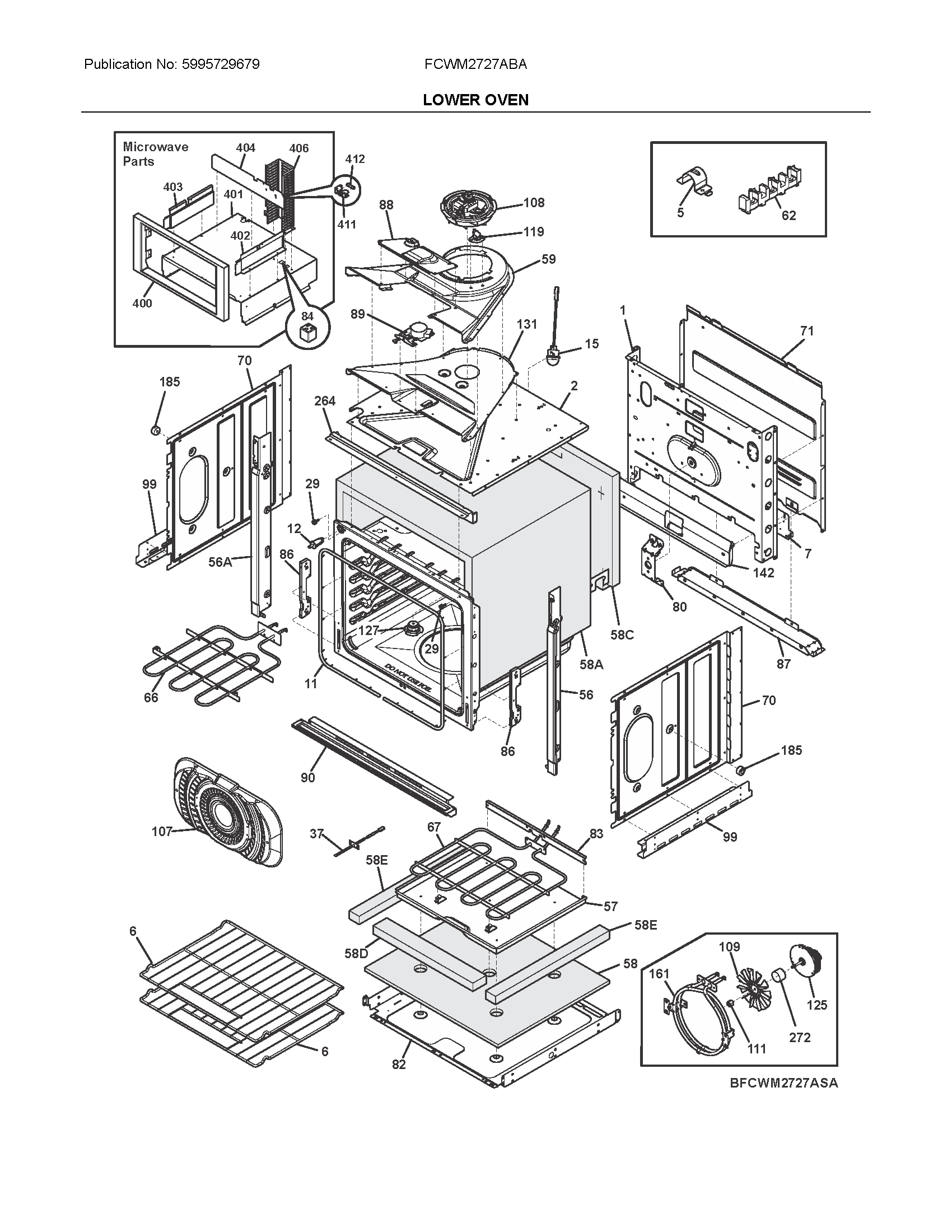

Lower oven diagram

Range oven temperature sensor (replaces 5304504897)

Part #5304525427

BEST SELLER
$33.57
13% OFF Phone Price : $38.57
In Stock
Microwave Fuse (replaces 5304488359) 5304509451
#34

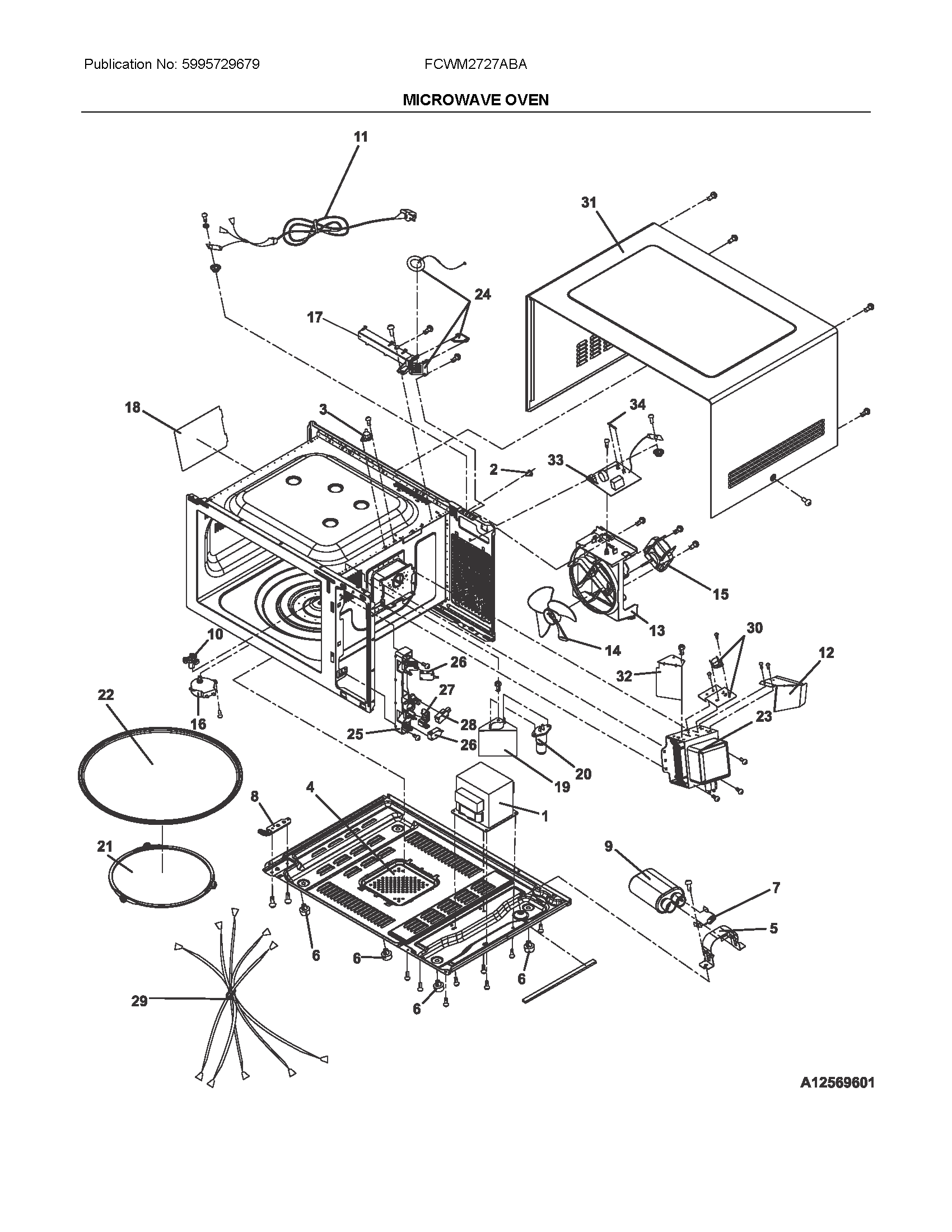

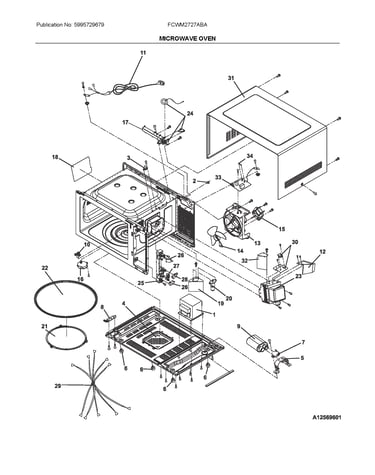

Microwave oven diagram

Microwave fuse (replaces 5304488359)

Part #5304509451

BEST SELLER
$11.96
30% OFF MSRP : $17.00
In Stock
Microwave Turntable Tray (replaces 5304464116) 5304509621
#22

Microwave oven diagram

Microwave turntable tray (replaces 5304464116)

Part #5304509621

BEST SELLER
$111.87
8% OFF Phone Price : $121.87
In Stock
Range Washer (replaces 316136500, 7316008401) 316008401
#NI

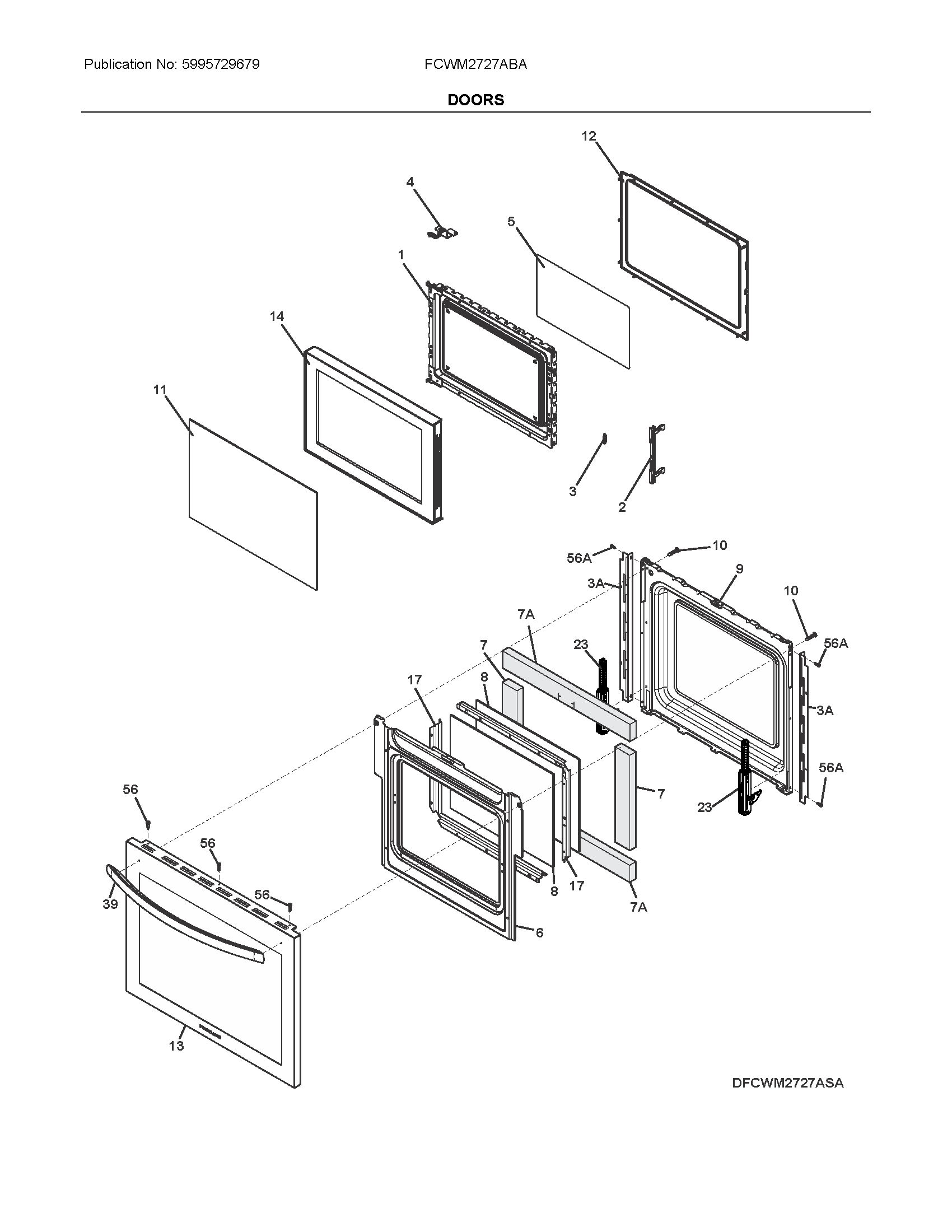

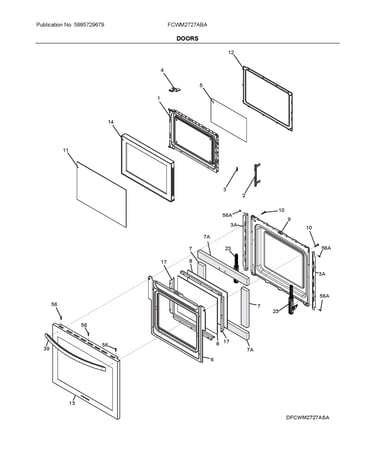

Doors diagram

Range washer (replaces 316136500, 7316008401)

Part #316008401

BEST SELLER
$12.32
14% OFF Phone Price : $14.32
In Stock
Range Screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109) 316021109
Range screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109)

Part #316021109

BEST SELLER
$14.89
12% OFF Phone Price : $16.89
In Stock
Range Hex Head Screw, #8-18 X 3/8-in 316021105
Range hex head screw, #8-18 x 3/8-in

Part #316021105

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021105. Substitute parts can look different from the original.
BEST SELLER
$14.89
12% OFF Phone Price : $16.89
In Stock
Range Screw 316021110
Range screw

Part #316021110

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021110. Substitute parts can look different from the original.
BEST SELLER
$14.89
12% OFF Phone Price : $16.89
In Stock
Range Convection Fan Blade Nut (replaces 318399800, 5303311205, 7316136600) 316136600
#111

Lower oven diagram

Range convection fan blade nut (replaces 318399800, 5303311205, 7316136600)

Part #316136600

$19.99
9% OFF Phone Price : $21.99
In Stock
Microwave Waveguide Cover 5304505675
#18

Microwave oven diagram

Microwave waveguide cover

Part #5304505675

This item is not returnable
$12.49
14% OFF Phone Price : $14.49
In Stock
Range Screw (replaces 5304471237) 316418900
Range screw (replaces 5304471237)

Part #316418900

This item is not returnable
$14.79
12% OFF Phone Price : $16.79
In Stock
