Here are the diagrams and repair parts for Official KitchenAid KHWS160VWH8 hot water dispenser, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

Browse Parts forKHWS160VWH8 Hot Water Dispenser

#14

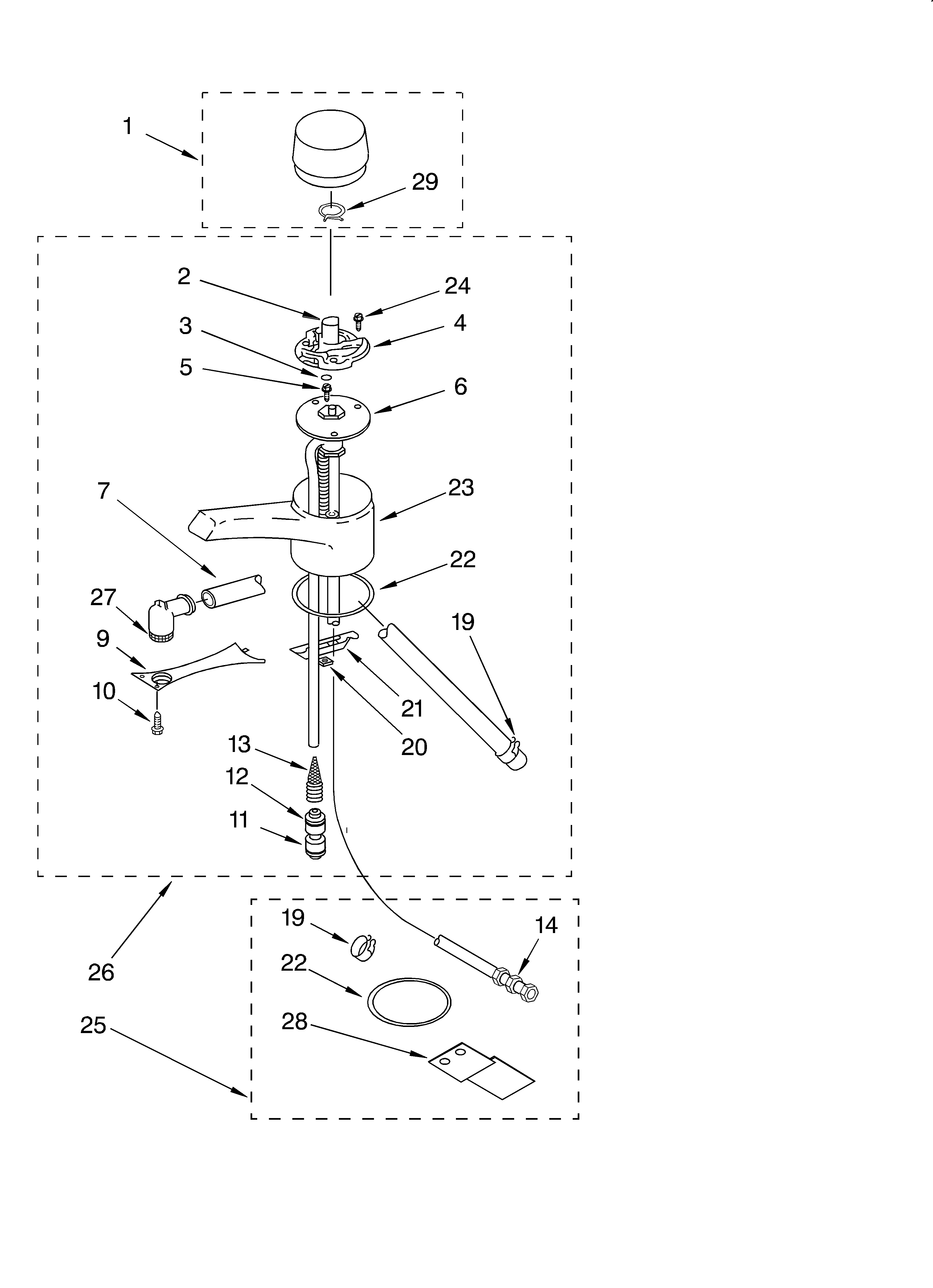

Spout unit diagram
Union
Part #4159060
Replaced by #WP2198677
?
Manufacturer substitution
This part replaces 4159060. Substitute parts can look different from the original.
$18.88 |
10% OFF Phone Price : $20.88
In Stock
Qty
Union-watr
Part #3191383
Replaced by #WP2198677
?
Manufacturer substitution
This part replaces 3191383. Substitute parts can look different from the original.
$18.88 |
10% OFF Phone Price : $20.88
In Stock
Qty
Lock washer
Part #4159493
$36.96
In Stock
Qty
#18

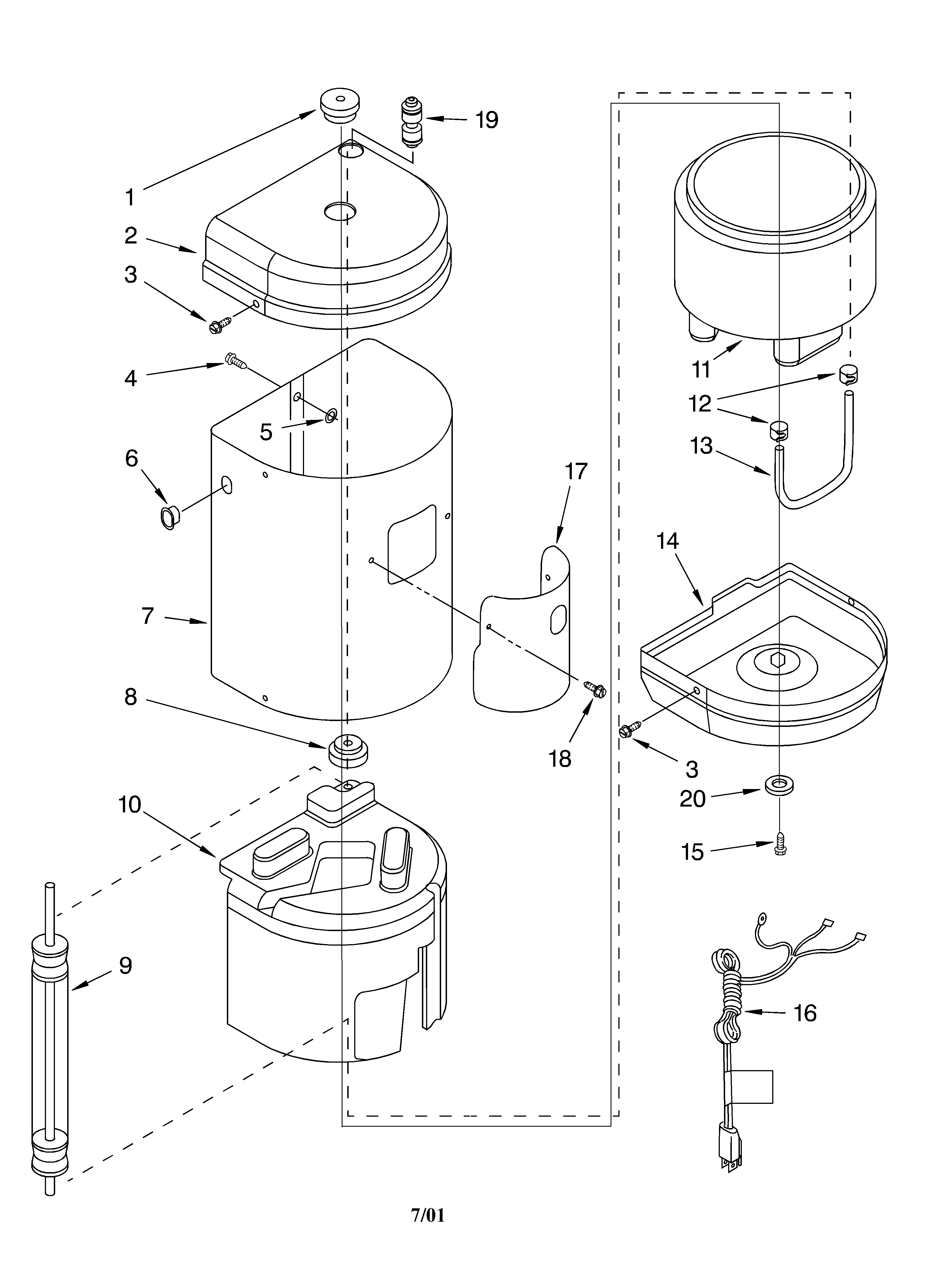

Outer cover and insulation/literature diagram
Screw
Part #311932
Replaced by #WP313808
?
Manufacturer substitution
This part replaces 311932. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Qty
#5

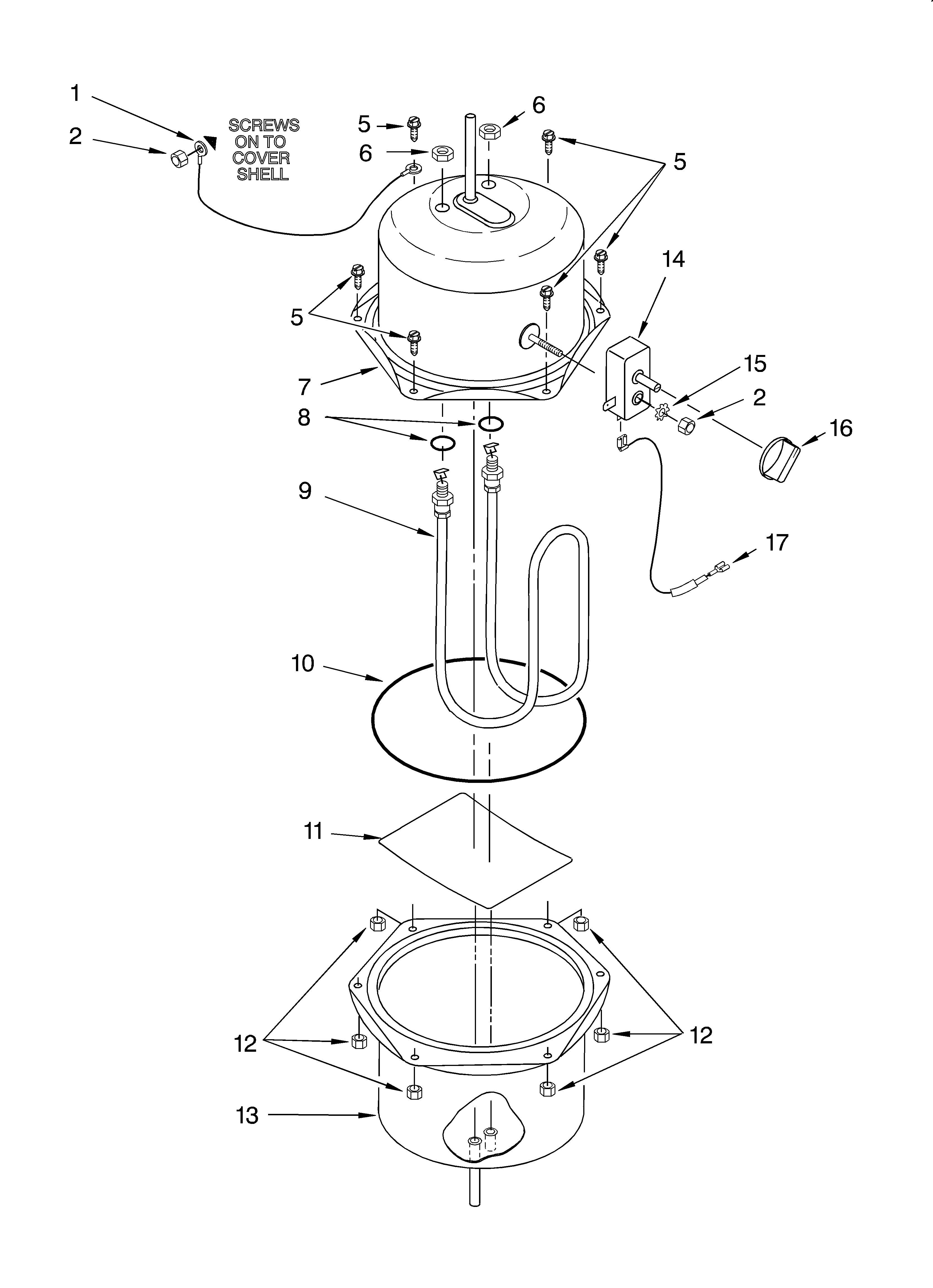

Upper and lower tank shell diagram
Screw
Part #4159230
Replaced by #WPW10068250
?
Manufacturer substitution
This part replaces 4159230. Substitute parts can look different from the original.
This item is not returnable
$5.19 |
16% OFF Phone Price : $6.19
In Stock
Qty
#6
Upper and lower tank shell diagram
Nut
Part #4160076
The manufacturer no longer makes this part, and there's no substitute part
#9
Outer cover and insulation/literature diagram
Displacer
Part #3192964
The manufacturer no longer makes this part, and there's no substitute part
#16
Outer cover and insulation/literature diagram
Power cord
Part #3192352
The manufacturer no longer makes this part, and there's no substitute part
#23
Spout unit diagram
Spout body white
Part #3193060
The manufacturer no longer makes this part, and there's no substitute part
#26
Spout unit diagram
Faucet assembly white
Part #3193135
The manufacturer no longer makes this part, and there's no substitute part
