Model # 030731-00 Official Briggs & Stratton generator

Here are the diagrams and repair parts for Official Briggs & Stratton 030731-00 generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

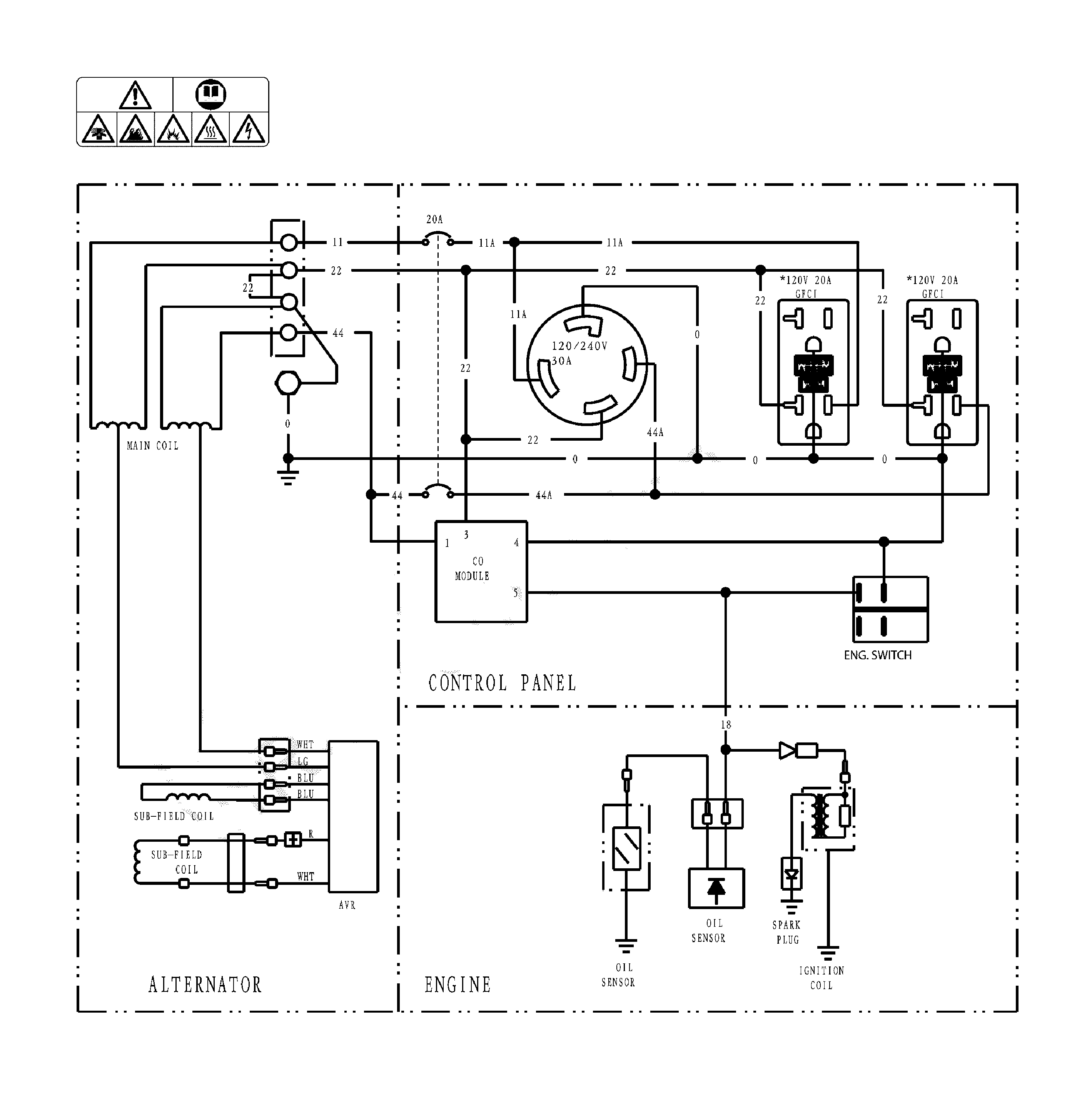

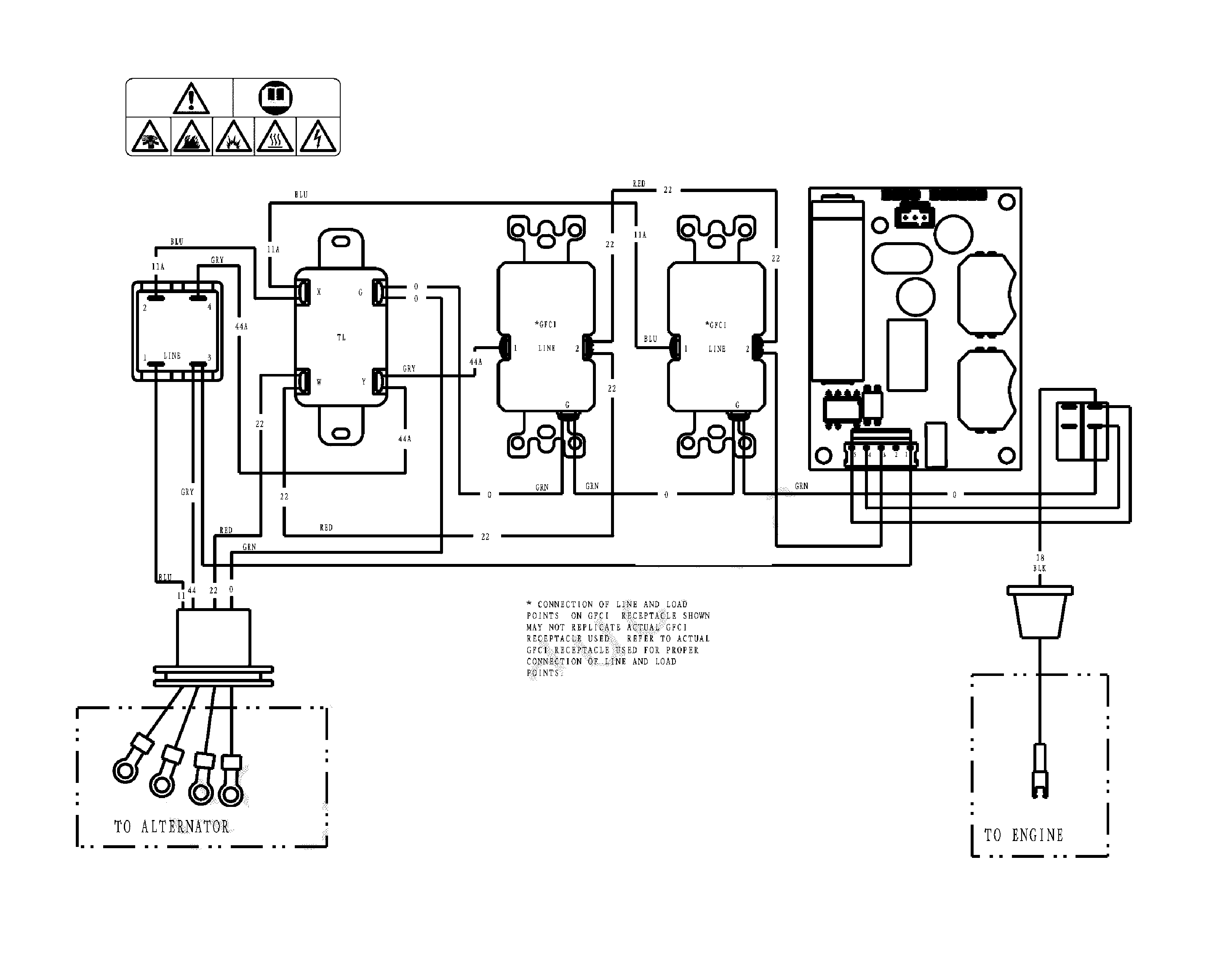

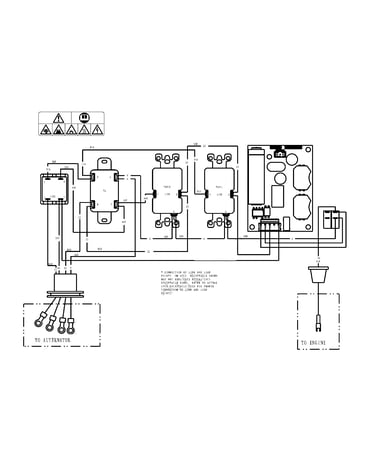

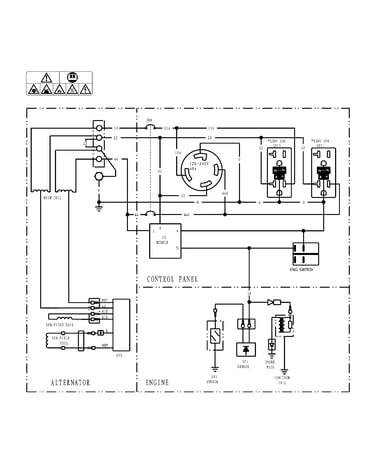

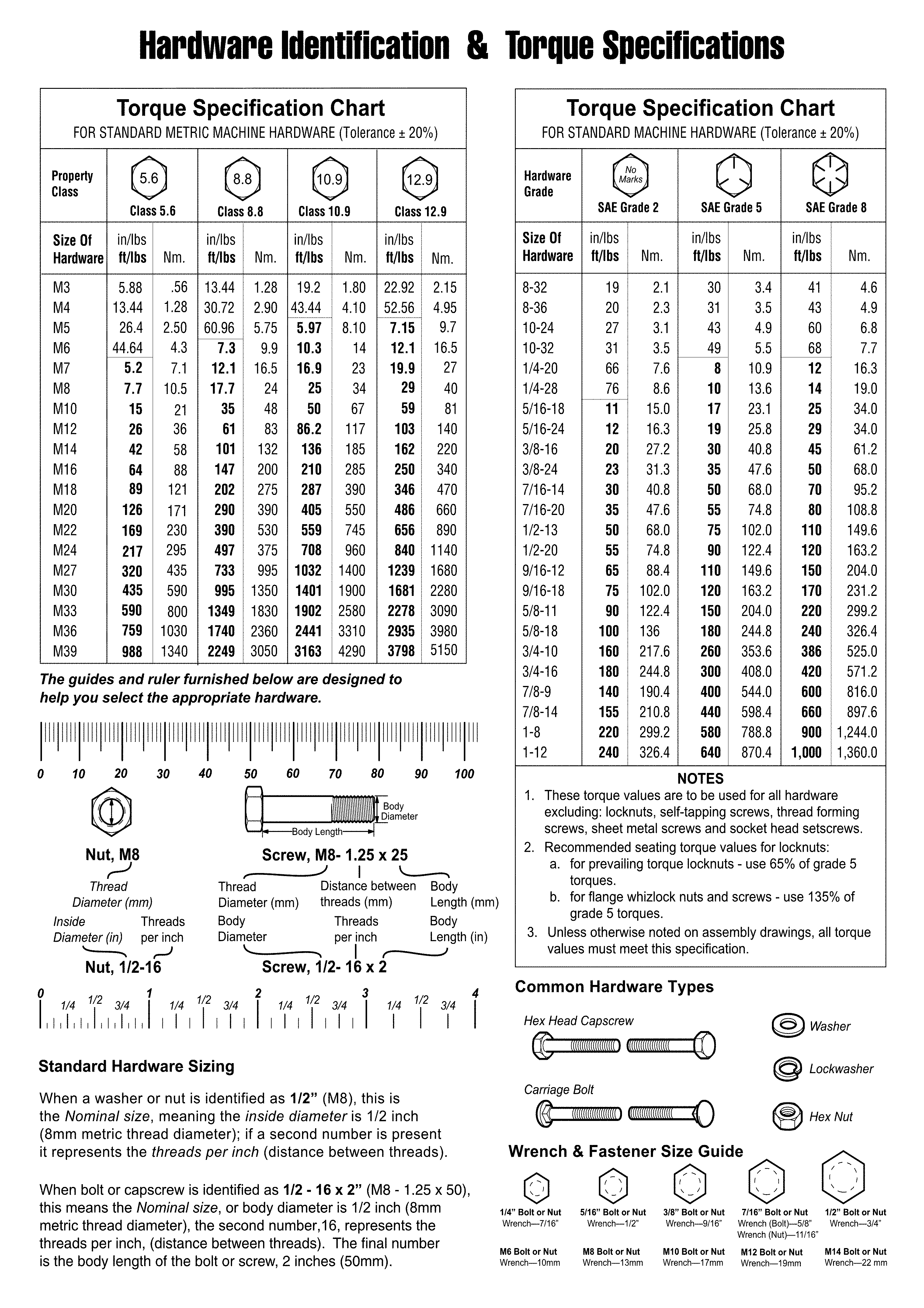

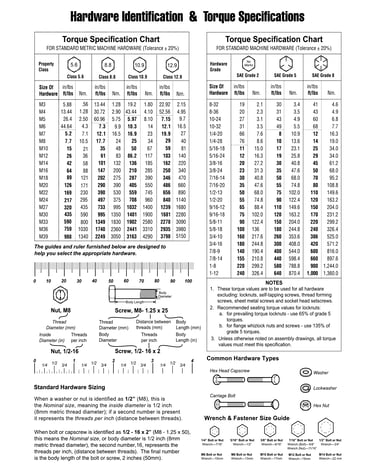

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 211 parts  |

Lawn & Garden Equipment Fuel Line Kit 791745
#46

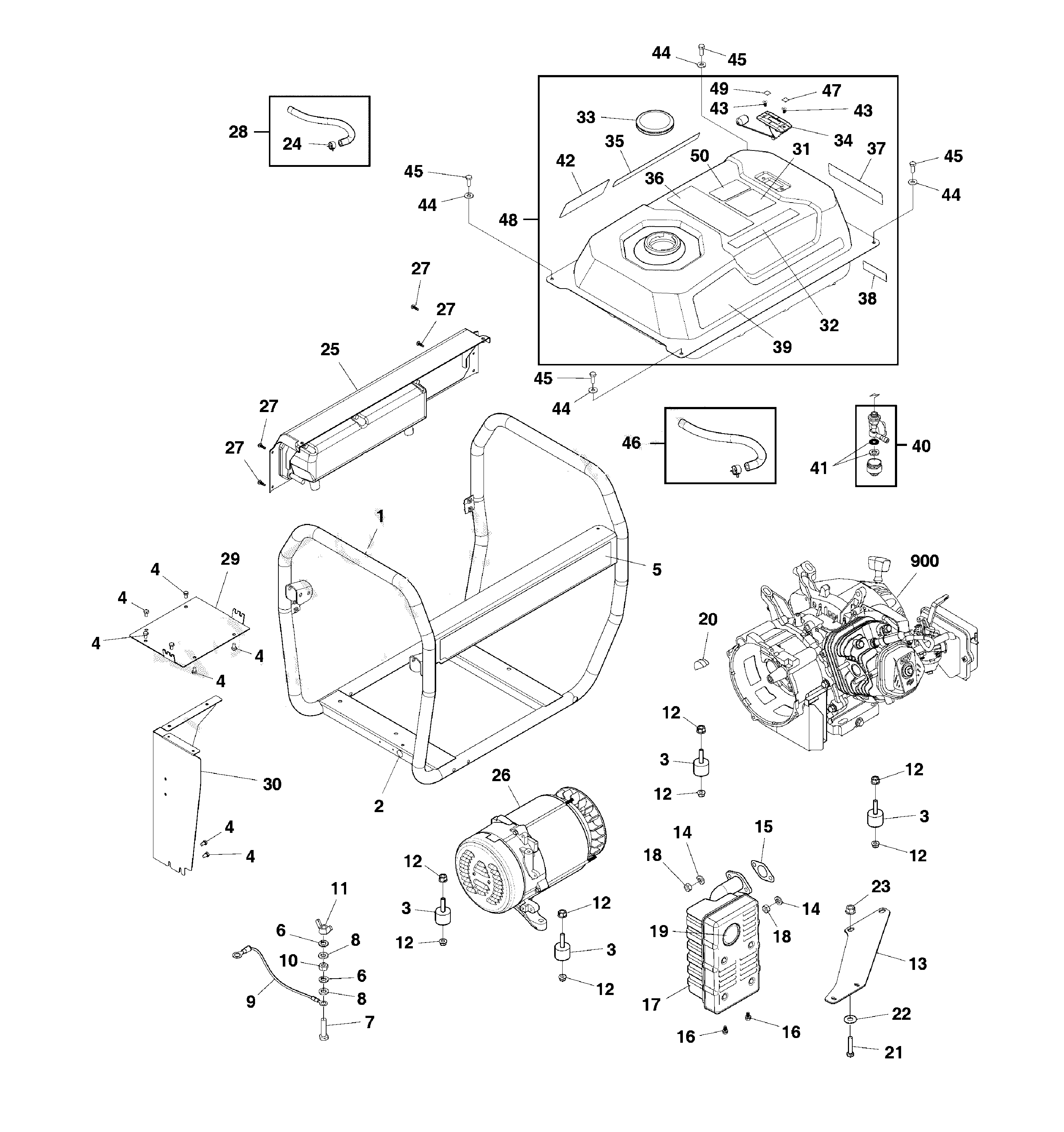

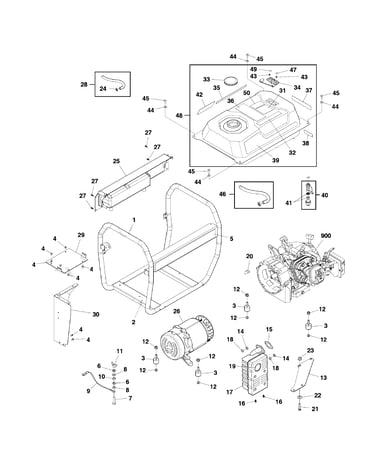

Main unit diagram

Lawn & garden equipment fuel line kit

Part #791745

This item is not returnable
$19.69
9% OFF Phone Price : $21.69
In Stock
Generator Support Leg 312510GS
#8

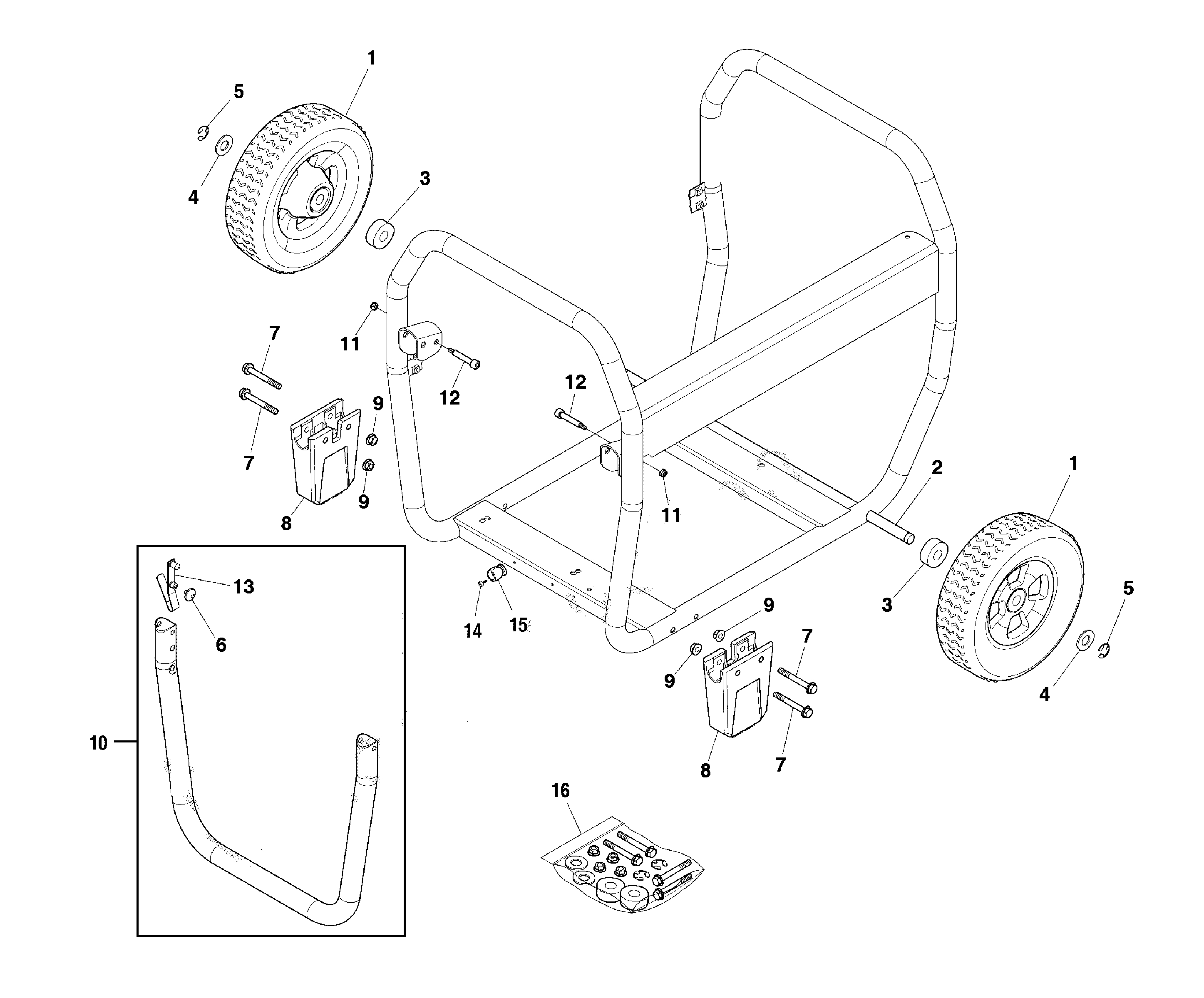

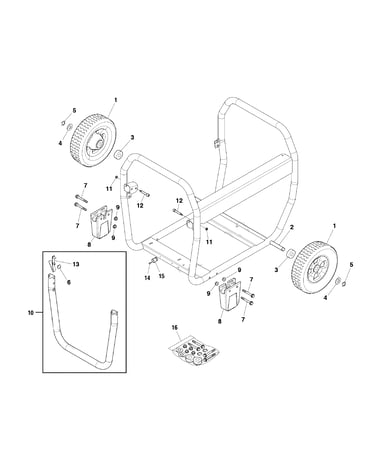

Wheel kit diagram

Generator support leg

Part #312510GS

$40.16
11% OFF Phone Price : $45.16
In Stock
Generator E-ring 703977
#5

Wheel kit diagram

Generator e-ring

Part #703977

This item is not returnable
In Stock
Bolt 312912GS
#16

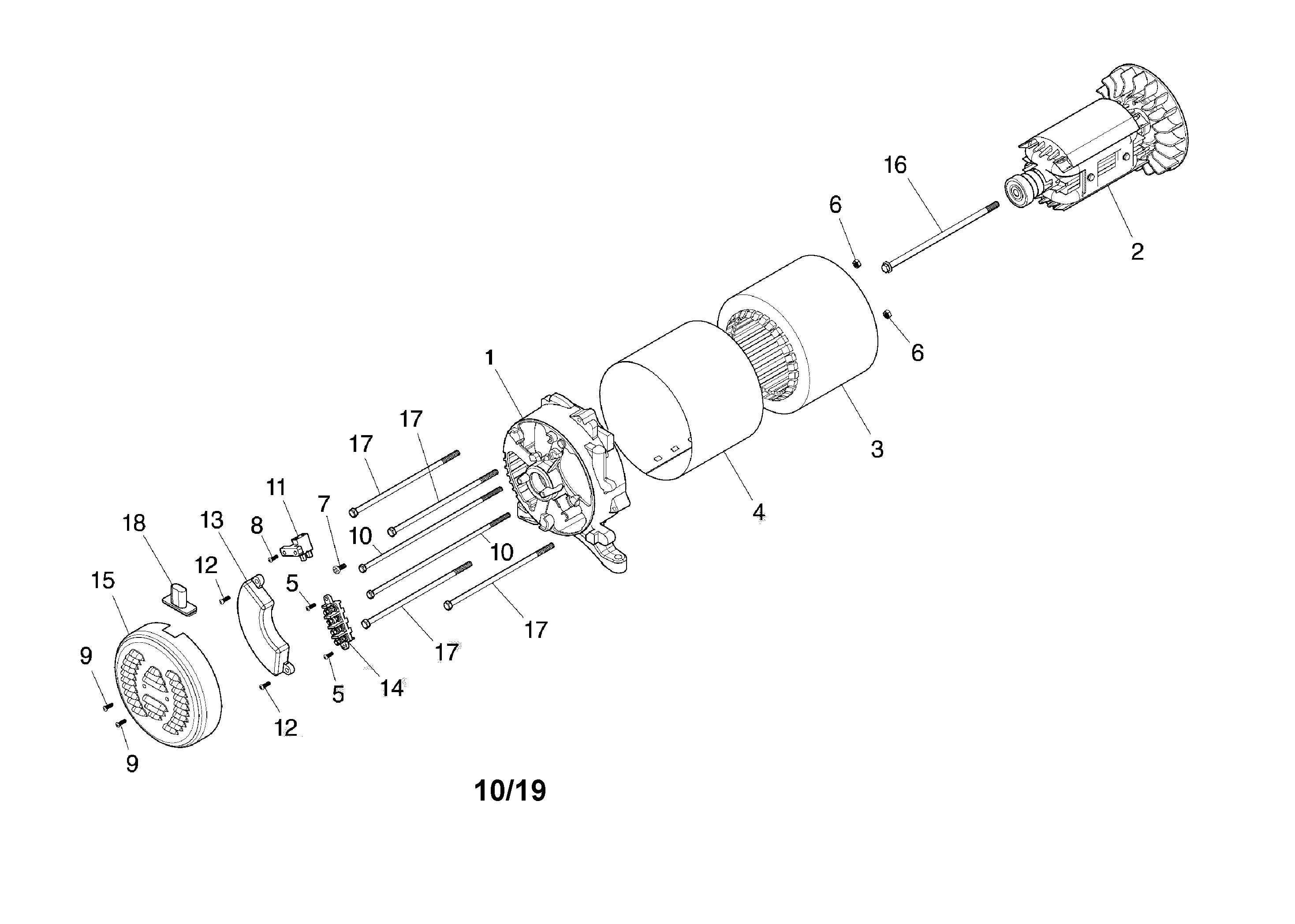

Alternator diagram

Bolt

Part #312912GS

In Stock
Generator Muffler 192569GS
#17

Main unit diagram

Generator muffler

Part #192569GS

$177.94
5% OFF Phone Price : $187.94
In Stock
Bracket-module 772213
#12

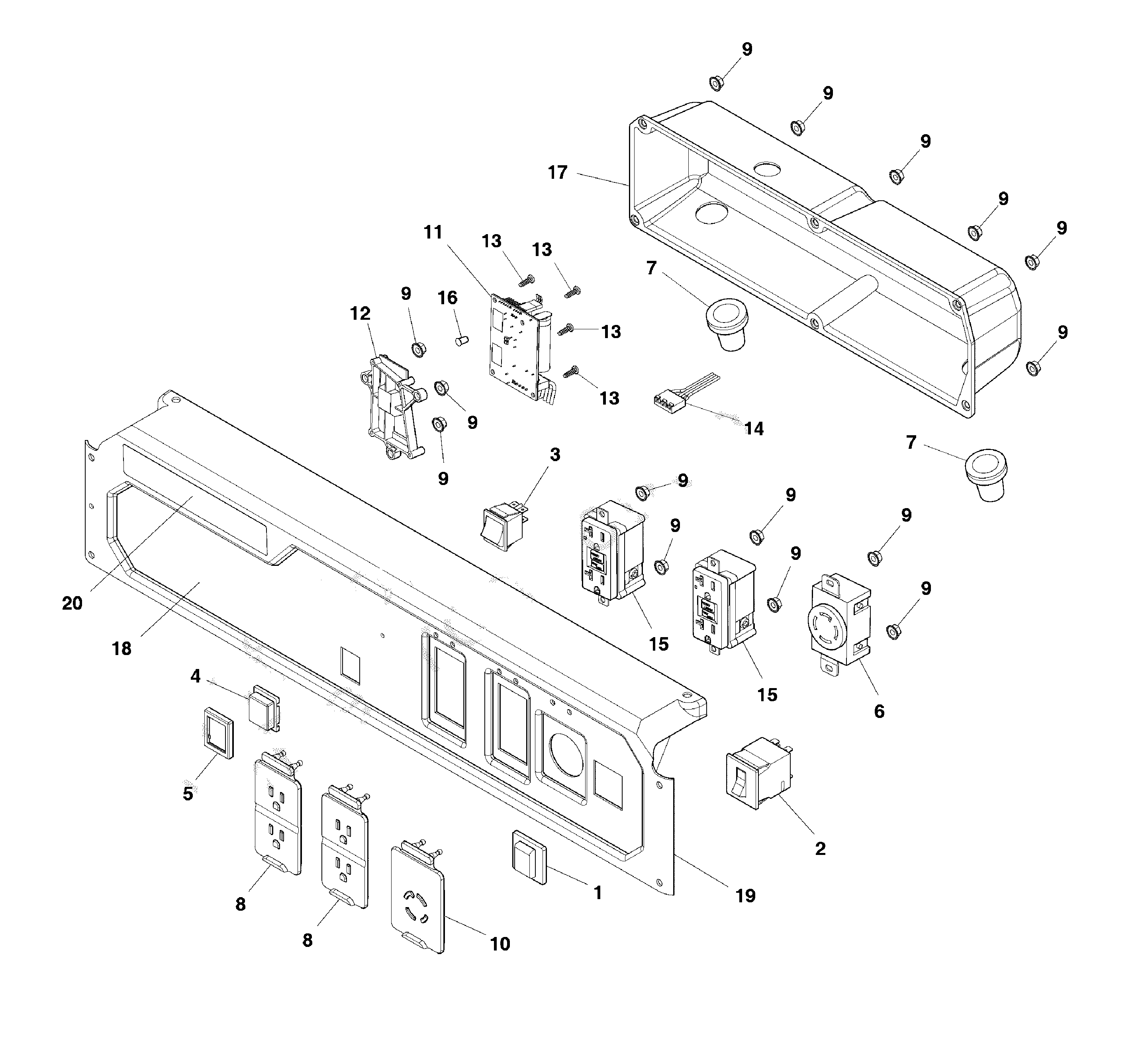

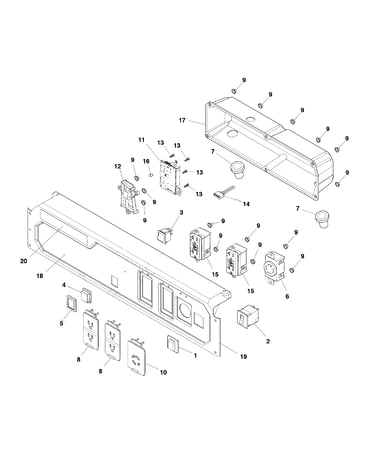

Control panel diagram

Bracket-module

Part #772213

This item is not returnable
In Stock
Kit-hardware 84001063
#16

Wheel kit diagram

Kit-hardware

Part #84001063

In Stock
Rotor 84001103
#2

Alternator diagram

Rotor

Part #84001103

In Stock
Nut 312916GS
#6

Alternator diagram

Nut

Part #312916GS

This item is not returnable
In Stock
Generator Carbon Monoxide Sensor Module 772211
#11

Control panel diagram

Generator carbon monoxide sensor module

Part #772211

In Stock
