Frigidaire
Wall Oven/Microwave Combo

Model # GCWM3067AFA Official Frigidaire electric oven/microwave combo

Here are the diagrams and repair parts for Official Frigidaire GCWM3067AFA electric oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

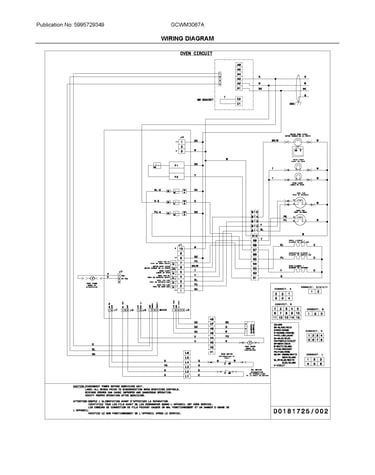

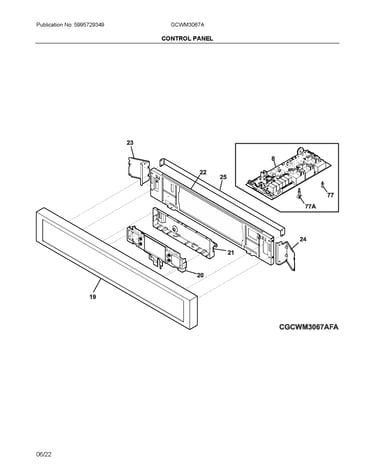

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |
Interlock R A16919301
#47

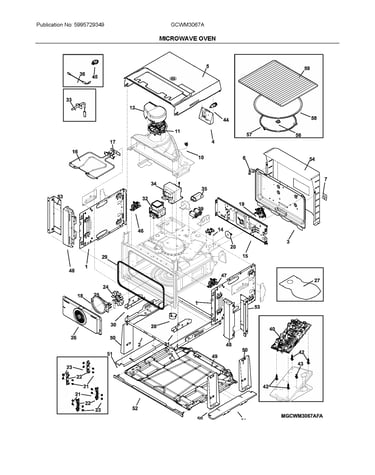

Microwave oven diagram

Interlock r

Part #A16919301

Replaced by #A23243301

?
Manufacturer substitution
This part replaces A16919301. Substitute parts can look different from the original.
$79.91
In Stock
Probe 5304526310
#37

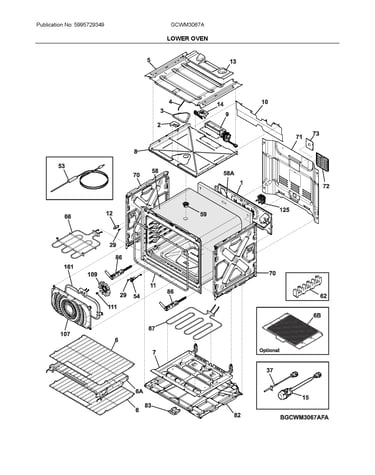

Lower oven diagram

Probe

Part #5304526310

$29.93
In Stock
Range Screw (replaces 316001003) 316001017
#NI

Lower oven diagram

Range screw (replaces 316001003)

Part #316001017

This item is not returnable
$2.16
In Stock
Wall Oven Upper Oven Door Outer Panel (stainless And Black) 5304530413
#13

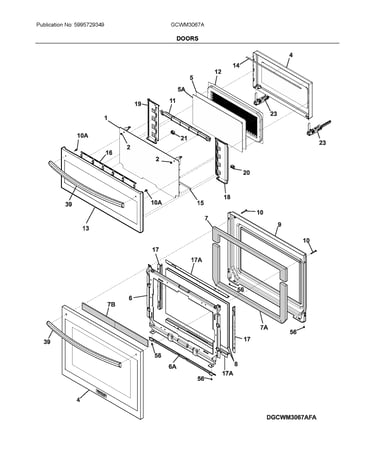

Doors diagram

Wall oven upper oven door outer panel (stainless and black)

Part #5304530413

$329.78
In Stock
Insulation 5304526656
#7

Doors diagram

Insulation

Part #5304526656

$9.09
In Stock
Anti Tip 5304530450
#NI

Lower oven diagram

Anti tip

Part #5304530450

$27.32
In Stock
Tray A13804901
#58

Microwave oven diagram

Tray

Part #A13804901

$76.28
In Stock
Range Oven Door Middle Glass 5304526387
#8

Doors diagram

Range oven door middle glass

Part #5304526387

$107.28
In Stock
Lamp Assembl 5304530343
#15

Lower oven diagram

Lamp assembl

Part #5304530343

$25.22
In Stock
Trim 5304530376
#52

Microwave oven diagram

Trim

Part #5304530376

$45.94
In Stock
