Model # 502474370 Official Sears 12-speed lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502474370 12-speed lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Tire 040014
Tire

Part #040014

The manufacturer no longer makes this part, and there's no substitute part

F Axle Set 303518
#12

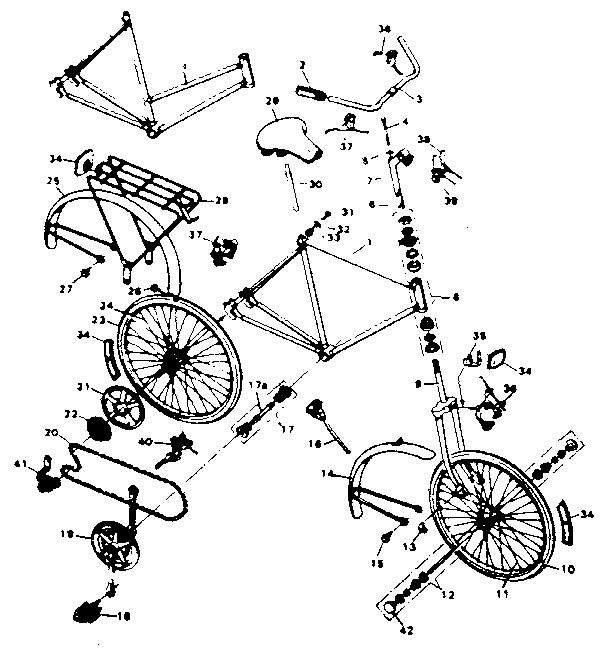

Unit parts diagram

F axle set

Part #303518

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe 308697
#1

Arai side pull caliper brake diagram

Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Kickstand 39229
#16

Unit parts diagram

Kickstand

Part #39229

The manufacturer no longer makes this part, and there's no substitute part

Spk 11-9/32 303157
Spk 11-9/32

Part #303157

The manufacturer no longer makes this part, and there's no substitute part

Tibe 041002
Tibe

Part #041002

The manufacturer no longer makes this part, and there's no substitute part

Rr Deraill 37776
Rr deraill

Part #37776

The manufacturer no longer makes this part, and there's no substitute part

Carrier 39238
#28B

Unit parts diagram

Carrier

Part #39238

The manufacturer no longer makes this part, and there's no substitute part

Axle 303770
#17A

Unit parts diagram

Axle

Part #303770

The manufacturer no longer makes this part, and there's no substitute part

Fr Stirrup 302311
#4B

Arai side pull caliper brake diagram

Fr stirrup

Part #302311

The manufacturer no longer makes this part, and there's no substitute part
