Model # C7CDAAS2PS31 Official GE coffee maker

Here are the diagrams and repair parts for Official GE C7CDAAS2PS31 coffee maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 9 of 9 parts  |
Brushed Stainless Activated Carbon Holde WC02X20410
#6

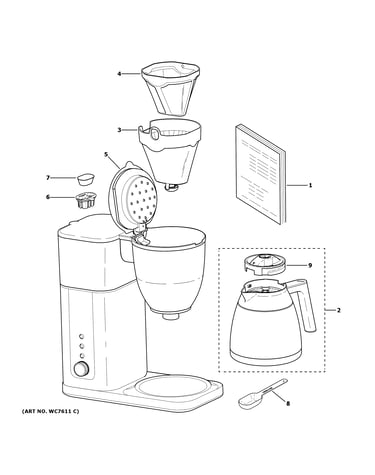

Coffee maker diagram

Brushed stainless activated carbon holde

Part #WC02X20410

$8.11
In Stock
Brushed Stainless Vacuum Carafe With Lid WC02X20401
#2

Coffee maker diagram

Brushed stainless vacuum carafe with lid

Part #WC02X20401

$119.80
In Stock
Brushed Stainless Carafe Lid WC12X20422
#9

Coffee maker diagram

Brushed stainless carafe lid

Part #WC12X20422

$25.67
In Stock
Brushed Stainless Coffee Scoop WC02X20406
#8

Coffee maker diagram

Brushed stainless coffee scoop

Part #WC02X20406

$8.11
In Stock
Brew Basket Assembly WC02X20405
#3

Coffee maker diagram

Brew basket assembly

Part #WC02X20405

$13.51
In Stock
Filter Frame WC02X20407
#4

Coffee maker diagram

Filter frame

Part #WC02X20407

$24.00
In Stock
Brushed Stainless Shower Head WC02X20404
#5

Coffee maker diagram

Brushed stainless shower head

Part #WC02X20404

$8.11
In Stock
Pm Quick Owners Manual 49-6000229
#1

Coffee maker diagram

Pm quick owners manual

Part #49-6000229

The manufacturer no longer makes this part, and there's no substitute part

Activated Carbon WC02X20412
#7

Coffee maker diagram

Activated carbon

Part #WC02X20412

The manufacturer no longer makes this part, and there's no substitute part
