KitchenAid KOEC530PPS02 electric oven/microwave combo

KitchenAid KOEC530PPS02 electric oven/microwave combo Parts

Here are the diagrams and repair parts for KitchenAid KOEC530PPS02 electric oven/microwave combo, as well as links to manuals and error code tables, if available.

By Schematic
By Part

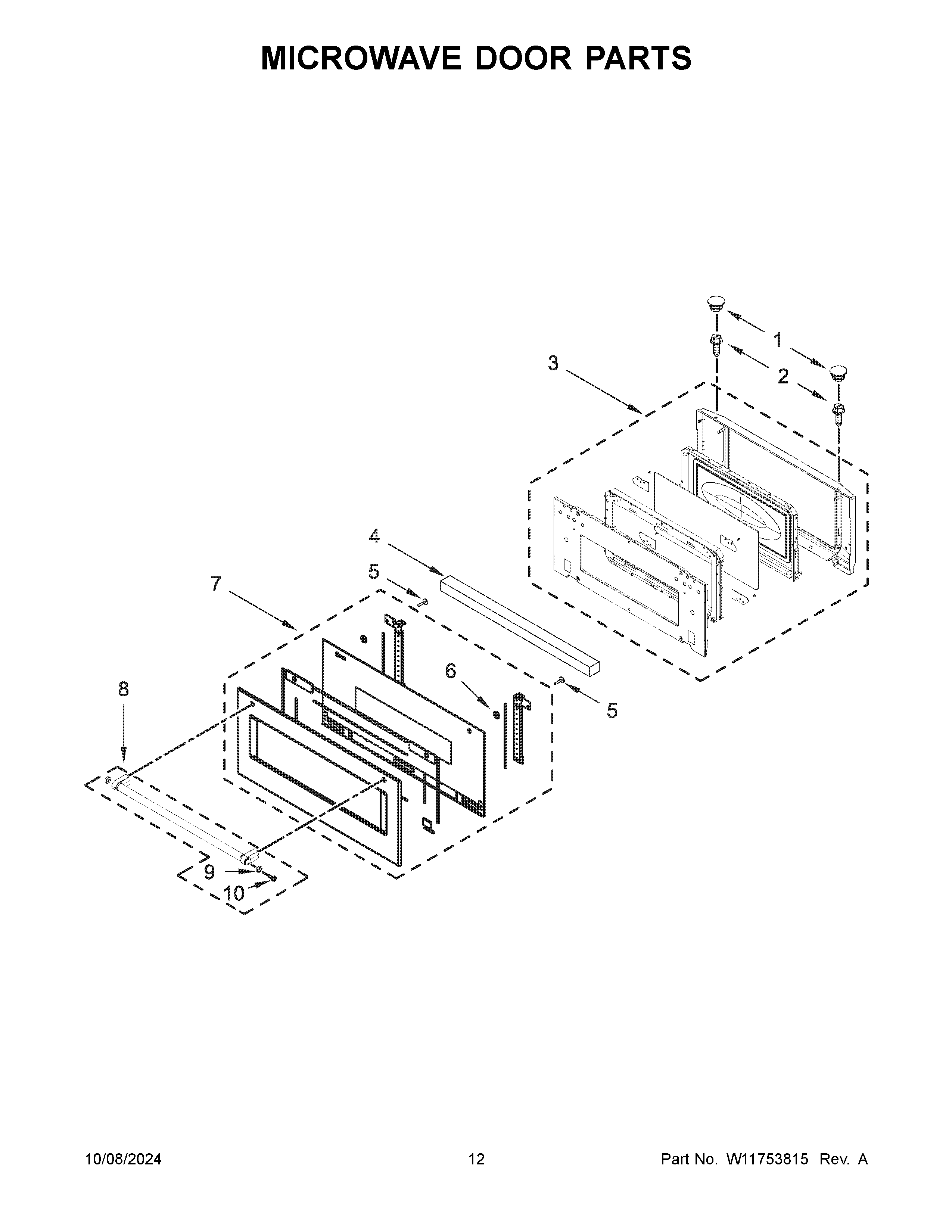

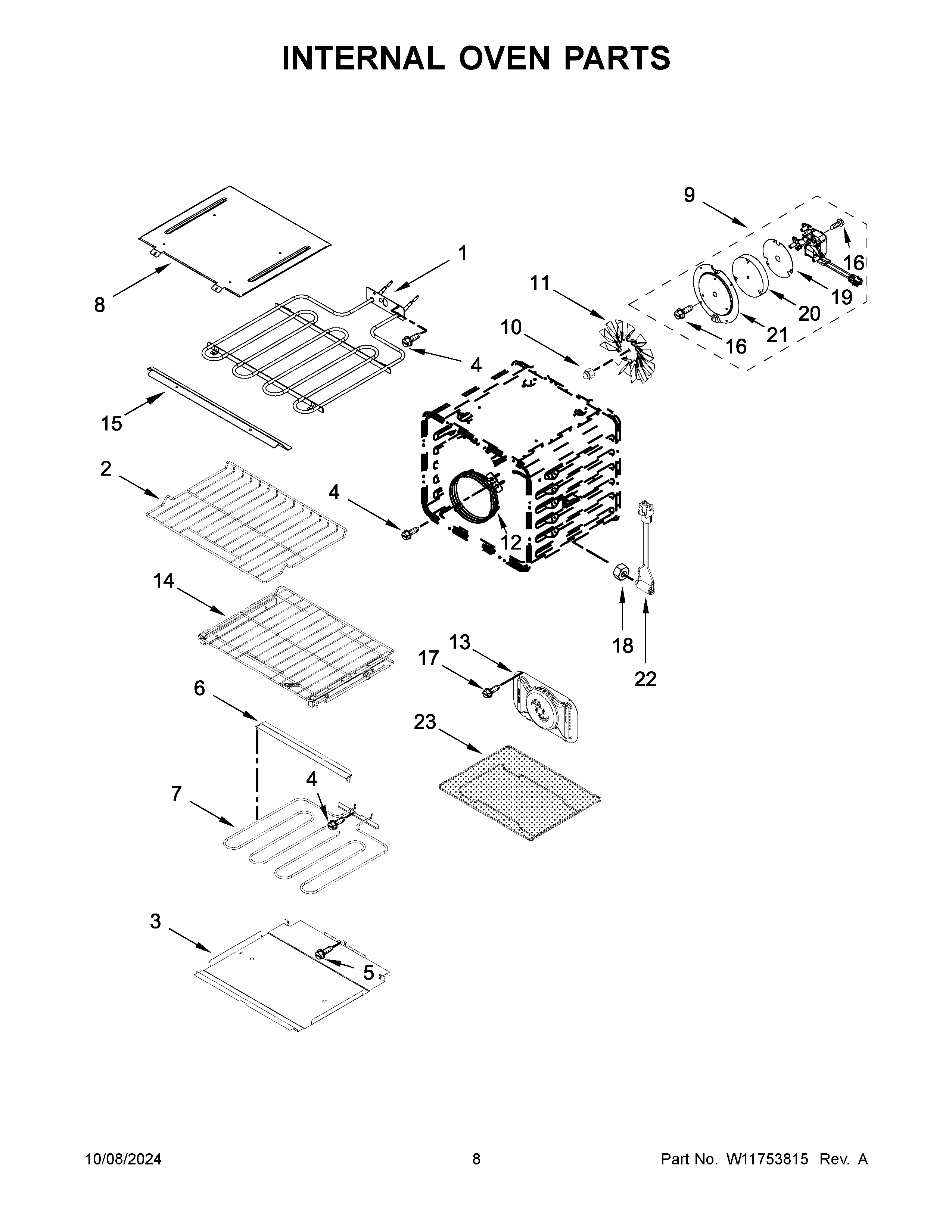

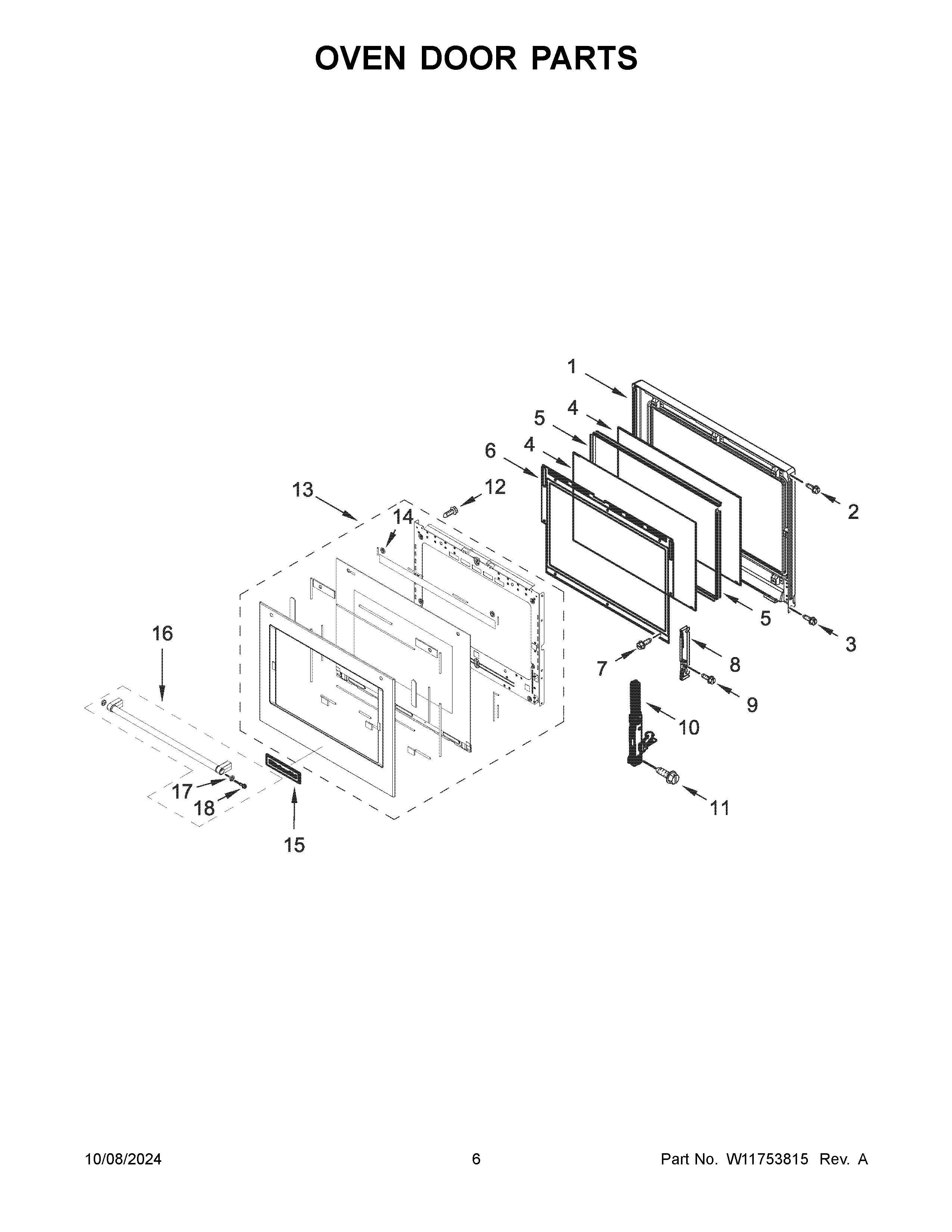

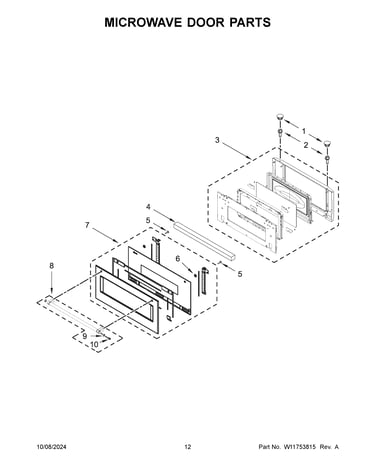

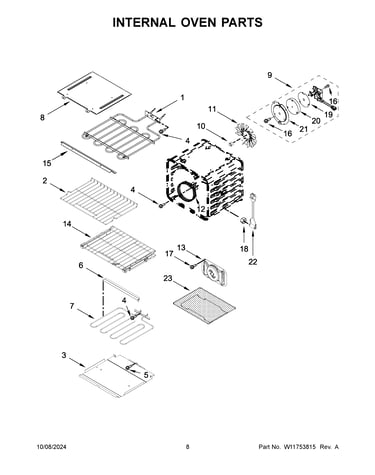

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KOEC530PPS02 Electric Oven/Microwave Combo

  • Microwave Door Interlock Switch for KitchenAid KOEC530PPS02 - Part W10211972

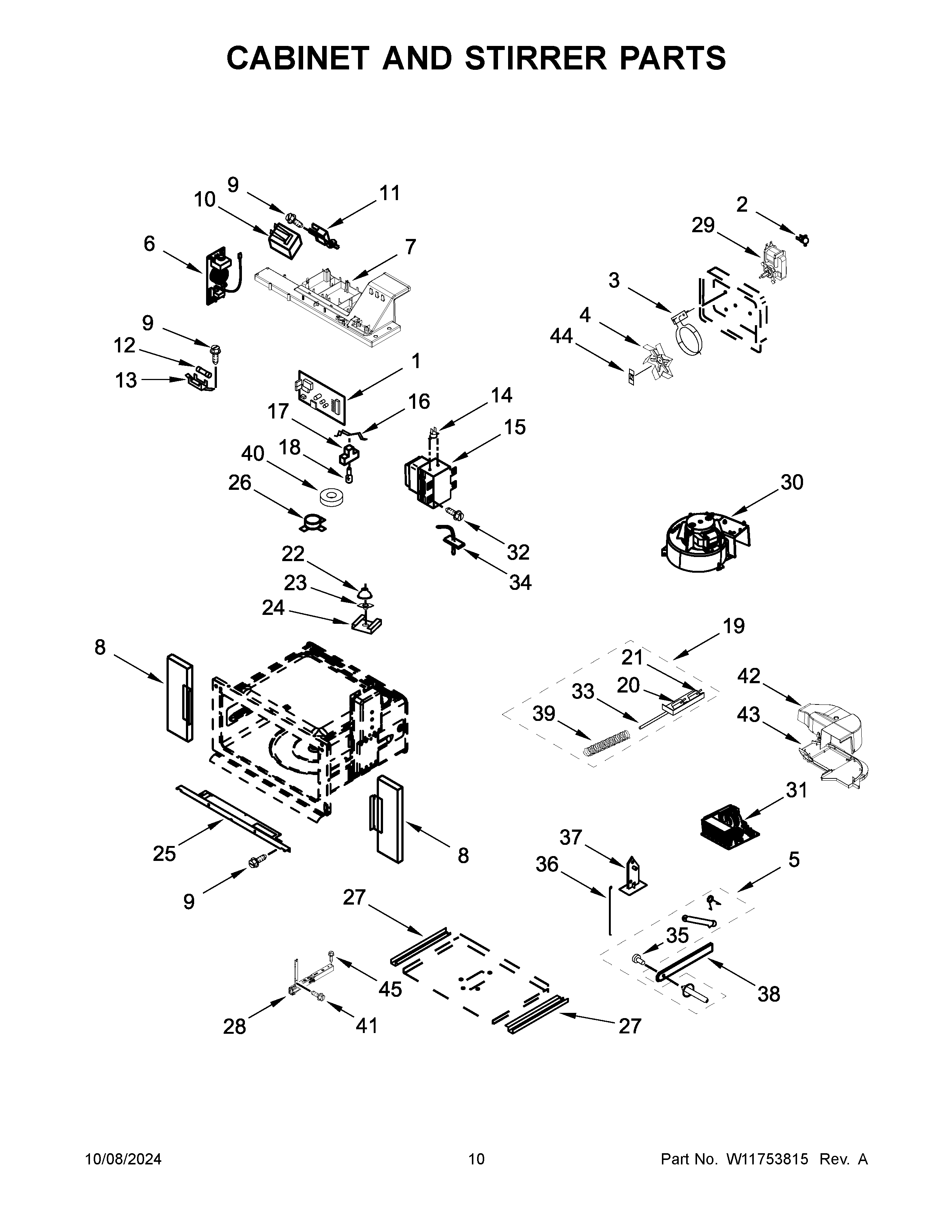

    Cabinet and stirrer parts diagram

    Switch

    Part #461967848881

    Replaced by #W10211972

    Info Icon
    Manufacturer substitution
    This part replaces 461967848881. Substitute parts can look different from the original.
    In Stock
    $36.30
    14% OFF Phone Price : $42.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Blower, Mine for KitchenAid KOEC530PPS02 - Part W11598119

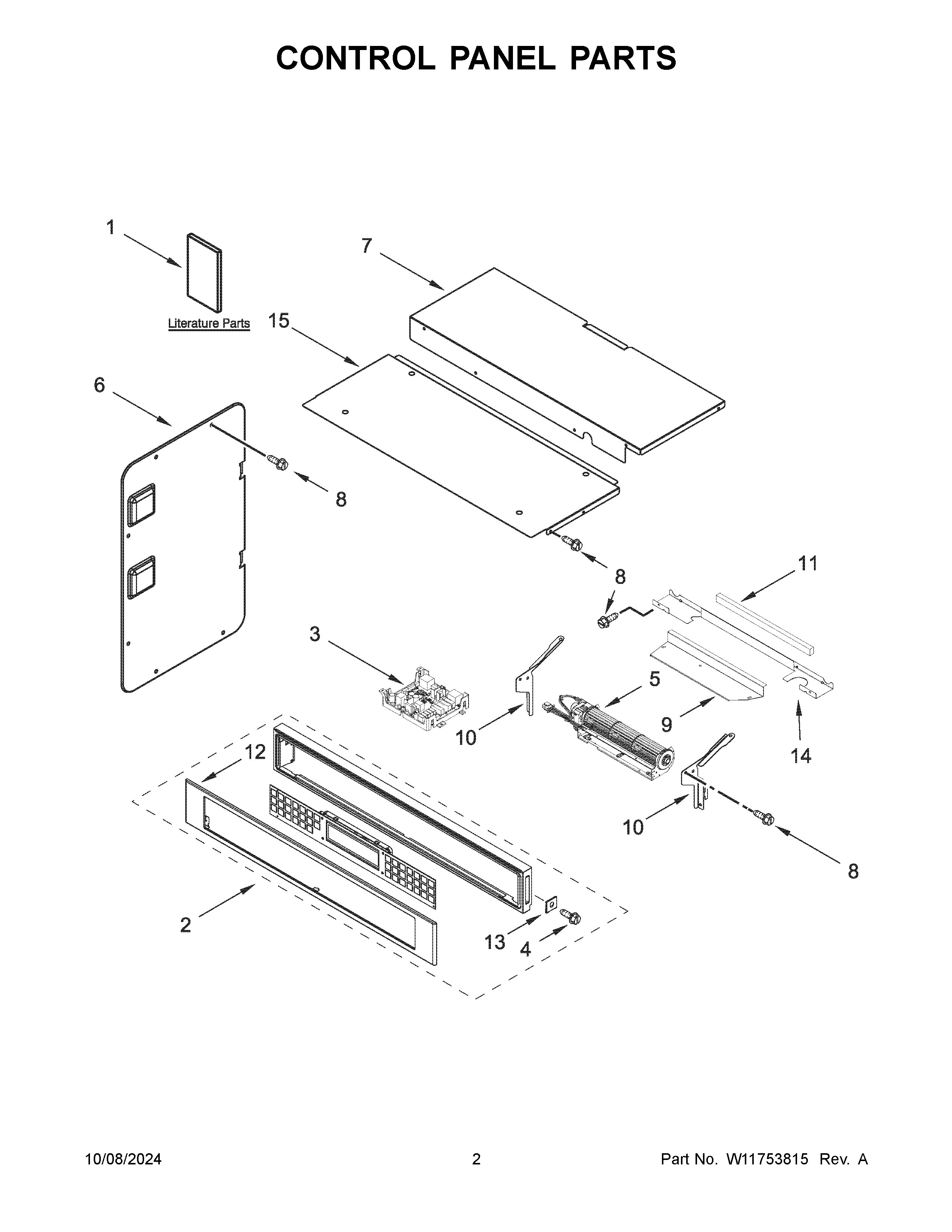

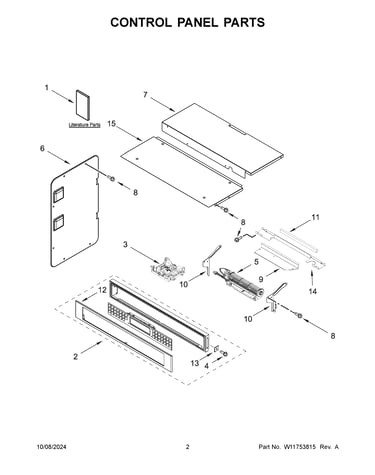

    Control panel parts diagram

    Blower

    Part #W11397930

    Replaced by #W11598119

    Info Icon
    Manufacturer substitution
    This part replaces W11397930. Substitute parts can look different from the original.
    In Stock
    $170.26
    7% OFF Phone Price : $182.26Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Spray Paint (white) for KitchenAid KOEC530PPS02 - Part 350930

    Optional parts (not included) diagram

    Spray W

    Part #350930

    Replaced by #350930

    Info Icon
    Manufacturer substitution
    This part replaces 350930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.00
    19% OFF Phone Price : $32.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Control Board for KitchenAid KOEC530PPS02 - Part W11448962

    Control panel parts diagram

    Copernicus C

    Part #W11249218

    Replaced by #W11448962

    Info Icon
    Manufacturer substitution
    This part replaces W11249218. Substitute parts can look different from the original.
    In Stock
    $185.63
    6% OFF Phone Price : $197.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Inverter Meg for KitchenAid KOEC530PPS02 - Part W11578579

    Cabinet and stirrer parts diagram

    Inverter

    Part #W11504539

    Replaced by #W11578579

    Info Icon
    Manufacturer substitution
    This part replaces W11504539. Substitute parts can look different from the original.
    In Stock
    $232.18
    Minus Item
    Qty
    Plus Item
  • Range Oven Light Bulb for KitchenAid KOEC530PPS02 - Part W10886919

    Cabinet and stirrer parts diagram

    Lamp G4 Halo

    Part #W10795595

    Replaced by #W10886919

    Info Icon
    Manufacturer substitution
    This part replaces W10795595. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $12.07
    52% OFF Was : $25.38Info Icon
    Minus Item
    Qty
    Plus Item
  • Sensor - Rtd for KitchenAid KOEC530PPS02 - Part W11598120

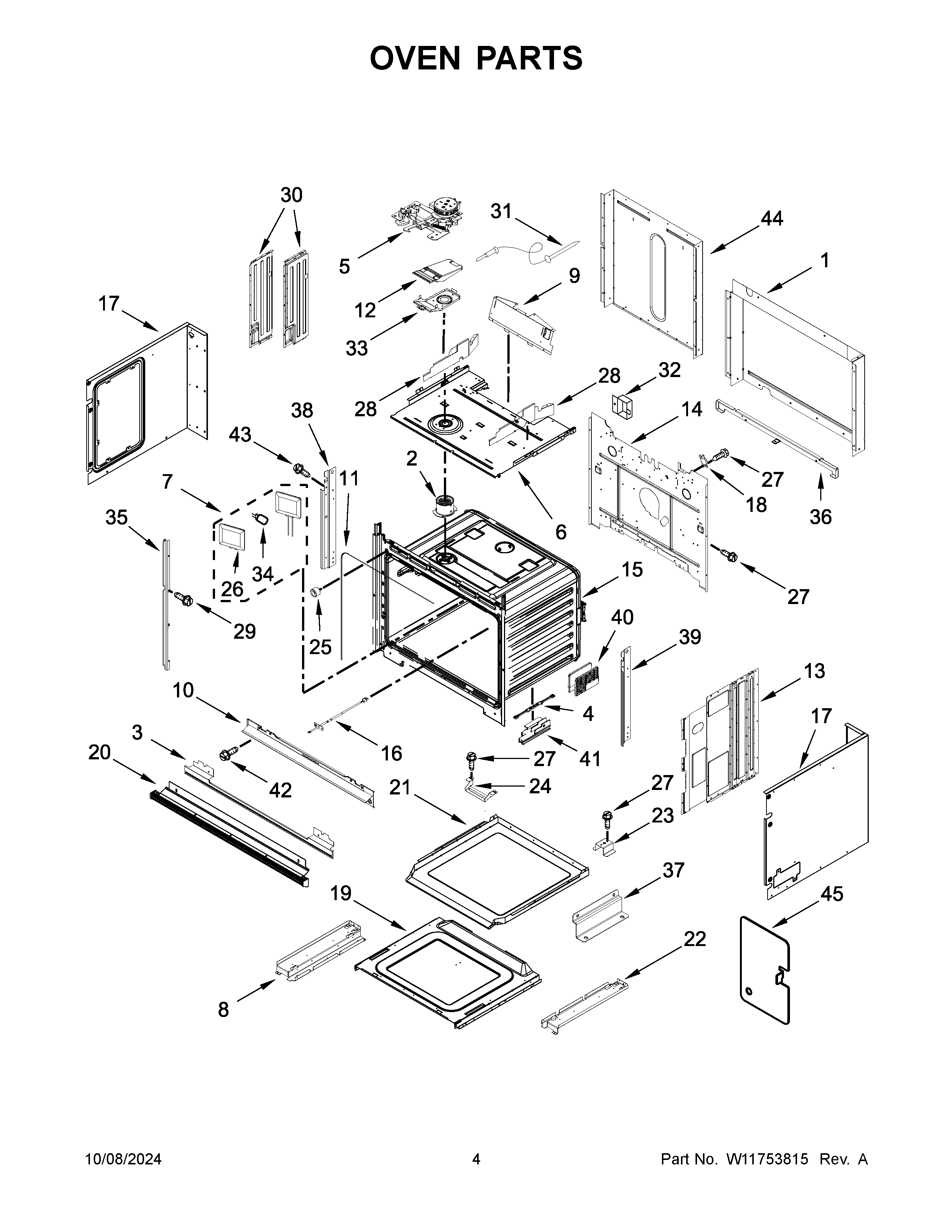

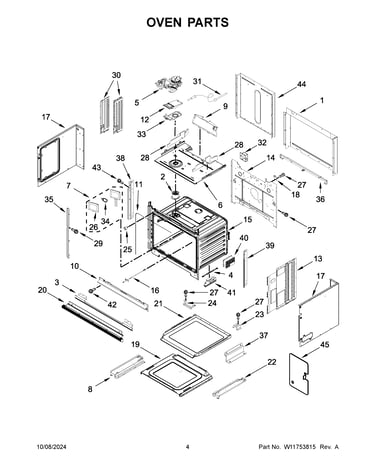

    Oven parts diagram

    Probe, Sensor

    Part #W11346074

    Replaced by #W11598120

    Info Icon
    Manufacturer substitution
    This part replaces W11346074. Substitute parts can look different from the original.
    In Stock
    $27.26
    18% OFF Phone Price : $33.26Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Waveguide Cover for KitchenAid KOEC530PPS02 - Part W10915651

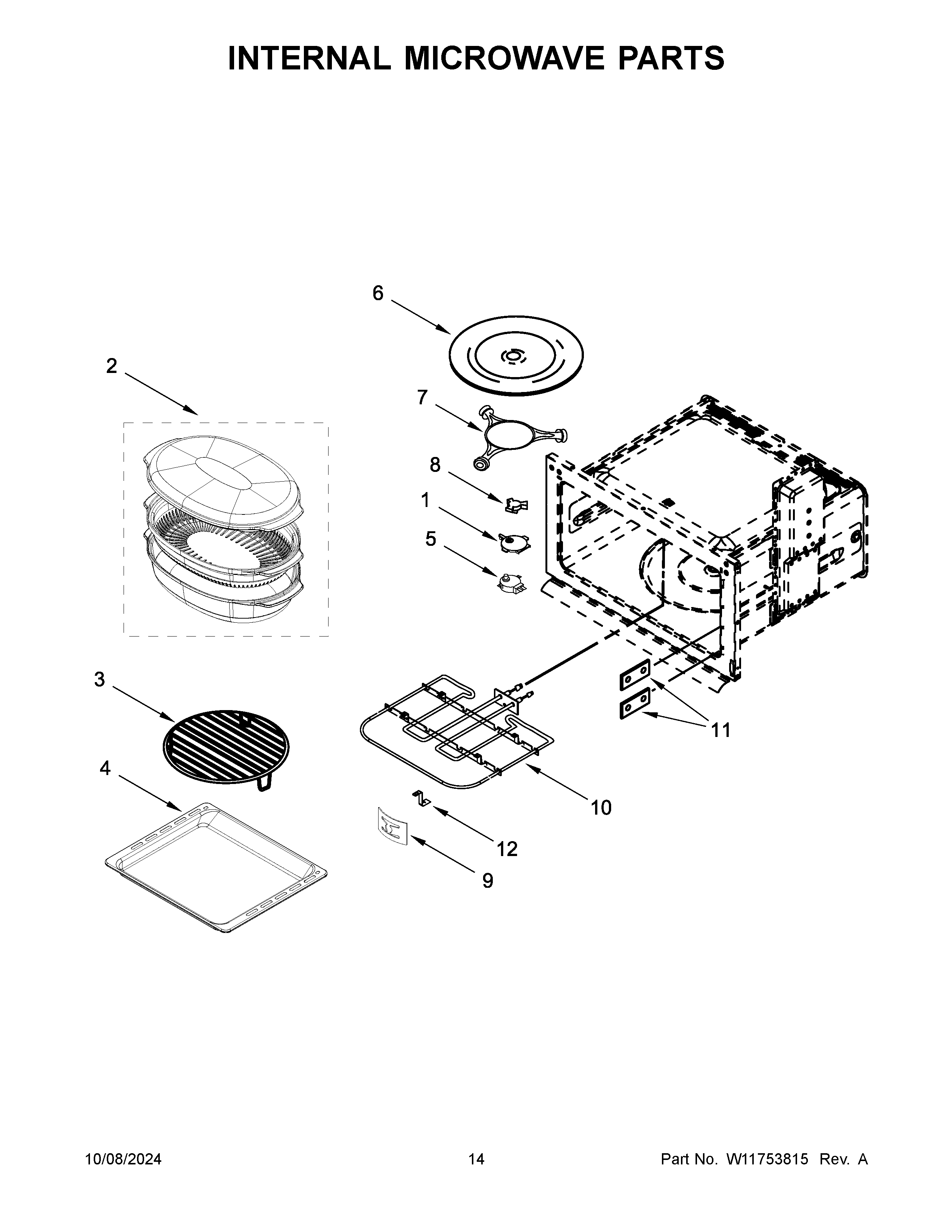

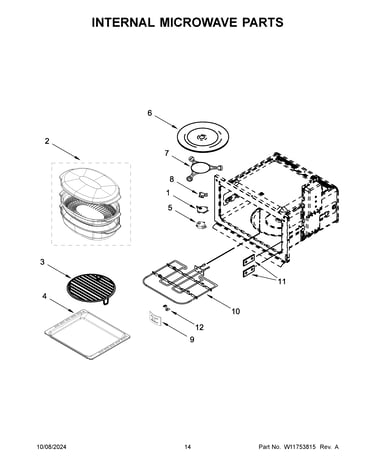

    Internal microwave parts diagram

    O Mica Plate

    Part #461967451001

    Replaced by #W10915651

    Info Icon
    Manufacturer substitution
    This part replaces 461967451001. Substitute parts can look different from the original.
    In Stock
    $48.49
    11% OFF Phone Price : $54.49Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Electronic Control Board for KitchenAid KOEC530PPS02 - Part W11325786

    Cabinet and stirrer parts diagram

    Apcb Power C

    Part #W11289998

    Replaced by #W11325786

    Info Icon
    Manufacturer substitution
    This part replaces W11289998. Substitute parts can look different from the original.
    In Stock
    $211.63
    Minus Item
    Qty
    Plus Item
  • Fuse for KitchenAid KOEC530PPS02 - Part W11188752

    Cabinet and stirrer parts diagram

    Fuse Mda 20a

    Part #241908600053

    Replaced by #W11188752

    Info Icon
    Manufacturer substitution
    This part replaces 241908600053. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $11.41
    15% OFF Phone Price : $13.41Info Icon
    Minus Item
    Qty
    Plus Item
