GE
Coffee Maker

Model # G7CDABSST1SS Official GE coffee maker

Here are the diagrams and repair parts for Official GE G7CDABSST1SS coffee maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 6 of 6 parts  |
Filter Core Bracket WC02X20841
#6

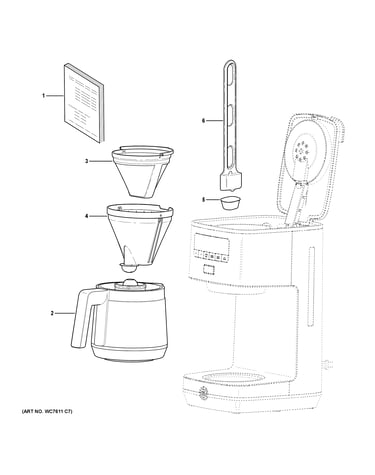

Coffee maker diagram

Filter core bracket

Part #WC02X20841

$7.51
In Stock
Filter Frame WC01X20843
#3

Coffee maker diagram

Filter frame

Part #WC01X20843

$32.44
In Stock
Brew Basket WC01X20842
#4

Coffee maker diagram

Brew basket

Part #WC01X20842

$26.11
In Stock
Activated Carbon Filter WC02X20845
#5

Coffee maker diagram

Activated carbon filter

Part #WC02X20845

The manufacturer no longer makes this part, and there's no substitute part

Thermal Carafe WC01X20840
#2

Coffee maker diagram

Thermal carafe

Part #WC01X20840

The manufacturer no longer makes this part, and there's no substitute part

Pm Owners Manual 49-9000045
#1

Coffee maker diagram

Pm owners manual

Part #49-9000045

The manufacturer no longer makes this part, and there's no substitute part
