Amana CCH60FCC/P1203306C air handler coil Parts
Here are the diagrams and repair parts for Amana CCH60FCC/P1203306C air handler coil, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
SELECT DIAGRAM
Browse Parts for CCH60FCC/P1203306C Air Handler Coil

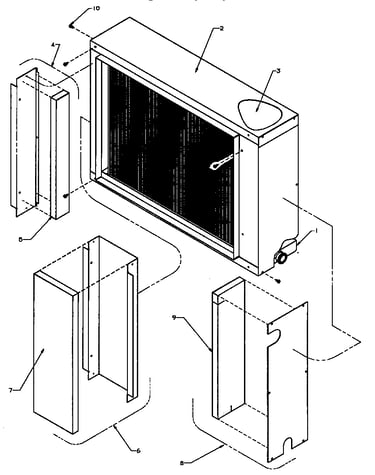

Cabinet assembly diagram
Screw
Part #M0211016Replaced by #WP90767
Manufacturer substitutionThis part replaces M0211016. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88
Qty

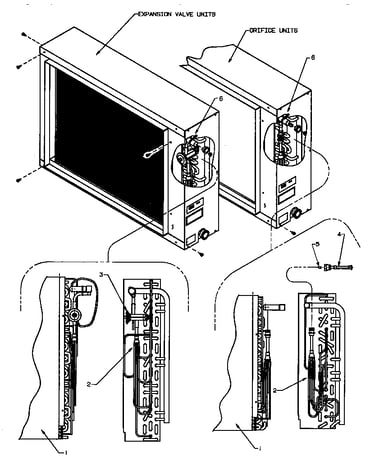

Coil and tubing diagram
Tie
Part #M0321202Replaced by #WPW10339879
Manufacturer substitutionThis part replaces M0321202. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyCoil and tubing diagram
Restrictor
Part #B1443811
The manufacturer no longer makes this part, and there's no substitute part
Cabinet assembly diagram
Insulation
Part #11047805
The manufacturer no longer makes this part, and there's no substitute part
Cabinet assembly diagram
Top/bot Panel Assembly (includes Insulation)
Part #11042002
The manufacturer no longer makes this part, and there's no substitute part
Coil and tubing diagram
Distributor Tube Weld (includes Expansion Valve)
Part #11054801
The manufacturer no longer makes this part, and there's no substitute part
Coil and tubing diagram
Evaporator Assembly
Part #11037804
The manufacturer no longer makes this part, and there's no substitute part
Cabinet assembly diagram
Insulation
Part #11047802
The manufacturer no longer makes this part, and there's no substitute part
Cabinet assembly diagram
Basepan Assembly
Part #10526904
The manufacturer no longer makes this part, and there's no substitute part
Cabinet assembly diagram
Insulation
Part #11047801
The manufacturer no longer makes this part, and there's no substitute part
