Ryobi
Angle Grinder

Model # G-1155K Official Ryobi angle grinder

Here are the diagrams and repair parts for Official Ryobi G-1155K angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Spindle 6110084
#40

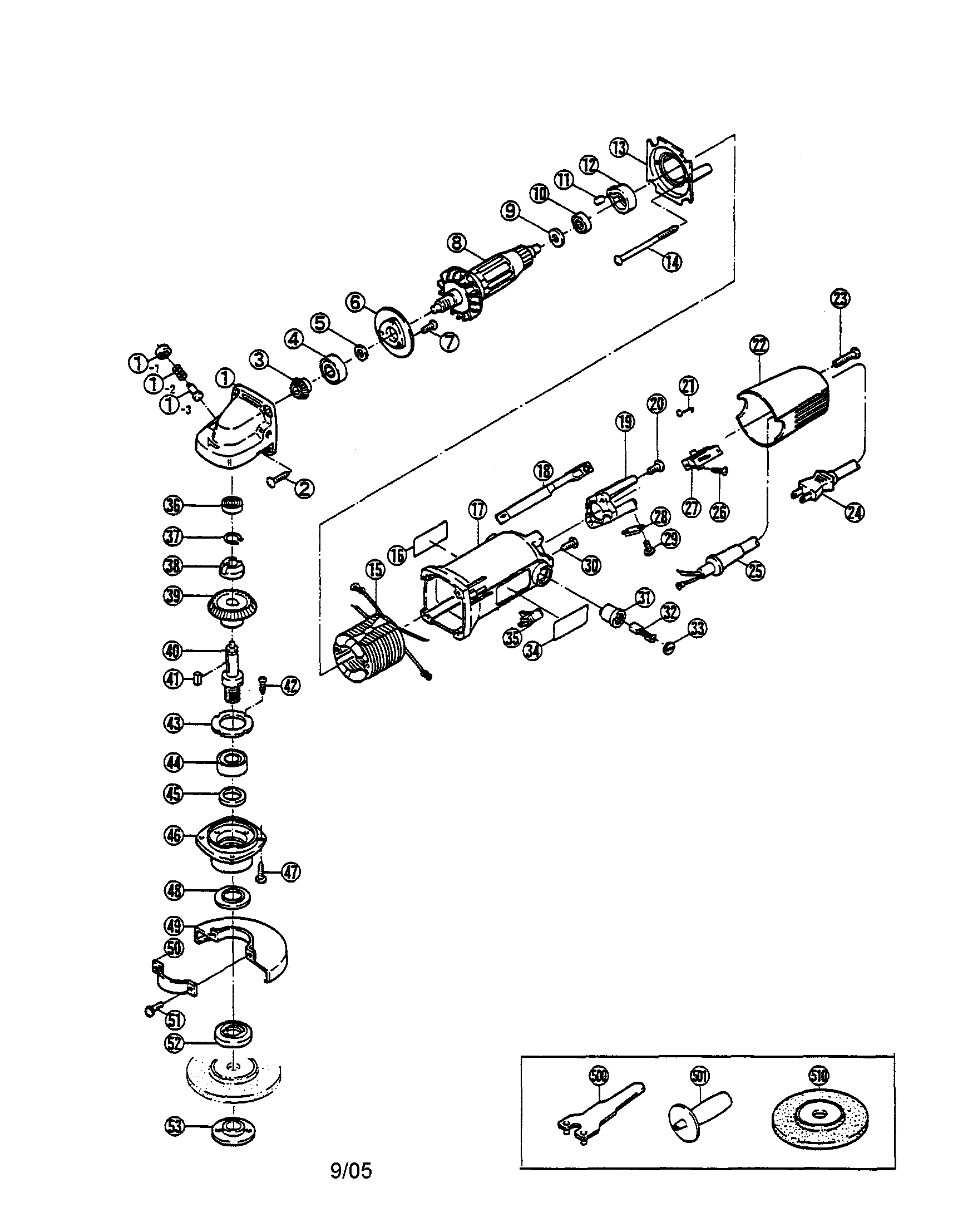

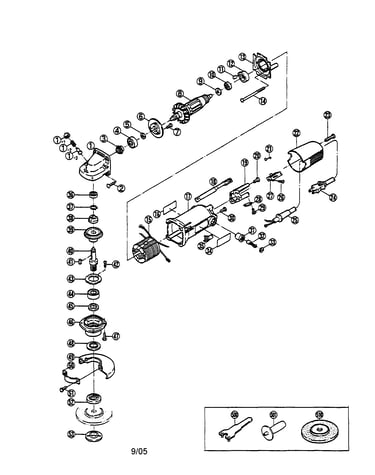

Grinder assembly diagram

Spindle

Part #6110084

The manufacturer no longer makes this part, and there's no substitute part

Fan Casing 6490174
#13

Grinder assembly diagram

Fan casing

Part #6490174

The manufacturer no longer makes this part, and there's no substitute part

Plate 6151091
#50

Grinder assembly diagram

Plate

Part #6151091

The manufacturer no longer makes this part, and there's no substitute part

Case 6770157

#NI03

All parts diagram

Case

Part #6770157

The manufacturer no longer makes this part, and there's no substitute part

Screw 9060518
#2

Grinder assembly diagram

Screw

Part #9060518

The manufacturer no longer makes this part, and there's no substitute part

Cord Clamp 6560057
#28

Grinder assembly diagram

Cord clamp

Part #6560057

The manufacturer no longer makes this part, and there's no substitute part

Clamp Plate 6151097
#6

Grinder assembly diagram

Clamp plate

Part #6151097

The manufacturer no longer makes this part, and there's no substitute part

Flange 6940231
#52

Grinder assembly diagram

Flange

Part #6940231

The manufacturer no longer makes this part, and there's no substitute part

Screw 9060410
#30

Grinder assembly diagram

Screw

Part #9060410

The manufacturer no longer makes this part, and there's no substitute part

Dust Cover 6151094
#48

Grinder assembly diagram

Dust cover

Part #6151094

The manufacturer no longer makes this part, and there's no substitute part
