Jenn-Air JMW2427LL03 electric oven/microwave combo

Jenn-Air JMW2427LL03 electric oven/microwave combo Parts

Here are the diagrams and repair parts for Jenn-Air JMW2427LL03 electric oven/microwave combo, as well as links to manuals and error code tables, if available.

By Schematic
By Part

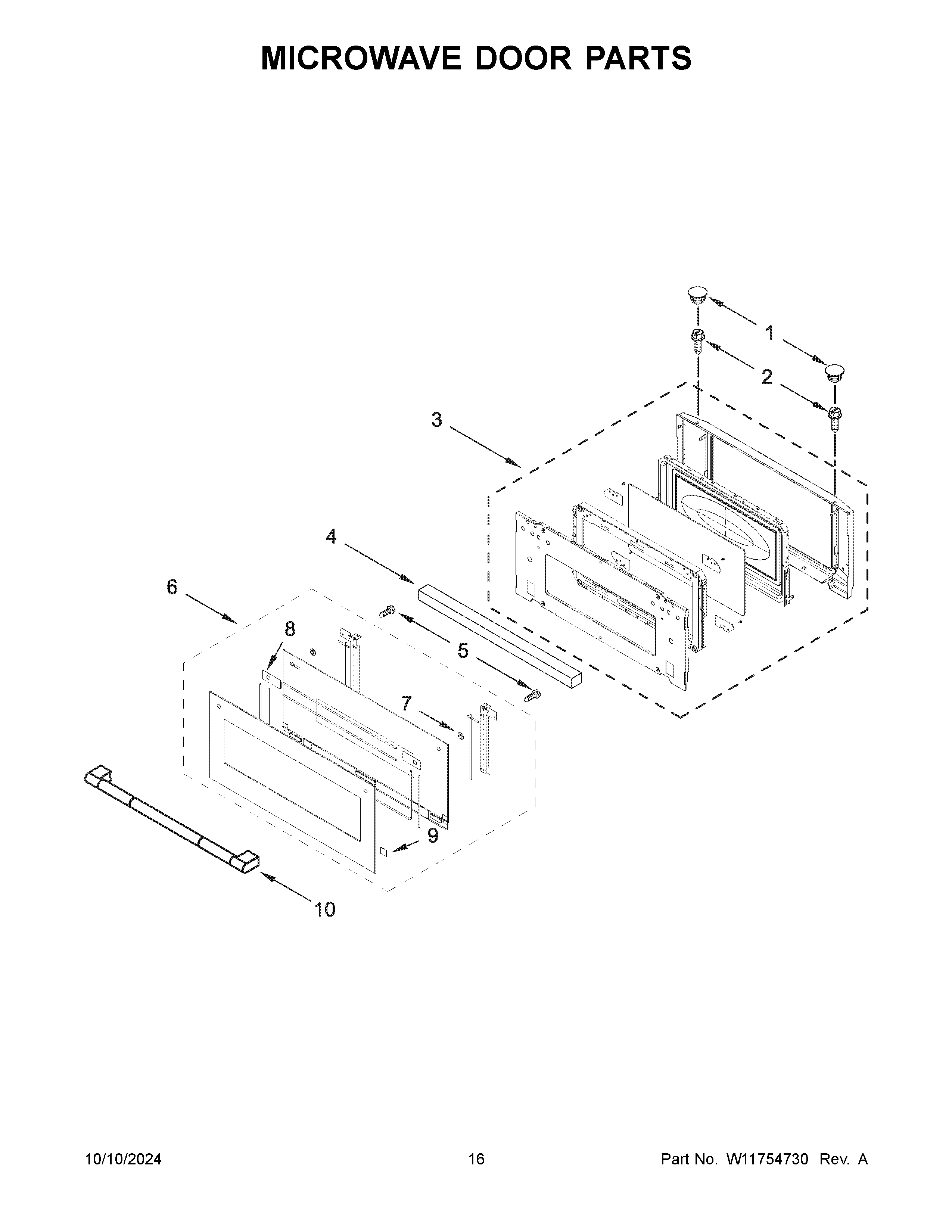

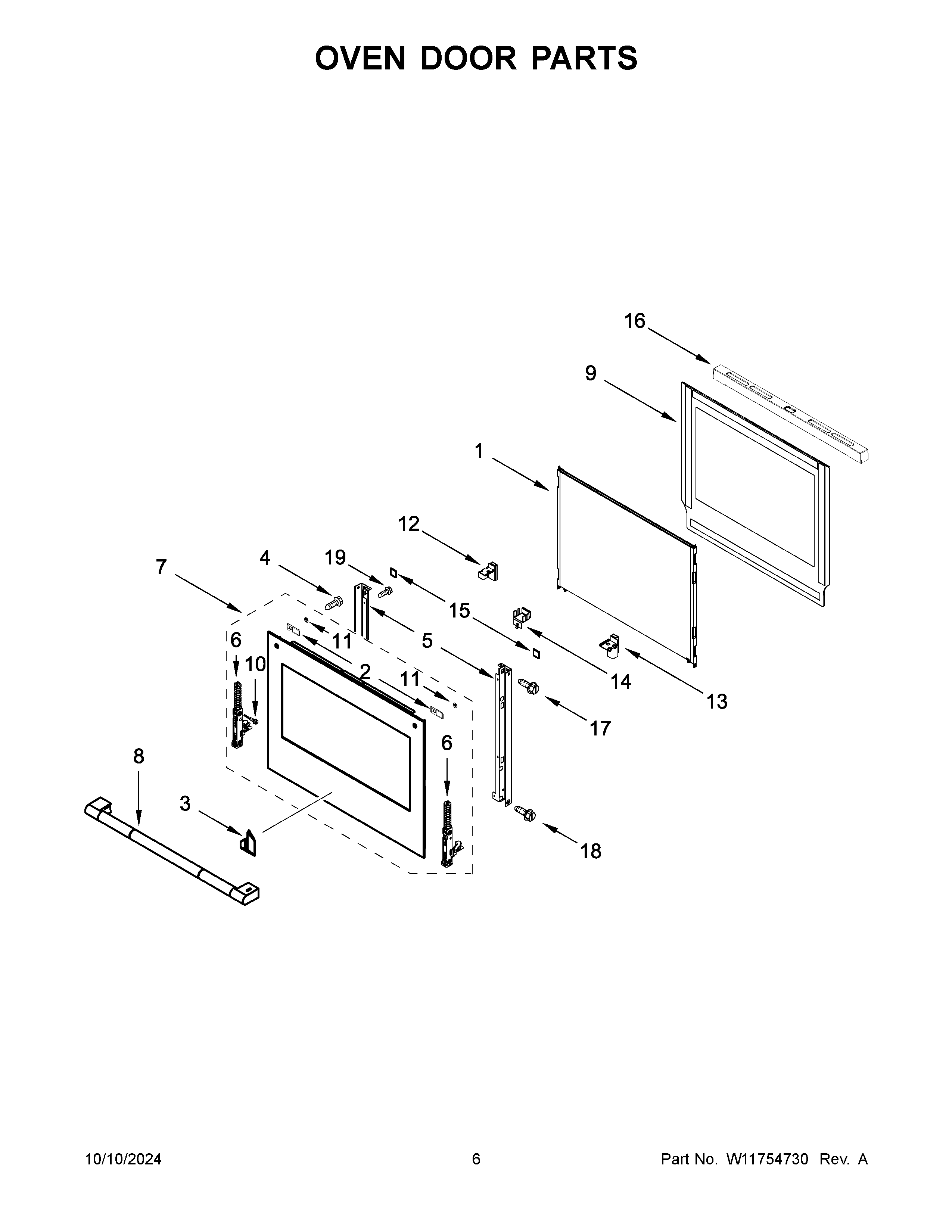

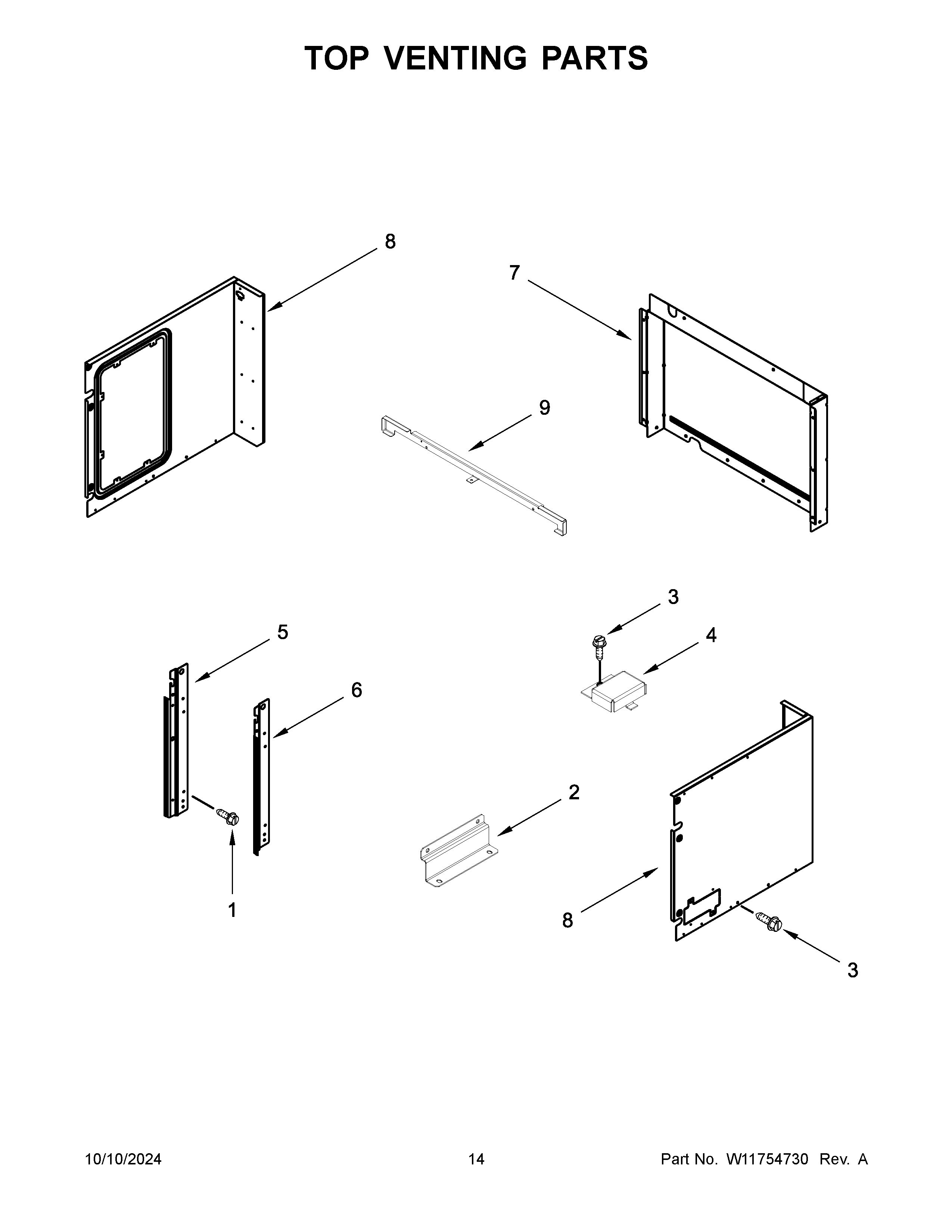

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JMW2427LL03 Electric Oven/Microwave Combo

  • Range High-limit Thermostat for Jenn-Air JMW2427LL03 - Part WP4449751

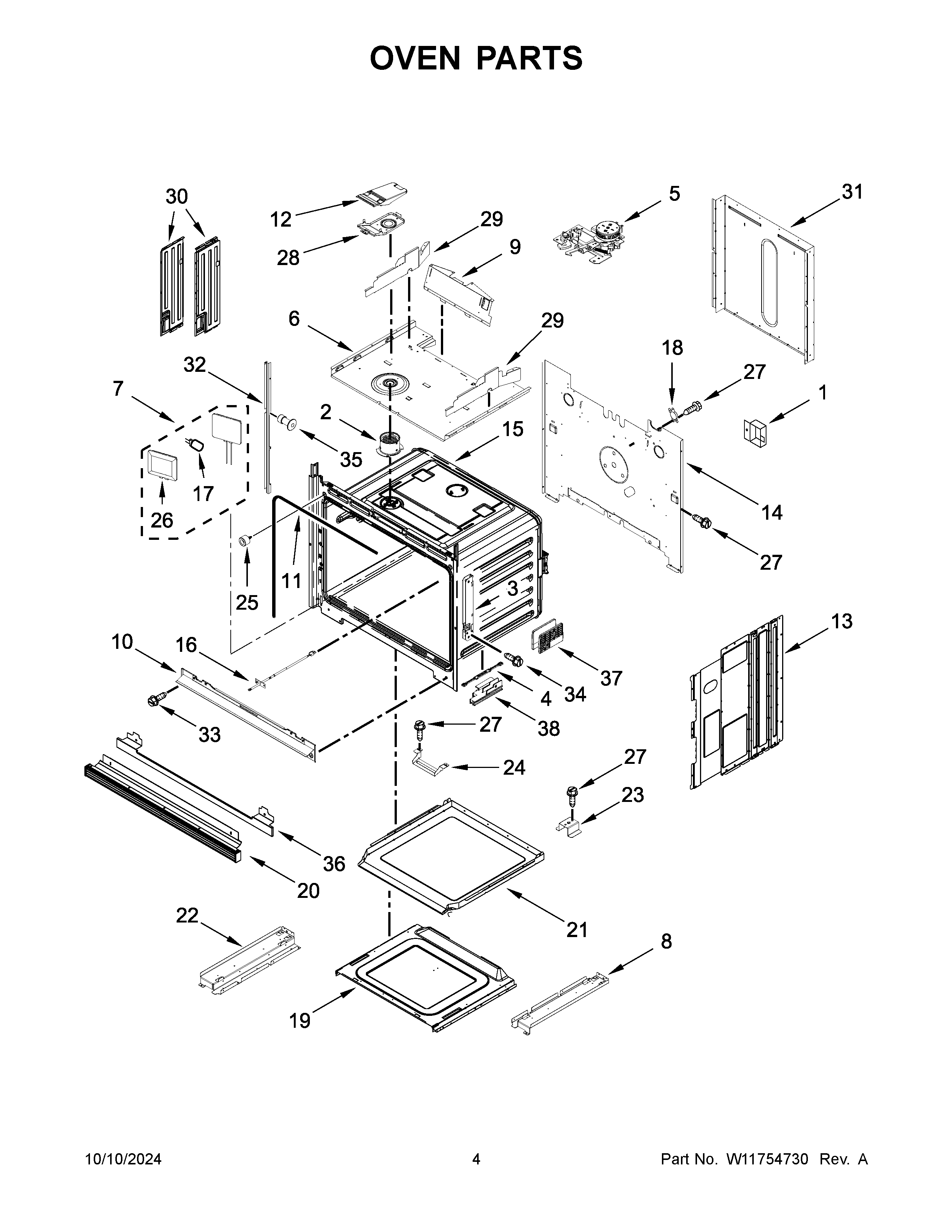

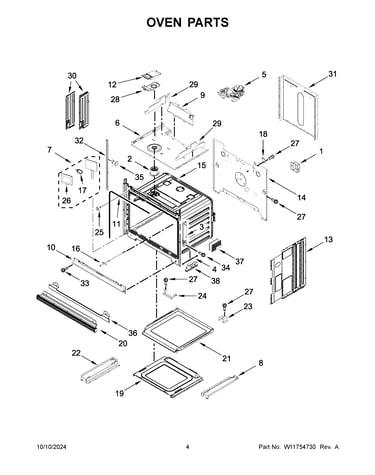

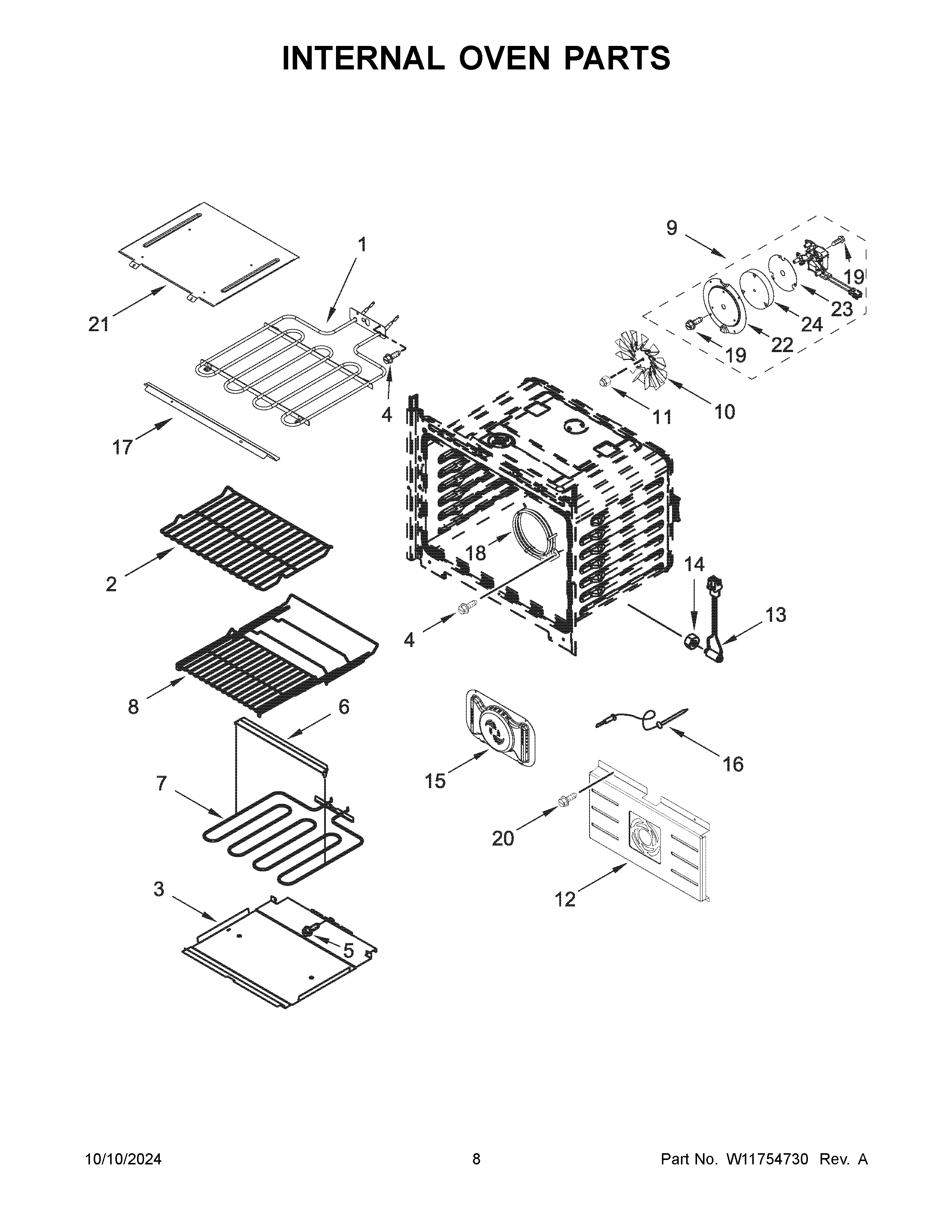

    Oven parts diagram

    Range High-limit Thermostat

    Part #4449751

    Replaced by #WP4449751

    Info Icon
    Manufacturer substitution
    This part replaces 4449751. Substitute parts can look different from the original.
    In Stock
    $75.39
    39% OFF Was : $123.71Info Icon
    Minus Item
    Qty
    Plus Item
  • Magnetron 2m for Jenn-Air JMW2427LL03 - Part W11578959

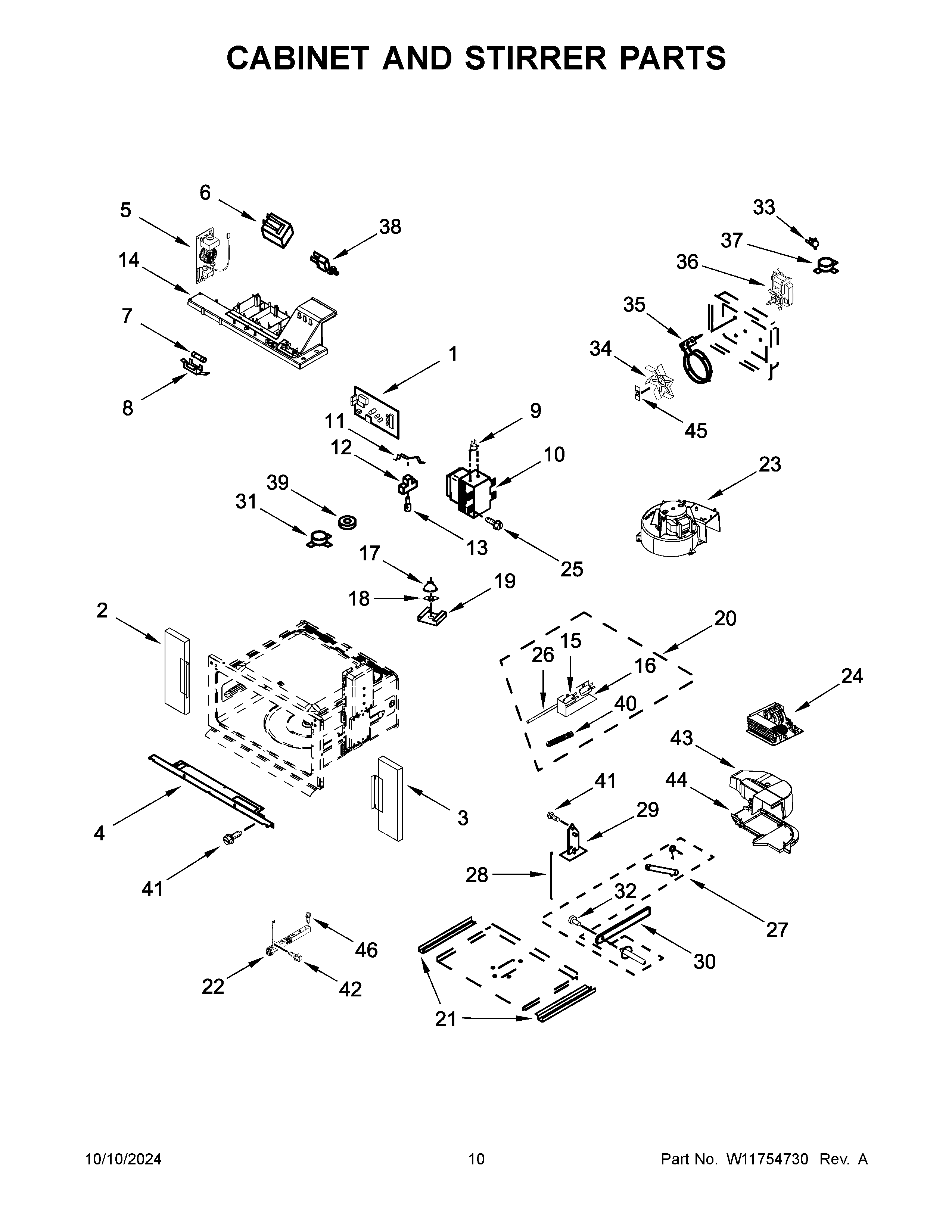

    Cabinet and stirrer parts diagram

    Magnetron 2m

    Part #W11504545

    Replaced by #W11578959

    Info Icon
    Manufacturer substitution
    This part replaces W11504545. Substitute parts can look different from the original.
    In Stock
    $157.46
    Minus Item
    Qty
    Plus Item
  • Microwave Turntable Motor for Jenn-Air JMW2427LL03 - Part W10911403

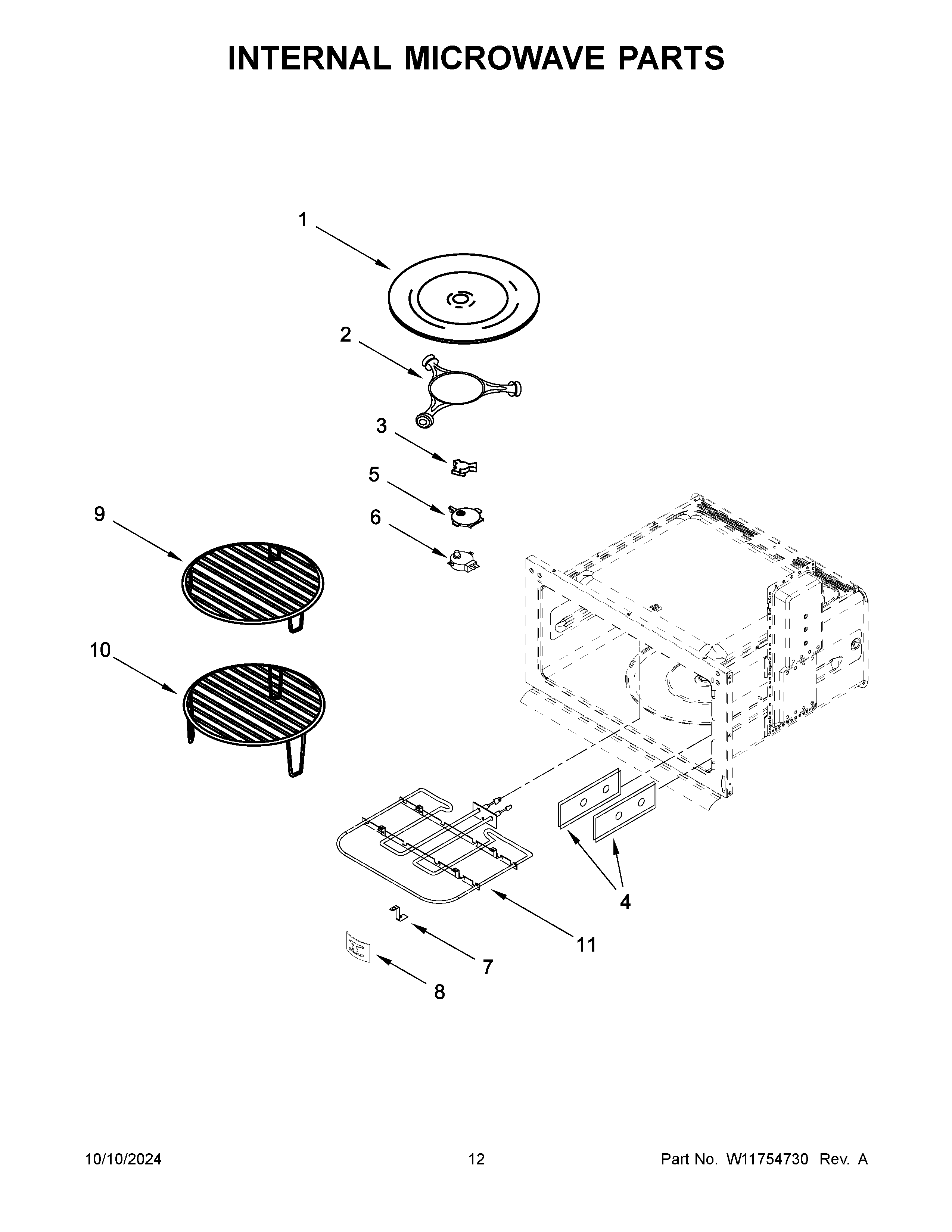

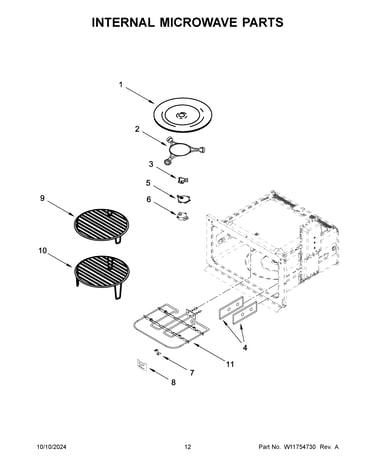

    Internal microwave parts diagram

    Microwave Turntable Motor

    Part #461967848971

    Replaced by #W10911403

    Info Icon
    Manufacturer substitution
    This part replaces 461967848971. Substitute parts can look different from the original.
    In Stock
    $89.68
    6% OFF Phone Price : $95.68Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Control Board for Jenn-Air JMW2427LL03 - Part W11448962

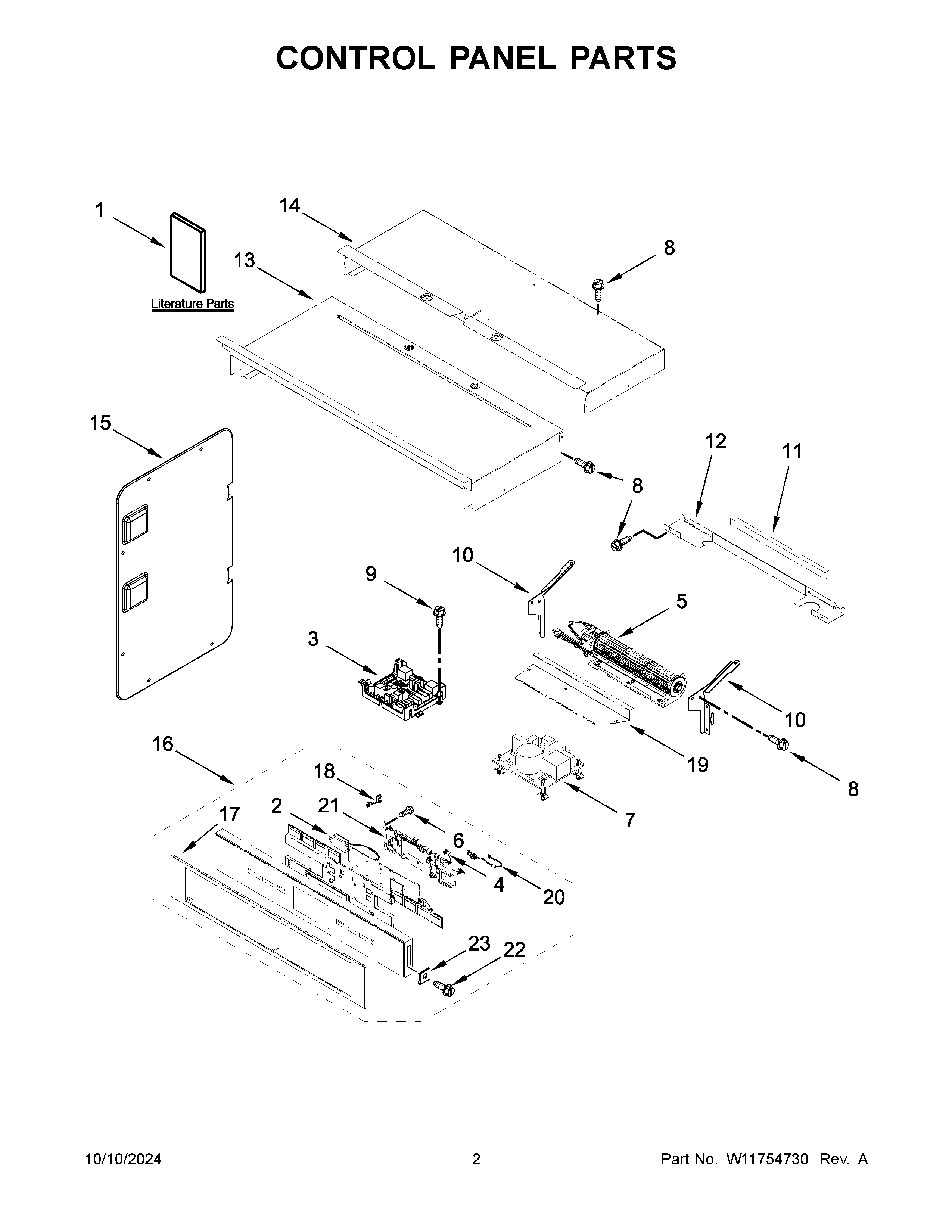

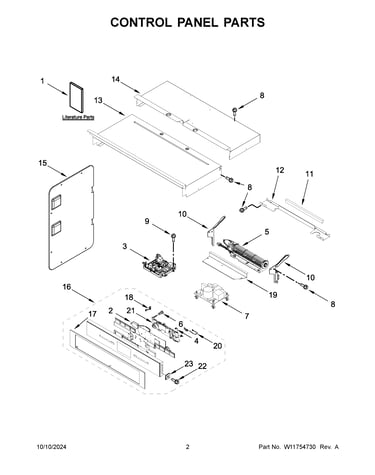

    Control panel parts diagram

    Copernicus C

    Part #W11249218

    Replaced by #W11448962

    Info Icon
    Manufacturer substitution
    This part replaces W11249218. Substitute parts can look different from the original.
    In Stock
    $185.63
    6% OFF Phone Price : $197.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Element Clip for Jenn-Air JMW2427LL03 - Part W11724411

    Internal microwave parts diagram

    Lock Spring

    Part #252262898008

    Replaced by #W11724411

    Info Icon
    Manufacturer substitution
    This part replaces 252262898008. Substitute parts can look different from the original.
    In Stock
    $70.97
    Minus Item
    Qty
    Plus Item
  • Microwave Element Clip for Jenn-Air JMW2427LL03 - Part W11724411

    Cabinet and stirrer parts diagram

    Nut

    Part #W10120233

    Replaced by #W11724411

    Info Icon
    Manufacturer substitution
    This part replaces W10120233. Substitute parts can look different from the original.
    In Stock
    $70.97
    Minus Item
    Qty
    Plus Item
  • Microwave Element Clip for Jenn-Air JMW2427LL03 - Part W11724411

    Internal microwave parts diagram

    Whirlpool Wall Oven Microwave Element Clip

    Part #461967753871

    Replaced by #W11724411

    Info Icon
    Manufacturer substitution
    This part replaces 461967753871. Substitute parts can look different from the original.
    In Stock
    $70.97
    Minus Item
    Qty
    Plus Item
  • Fuse for Jenn-Air JMW2427LL03 - Part W11188752

    Cabinet and stirrer parts diagram

    Fuse Mda 20a

    Part #241908600053

    Replaced by #W11188752

    Info Icon
    Manufacturer substitution
    This part replaces 241908600053. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $11.41
    15% OFF Phone Price : $13.41Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Sliding Arm Bracket Assembly for Jenn-Air JMW2427LL03 - Part WPW10128850

    Cabinet and stirrer parts diagram

    Arm

    Part #W10128850

    Replaced by #WPW10128850

    Info Icon
    Manufacturer substitution
    This part replaces W10128850. Substitute parts can look different from the original.
    In Stock
    $64.04
    9% OFF Phone Price : $70.04Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Sliding Arm Bracket Assembly for Jenn-Air JMW2427LL03 - Part WPW10128850

    Cabinet and stirrer parts diagram

    Flange Bushing

    Part #461967510191

    Replaced by #WPW10128850

    Info Icon
    Manufacturer substitution
    This part replaces 461967510191. Substitute parts can look different from the original.
    In Stock
    $64.04
    9% OFF Phone Price : $70.04Info Icon
    Minus Item
    Qty
    Plus Item
