Model # 316292630 Official Craftsman electric cultivator

Here are the diagrams and repair parts for Official Craftsman 316292630 electric cultivator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Lawn & Garden Equipment Lock Nut, 5/16-18 (replaces 753-05591) 712-04063
#6

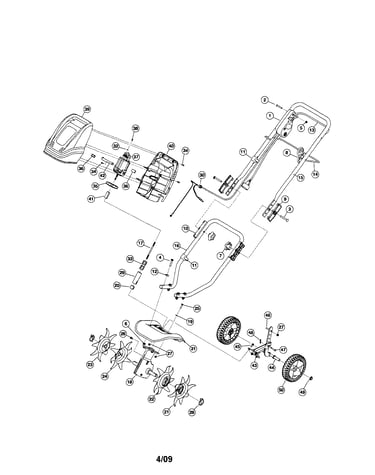

Cultivator diagram

Lawn & garden equipment lock nut, 5/16-18 (replaces 753-05591)

Part #712-04063

BEST SELLER
This item is not returnable
$4.09 |
20% OFF Phone Price : $5.09
In Stock
Lawn & Garden Equipment Nut 712-04064
#27

Cultivator diagram

Lawn & garden equipment nut

Part #712-04064

BEST SELLER
This item is not returnable
$4.16 |
19% OFF Phone Price : $5.16
In Stock
Knob-lower H 720-04052
#7

Cultivator diagram

Knob-lower h

Part #720-04052

Replaced by #720-04072A

?
Manufacturer substitution
This part replaces 720-04052. Substitute parts can look different from the original.
BEST SELLER
$8.69 |
21% OFF MSRP : $11.00
In Stock
Lawn & Garden Equipment Push Cap 726-0299
#49

Cultivator diagram

Lawn & garden equipment push cap

Part #726-0299

This item is not returnable
$12.39 |
14% OFF Phone Price : $14.39
In Stock
Tiller Tine, Outer Left 753-04071
#21

Cultivator diagram

Tiller tine, outer left

Part #753-04071

Replaced by #753-05986

?
Manufacturer substitution
This part replaces 753-04071. Substitute parts can look different from the original.
$54.19 |
8% OFF Phone Price : $59.19
In Stock
Tiller Tine, Inner Right 753-04074
#24

Cultivator diagram

Tiller tine, inner right

Part #753-04074

Replaced by #753-05986

?
Manufacturer substitution
This part replaces 753-04074. Substitute parts can look different from the original.
$54.19 |
8% OFF Phone Price : $59.19
In Stock
Tiller Tine, Outer Right 753-04073
#23

Cultivator diagram

Tiller tine, outer right

Part #753-04073

Replaced by #753-05987

?
Manufacturer substitution
This part replaces 753-04073. Substitute parts can look different from the original.
$59.61 |
8% OFF Phone Price : $64.61
In Stock
Tiller Tine, Inner Left 753-04072
#22

Cultivator diagram

Tiller tine, inner left

Part #753-04072

Replaced by #753-05987

?
Manufacturer substitution
This part replaces 753-04072. Substitute parts can look different from the original.
$59.61 |
8% OFF Phone Price : $64.61
In Stock
Lawn Tractor Hex Bolt 710-0805
#4

Cultivator diagram

Lawn tractor hex bolt

Part #710-0805

Replaced by #710-0805A

?
Manufacturer substitution
This part replaces 710-0805. Substitute parts can look different from the original.
This item is not returnable
$6.91
In Stock
Restraint-co 726-0368
#8

Cultivator diagram

Restraint-co

Part #726-0368

$7.98
In Stock
