Model # 390304692 Official Craftsman sump pump

Here are the diagrams and repair parts for Official Craftsman 390304692 sump pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 14 parts |

#12

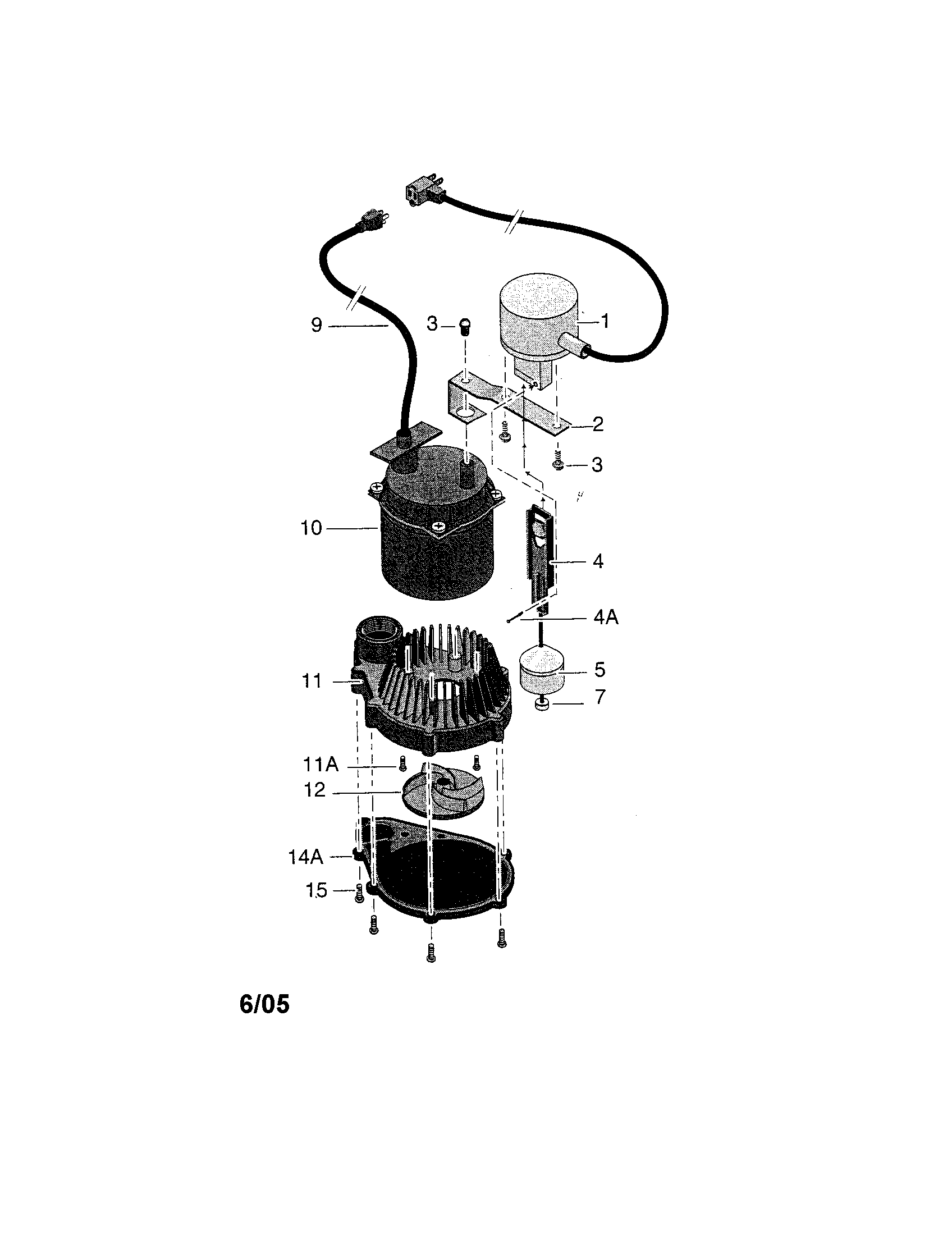

Sump pump diagram

Pump impeller

Part #RP0000911A

$35.07

In Stock

Qty

Sump pump diagram

Float

Part #PS28-18

$13.96

In Stock

Qty

Sump pump diagram

Housing

Part #PS17-66

$129.68

In Stock

Qty

#4A

Sump pump diagram

Part #PS30-3

This item is not returnable

$3.16

In Stock

Qty

Sump pump diagram

Bracket

Part #PS19-18SS

$14.39 |

12% OFF Phone Price : $16.39

In Stock

Qty

#15

Sump pump diagram

Screw

Part #U30-934ZP

The manufacturer no longer makes this part, and there's no substitute part

Sump pump diagram

Ac cord

Part #PS117-53-TSU

The manufacturer no longer makes this part, and there's no substitute part

#11

Sump pump diagram

Volute

Part #PS1-29P

The manufacturer no longer makes this part, and there's no substitute part

#14A

Sump pump diagram

Sump pump base plate

Part #PS4-17P

The manufacturer no longer makes this part, and there's no substitute part

#11A

Sump pump diagram

Screw

Part #U30-912PS

The manufacturer no longer makes this part, and there's no substitute part
