Model # 3-65B Official Fimco skid mounted sprayer

Here are the diagrams and repair parts for Official Fimco 3-65B skid mounted sprayer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Hose Clamp 5051010
#18

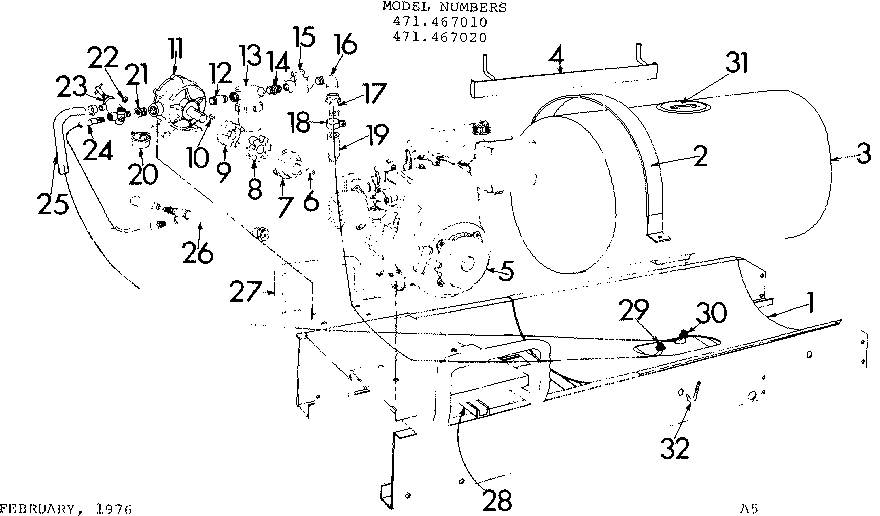

Tank and frame assembly diagram

Hose clamp

Part #5051010

The manufacturer no longer makes this part, and there's no substitute part

Packing 5097003
#49

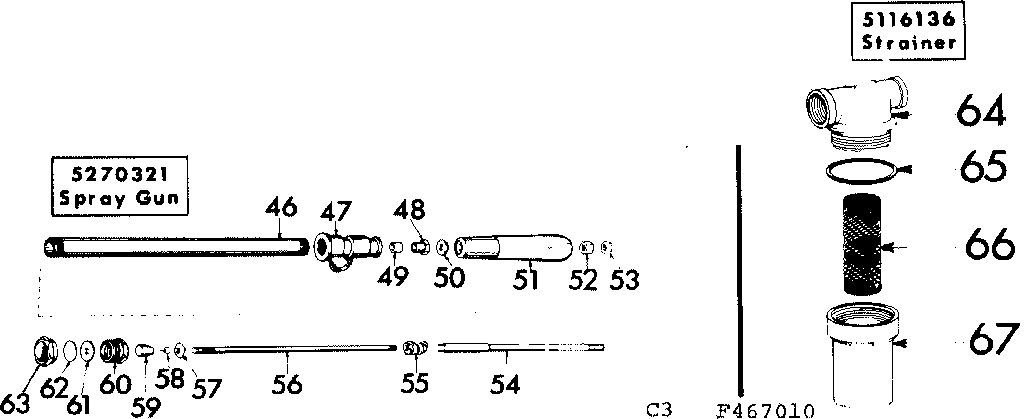

Spray gun and strainer diagram

Packing

Part #5097003

The manufacturer no longer makes this part, and there's no substitute part

Washer 5016129
#43B

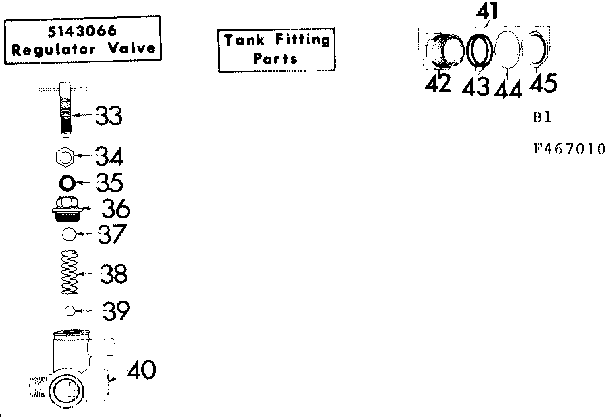

Regulator valve and tank fittings diagram

Washer

Part #5016129

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 5006045
#52

Spray gun and strainer diagram

Lock nut

Part #5006045

The manufacturer no longer makes this part, and there's no substitute part

Rotor Shaft 5172113
#74

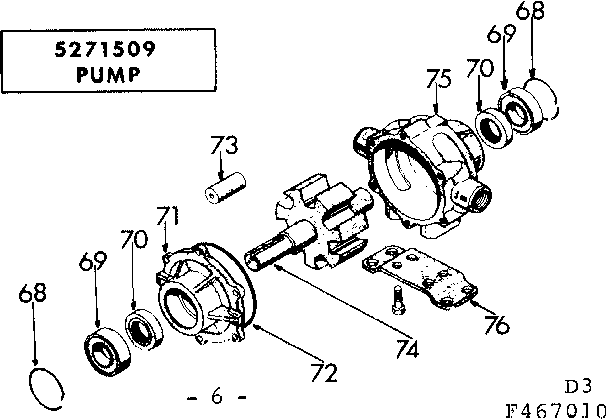

Pump assembly diagram

Rotor shaft

Part #5172113

The manufacturer no longer makes this part, and there's no substitute part

Key 5089003
#10

Tank and frame assembly diagram

Key

Part #5089003

The manufacturer no longer makes this part, and there's no substitute part

Cap 5046020
#63

Spray gun and strainer diagram

Cap

Part #5046020

The manufacturer no longer makes this part, and there's no substitute part

1/2 X 1 1/2 Machine Bolt (standard Hardware Item - Must Be Purchased Locally) N/P
1/2 x 1 1/2 machine bolt (standard hardware item - must be purchased locally)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

4 Disc 5063004
#62B

Spray gun and strainer diagram

4 disc

Part #5063004

The manufacturer no longer makes this part, and there's no substitute part

Seal 5110057
#70

Pump assembly diagram

Seal

Part #5110057

The manufacturer no longer makes this part, and there's no substitute part
