GE
Wine & Beverage Cooler

Model # ZDBI240HDII Official GE beverage center

Here are the diagrams and repair parts for Official GE ZDBI240HDII beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

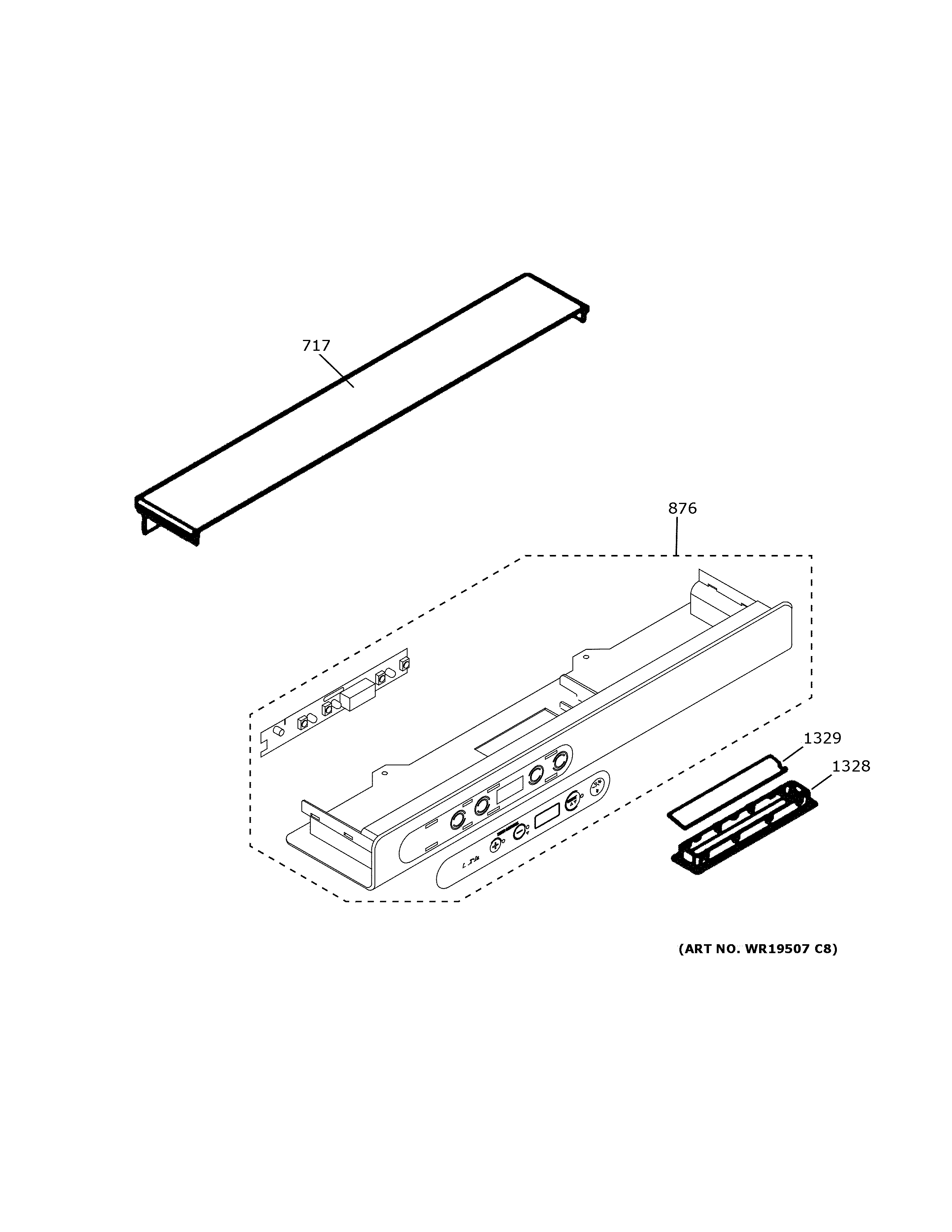

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
R600 Drier W/ Red Cap WR87X30875
#35

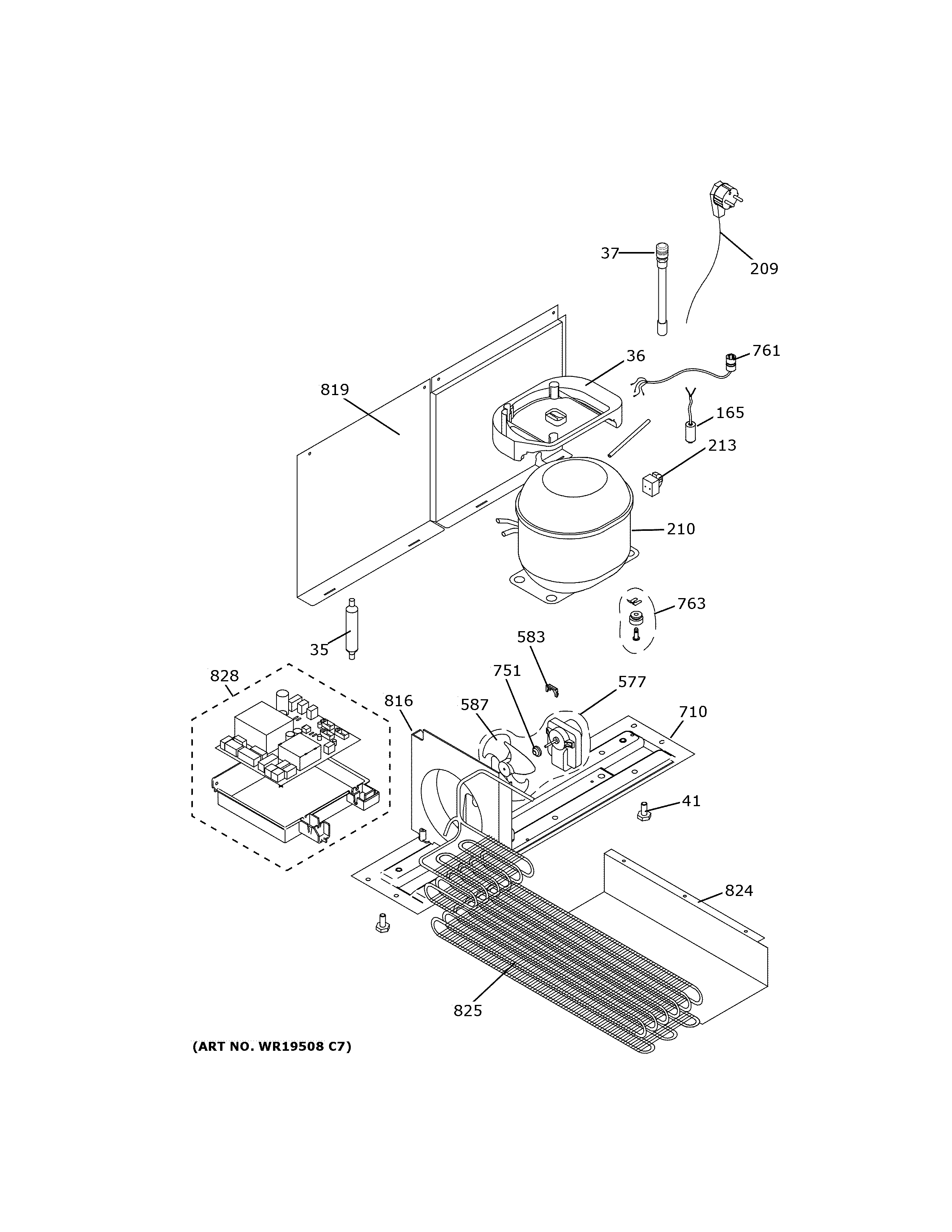

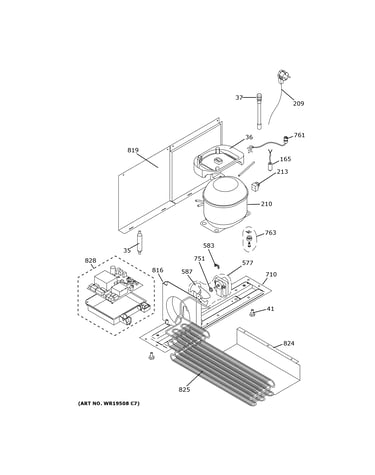

Machine compartment diagram

R600 drier w/ red cap

Part #WR87X30875

BEST SELLER
$56.29
In Stock
R600 Process WR87X30876
#37

Machine compartment diagram

R600 process

Part #WR87X30876

BEST SELLER
$11.41 |
15% OFF Phone Price : $13.41
In Stock
Wine Cooler Door Gasket WR24X10161
#336

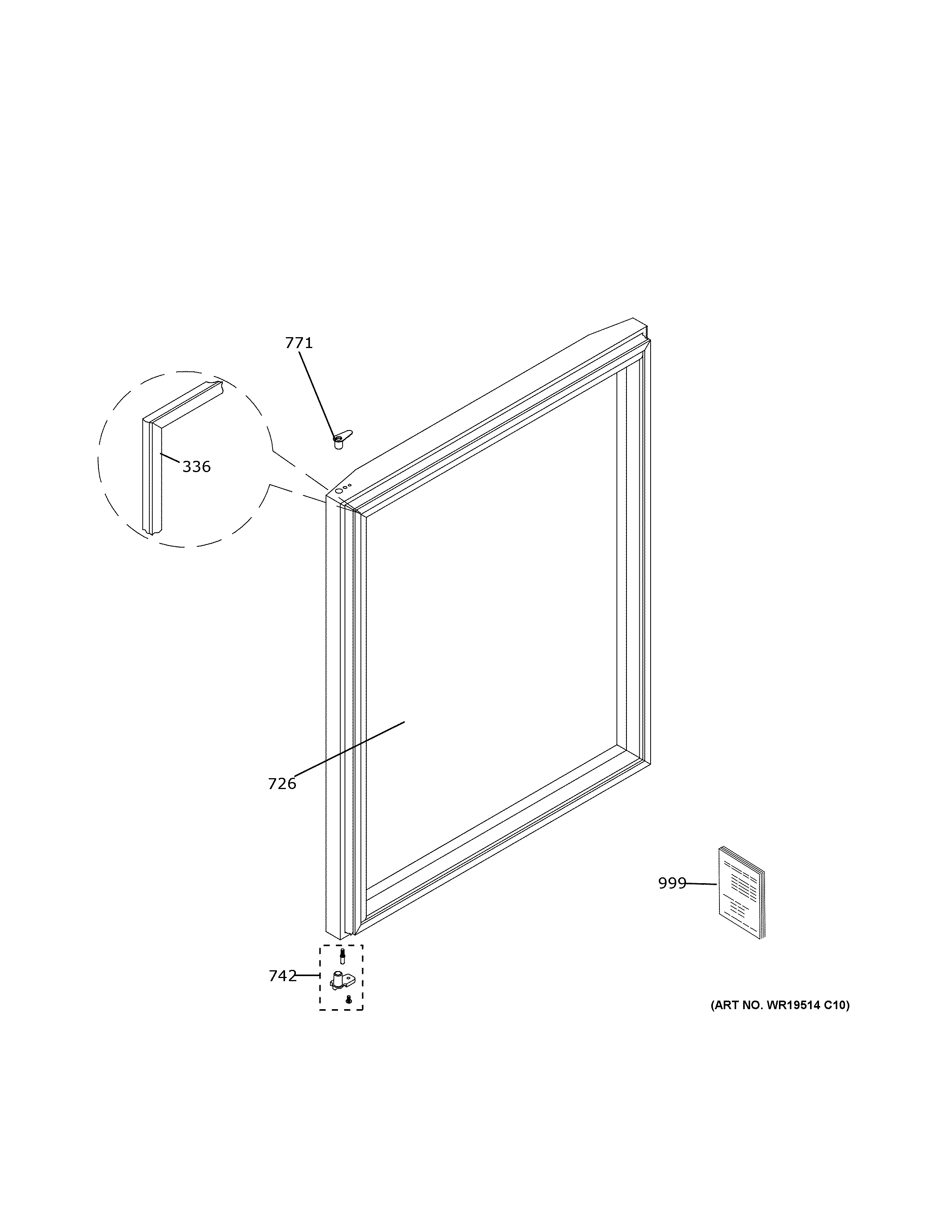

Door diagram

Wine cooler door gasket

Part #WR24X10161

$117.45 |
8% OFF Phone Price : $127.45
In Stock
Beverage Cooler Glass Shelf WR71X10470
#713

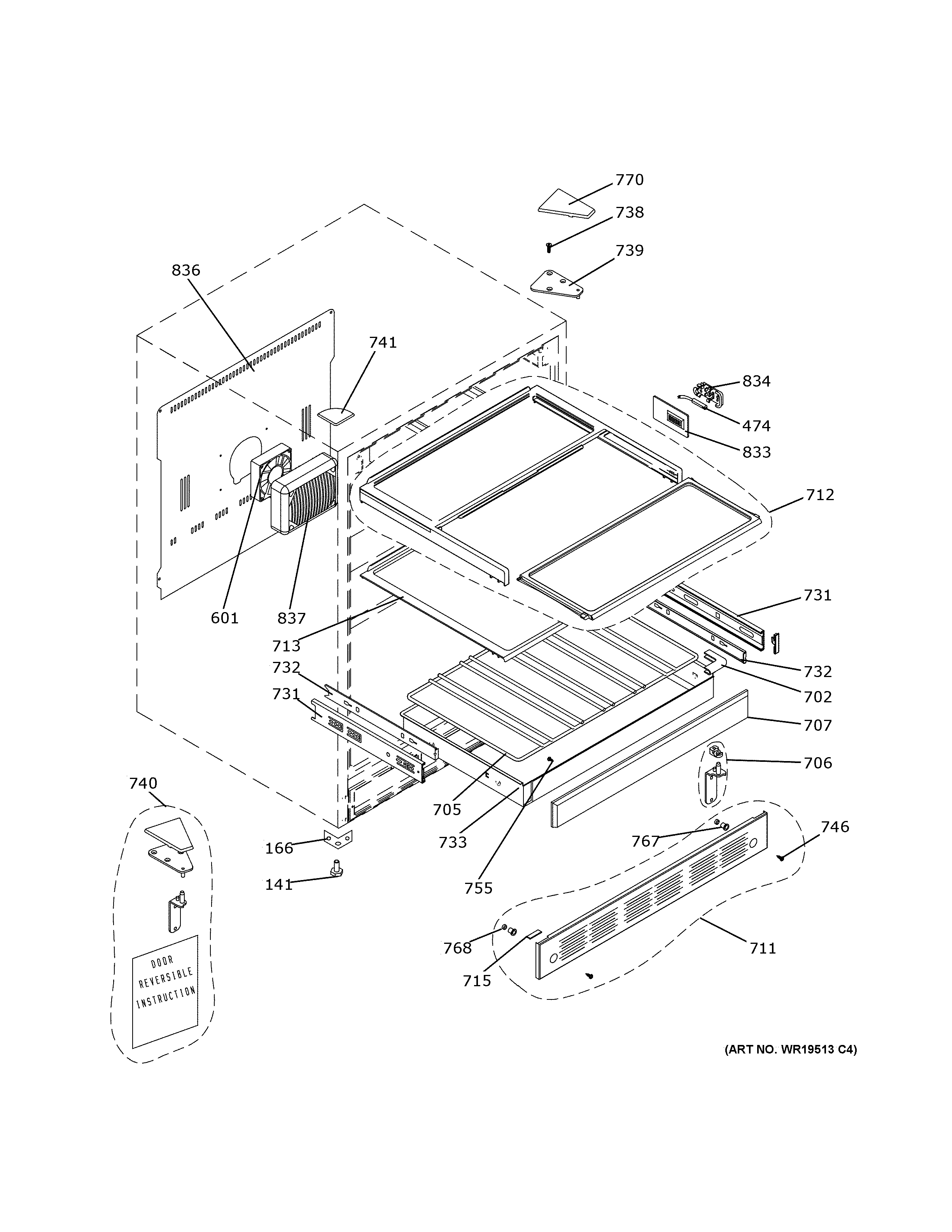

Cabinet & shelves diagram

Beverage cooler glass shelf

Part #WR71X10470

$101.16 |
9% OFF Phone Price : $111.16
In Stock
Cplg1/4-5/32 WR97X10033
#7000

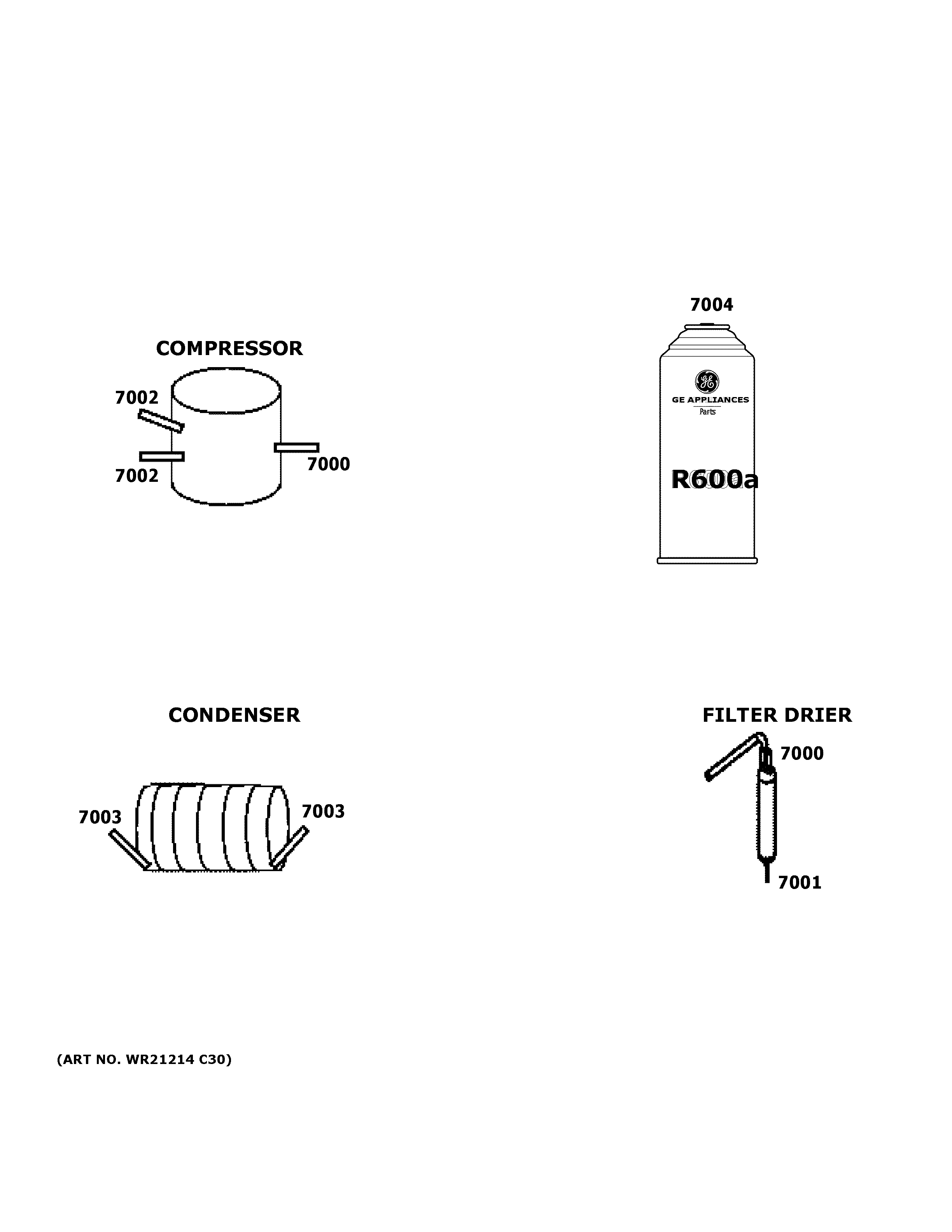

Lokring connectors diagram

Cplg1/4-5/32

Part #WR97X10033

$31.76
In Stock
Refrigerator Condenser Fan Motor Assembly WR60X10163
#577

Machine compartment diagram

Refrigerator condenser fan motor assembly

Part #WR60X10163

$198.84 |
5% OFF Phone Price : $208.84
In Stock
Power Supply Board WR55X35325
#828

Machine compartment diagram

Power supply board

Part #WR55X35325

$471.98
In Stock
Wine Cooler Temperature Sensor WR55X10409
#474

Cabinet & shelves diagram

Wine cooler temperature sensor

Part #WR55X10409

$54.14 |
8% OFF Phone Price : $59.14
In Stock
5/32 - 5/32 WR97X10137
#7003

Lokring connectors diagram

5/32 - 5/32

Part #WR97X10137

$23.56 |
18% OFF Phone Price : $28.56
In Stock
Union 1/4 WR97X10031
#7002

Lokring connectors diagram

Union 1/4

Part #WR97X10031

$25.40
In Stock
