Model # LC320SL1-DS1 Official Sylvania lcd television

Here are the diagrams and repair parts for Official Sylvania LC320SL1-DS1 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Integrated Circuit NPECLTV817MF
#NI

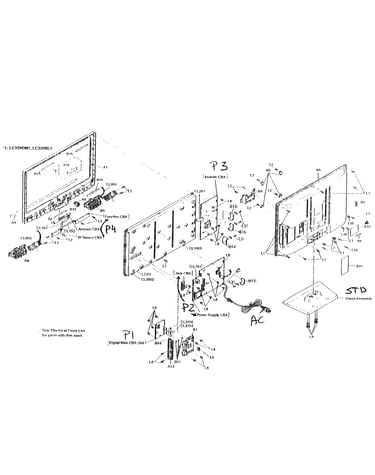

Cabinet parts diagram

Integrated circuit

Part #NPECLTV817MF

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb A01F4MMA-003
#P1

Cabinet parts diagram

Main pcb

Part #A01F4MMA-003

The manufacturer no longer makes this part, and there's no substitute part

Decoration Plate 1EM124476
#A5

Cabinet parts diagram

Decoration plate

Part #1EM124476

The manufacturer no longer makes this part, and there's no substitute part

Holder Stand 1EM222763
#B4

Cabinet parts diagram

Holder stand

Part #1EM222763

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit QSZBA0TRM032
#NI

Cabinet parts diagram

Integrated circuit

Part #QSZBA0TRM032

The manufacturer no longer makes this part, and there's no substitute part

Television Power Supply Board A01F4MPWS001
#P2

Cabinet parts diagram

Television power supply board

Part #A01F4MPWS001

The manufacturer no longer makes this part, and there's no substitute part

Wire,15p/1 WX1A01F4-102
#NI

Cabinet parts diagram

Wire,15p/1

Part #WX1A01F4-102

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker Holder 1EM123233
#B8

Cabinet parts diagram

Television speaker holder

Part #1EM123233

The manufacturer no longer makes this part, and there's no substitute part

Television Stand Screw, 4-pack 1ESA19881
#L9

Cabinet parts diagram

Television stand screw, 4-pack

Part #1ESA19881

The manufacturer no longer makes this part, and there's no substitute part

Television Ir Sensor USESJRSKK044
#NI

Cabinet parts diagram

Television ir sensor

Part #USESJRSKK044

The manufacturer no longer makes this part, and there's no substitute part
