Jenn-Air JMW2427DS04 electric oven/microwave combo

Jenn-Air JMW2427DS04 electric oven/microwave combo Parts

Here are the diagrams and repair parts for Jenn-Air JMW2427DS04 electric oven/microwave combo, as well as links to manuals and error code tables, if available.

By Schematic
By Part

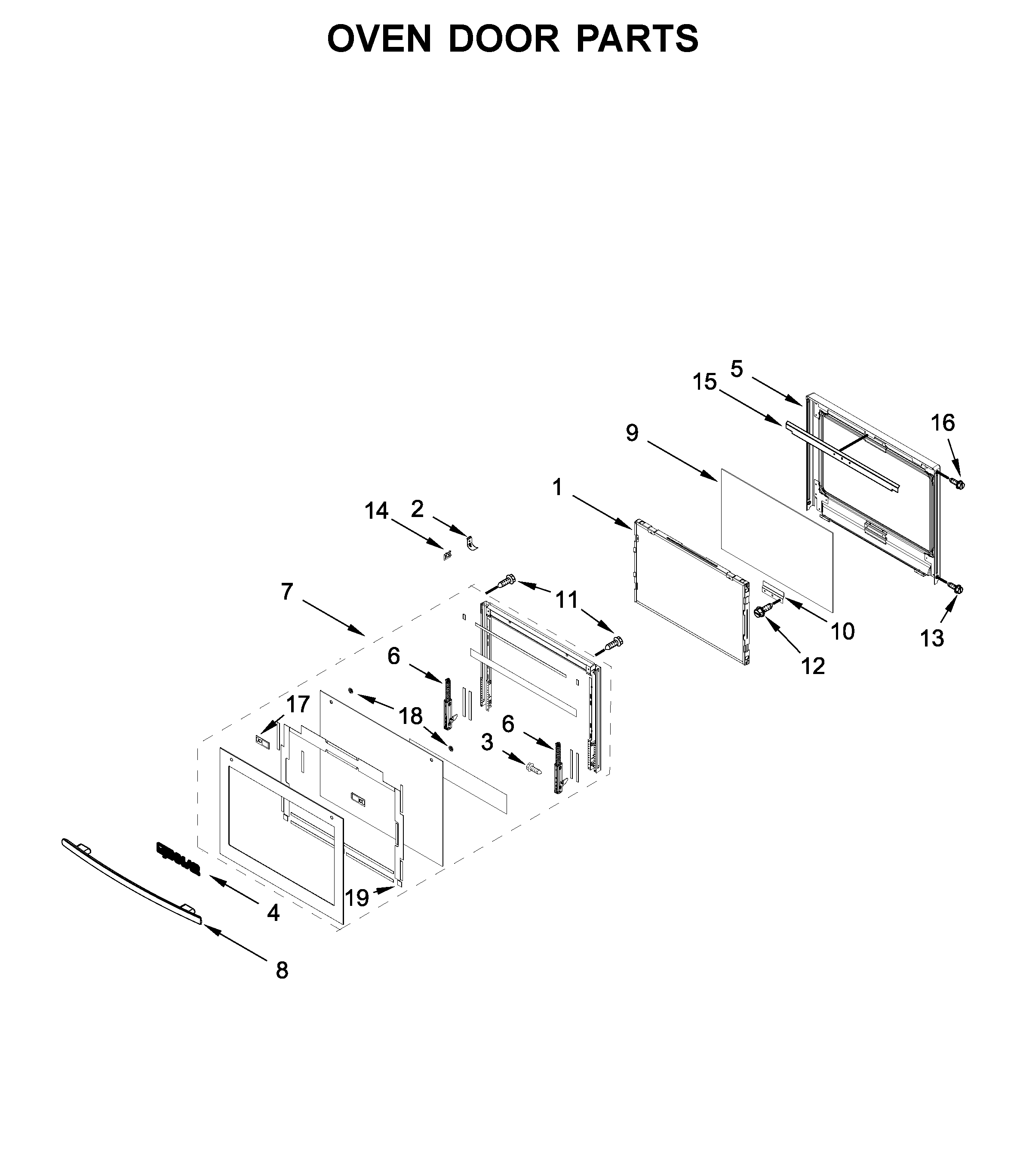

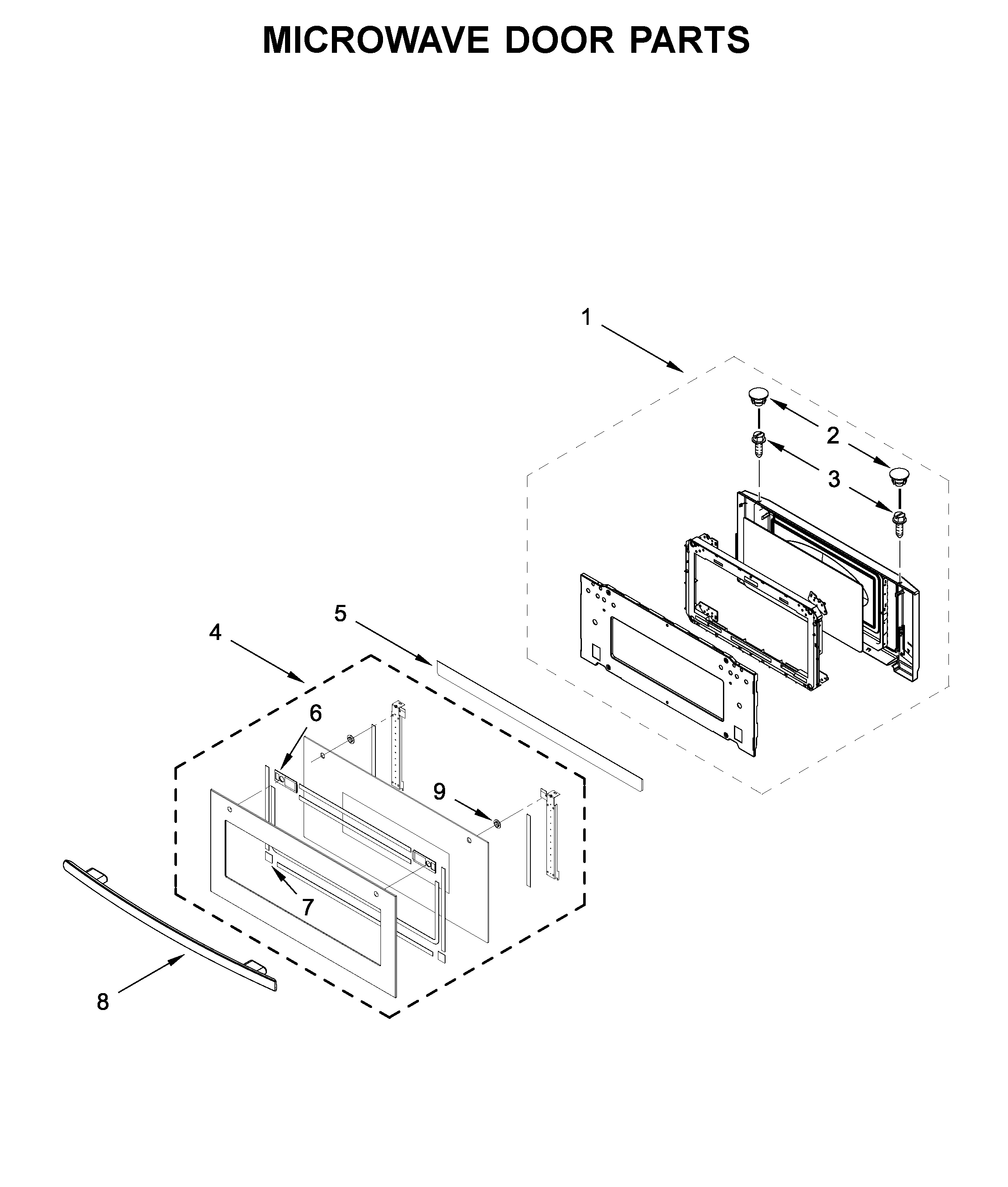

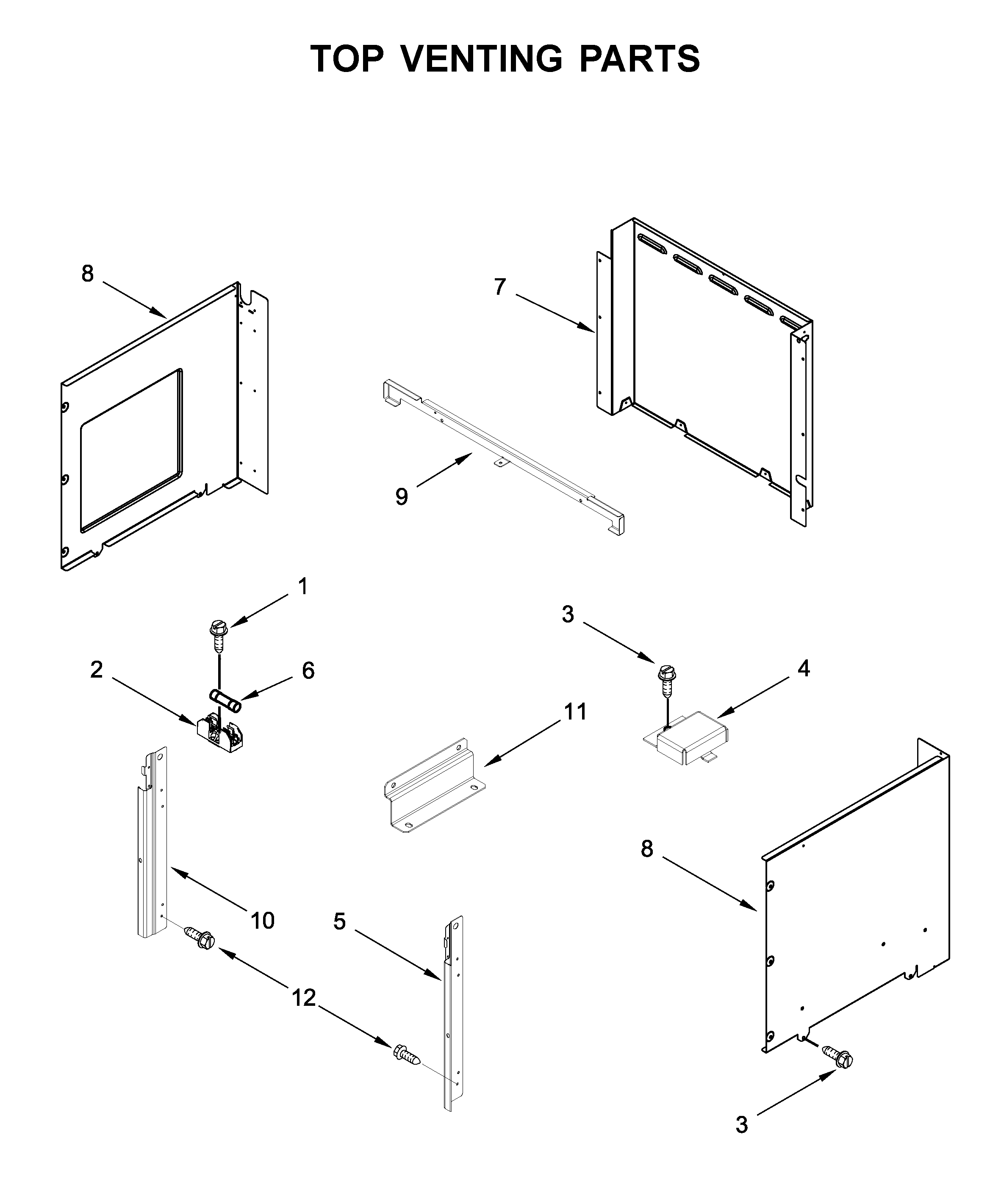

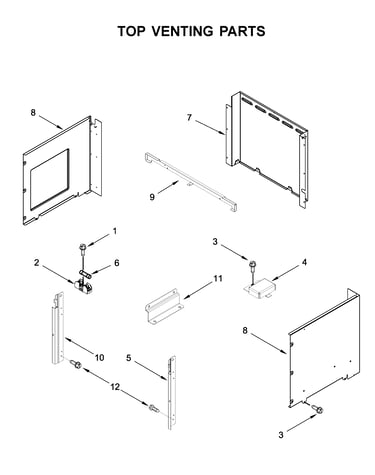

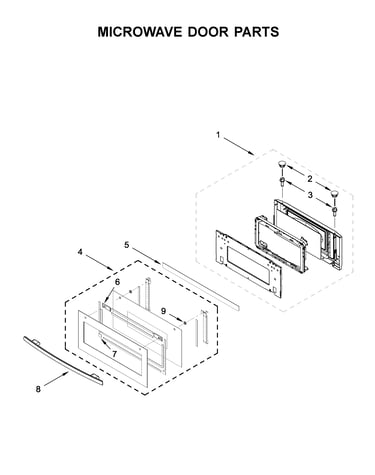

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JMW2427DS04 Electric Oven/Microwave Combo

  • Microwave Door Interlock Switch for Jenn-Air JMW2427DS04 - Part W10211972

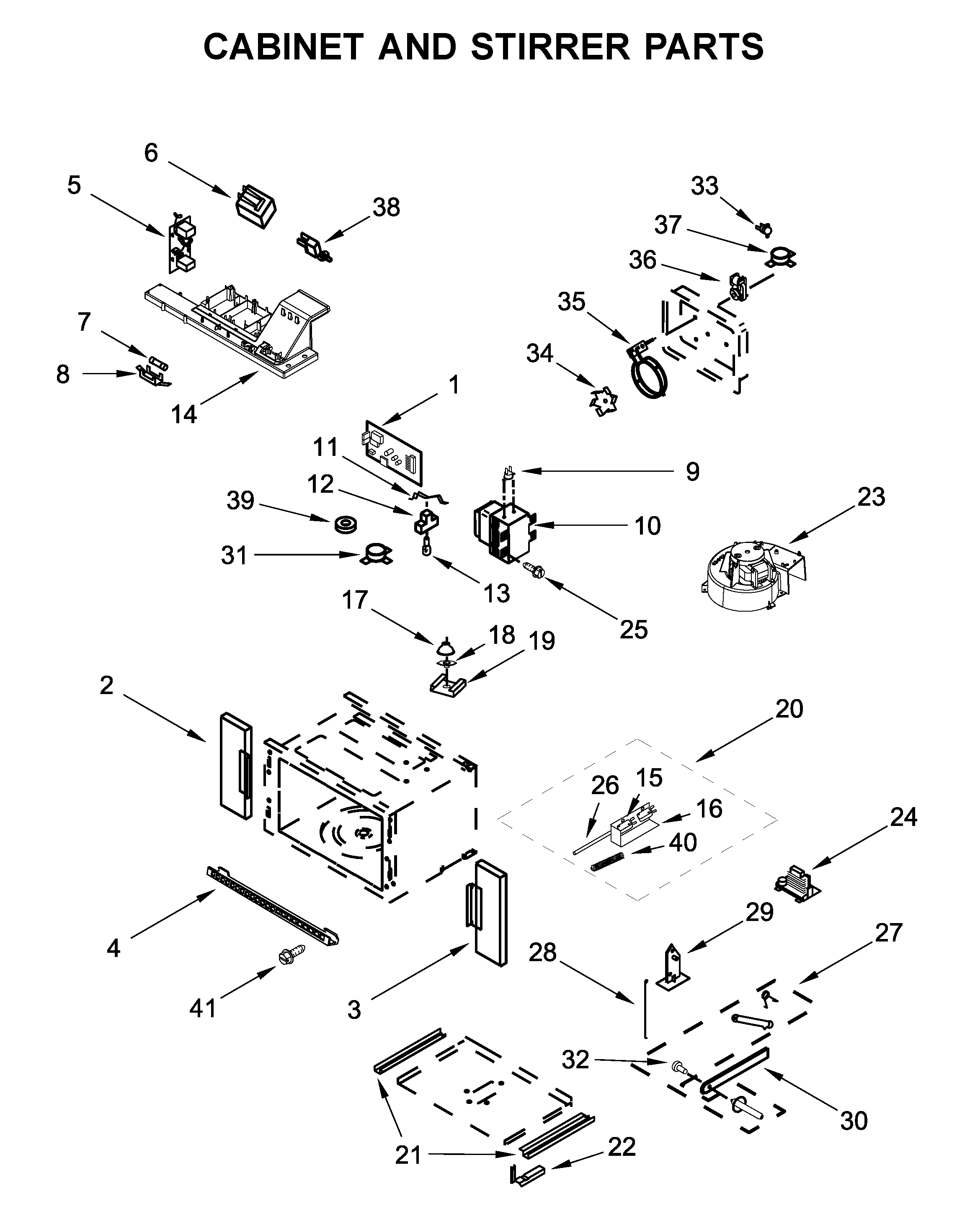

    Cabinet and stirrer parts diagram

    Microwave Door Switch

    Part #W10330566

    Replaced by #W10211972

    Info Icon
    Manufacturer substitution
    This part replaces W10330566. Substitute parts can look different from the original.
    In Stock
    $36.30
    14% OFF Phone Price : $42.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Wall Oven Control Board for Jenn-Air JMW2427DS04 - Part W11179310

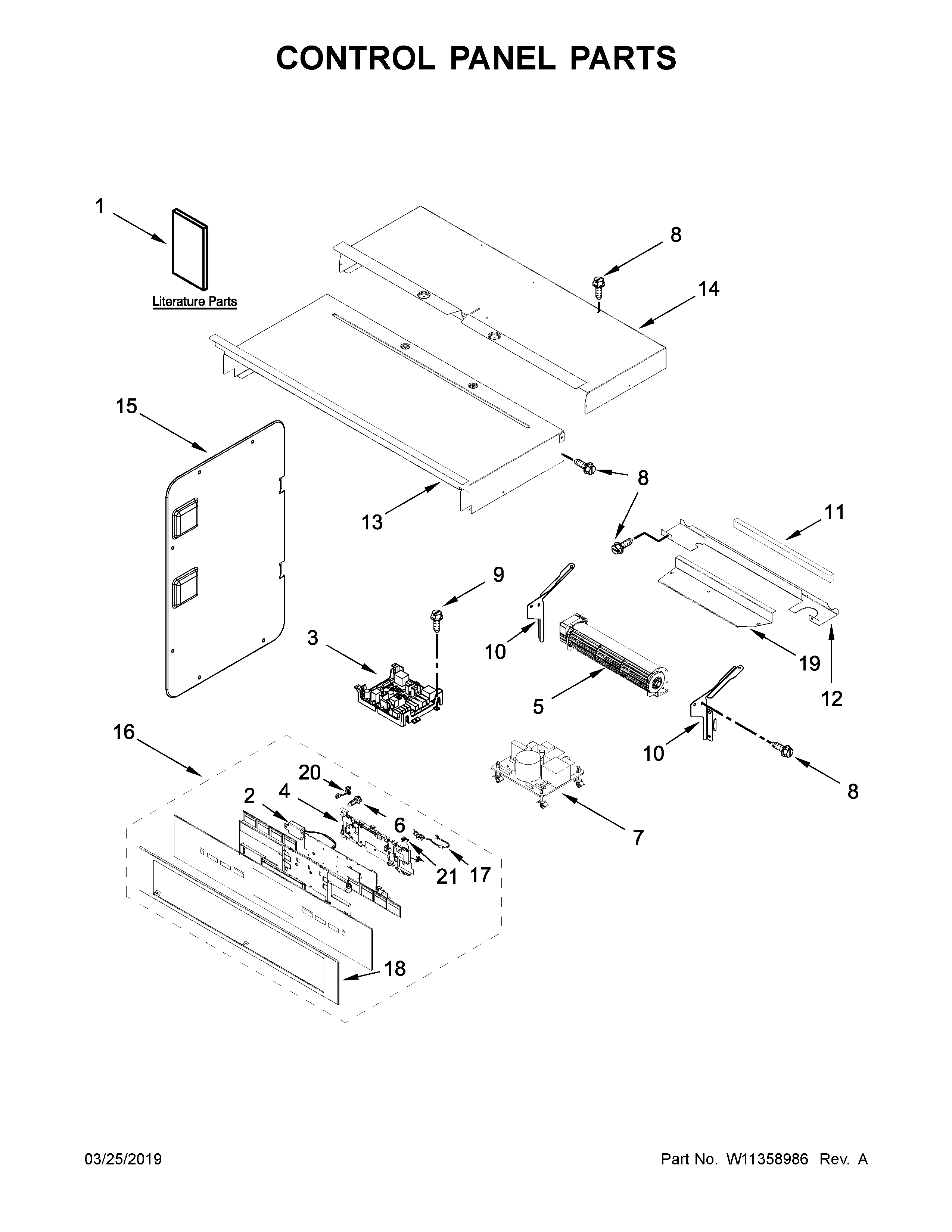

    Control panel parts diagram

    Control (with Power Supply)

    Part #W11040195

    Replaced by #W11179310

    Info Icon
    Manufacturer substitution
    This part replaces W11040195. Substitute parts can look different from the original.
    In Stock
    $267.87
    $12.00 OFF Phone Price : $279.87Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Microwave Magnetron for Jenn-Air JMW2427DS04 - Part W11346197

    Cabinet and stirrer parts diagram

    Magnetron

    Part #W11226473

    Replaced by #W11346197

    Info Icon
    Manufacturer substitution
    This part replaces W11226473. Substitute parts can look different from the original.
    In Stock
    $187.88
    6% OFF Phone Price : $199.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Inverter Board for Jenn-Air JMW2427DS04 - Part W11325604

    Cabinet and stirrer parts diagram

    Inverter

    Part #W11237240

    Replaced by #W11325604

    Info Icon
    Manufacturer substitution
    This part replaces W11237240. Substitute parts can look different from the original.
    In Stock
    $170.86
    7% OFF Phone Price : $182.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Spray Paint (white) for Jenn-Air JMW2427DS04 - Part 350930

    Optional parts (not included) diagram

    Spray W

    Part #350930

    Replaced by #350930

    Info Icon
    Manufacturer substitution
    This part replaces 350930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.00
    19% OFF Phone Price : $32.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Light Bulb for Jenn-Air JMW2427DS04 - Part W10886919

    Cabinet and stirrer parts diagram

    Lamp G4 Halo

    Part #W10795595

    Replaced by #W10886919

    Info Icon
    Manufacturer substitution
    This part replaces W10795595. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $12.07
    52% OFF Was : $25.38Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Bake Element for Jenn-Air JMW2427DS04 - Part W11545804

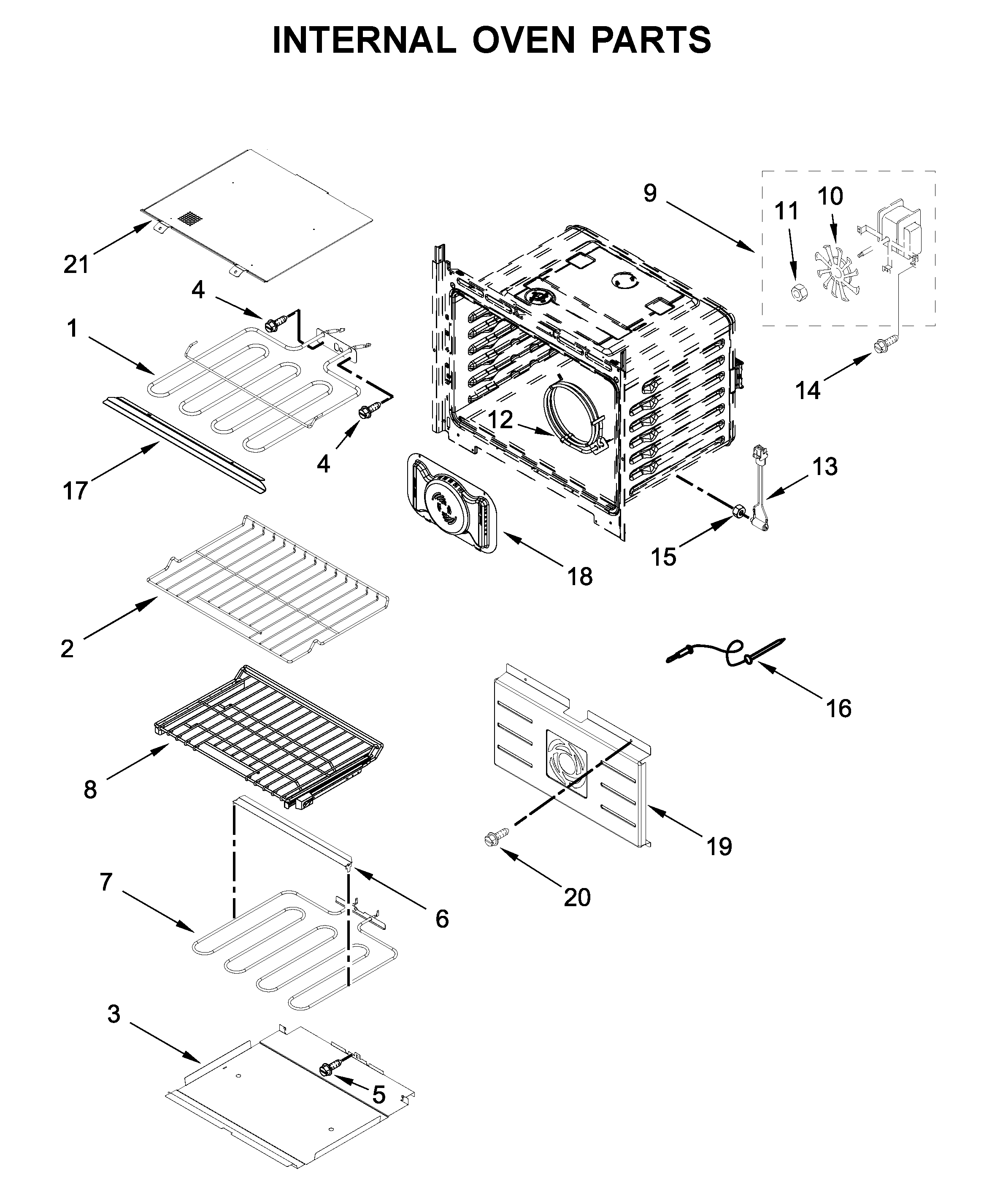

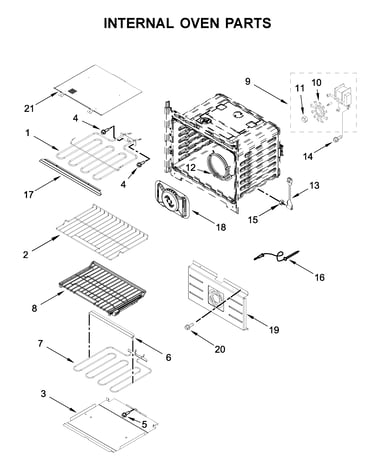

    Internal oven parts diagram

    Range Bake Element

    Part #W10546517

    Replaced by #W11545804

    Info Icon
    Manufacturer substitution
    This part replaces W10546517. Substitute parts can look different from the original.
    In Stock
    $48.03
    31% OFF Was : $69.23Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Waveguide Cover for Jenn-Air JMW2427DS04 - Part W10915651

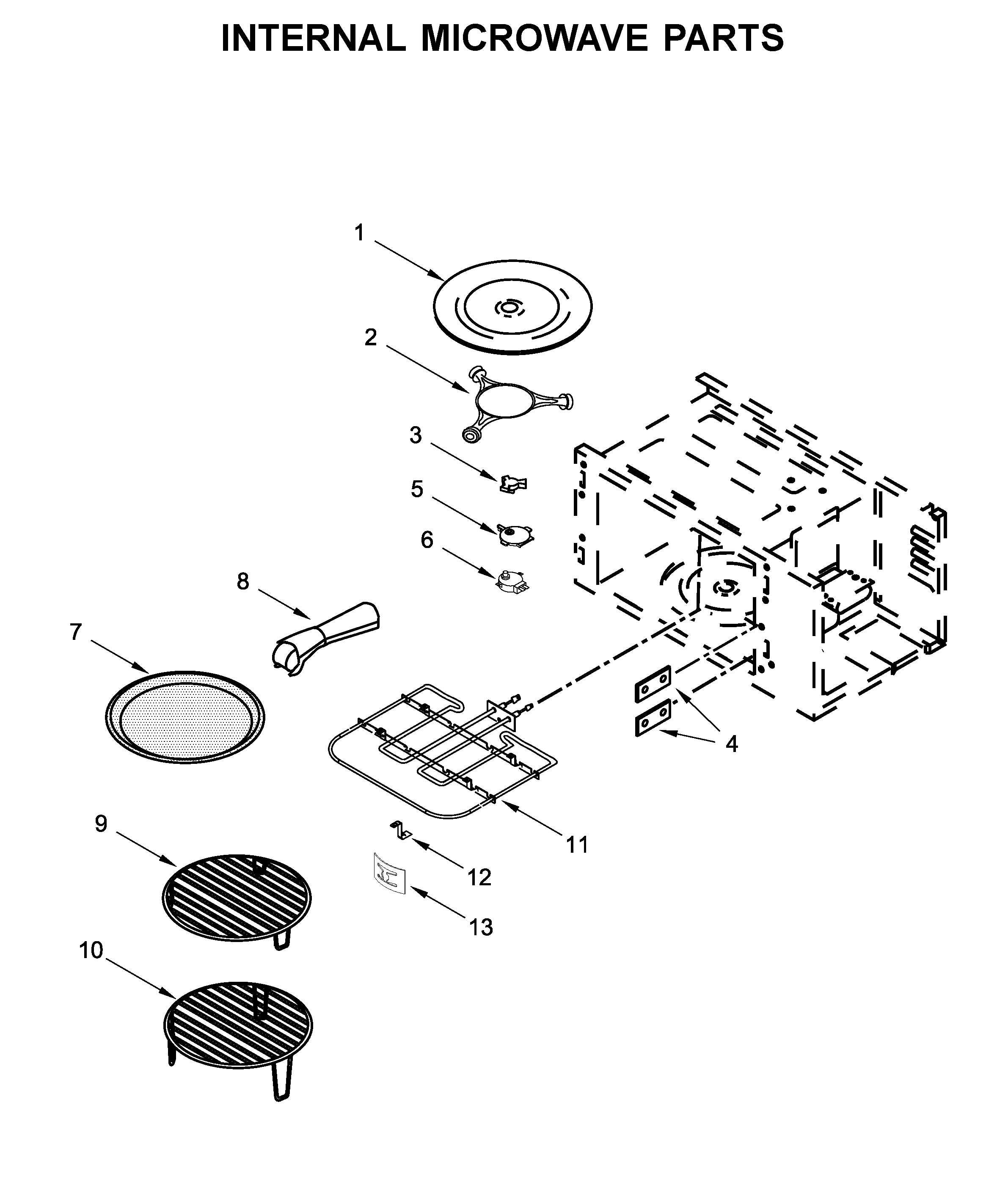

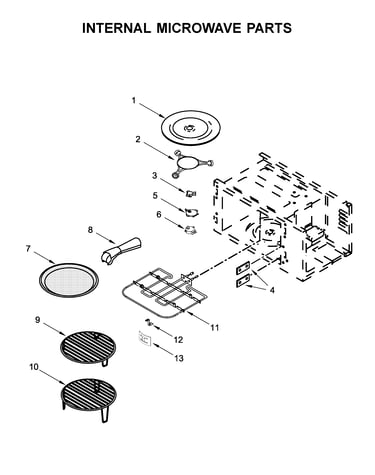

    Internal microwave parts diagram

    O Mica Plate

    Part #461967451001

    Replaced by #W10915651

    Info Icon
    Manufacturer substitution
    This part replaces 461967451001. Substitute parts can look different from the original.
    In Stock
    $48.49
    11% OFF Phone Price : $54.49Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Turntable Tray for Jenn-Air JMW2427DS04 - Part W11373838

    Internal microwave parts diagram

    O Turntable

    Part #461967721091

    Replaced by #W11373838

    Info Icon
    Manufacturer substitution
    This part replaces 461967721091. Substitute parts can look different from the original.
    In Stock
    $77.72
    7% OFF Phone Price : $83.72Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Door Lock Assembly for Jenn-Air JMW2427DS04 - Part W10883049

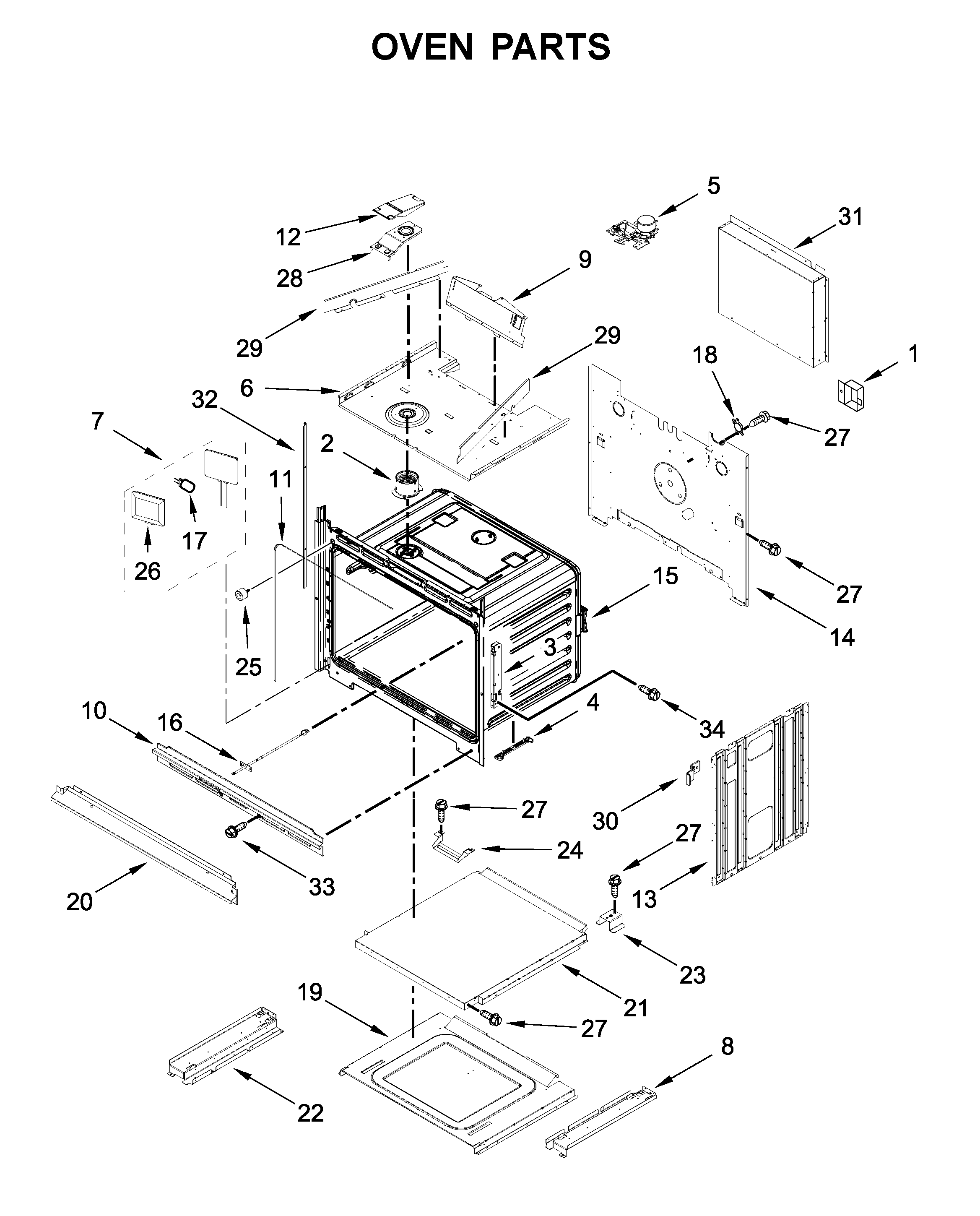

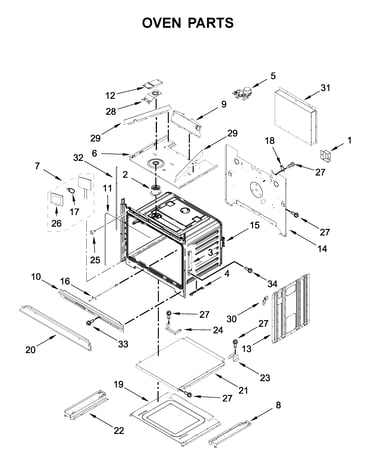

    Oven parts diagram

    Door Latch

    Part #W10618131

    Replaced by #W10883049

    Info Icon
    Manufacturer substitution
    This part replaces W10618131. Substitute parts can look different from the original.
    In Stock
    $199.02
    6% OFF Phone Price : $211.02Info Icon
    Minus Item
    Qty
    Plus Item
