KitchenAid KOEC730SBE00 electric oven/microwave combo Parts
Here are the diagrams and repair parts for KitchenAid KOEC730SBE00 electric oven/microwave combo, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

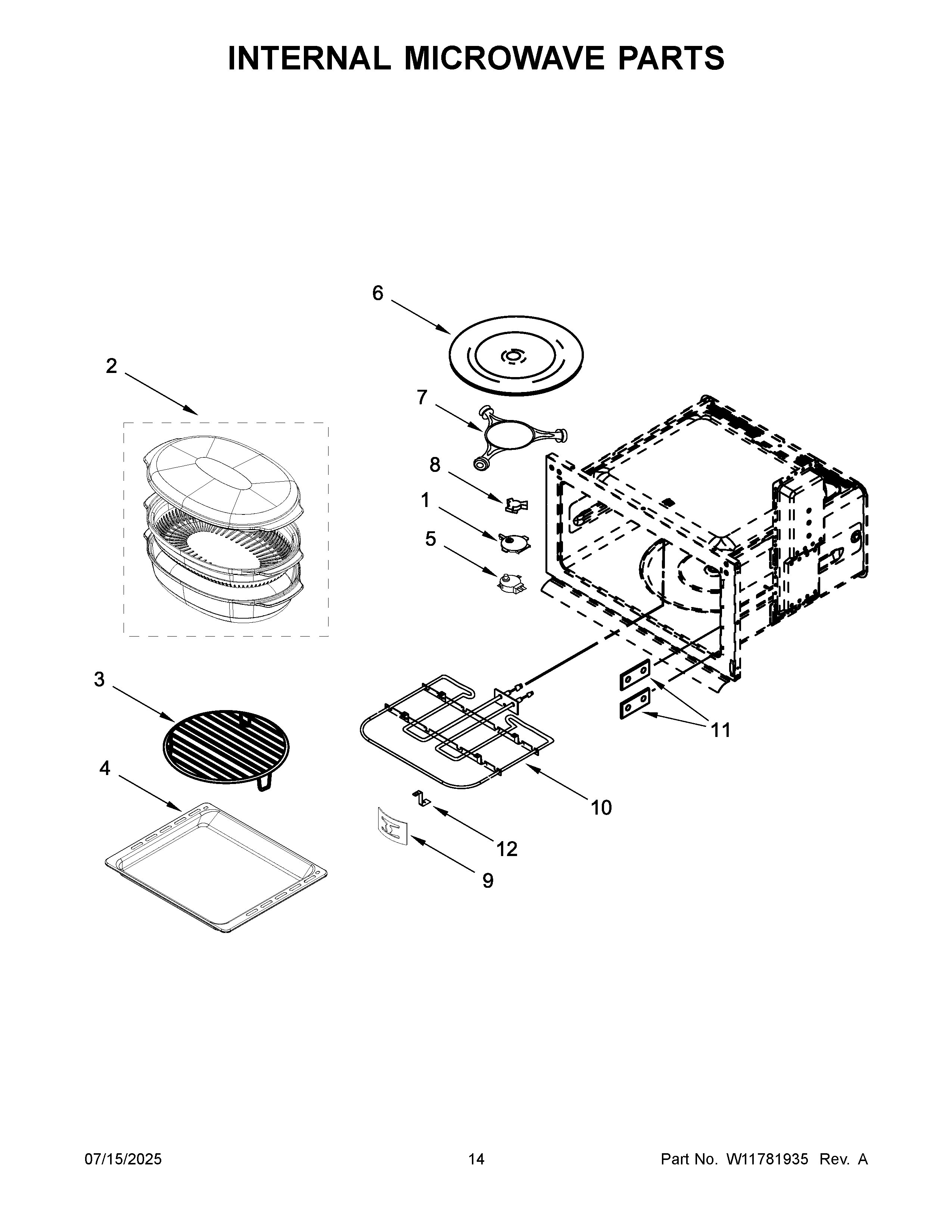

Browse Parts for KOEC730SBE00 Electric Oven/Microwave Combo

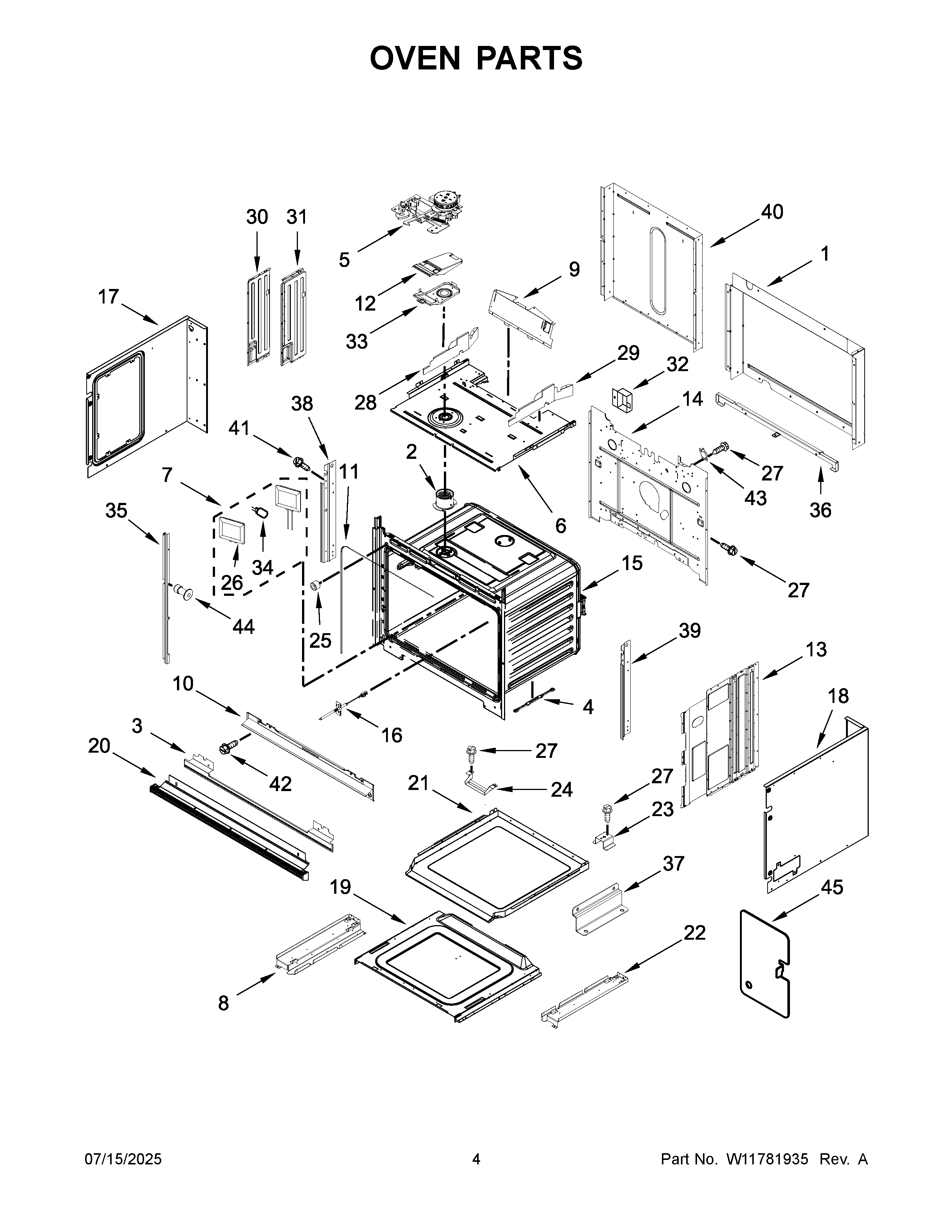

Oven parts diagram
Oven (not Serviceable)
Part #LINER,
The manufacturer no longer makes this part, and there's no substitute part

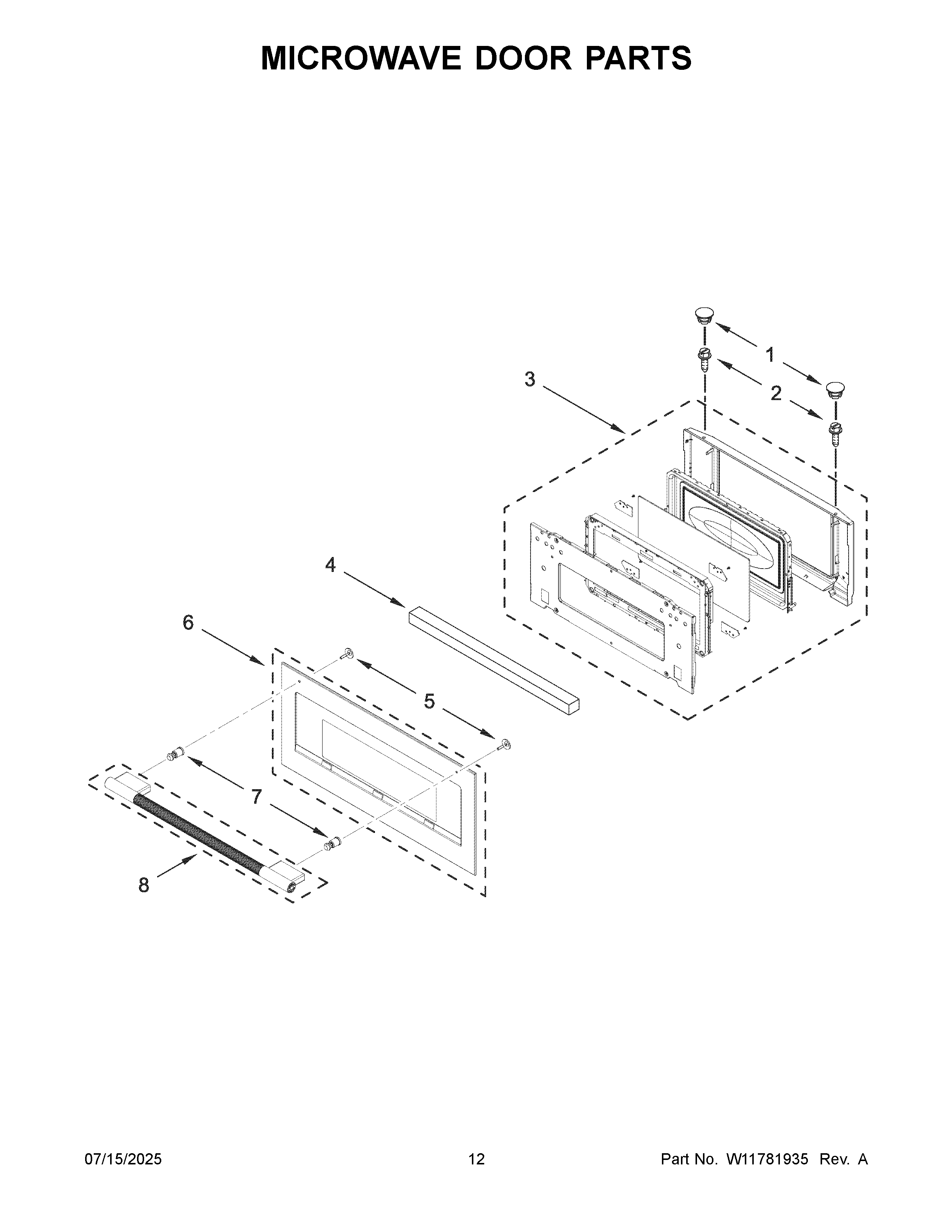

Microwave door parts diagram
Screw (black)
Part #W11707001
The manufacturer no longer makes this part, and there's no substitute part

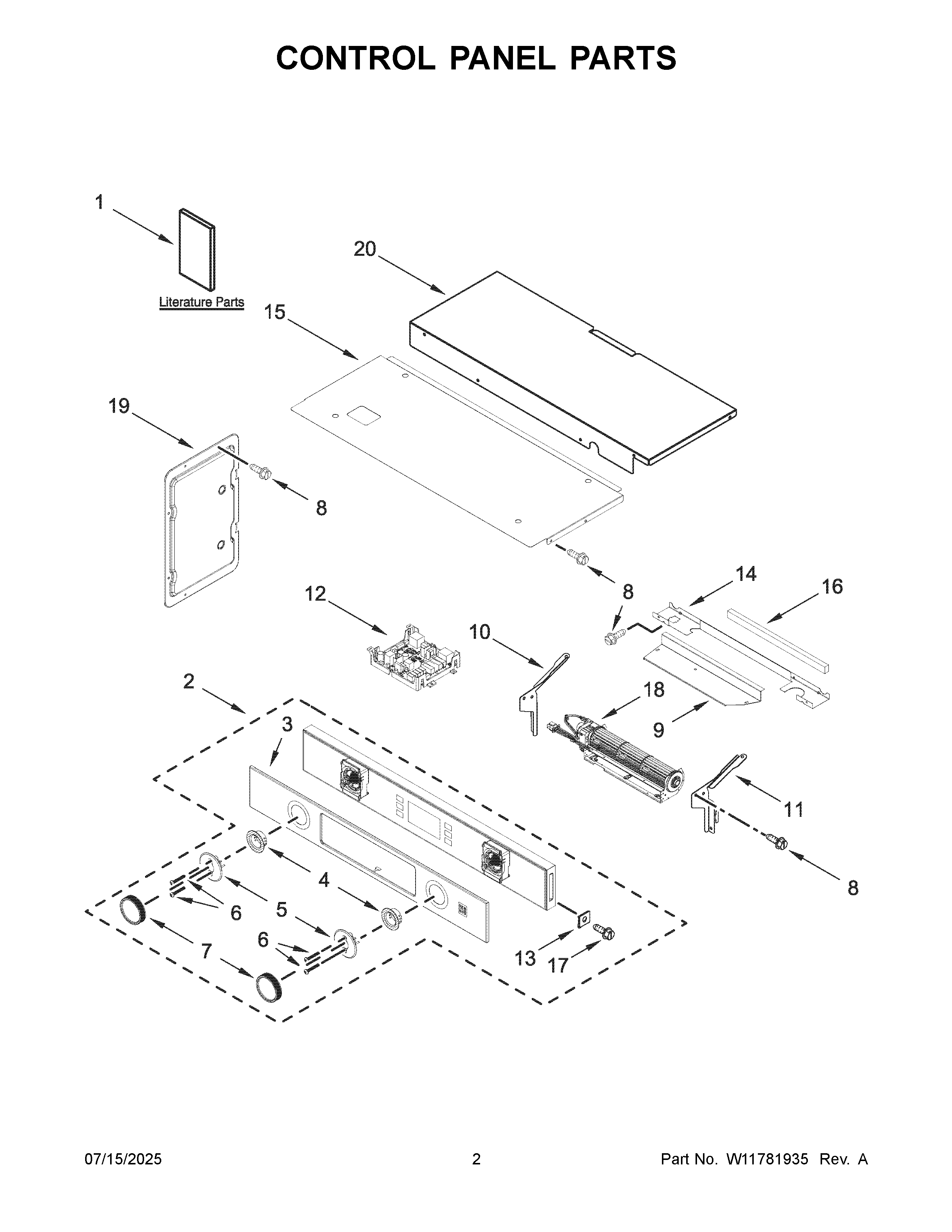

Control panel parts diagram
Cover, Top Front 30 In Chassis
Part #W11646291
The manufacturer no longer makes this part, and there's no substitute part

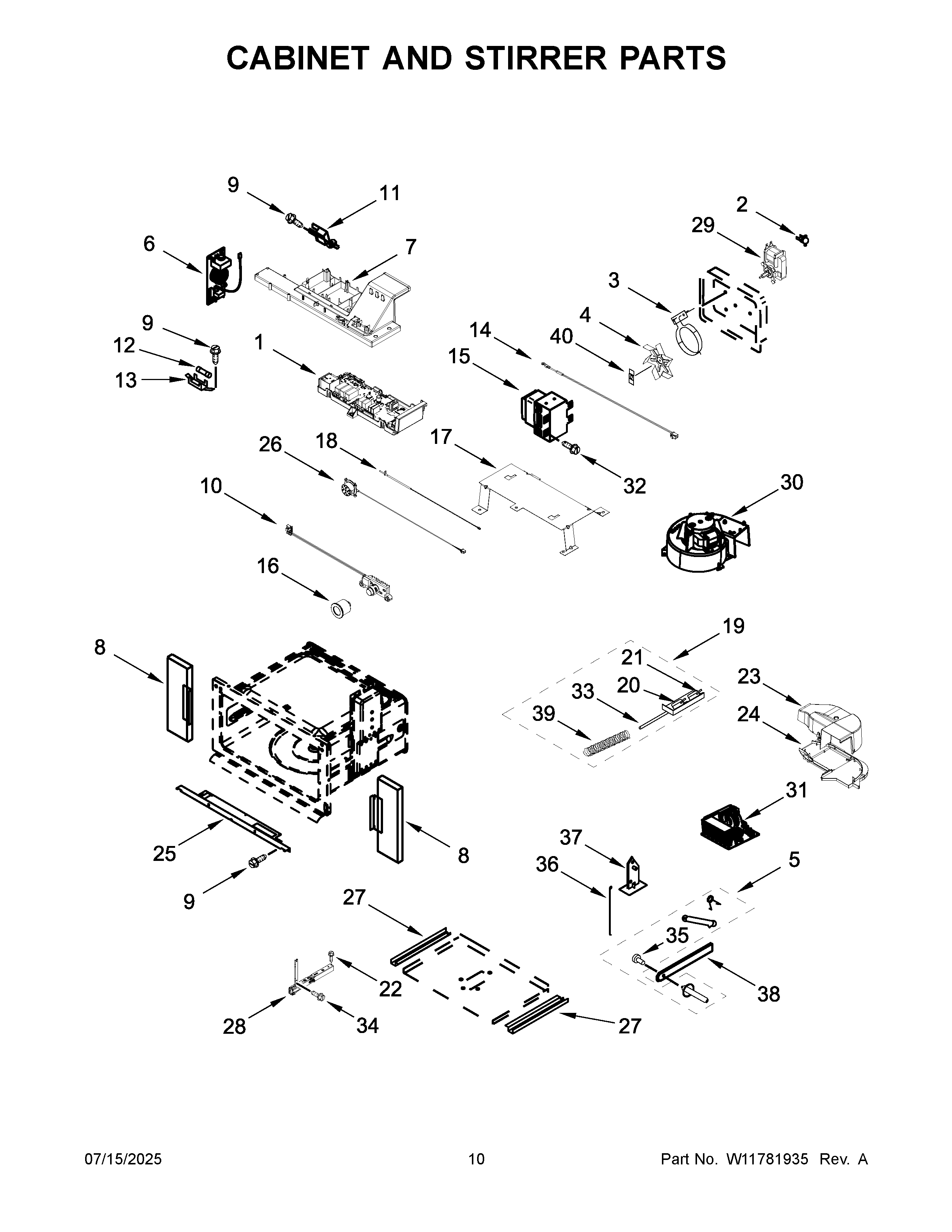

Cabinet and stirrer parts diagram
Side Trim R
Part #461967017481
The manufacturer no longer makes this part, and there's no substitute part

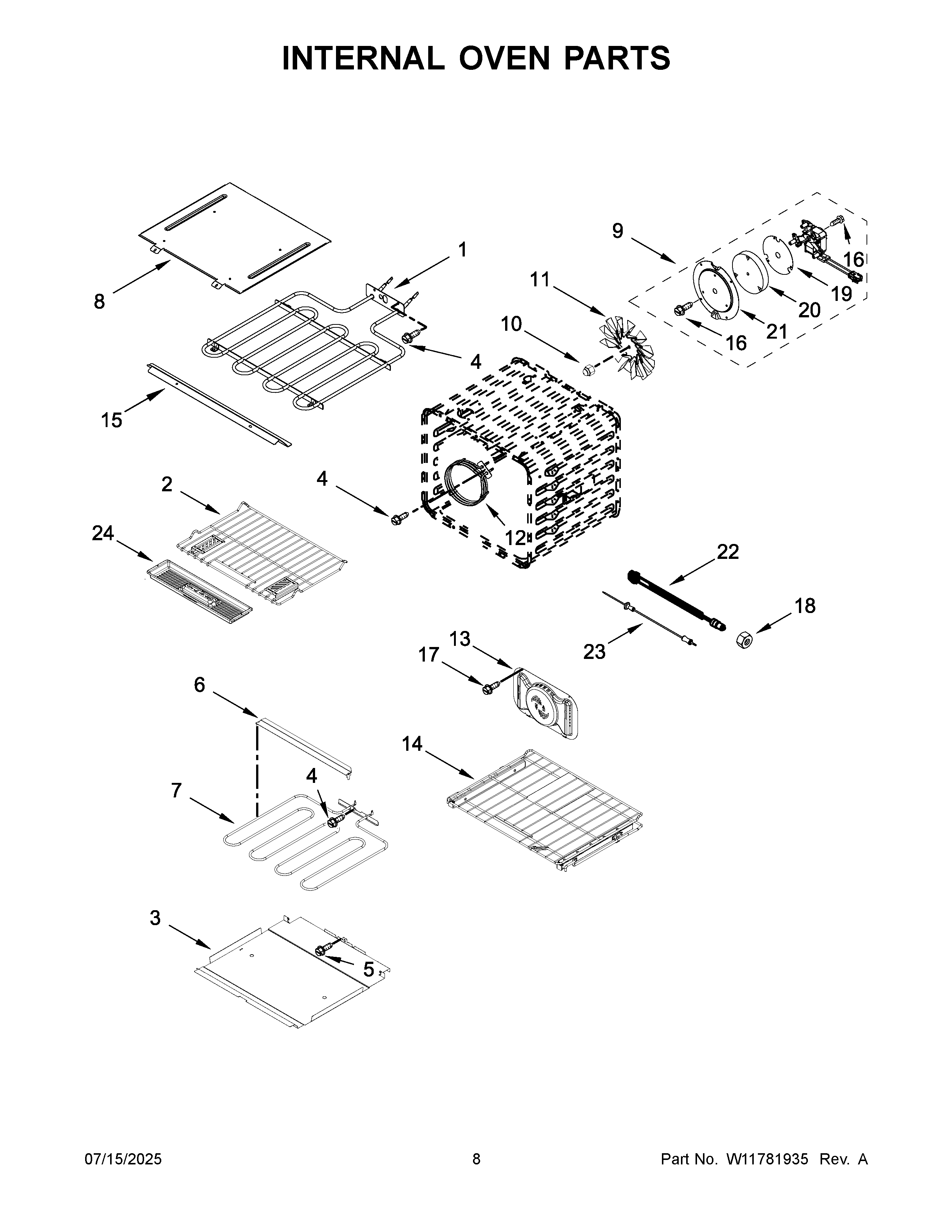

Internal oven parts diagram
Screw
Part #7101P434-60
The manufacturer no longer makes this part, and there's no substitute part
Microwave door parts diagram
Screw
Part #7101P338-60
The manufacturer no longer makes this part, and there's no substitute part

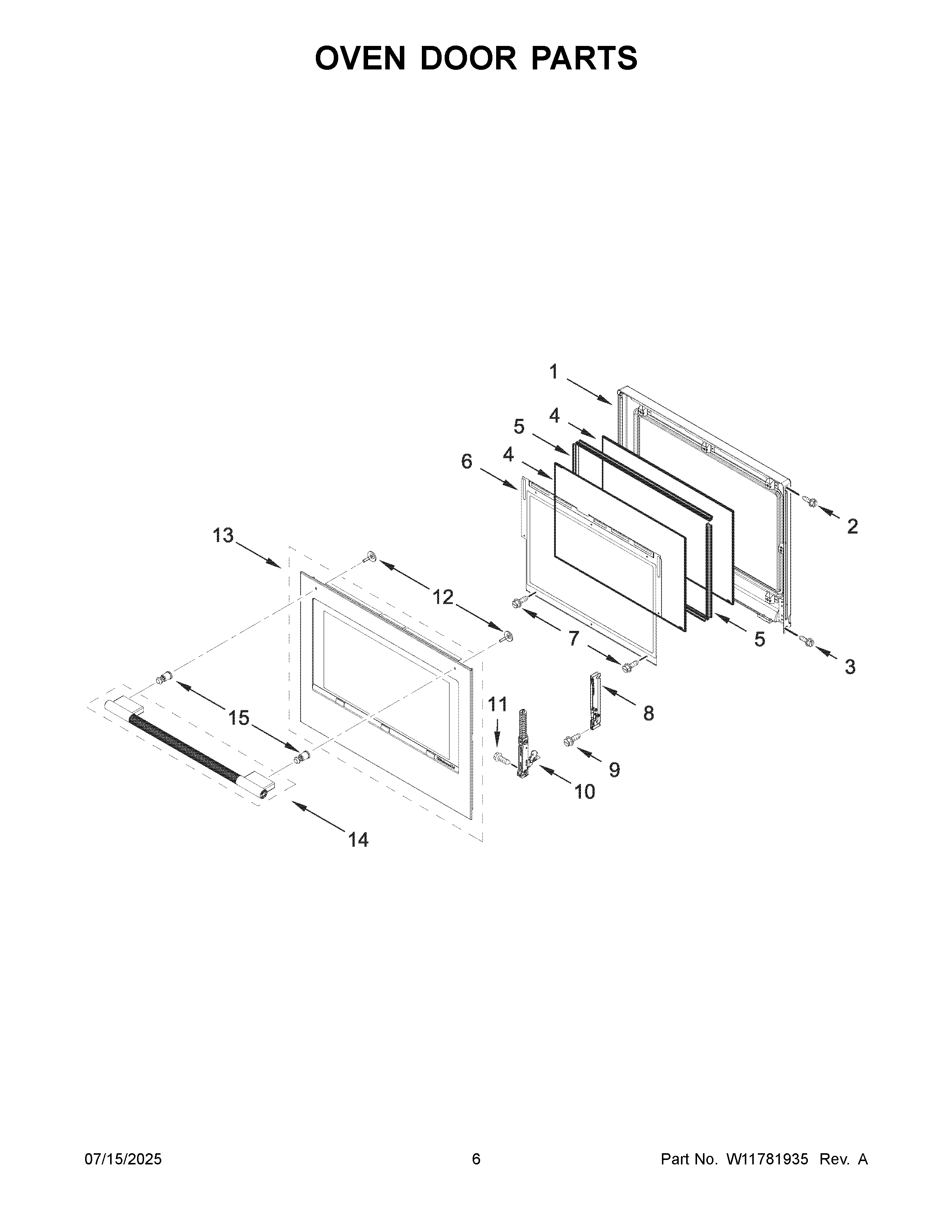

Oven door parts diagram
Screw
Part #7101P375-60
The manufacturer no longer makes this part, and there's no substitute part
Oven parts diagram
Extrusion, Top Frt (screw)
Part #7101P633-60
The manufacturer no longer makes this part, and there's no substitute part
Bolt, Gas Valve
Part #7101P426-60
The manufacturer no longer makes this part, and there's no substitute part
