Model # 580328252 Official Craftsman ac generator

Here are the diagrams and repair parts for Official Craftsman 580328252 ac generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |

Lock Washer 22129
Lock washer

Part #22129

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 48031-C
#30

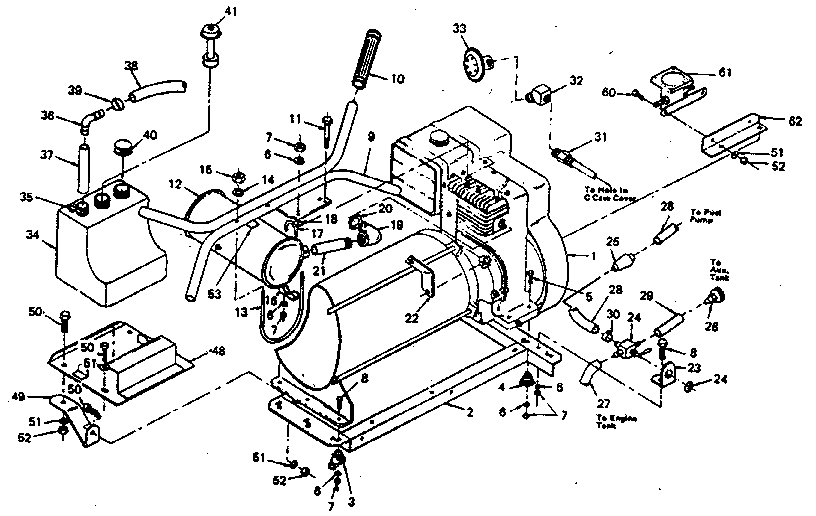

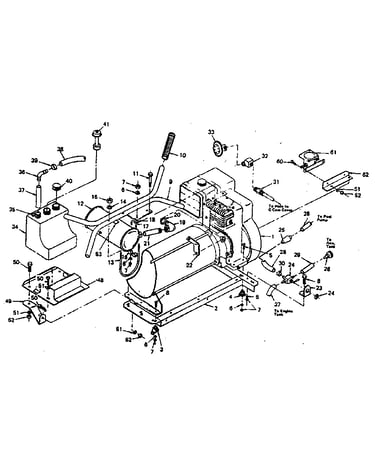

Handle and mounting base diagram

Hose clamp

Part #48031-C

The manufacturer no longer makes this part, and there's no substitute part

Plug 43483

#NI

All parts diagram

Plug

Part #43483

Replaced by #100522GS

?
Manufacturer substitution
This part replaces 43483. Substitute parts can look different from the original.
This item is not returnable
$35.79
12% OFF Phone Price : $40.79
In Stock
Fan Cover 44357
#17

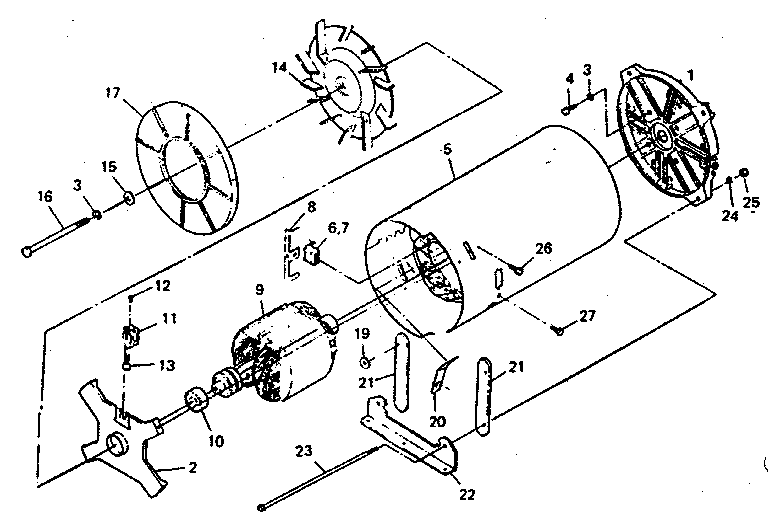

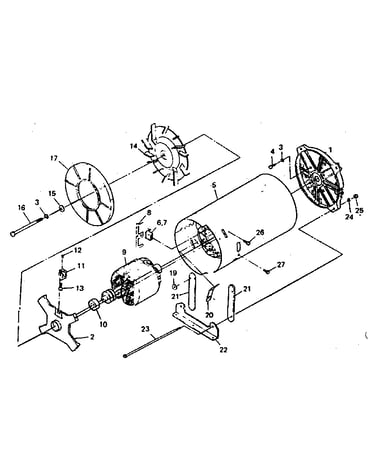

Ac generator diagram

Fan cover

Part #44357

Replaced by #44357GS

?
Manufacturer substitution
This part replaces 44357. Substitute parts can look different from the original.
$25.51
16% OFF Phone Price : $30.51
In Stock
Washer 43441
#3

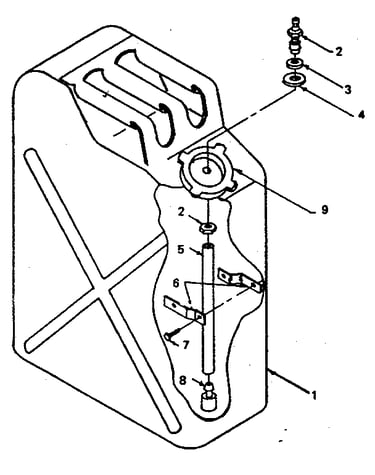

Fuel tank diagram

Washer

Part #43441

The manufacturer no longer makes this part, and there's no substitute part

Washer 22145
Washer

Part #22145

The manufacturer no longer makes this part, and there's no substitute part

Binding Post 25367
#11

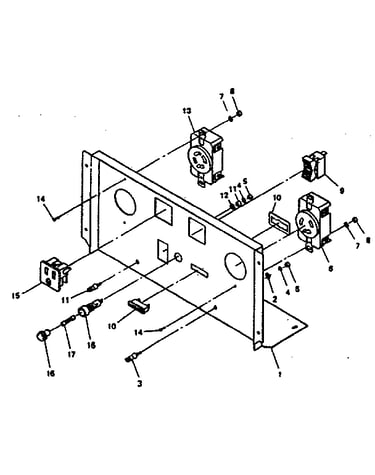

Receptacle and control panel diagram

Binding post

Part #25367

Replaced by #25367GS

?
Manufacturer substitution
This part replaces 25367. Substitute parts can look different from the original.
In Stock
Outlet 43482
#13

Receptacle and control panel diagram

Outlet

Part #43482

Replaced by #68867GS

?
Manufacturer substitution
This part replaces 43482. Substitute parts can look different from the original.
In Stock
Cap Screw 22287
#50

Handle and mounting base diagram

Cap screw

Part #22287

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 22531
#5

Handle and mounting base diagram

Cap screw

Part #22531

Replaced by #704288

?
Manufacturer substitution
This part replaces 22531. Substitute parts can look different from the original.
In Stock
