Jenn-Air AC110W14 convent coil element cartridge Parts
Here are the diagrams and repair parts for Jenn-Air AC110W14 convent coil element cartridge, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for AC110W14 Ranges

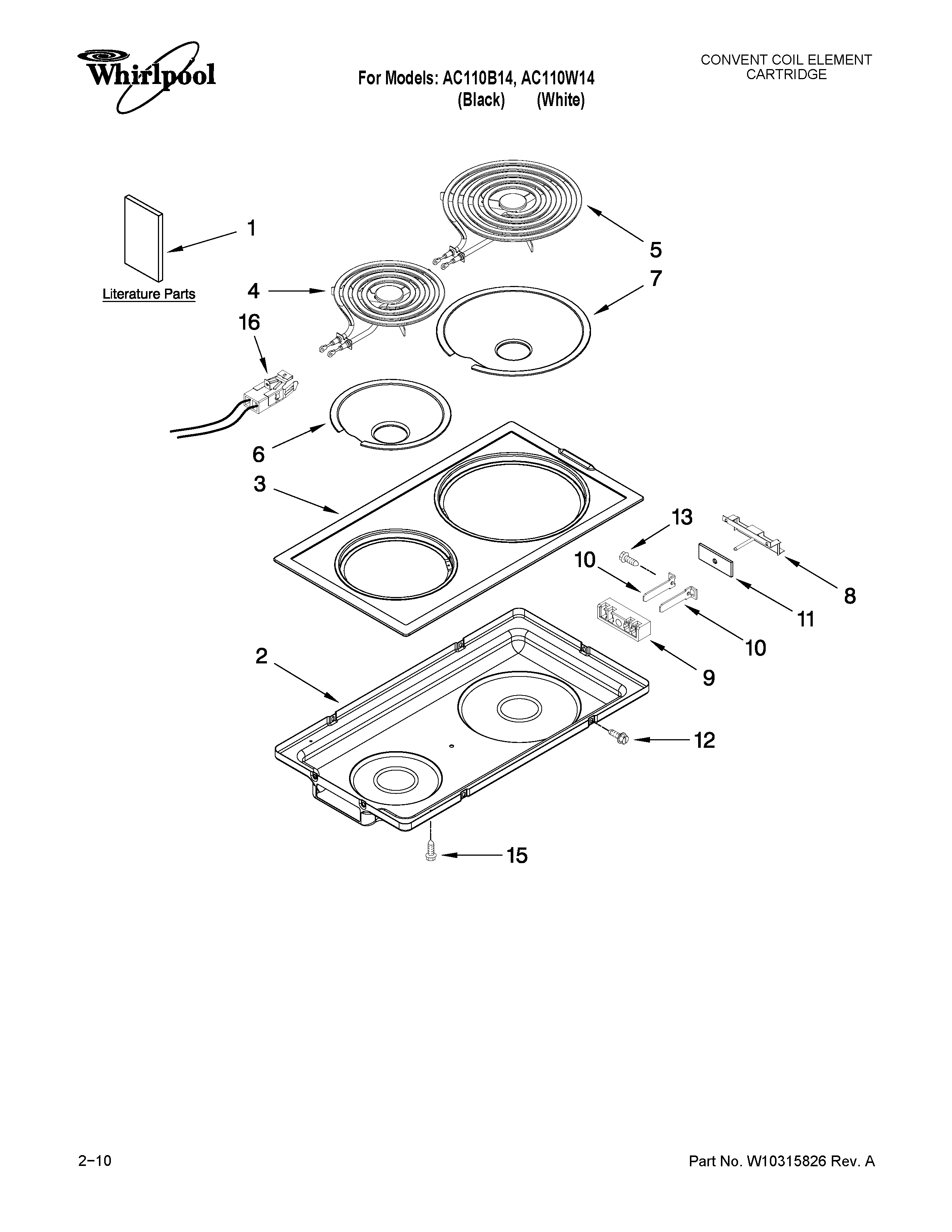

Conventional cartridge diagram
Surface Element
Part #7406P478-60Replaced by #WP3191454
Manufacturer substitutionThis part replaces 7406P478-60. Substitute parts can look different from the original.In Stock$112.5710% OFF Phone Price : $124.57
Qty
Conventional cartridge diagram
Screw
Part #7101P394-60Replaced by #W11206744
Manufacturer substitutionThis part replaces 7101P394-60. Substitute parts can look different from the original.This item is not returnableIn Stock$18.6110% OFF Phone Price : $20.61QtyConventional cartridge diagram
Block- Ter
In Stock$57.90QtyConventional cartridge diagram
Surface Element
Part #7406P480-60Replaced by #WP660532
Manufacturer substitutionThis part replaces 7406P480-60. Substitute parts can look different from the original.In Stock$29.5217% OFF Phone Price : $35.52QtyConventional cartridge diagram
Screw
Part #7101P403-60Replaced by #WP12990527
Manufacturer substitutionThis part replaces 7101P403-60. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8017% OFF Phone Price : $5.80QtyConventional cartridge diagram
Bowl, Burner (rr)
Part #7725P067-60
The manufacturer no longer makes this part, and there's no substitute part
Conventional cartridge diagram
Bowl, Burner (rf)
Part #7725P068-60
The manufacturer no longer makes this part, and there's no substitute part
Conventional cartridge diagram
Cartridge, Top (black)
Part #2002F122-90
The manufacturer no longer makes this part, and there's no substitute part
Conventional cartridge diagram
Wire Assy. Yellow
Part #5700D809-60
The manufacturer no longer makes this part, and there's no substitute part
Conventional cartridge diagram
Cartridge, Top (white)
Part #2002F122-81
The manufacturer no longer makes this part, and there's no substitute part
