Amana 265V.,3.0KW packaged terminal air conditioner - ptc series

Amana 265V.,3.0KW packaged terminal air conditioner - ptc series Parts

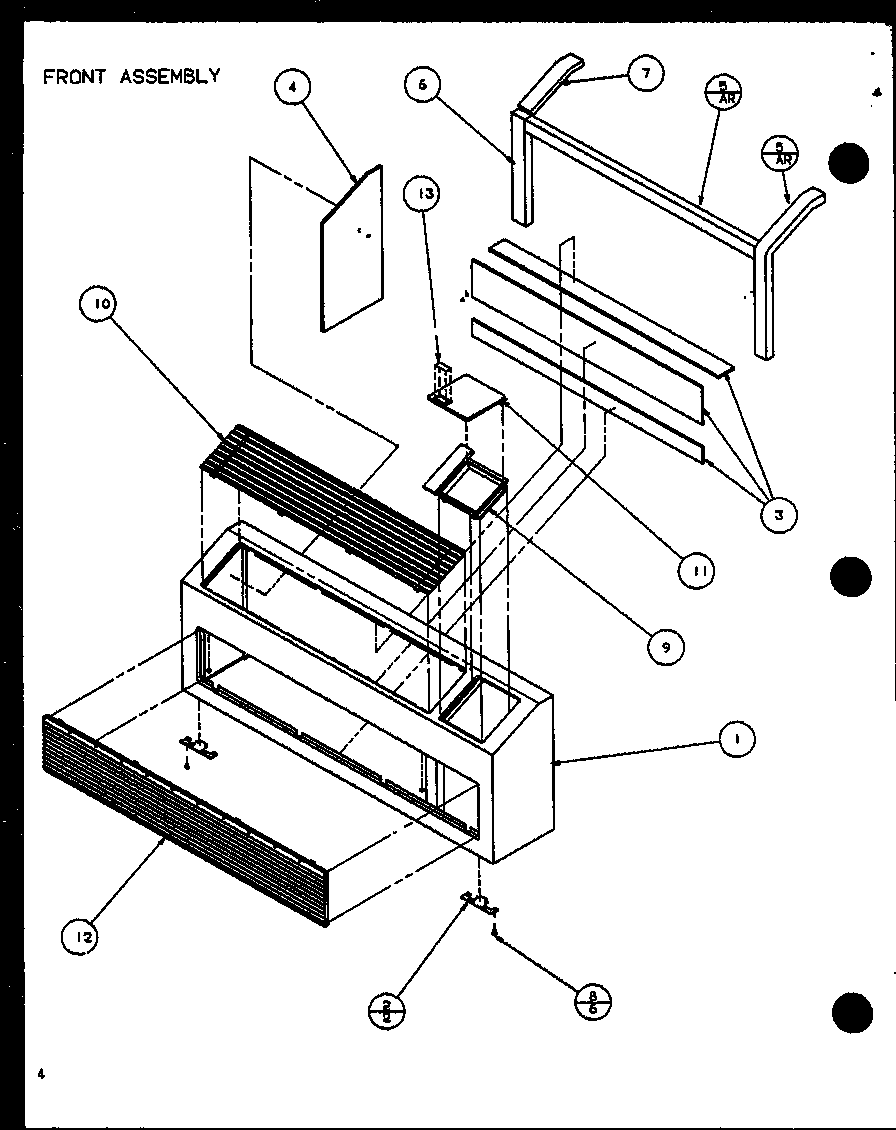

Here are the diagrams and repair parts for Amana 265V.,3.0KW packaged terminal air conditioner - ptc series, as well as links to manuals and error code tables, if available.

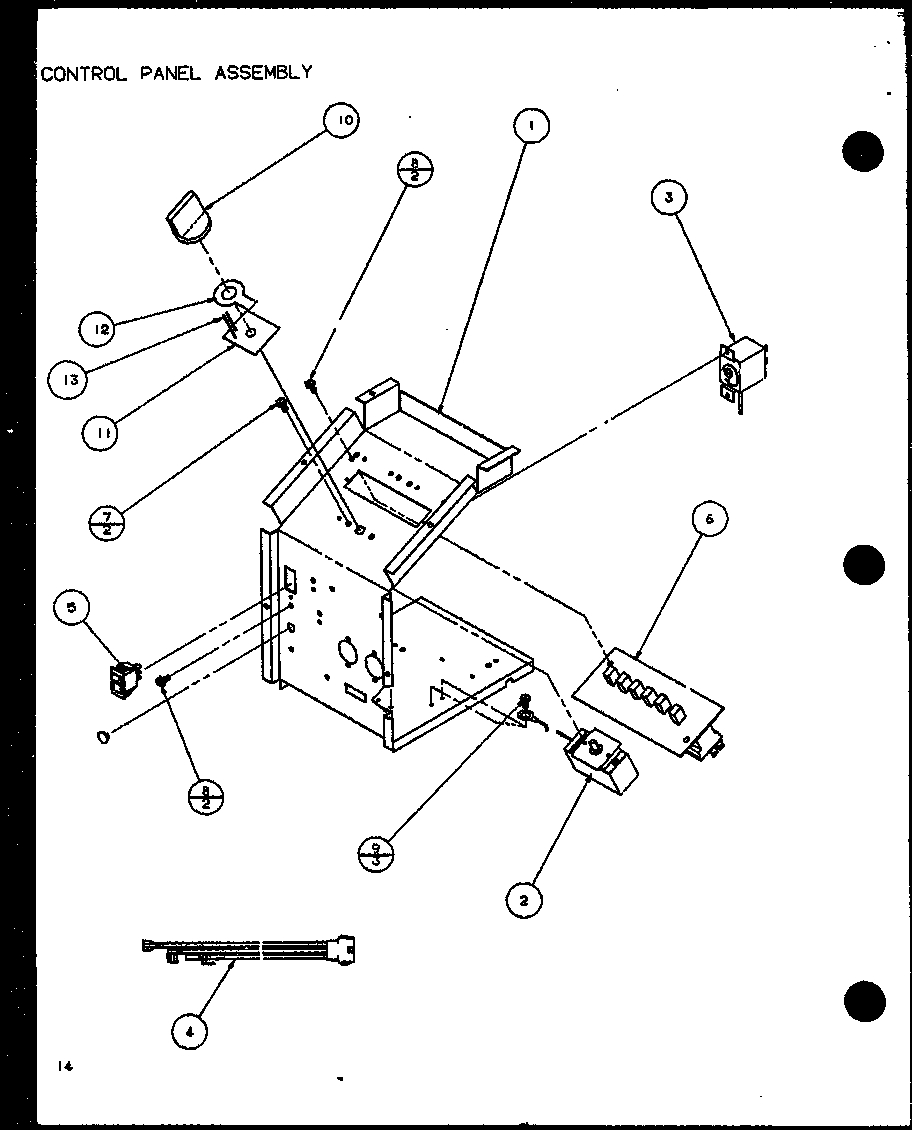

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 265V.,3.0KW Packaged Terminal Air Conditioner - PTC Series

  • Washer Screw for Amana 265V.,3.0KW - Part WP90767

    Screw

    Part #M0211216

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0211216. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Amana 265V.,3.0KW - Part WP90767

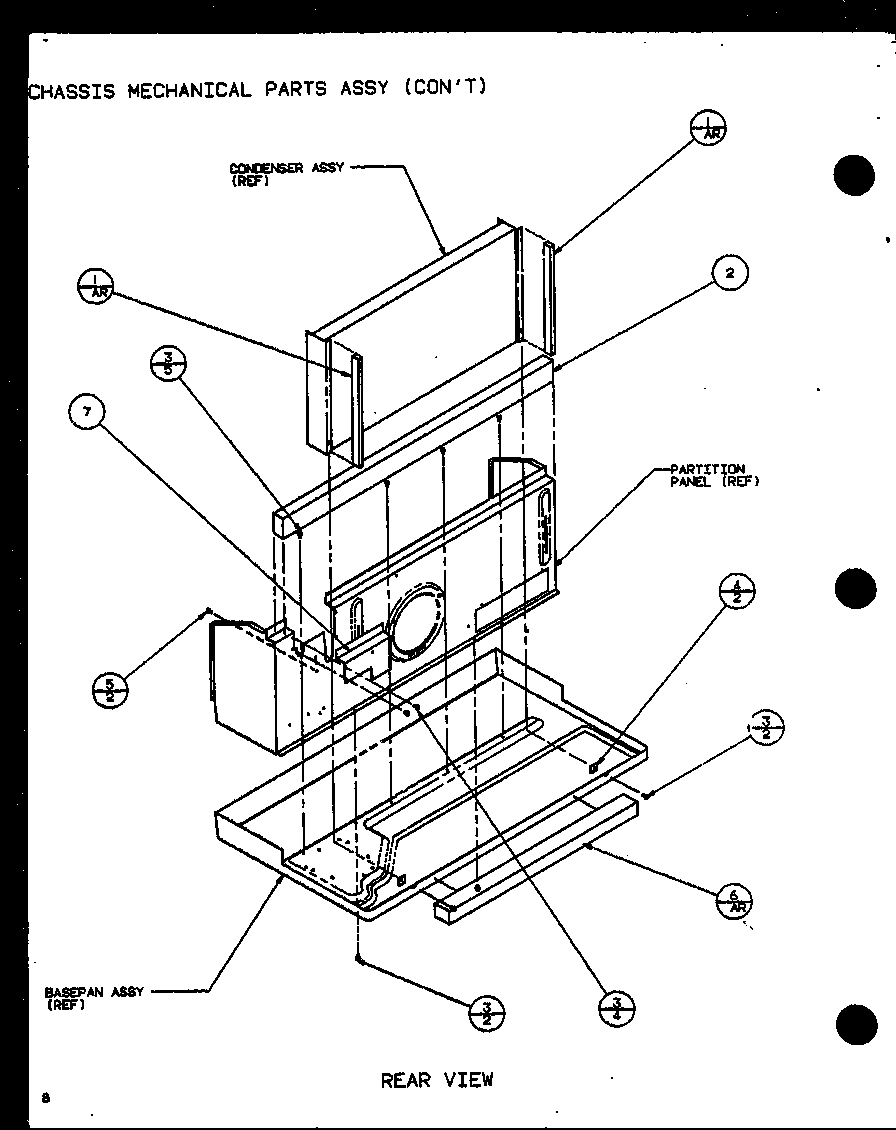

    Chassis mechanical parts assembly (pth15350edg/p1113204r) (pth12350edg/p1113205r) diagram

    Screw

    Part #M0216716

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0216716. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Amana 265V.,3.0KW - Part WP90767

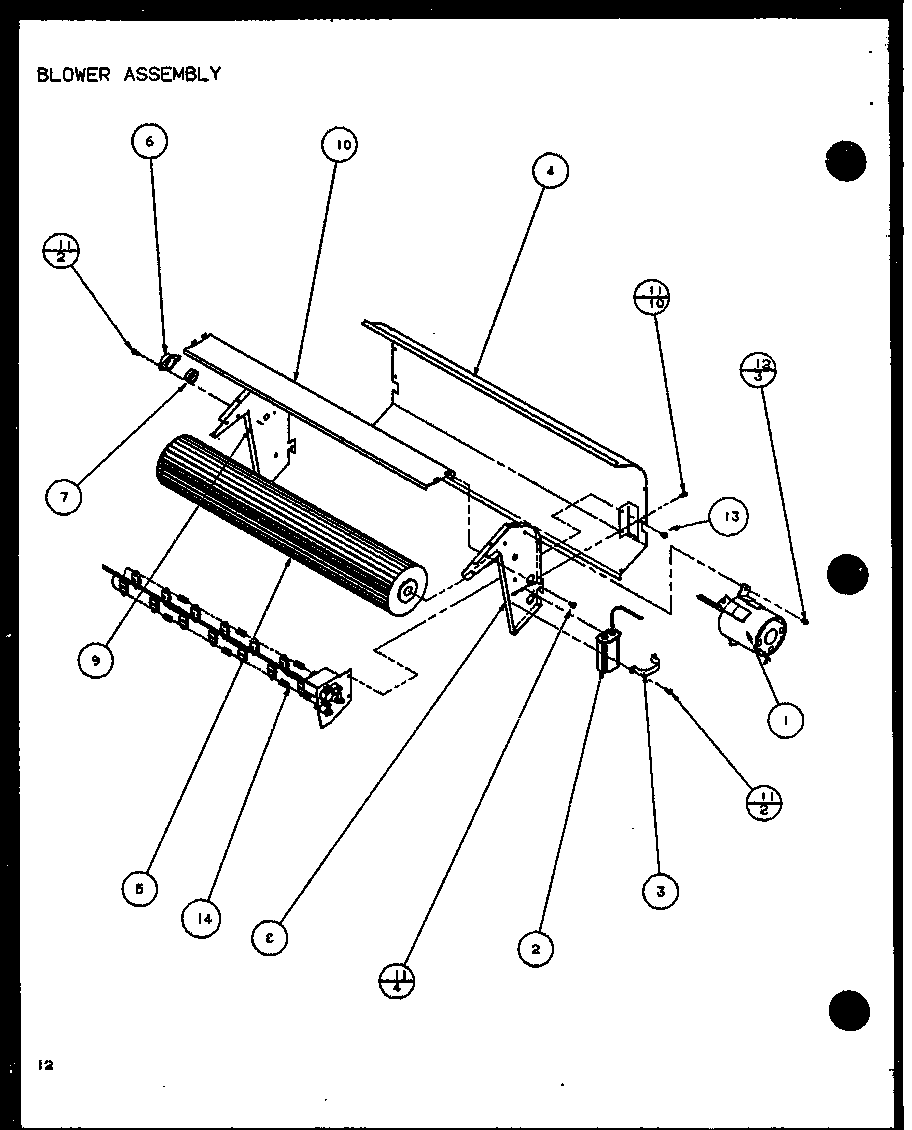

    Blower assembly (pth15350edg/p1113204r) (pth12350edg/p1113205r) diagram

    Screw

    Part #M0211016

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0211016. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw for Amana 265V.,3.0KW - Part WP693995

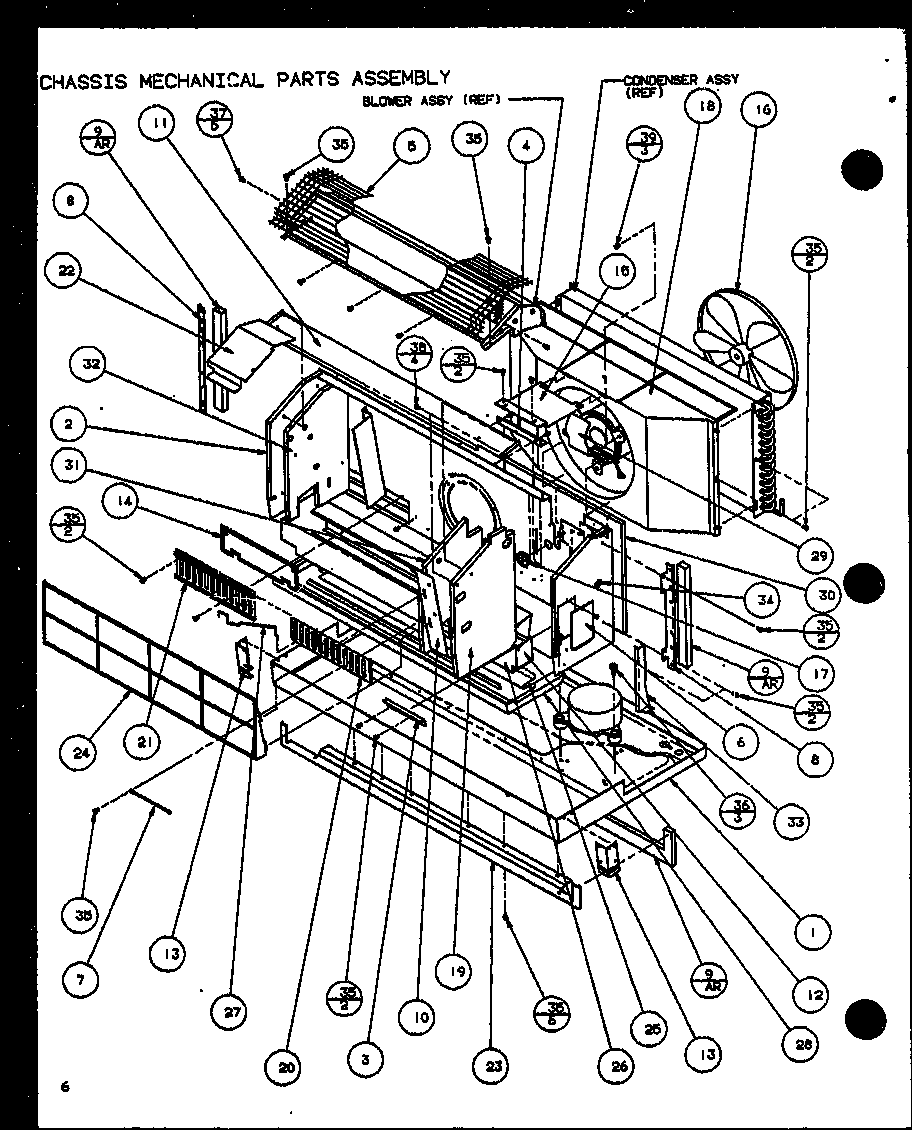

    Chassis mechanical parts assembly (pth15350edg/p1113204r) (pth12350edg/p1113205r) diagram

    Frame Screw

    Part #M0241116

    Replaced by #WP693995

    Info Icon
    Manufacturer substitution
    This part replaces M0241116. Substitute parts can look different from the original.
    In Stock
    $38.58
    Minus Item
    Qty
    Plus Item
  • Appliance Cable Tie for Amana 265V.,3.0KW - Part WPW10339879

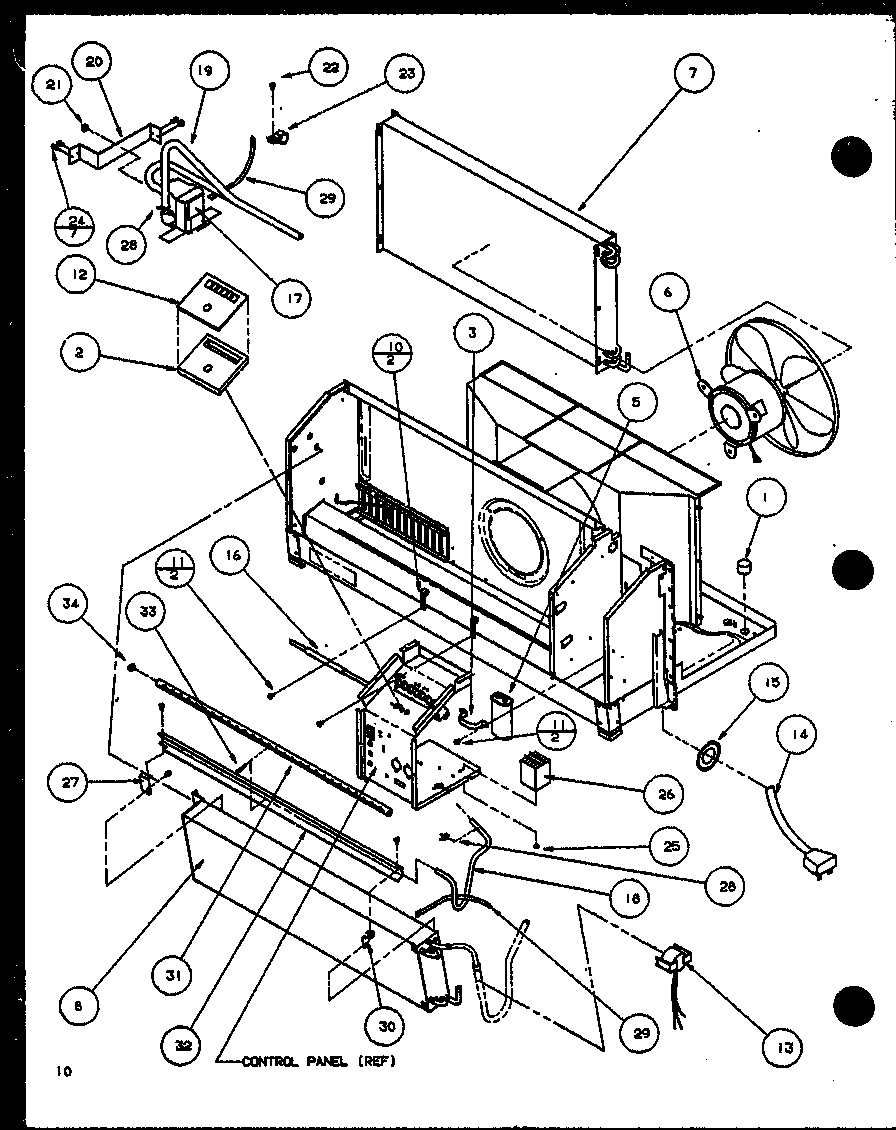

    (pth15350edg/p1113204r) (pth12350edg/p1113205r) diagram

    Tie

    Part #M0321202

    Replaced by #WPW10339879

    Info Icon
    Manufacturer substitution
    This part replaces M0321202. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Lock Nut for Amana 265V.,3.0KW - Part WP776338

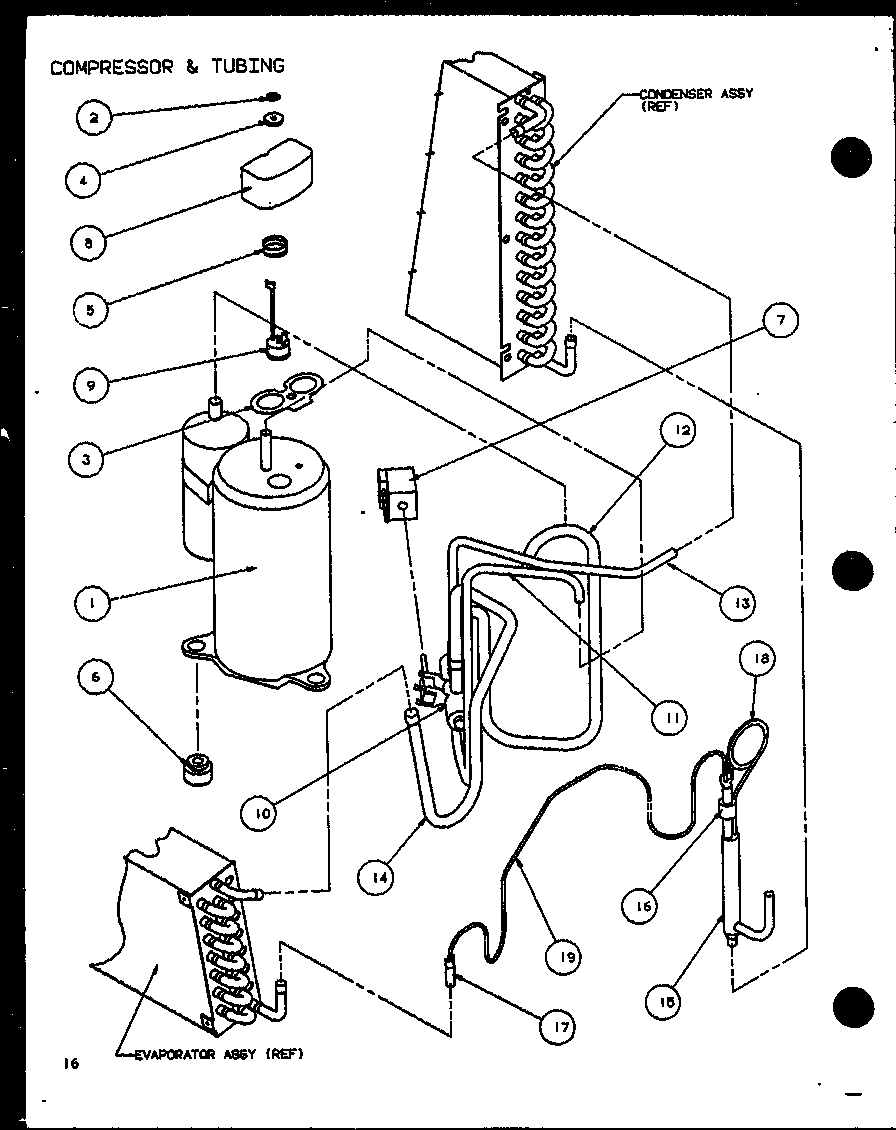

    Compressor & tubing (pth15350edg/p1113204r) (pth12350edg/p1113205r) diagram

    Terminal Nut

    Part #A3436601

    Replaced by #WP776338

    Info Icon
    Manufacturer substitution
    This part replaces A3436601. Substitute parts can look different from the original.
    In Stock
    $42.33
    Minus Item
    Qty
    Plus Item
  • Strainer for Amana 265V.,3.0KW - Part B1257808

    Compressor & tubing (pth15350edg/p1113204r) (pth12350edg/p1113205r) diagram

    Strainer

    Part #B1257807

    Replaced by #B1257808

    Info Icon
    Manufacturer substitution
    This part replaces B1257807. Substitute parts can look different from the original.
    In Stock
    $45.47
    Minus Item
    Qty
    Plus Item
  • Screw for Amana 265V.,3.0KW - Part M0253610

    Chassis mechanical parts assembly (pth15350edg/p1113204r) (pth12350edg/p1113205r) diagram

    Use M0253612

    Part #M0253651

    Replaced by #M0253610

    Info Icon
    Manufacturer substitution
    This part replaces M0253651. Substitute parts can look different from the original.
    In Stock
    $27.79
    Minus Item
    Qty
    Plus Item
  • Heater Assembly for Amana 265V.,3.0KW - Part D9829609

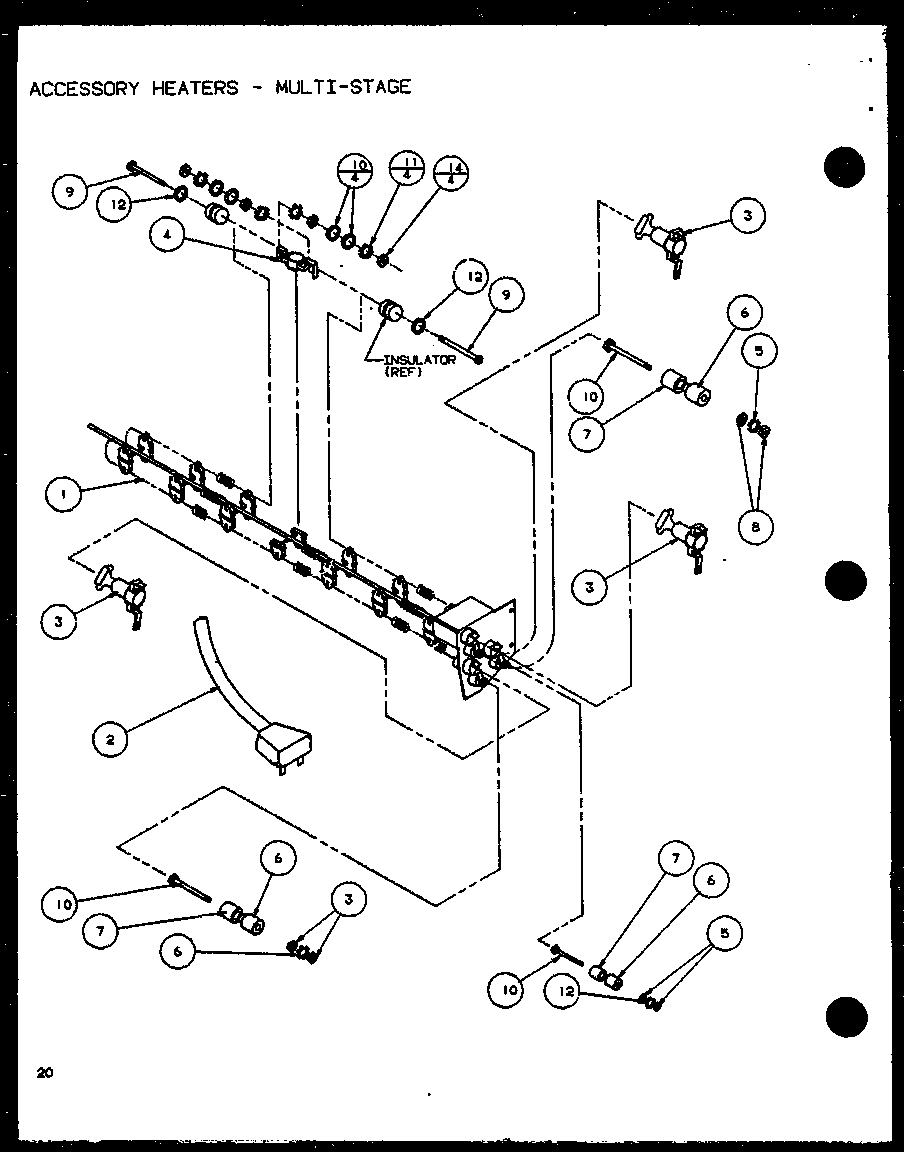

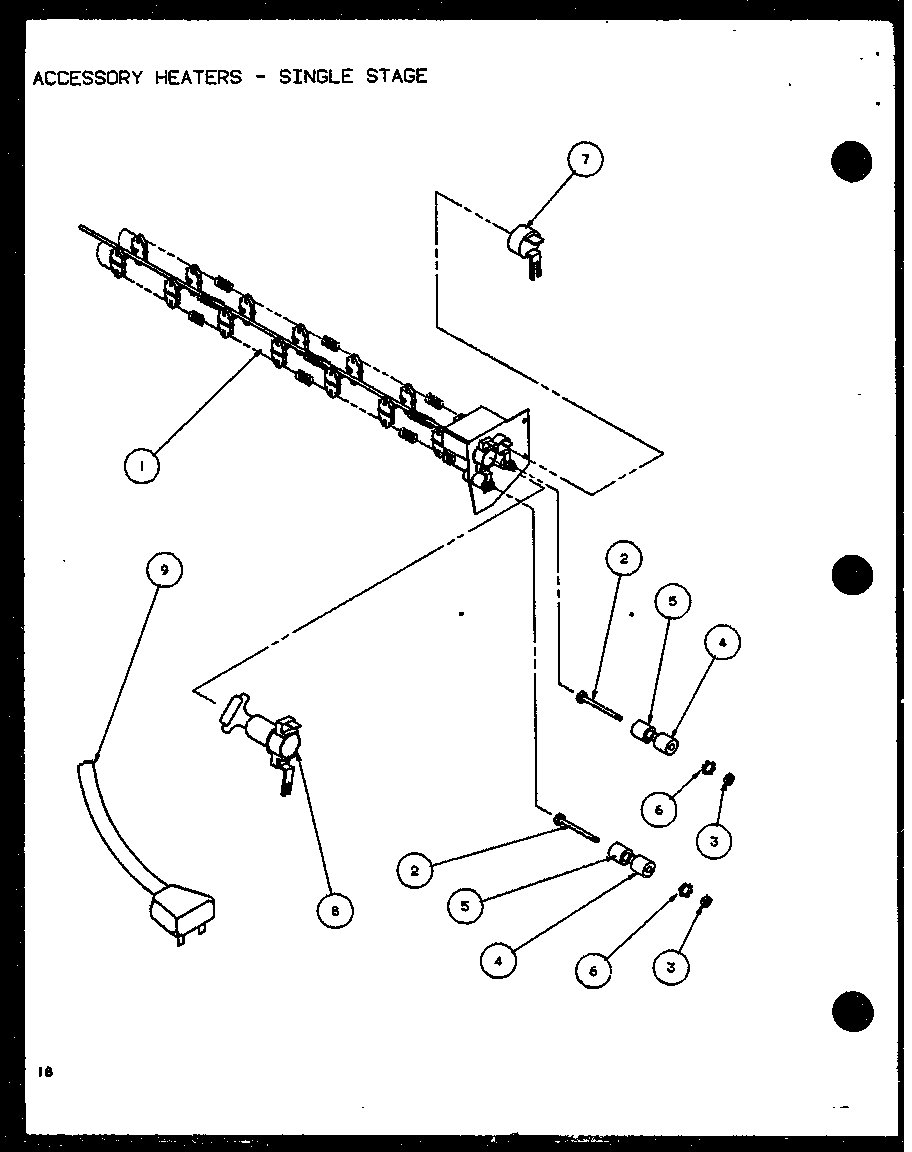

    (230v.,4.0kw) (230v.,5.0kw) (265v.,4.0kw) (265v.,5.0kw) diagram

    Heater Assembly

    Part #D9829609

    The manufacturer no longer makes this part, and there's no substitute part

  • Extension Filler Block for Amana 265V.,3.0KW - Part D9840201

    Chassis mechanical parts assembly (pth15350edg/p1113204r) (pth12350edg/p1113205r) diagram

    Extension Filler Block

    Part #D9840201

    The manufacturer no longer makes this part, and there's no substitute part
