Model #GBVE7500-WK Official Devilbiss generator

Here are the diagrams and repair parts for Devilbiss GBVE7500-WK generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 68 parts

    Shunt Res#10

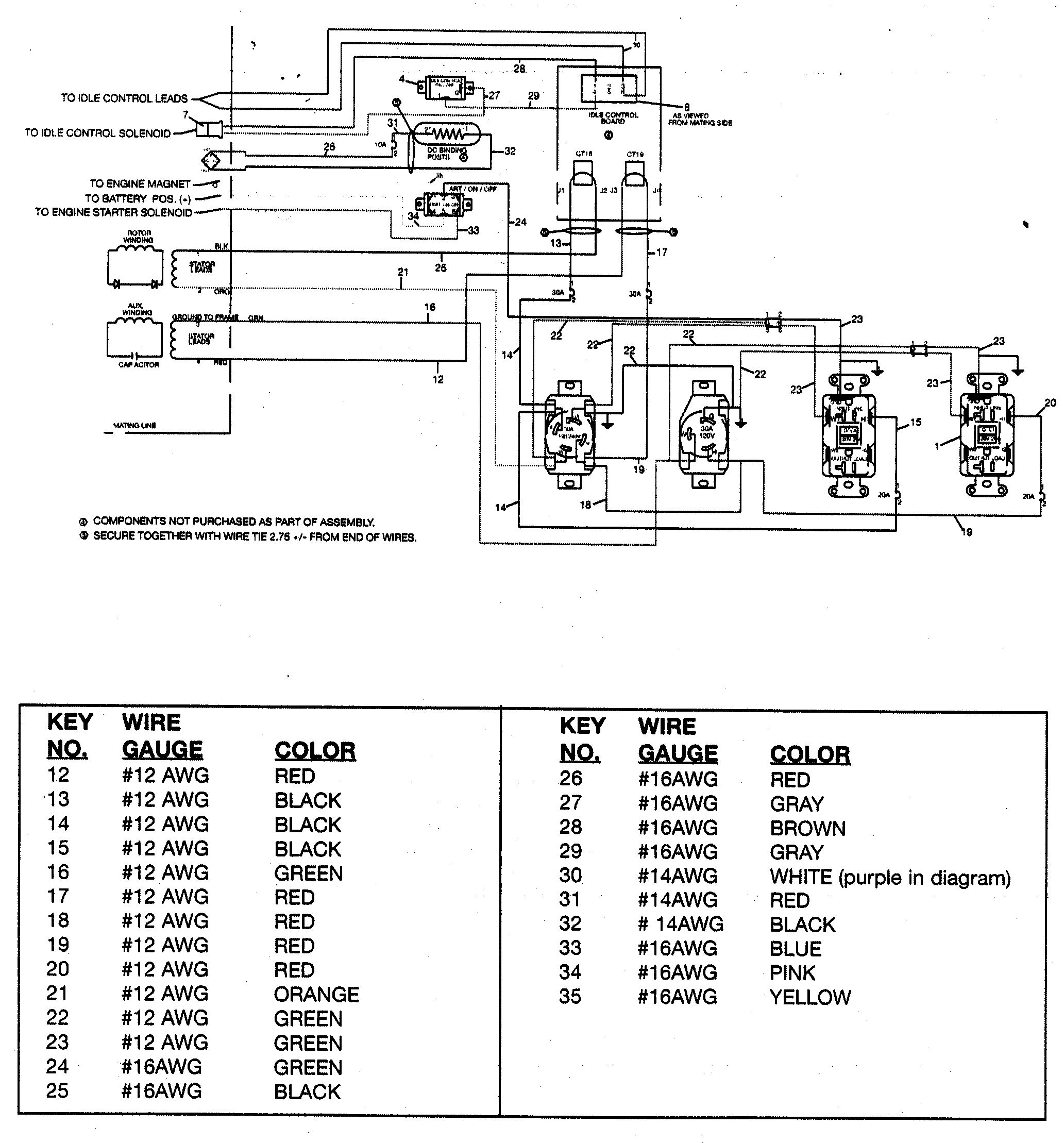

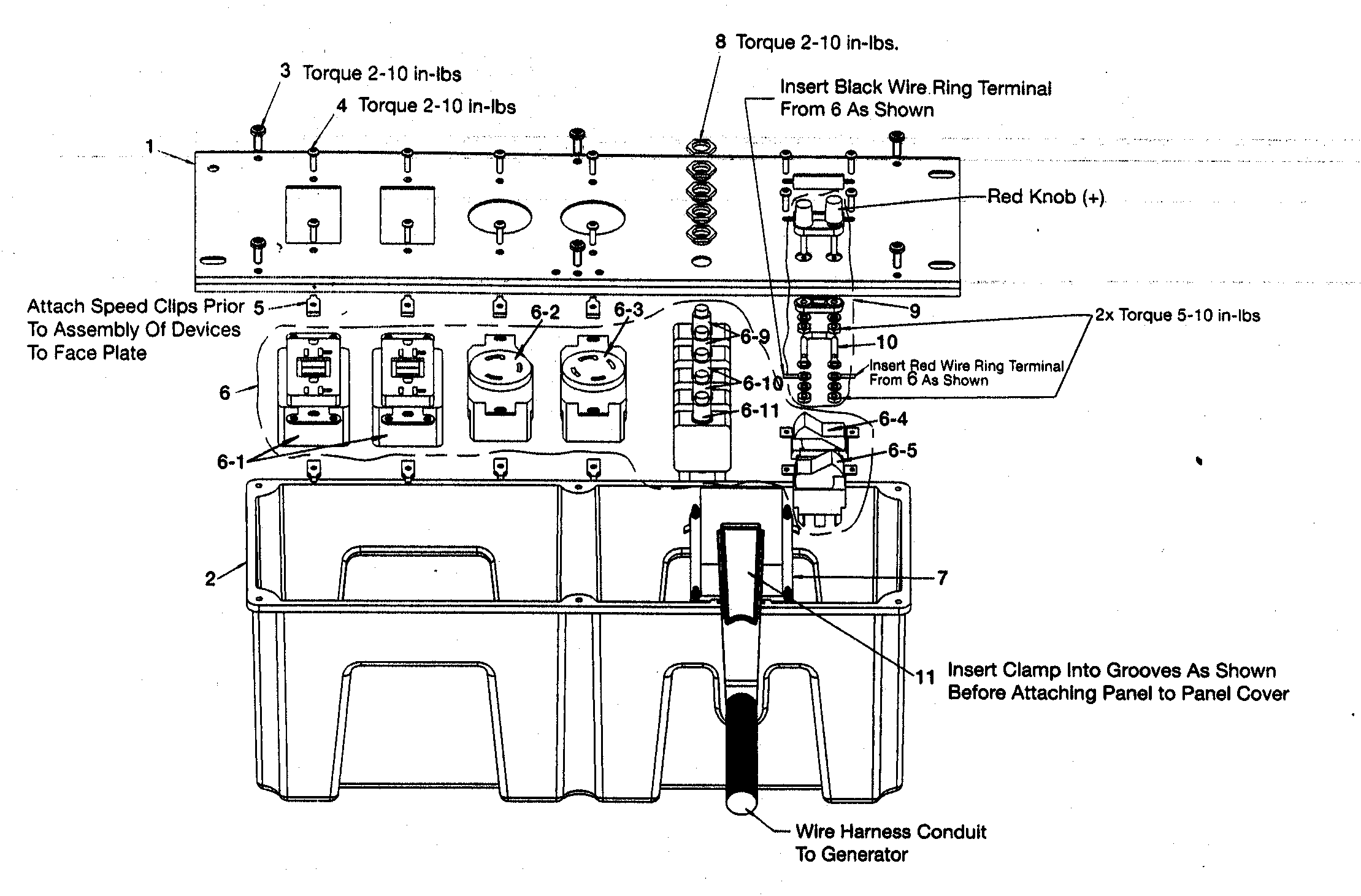

    Control panel Diagram

    Shunt res

    Part #GS-0835

    The manufacturer no longer makes this part, and there's no substitute part

    Clamp#31

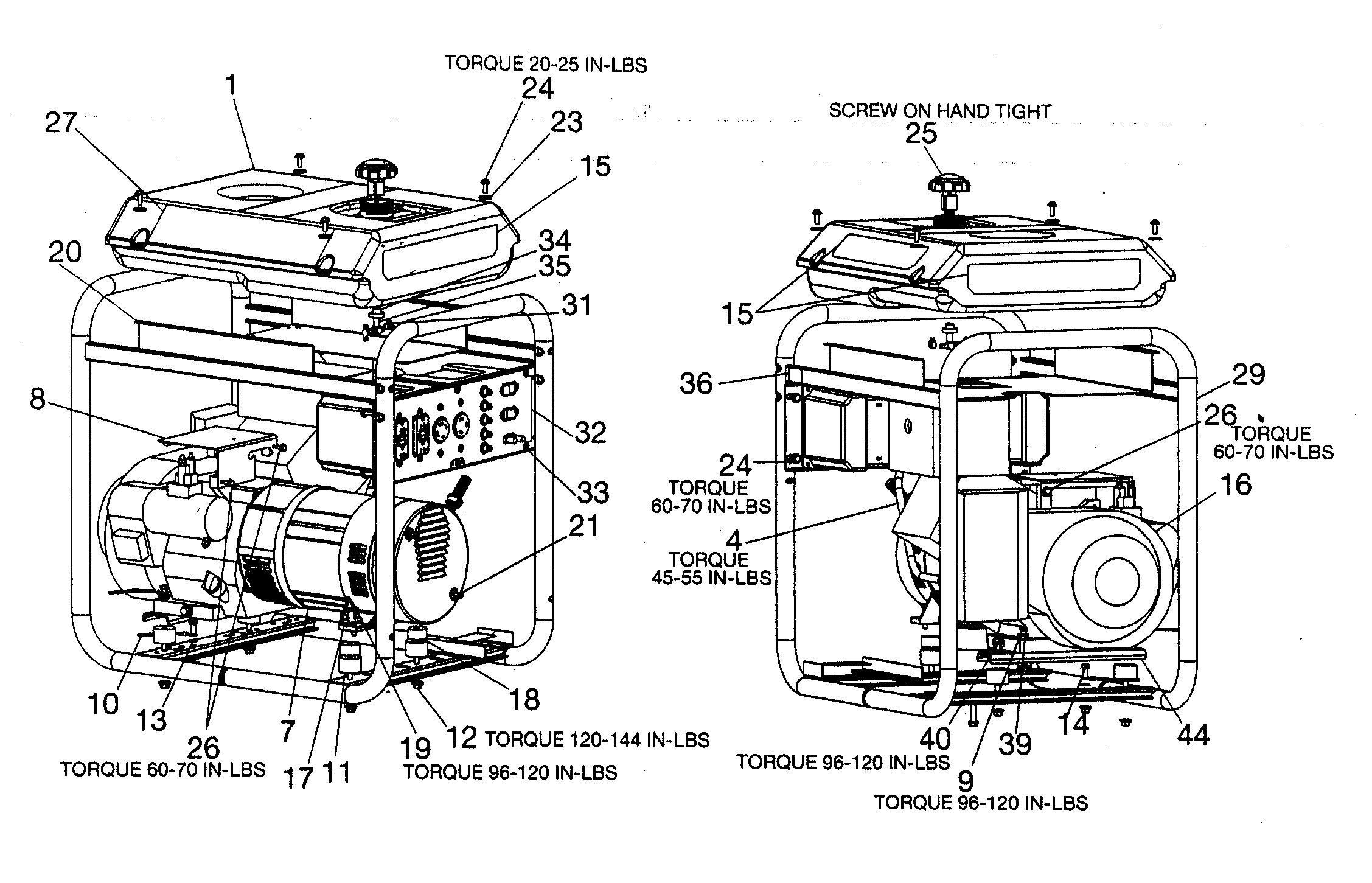

    Generator Diagram

    Clamp

    Part #GS-0227

    The manufacturer no longer makes this part, and there's no substitute part

    Lock Plug#6-3

    Control panel Diagram

    Lock plug

    Part #GS-0455

    The manufacturer no longer makes this part, and there's no substitute part

    Snap Bushg#2

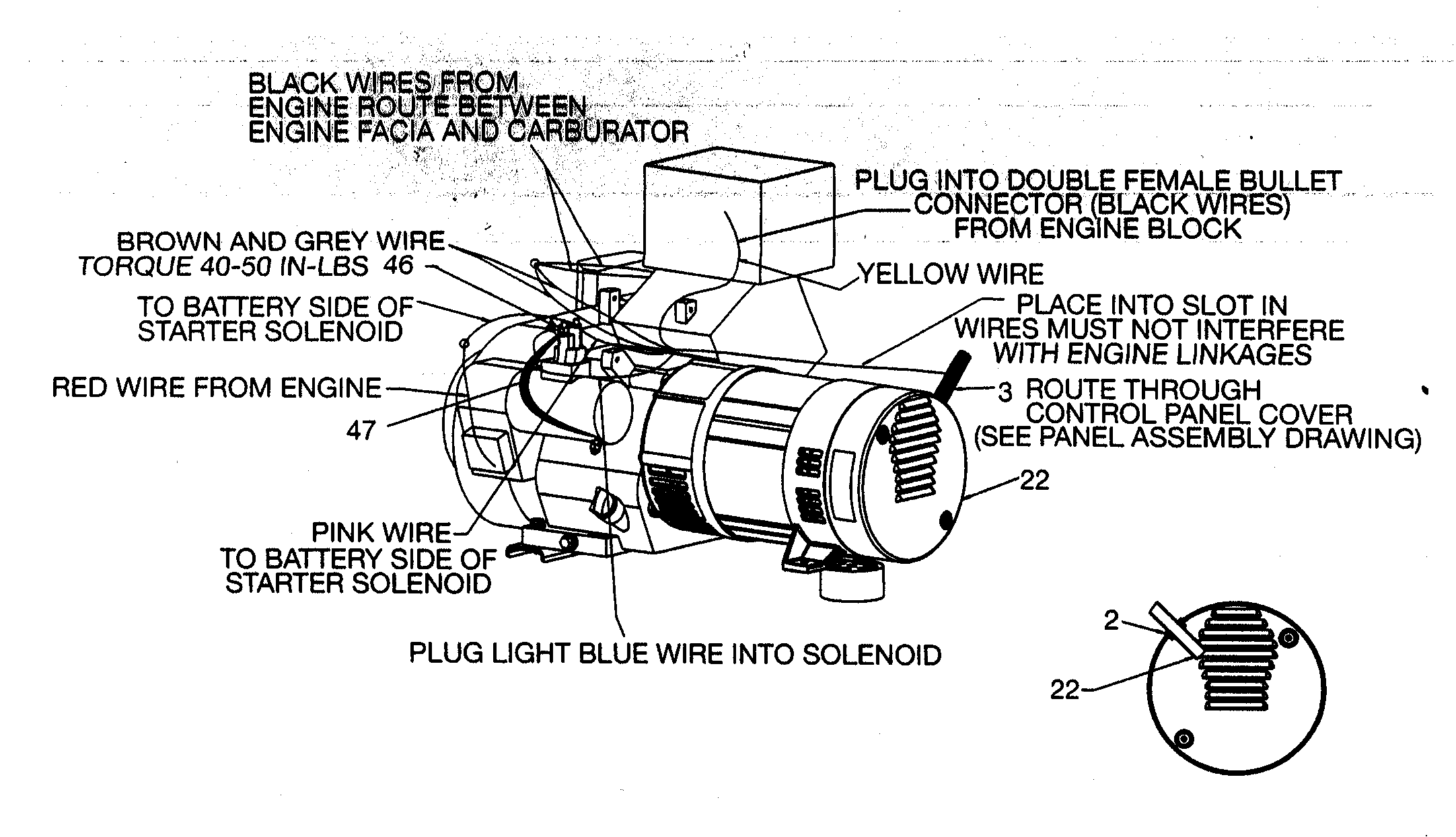

    Cabinet 1 Diagram

    Snap bushg

    Part #GS-0199

    The manufacturer no longer makes this part, and there's no substitute part

    Generator Run Capacitor#13

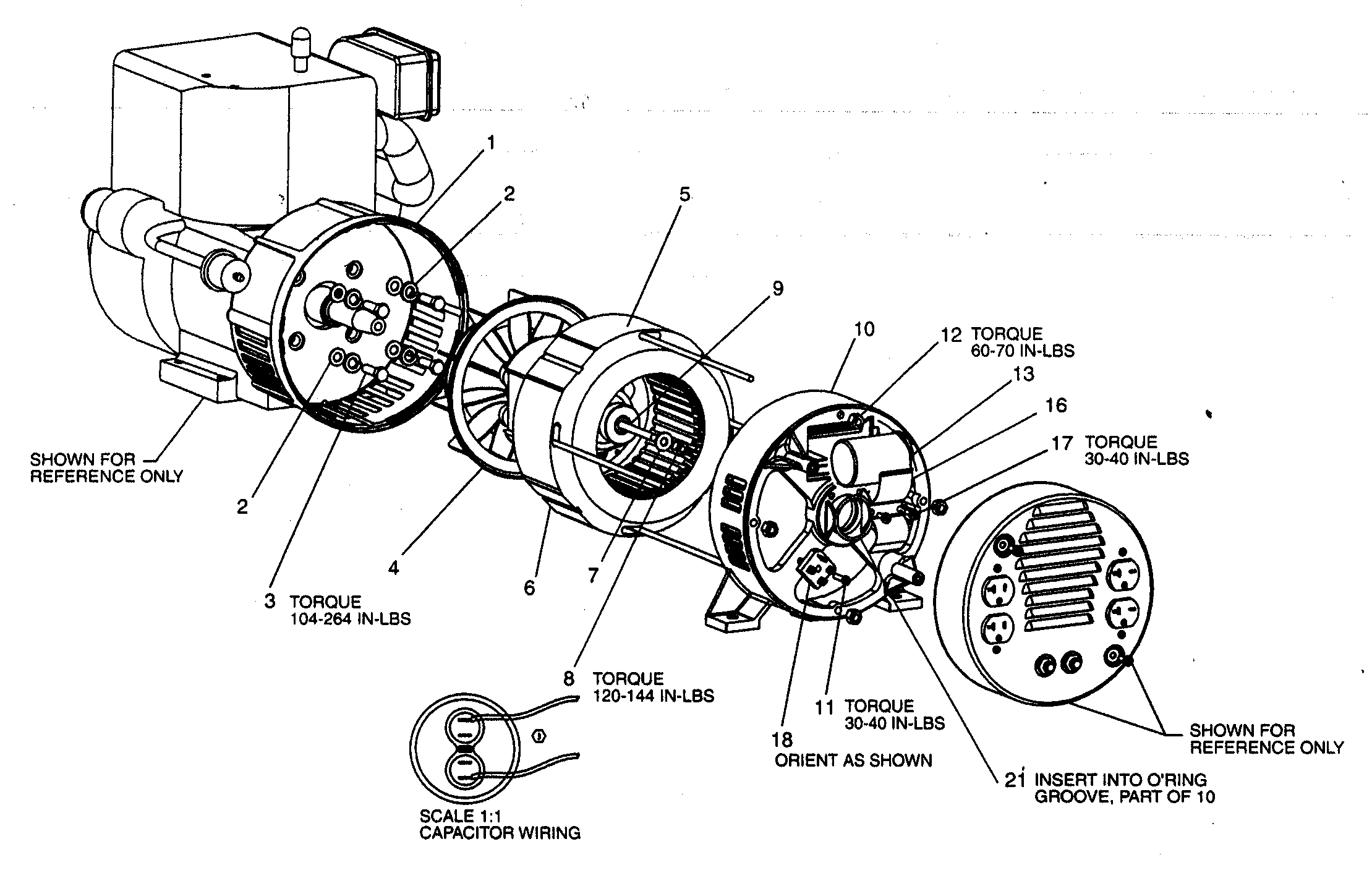

    Cabinet 2 Diagram

    Generator run capacitor

    Part #GS-0748

    The manufacturer no longer makes this part, and there's no substitute part

    Clamp#11

    Control panel Diagram

    Clamp

    Part #D26113

    The manufacturer no longer makes this part, and there's no substitute part

    Air Compressor Shroud Screw#3

    Control panel Diagram

    Air compressor shroud screw

    Part #SSF-3156

    The manufacturer no longer makes this part, and there's no substitute part

    Adapter#1

    Cabinet 2 Diagram

    Adapter

    Part #GS-0076

    The manufacturer no longer makes this part, and there's no substitute part

    Spread Bar#44

    Generator Diagram

    Spread bar

    Part #D24393

    The manufacturer no longer makes this part, and there's no substitute part

    Air Compressor Connecting Rod Screw#11

    Cabinet 2 Diagram

    Air compressor connecting rod screw

    Part #SSF-3158-1

    The manufacturer no longer makes this part, and there's no substitute part
