Jenn-Air
Wall Oven/Microwave Combo

Model # JMW3430LL00 Official Jenn-Air electric combination oven

Here are the diagrams and repair parts for Official Jenn-Air JMW3430LL00 electric combination oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

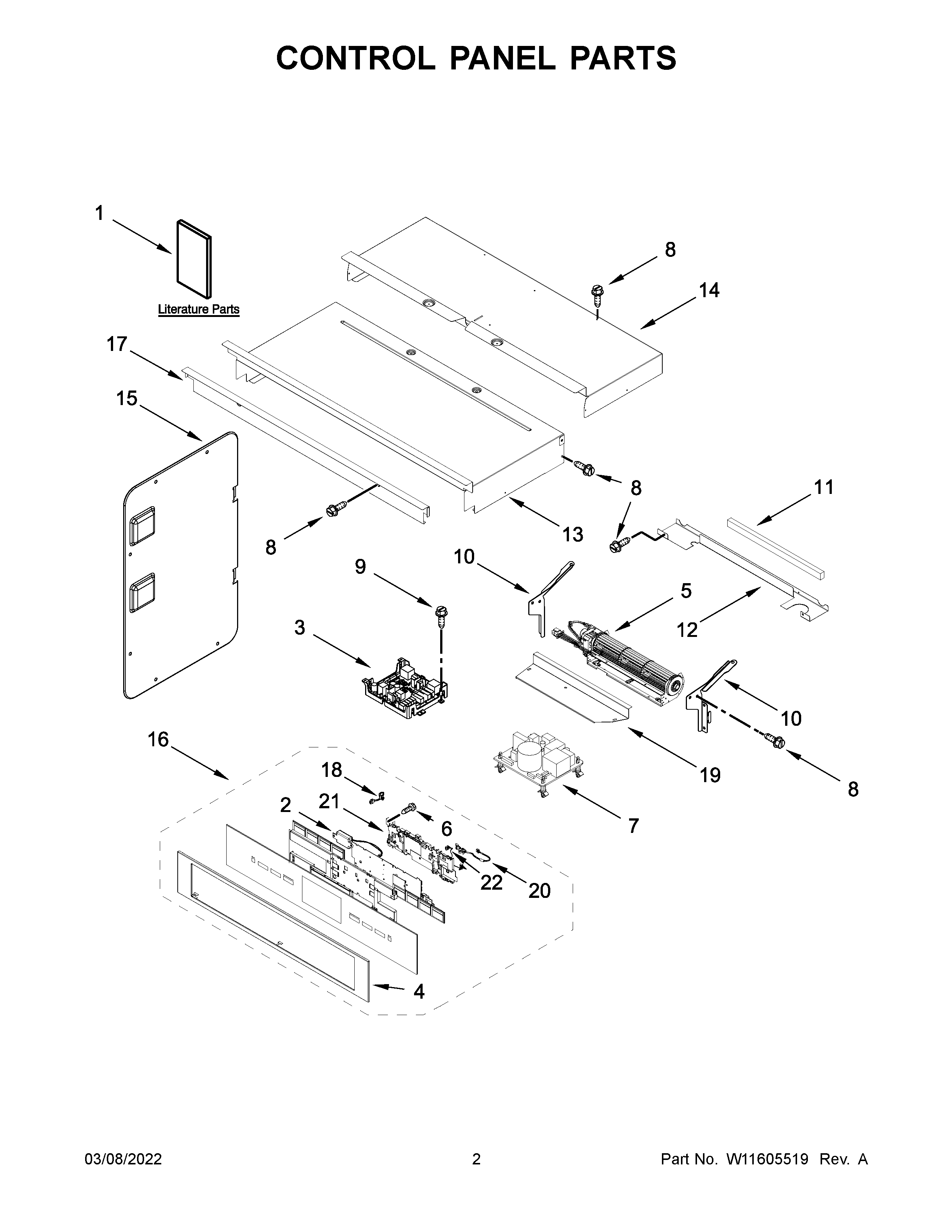

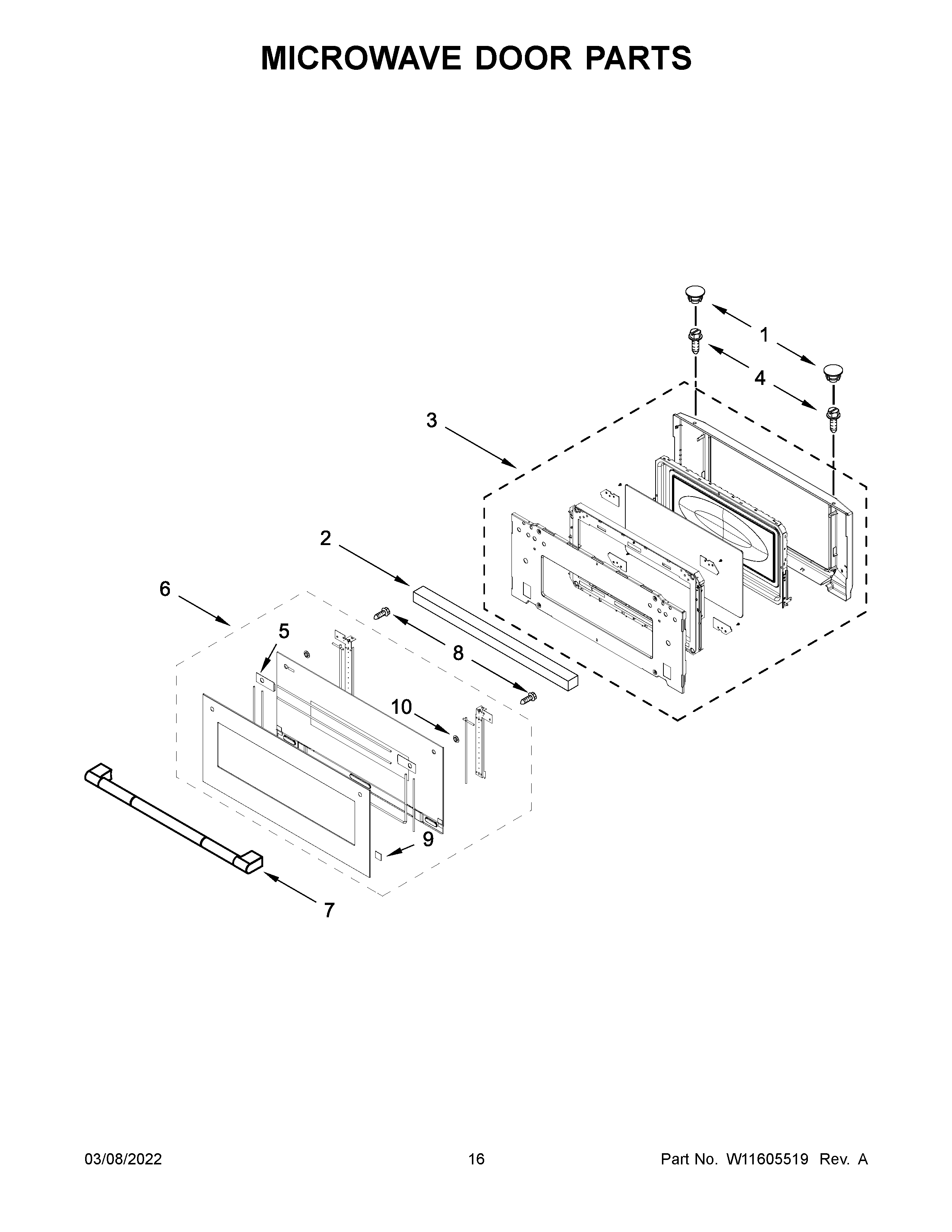

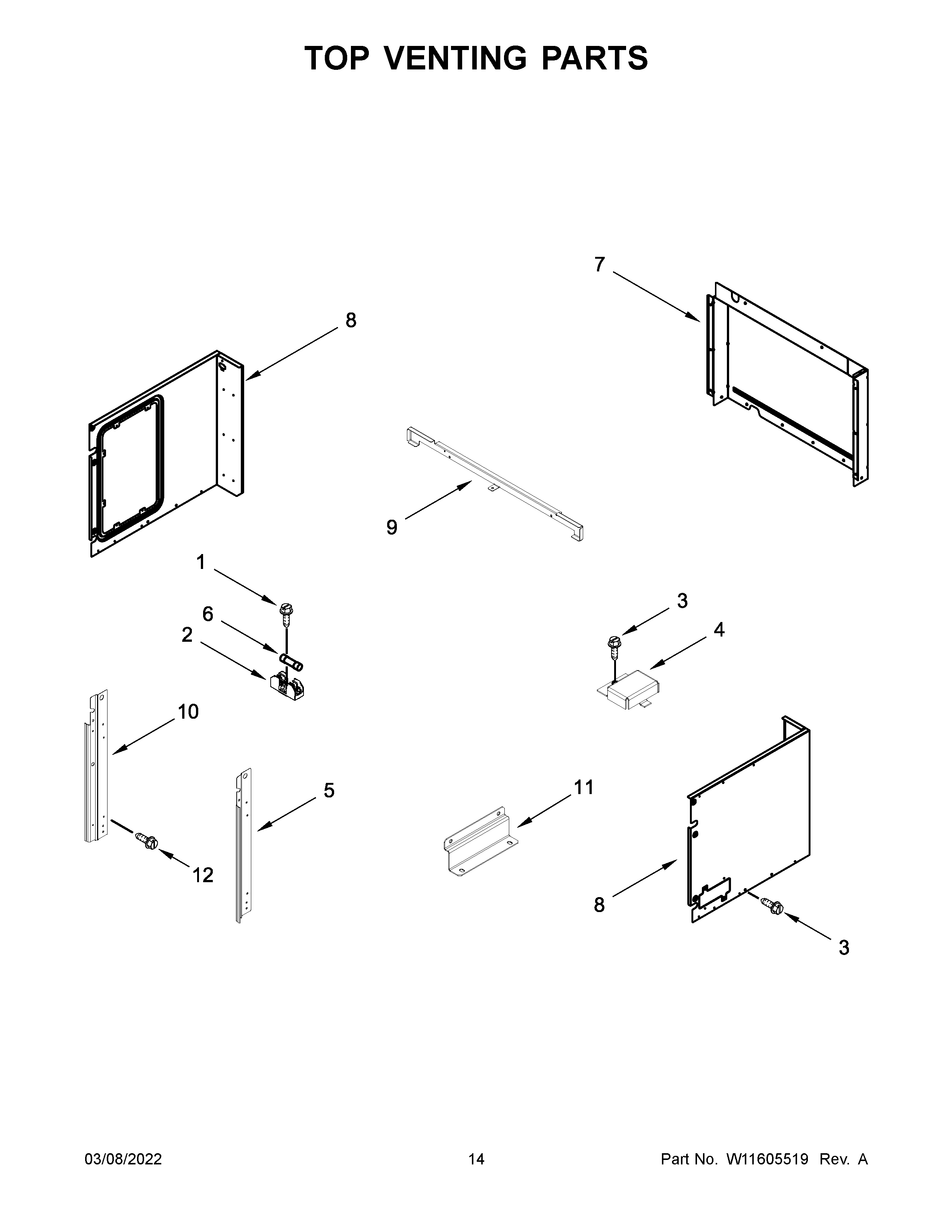

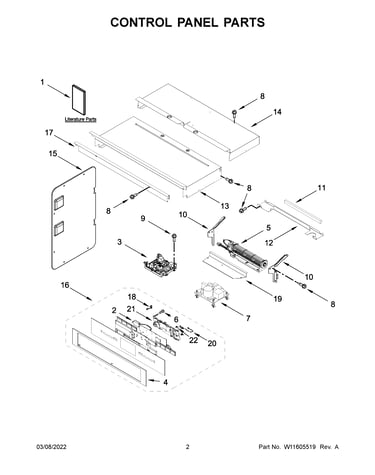

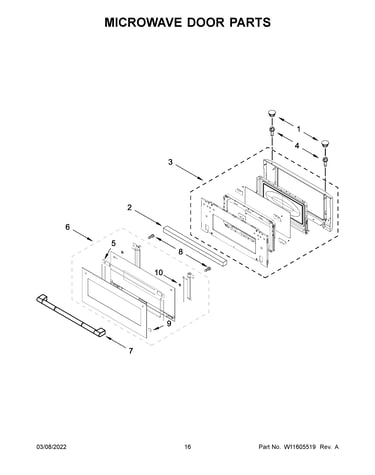

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 207 parts  |
Switch 461967848881
#15

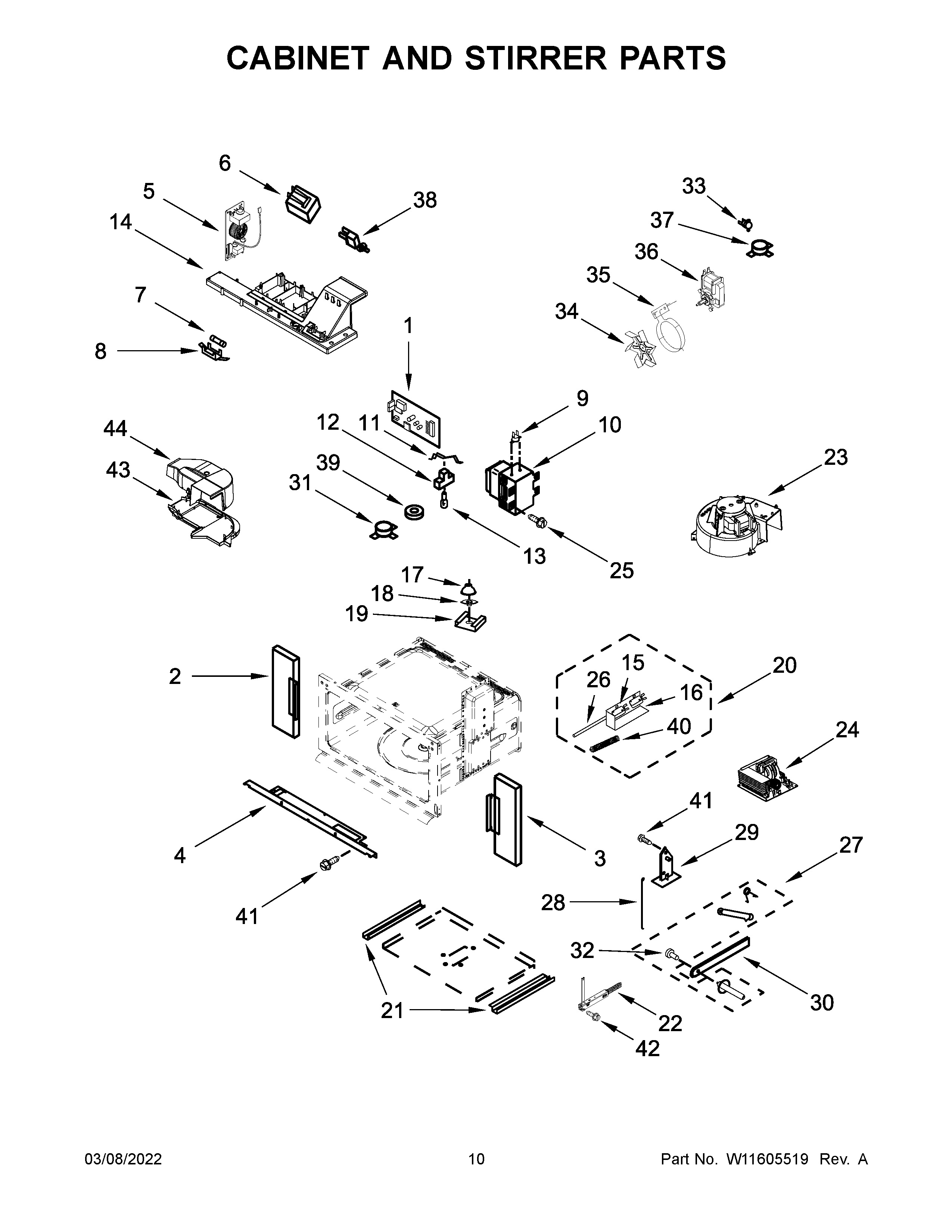

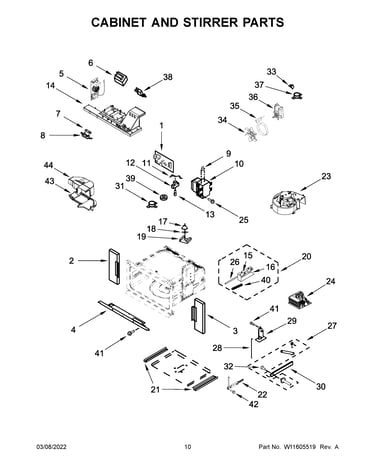

Cabinet and stirrer parts diagram

Switch

Part #461967848881

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 461967848881. Substitute parts can look different from the original.
BEST SELLER
$25.98 |
53% OFF MSRP : $55.00
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts (not included) diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
25% OFF MSRP : $12.00
In Stock
Lamp G4 Halo W10795595
#13

Cabinet and stirrer parts diagram

Lamp g4 halo

Part #W10795595

Replaced by #W10886919

?
Manufacturer substitution
This part replaces W10795595. Substitute parts can look different from the original.
This item is not returnable
$22.89 |
18% OFF Phone Price : $27.89
In Stock
Microwave Turntable Motor 461967848971
#6

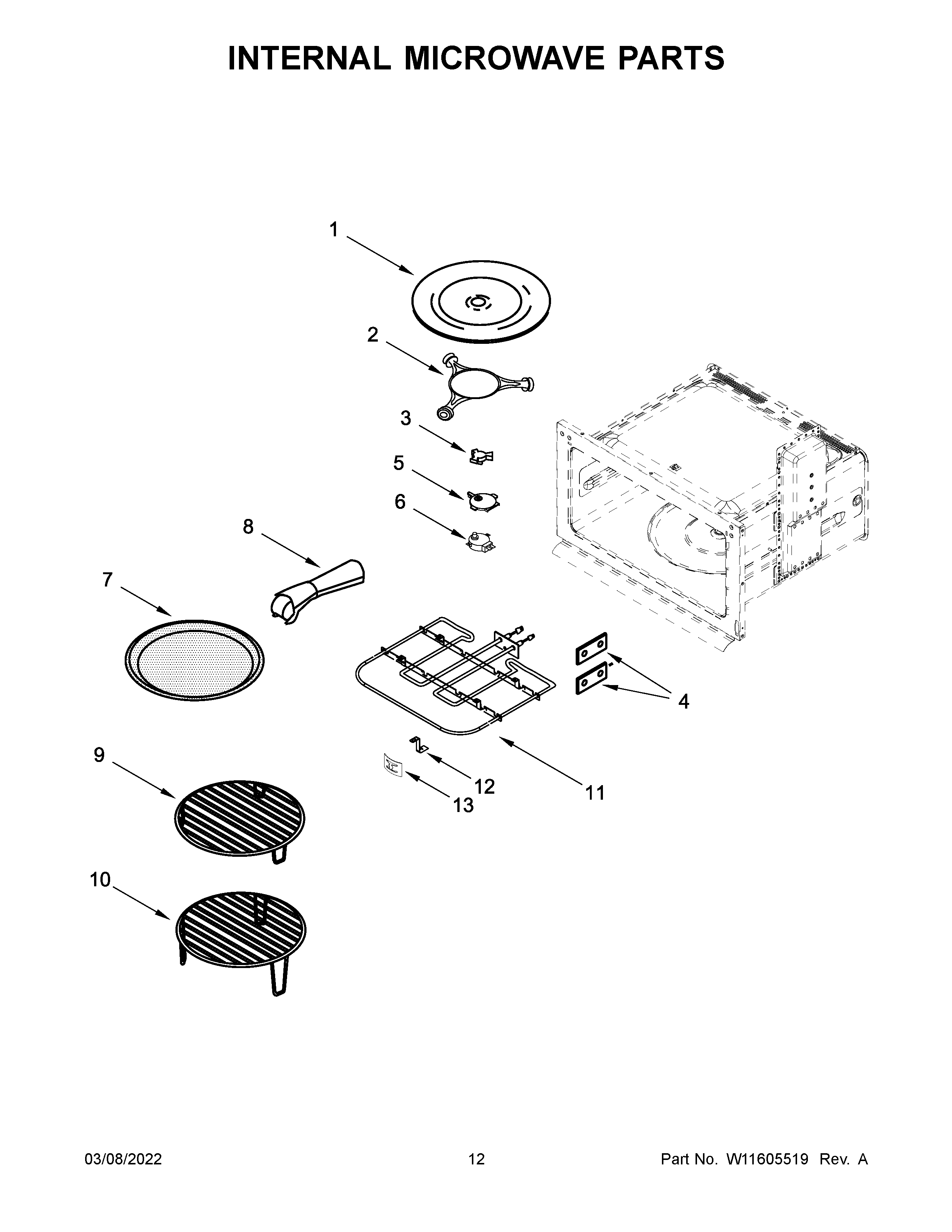

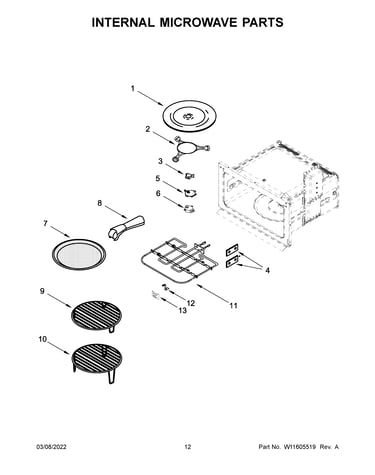

Internal microwave parts diagram

Microwave turntable motor

Part #461967848971

Replaced by #W10911403

?
Manufacturer substitution
This part replaces 461967848971. Substitute parts can look different from the original.
$75.47 |
20% OFF MSRP : $94.00
In Stock
Wall Oven Light Bulb W10169757
#34

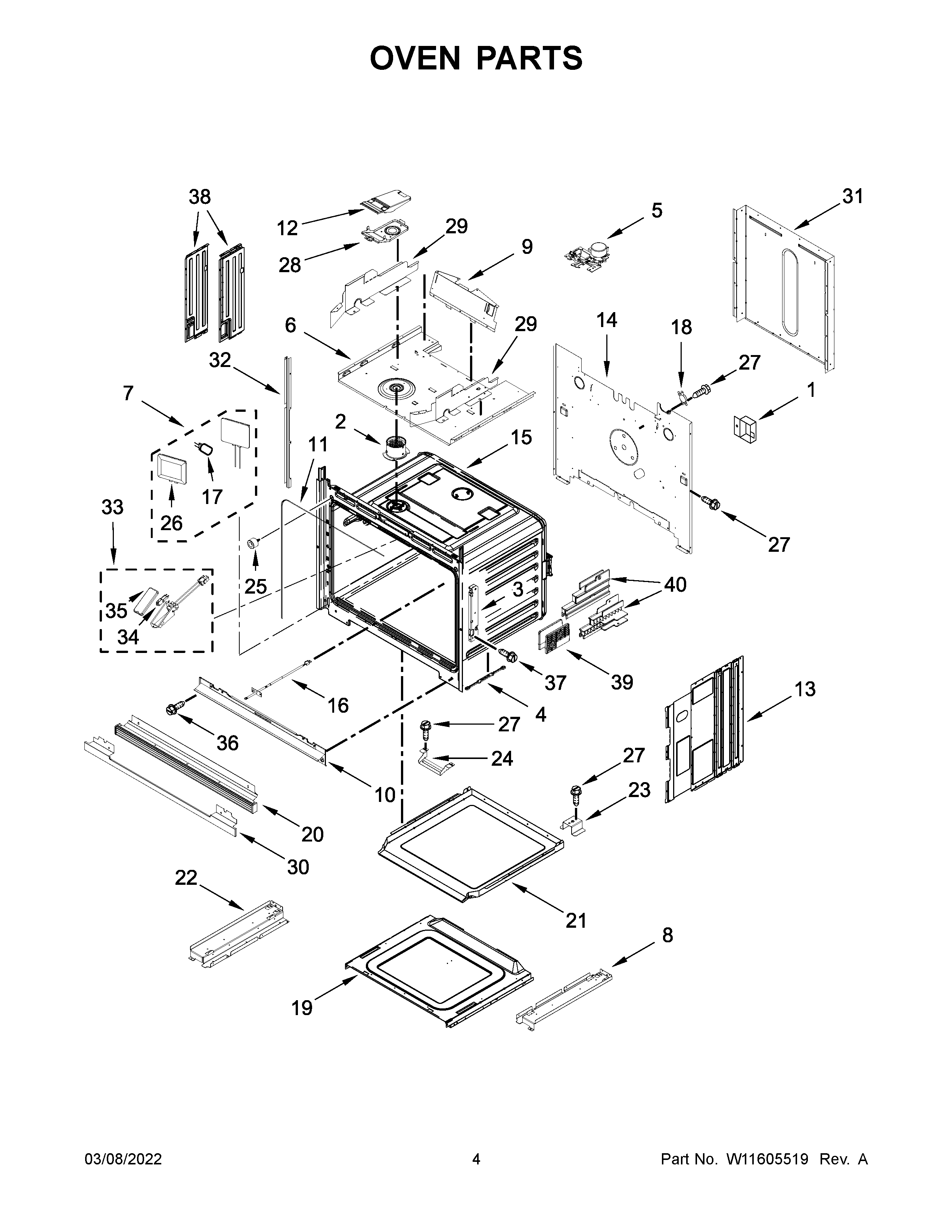

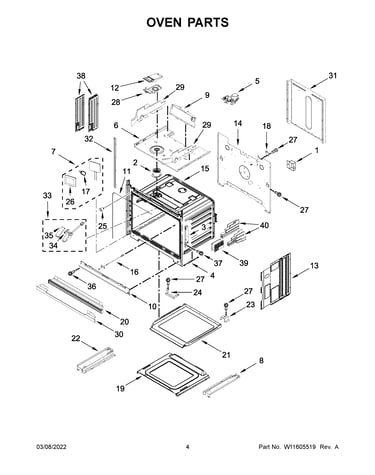

Oven parts diagram

Wall oven light bulb

Part #W10169757

Replaced by #WPW10169757

?
Manufacturer substitution
This part replaces W10169757. Substitute parts can look different from the original.
This item is not returnable
$32.76 |
13% OFF Phone Price : $37.76
In Stock
Range Oven Meat Probe 9755542
#16

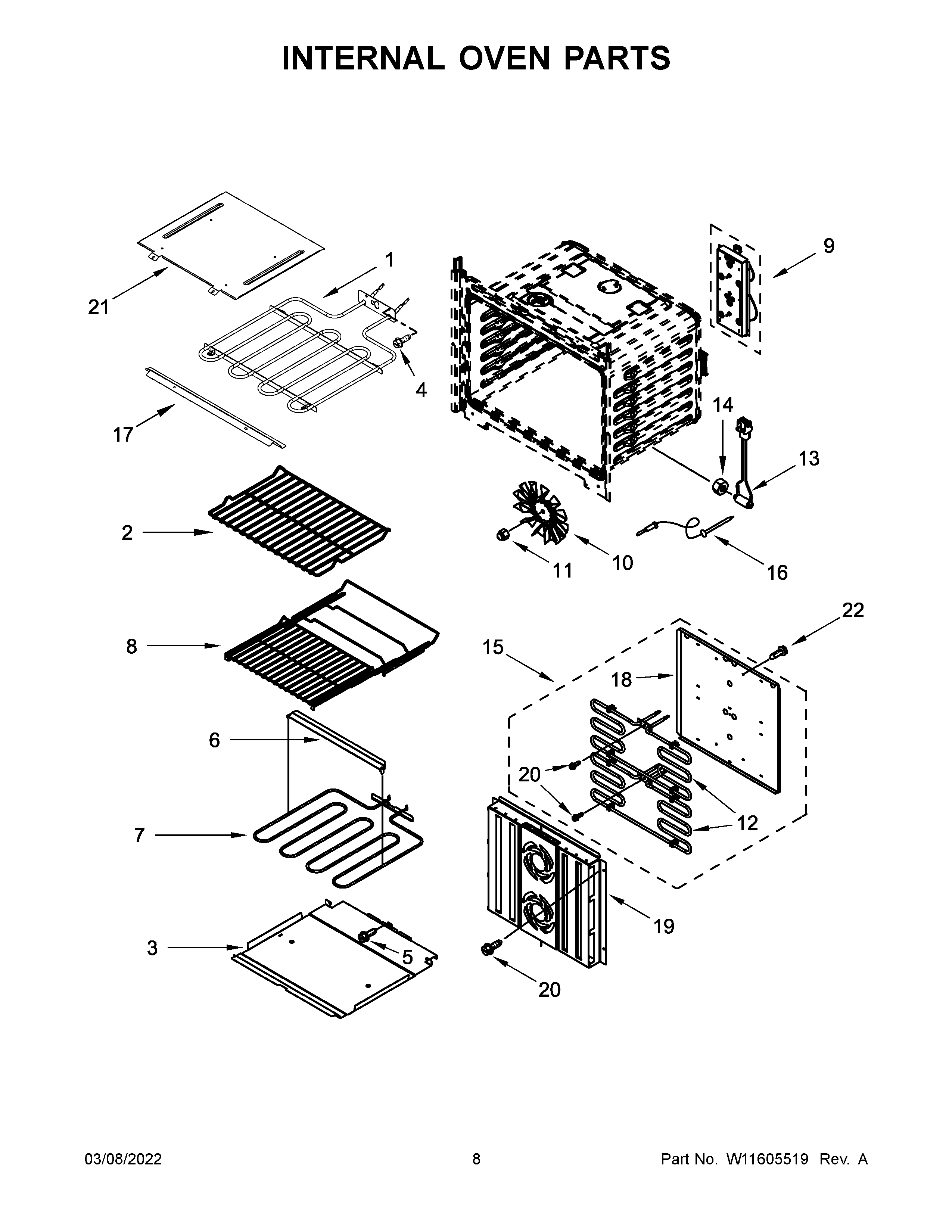

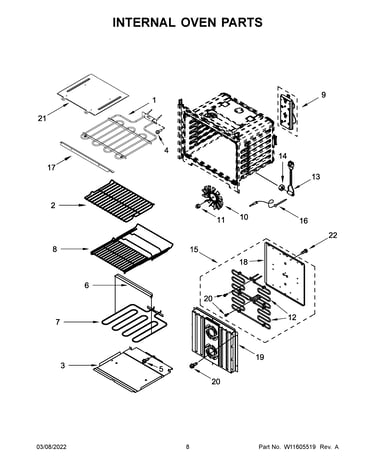

Internal oven parts diagram

Range oven meat probe

Part #9755542

Replaced by #WP9755542

?
Manufacturer substitution
This part replaces 9755542. Substitute parts can look different from the original.
$80.39 |
6% OFF Phone Price : $85.39
In Stock
Range Broil Pan 4396923
#NI

Optional parts (not included) diagram

Range broil pan

Part #4396923

$29.55 |
24% OFF MSRP : $39.00
In Stock
Screw 3196183
#7

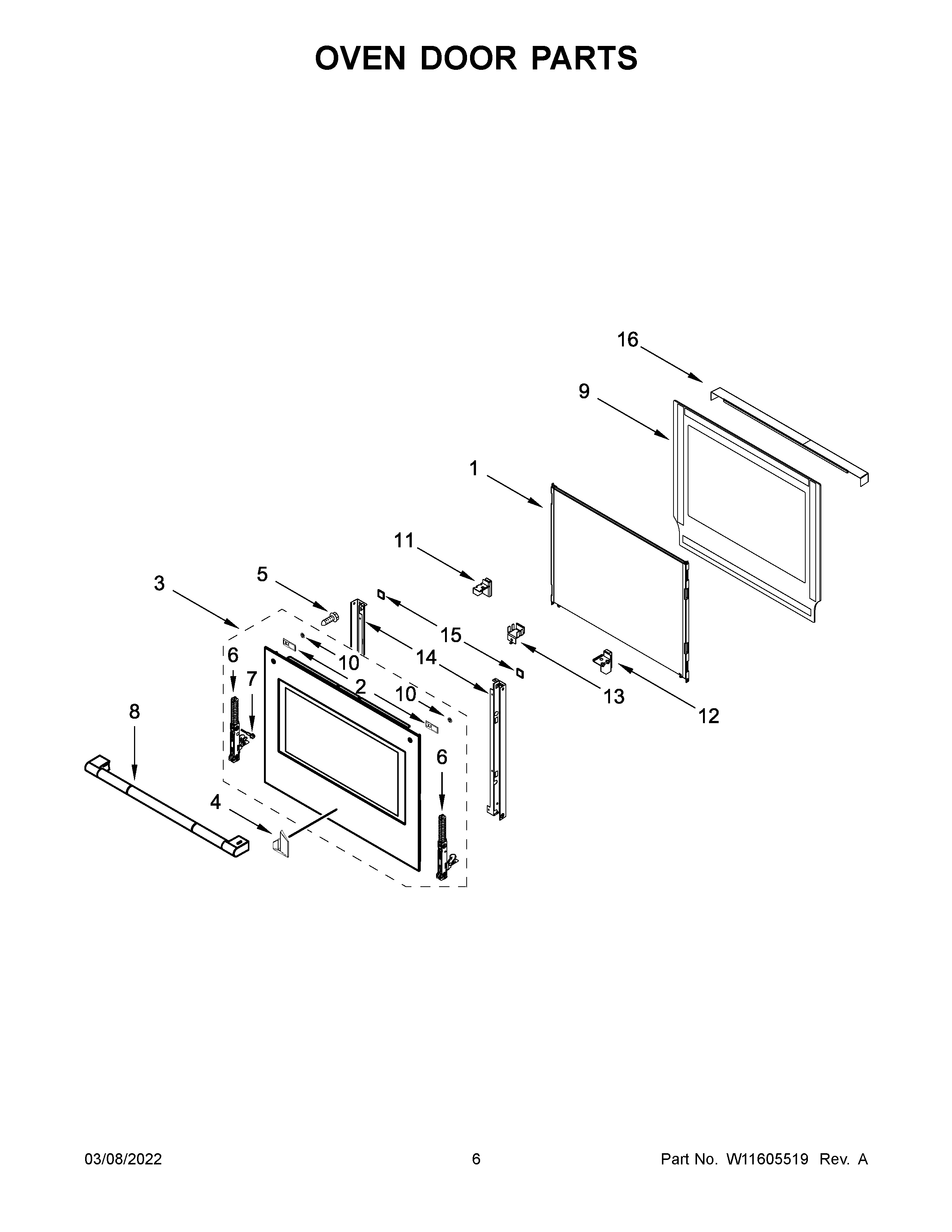

Oven door parts diagram

Screw

Part #3196183

Replaced by #WP3196183

?
Manufacturer substitution
This part replaces 3196183. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Nameplate (stainless) W11238657
#4

Oven door parts diagram

Nameplate (stainless)

Part #W11238657

Replaced by #W11320231

?
Manufacturer substitution
This part replaces W11238657. Substitute parts can look different from the original.
$62.38
In Stock
