Amana PTH093A35JA/P1217810R packaged terminal air conditioner & heat pump Parts

Name: Amana PTH093A35JA/P1217810R Parts | Diagrams | Sears PartsDirect
Brand: Amana
SKU: PTH093A35JA/P1217810R
Availability: InStock

Here are the diagrams and repair parts for Amana PTH093A35JA/P1217810R packaged terminal air conditioner & heat pump, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

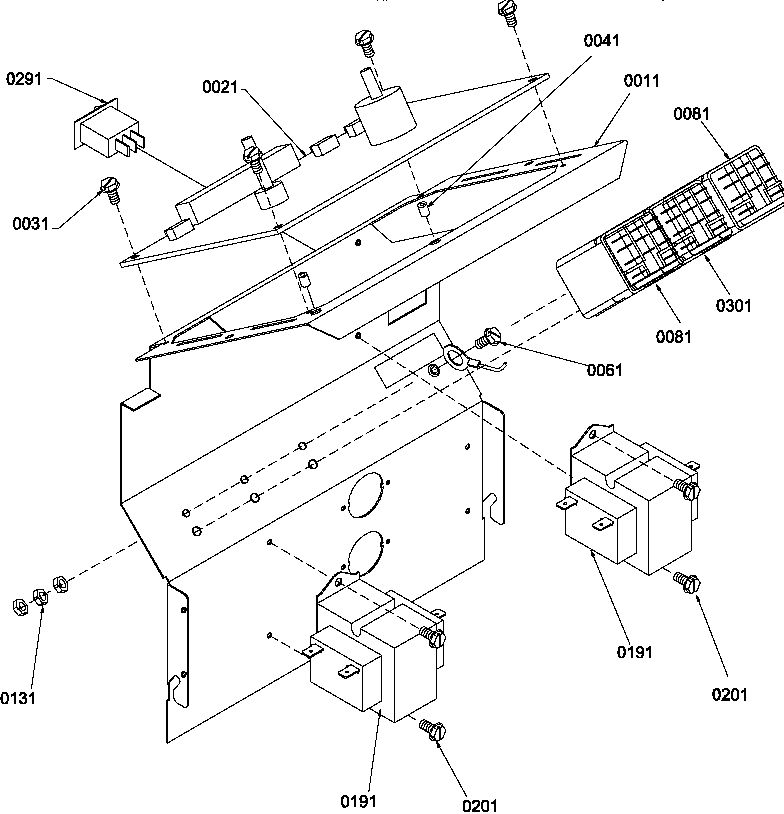

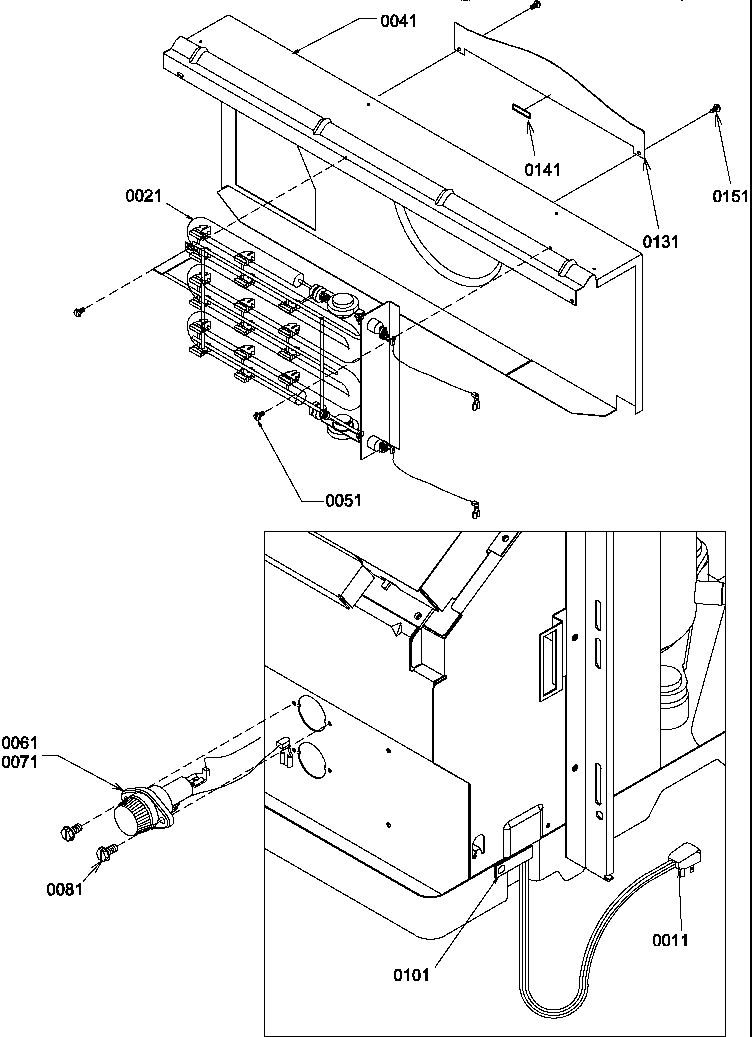

Browse Parts for PTH093A35JA/P1217810R Packaged Terminal Air Conditioner & Heat Pump

Screw
Part #M0216529
Replaced by #WP90767
Manufacturer substitution
This part replaces M0216529. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.88
17% OFF Phone Price : $5.88
Qty
Screw
Part #M0211216
Replaced by #WP90767
Manufacturer substitution
This part replaces M0211216. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.88
17% OFF Phone Price : $5.88
Qty
Screw
Part #M0216716
Replaced by #WP90767
Manufacturer substitution
This part replaces M0216716. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.88
17% OFF Phone Price : $5.88
Qty

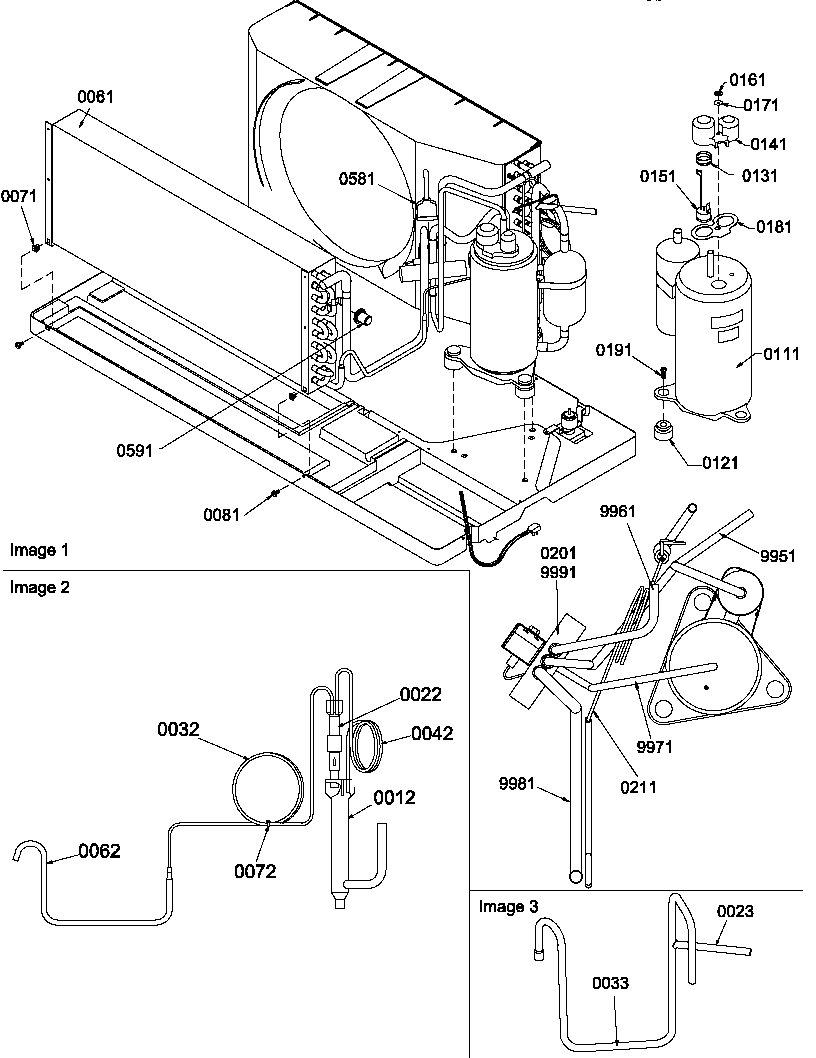

Compressor/tubing diagram
Screw
Part #M0211345
Replaced by #W10841059
Manufacturer substitution
This part replaces M0211345. Substitute parts can look different from the original.
This item is not returnable
In Stock
$2.46
Qty
Compressor/tubing diagram
Terminal Nut
Part #A3436601
Replaced by #WP776338
Manufacturer substitution
This part replaces A3436601. Substitute parts can look different from the original.
In Stock
$42.33
Qty
Compressor/tubing diagram
Use 20284908
Part #11194602
Replaced by #20284908
Manufacturer substitution
This part replaces 11194602. Substitute parts can look different from the original.
In Stock
$157.94
Qty
Compressor/tubing diagram
Use 20284910
Part #11195303
Replaced by #20284910
Manufacturer substitution
This part replaces 11195303. Substitute parts can look different from the original.
In Stock
$157.94
Qty

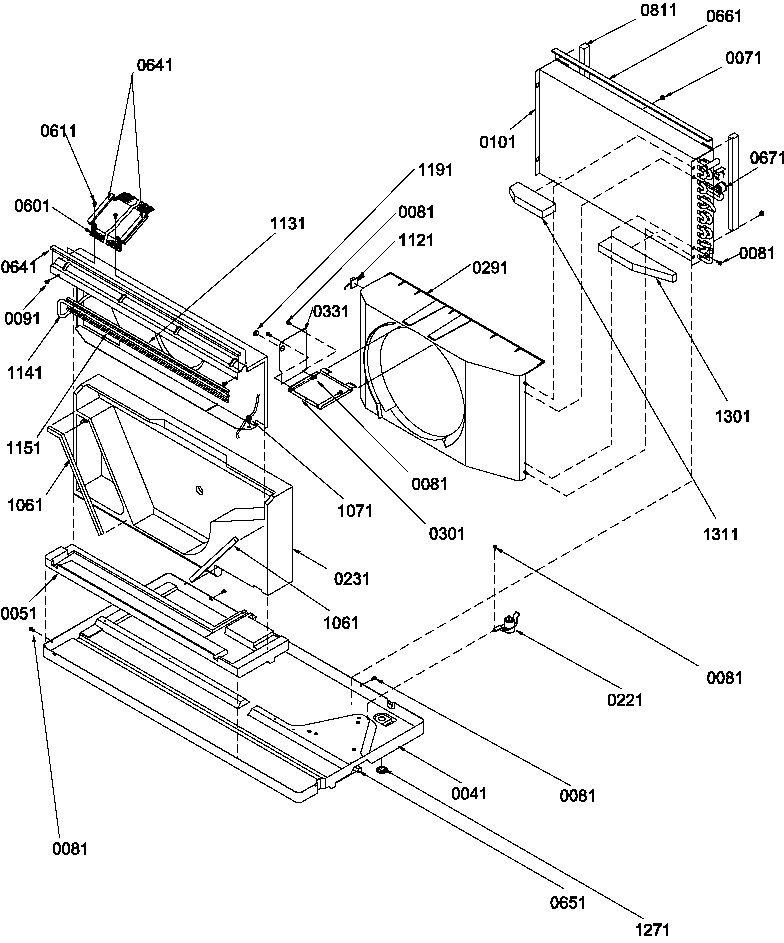

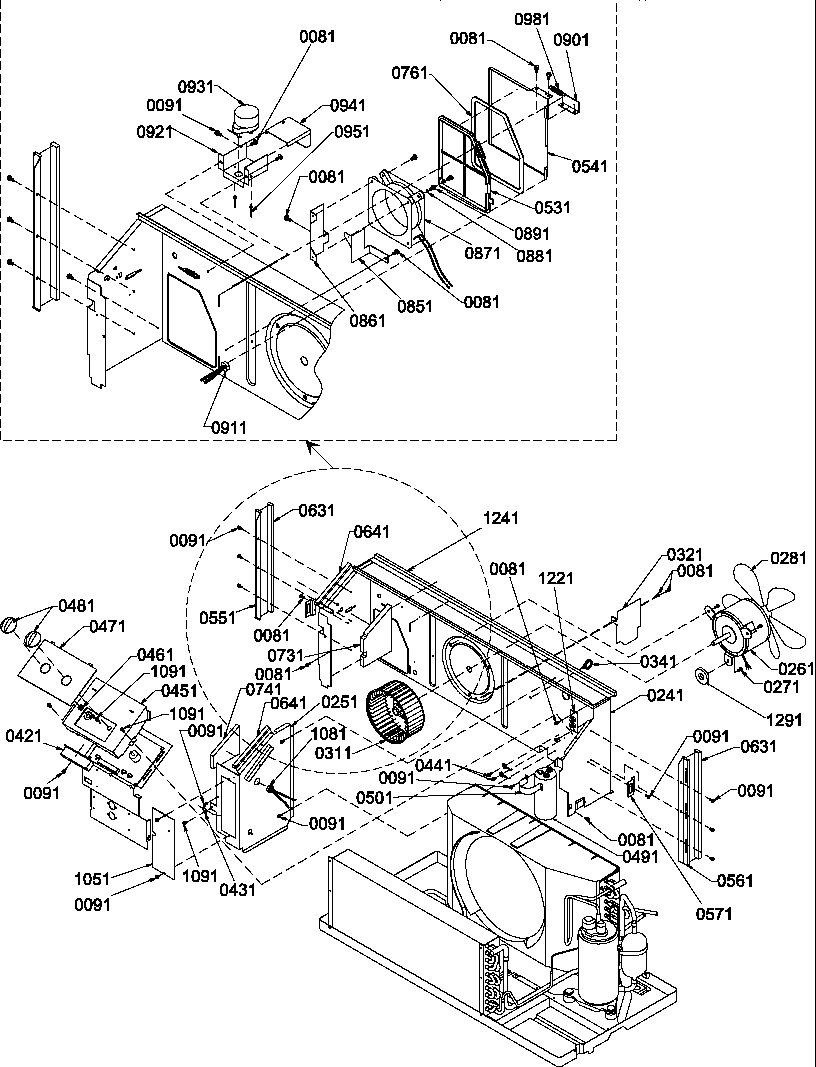

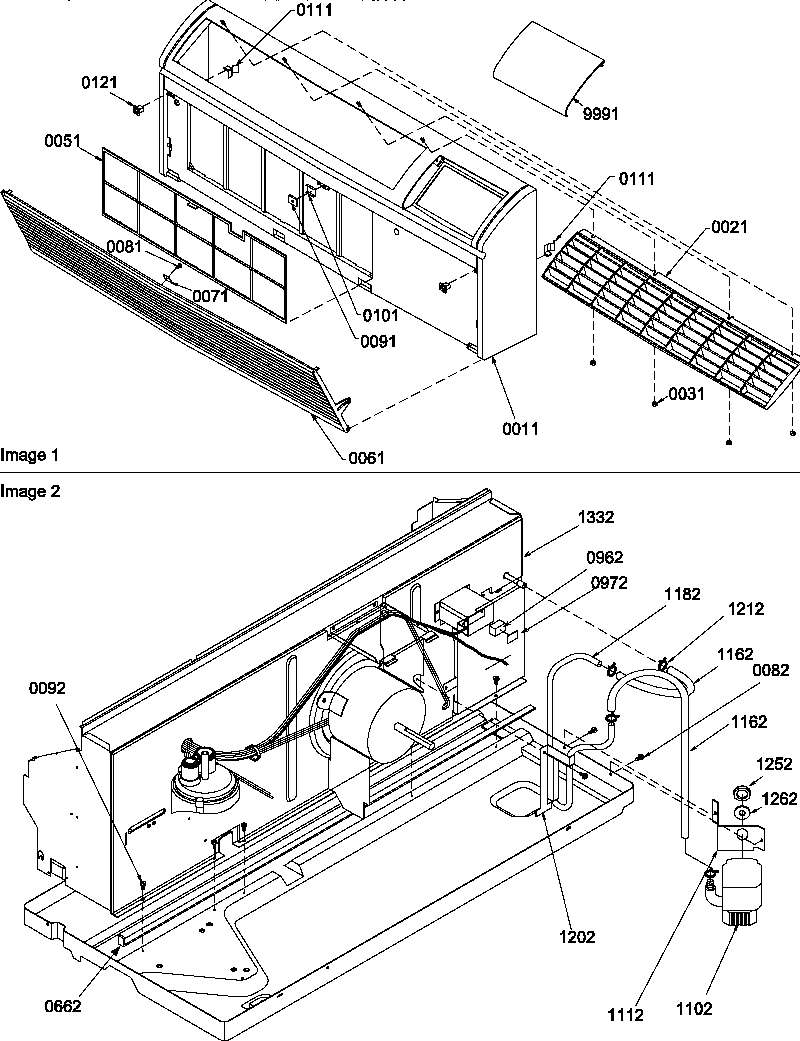

Chassis diagram
Foam Gasket
Part #10839808
Replaced by #10839808
Manufacturer substitution
This part replaces 10839808. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.20
Qty
Chassis diagram
Screw
Part #M0204517
Replaced by #WP489464
Manufacturer substitution
This part replaces M0204517. Substitute parts can look different from the original.
This item is not returnable
In Stock
$7.67
12% OFF Phone Price : $8.67
Qty
Chassis diagram
Tap Screw
Part #M0224956
Replaced by #WP489427
Manufacturer substitution
This part replaces M0224956. Substitute parts can look different from the original.
This item is not returnable
In Stock
$7.67
12% OFF Phone Price : $8.67
Qty
