Model # 11312840 Official Craftsman 3/4-hp ac motor

Here are the diagrams and repair parts for Official Craftsman 11312840 3/4-hp ac motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

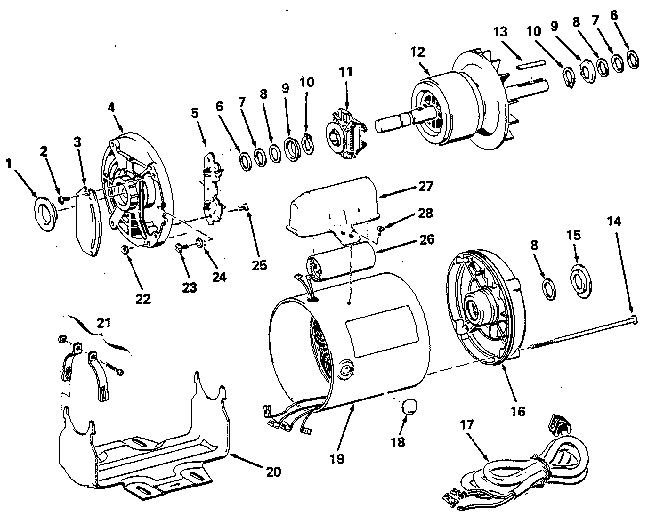

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |

Table Saw Motor Clamp 64089
#21

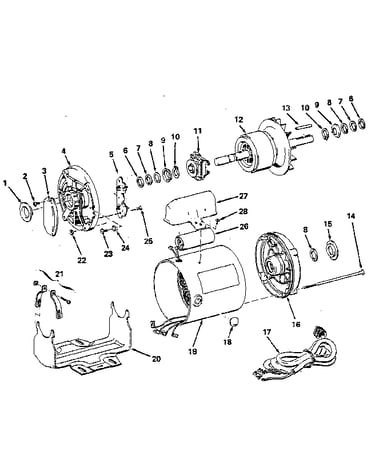

Unit diagram

Table saw motor clamp

Part #64089

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Washer 30767
#7

Unit diagram

Power tool washer

Part #30767

The manufacturer no longer makes this part, and there's no substitute part

Screw 64142
#28

Unit diagram

Screw

Part #64142

The manufacturer no longer makes this part, and there's no substitute part

Bearing Cap 37167
#15

Unit diagram

Bearing cap

Part #37167

The manufacturer no longer makes this part, and there's no substitute part

Cvr, Termnl 64088
#3

Unit diagram

Cvr, termnl

Part #64088

The manufacturer no longer makes this part, and there's no substitute part

Washer-rubr 30768
#8

Unit diagram

Washer-rubr

Part #30768

The manufacturer no longer makes this part, and there's no substitute part

Washer-plstc 30766
#6

Unit diagram

Washer-plstc

Part #30766

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 115998
#22

Unit diagram

Hex nut

Part #115998

The manufacturer no longer makes this part, and there's no substitute part

Base 64718
#20

Unit diagram

Base

Part #64718

The manufacturer no longer makes this part, and there's no substitute part

Screw 448011
#25

Unit diagram

Screw

Part #448011

The manufacturer no longer makes this part, and there's no substitute part
