Amana RHE30A2A/P1217403C air conditioner Parts
Here are the diagrams and repair parts for Amana RHE30A2A/P1217403C air conditioner, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for RHE30A2A/P1217403C Air Conditioner

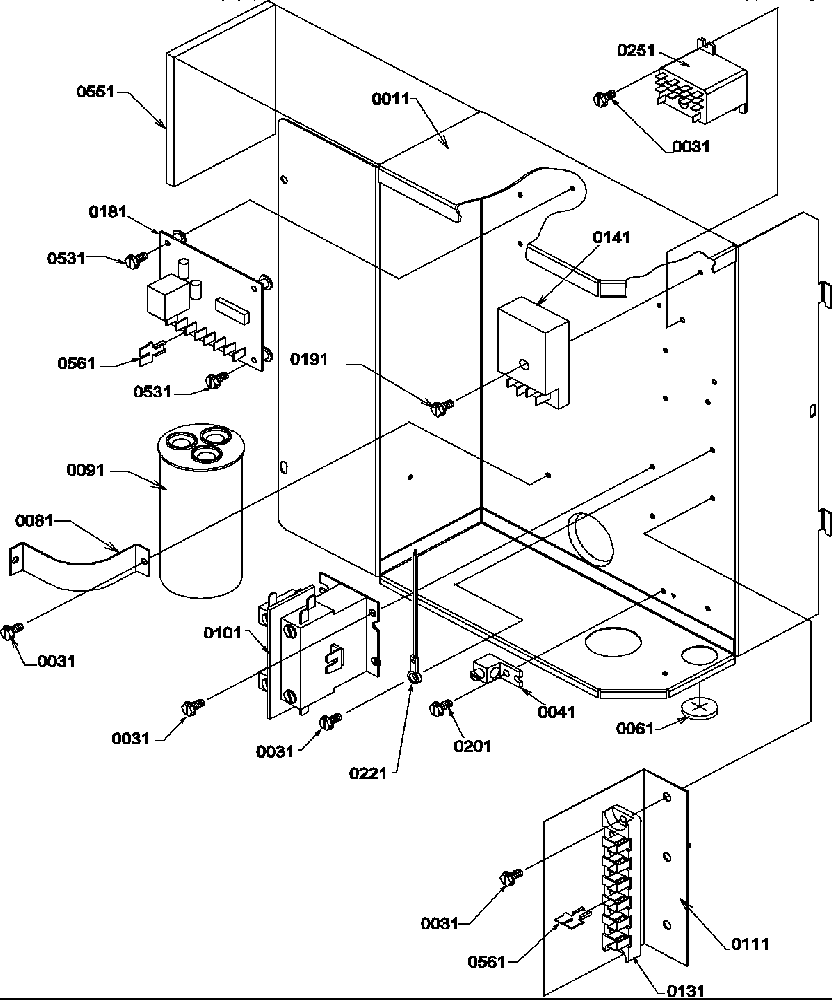

Control box diagram
Screw
Part #M0216529Replaced by #WP90767
Manufacturer substitutionThis part replaces M0216529. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88
Qty

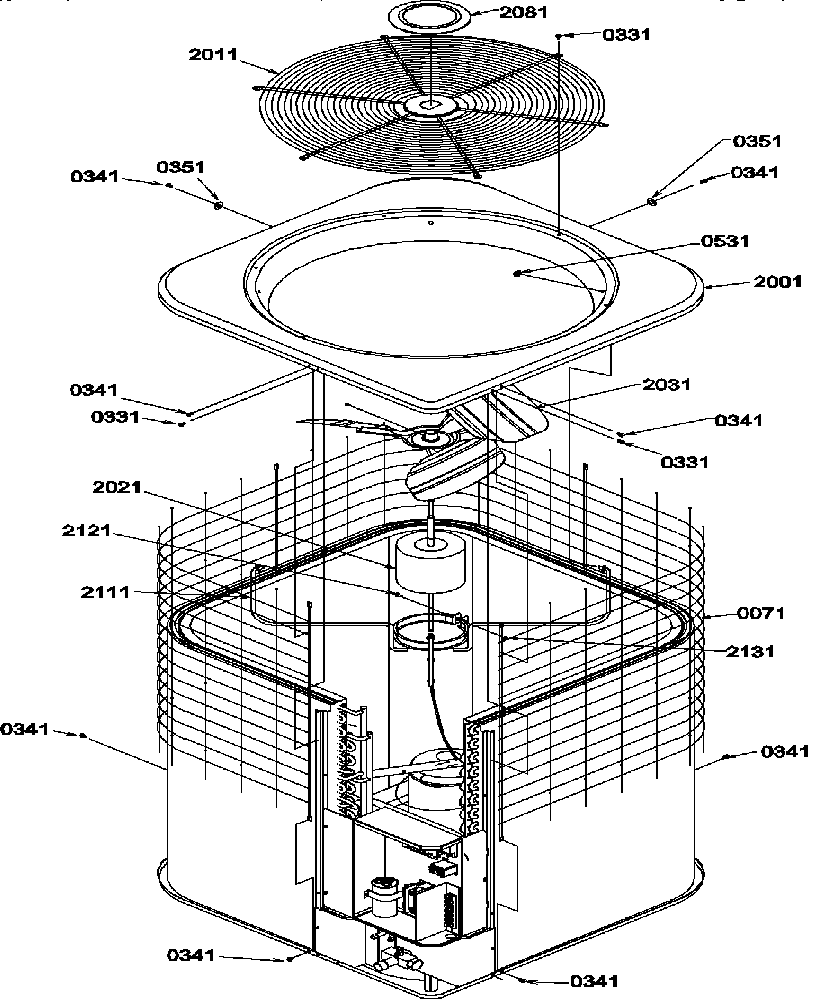

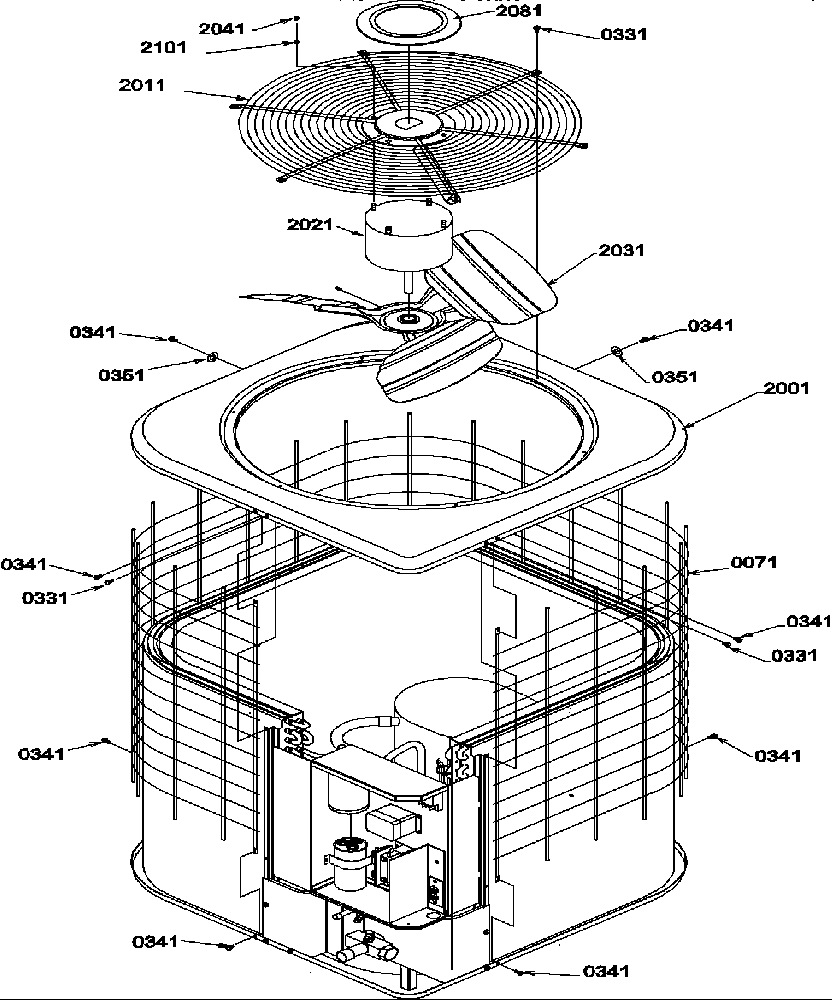

Cabinet/top diagram
Keps Nut
Part #M0280801Replaced by #WP488130
Manufacturer substitutionThis part replaces M0280801. Substitute parts can look different from the original.In Stock$28.95QtyTubing diagram
Sweat Valve
Part #11030915
The manufacturer no longer makes this part, and there's no substitute part

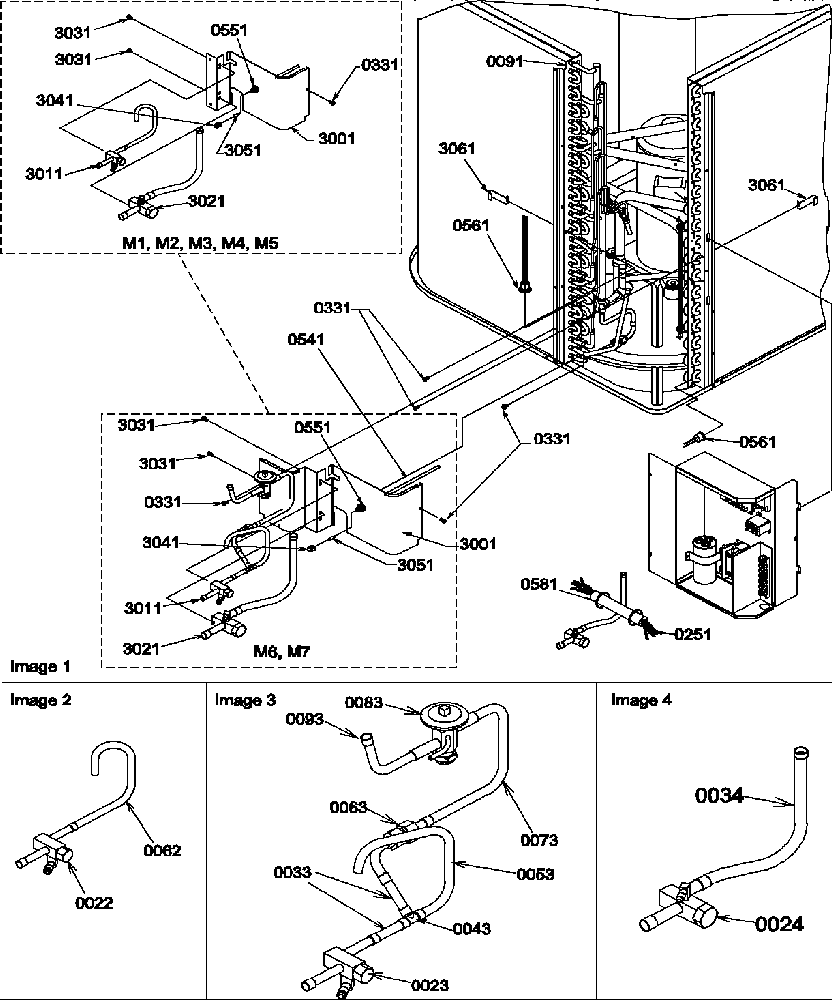

Tubing diagram
Valve-expansion
Part #10801220
The manufacturer no longer makes this part, and there's no substitute part

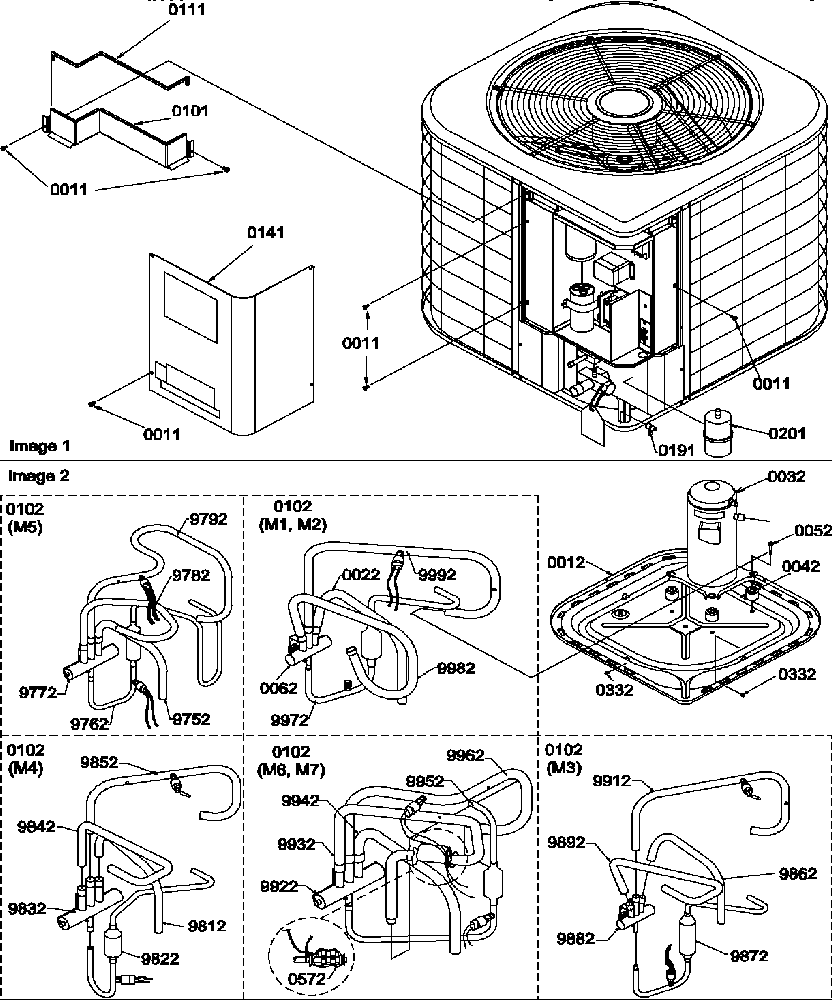

Outer cabinet/compressor/tubing diagram
Comp-cp Zr57k3-pfv
Part #10289208
The manufacturer no longer makes this part, and there's no substitute part

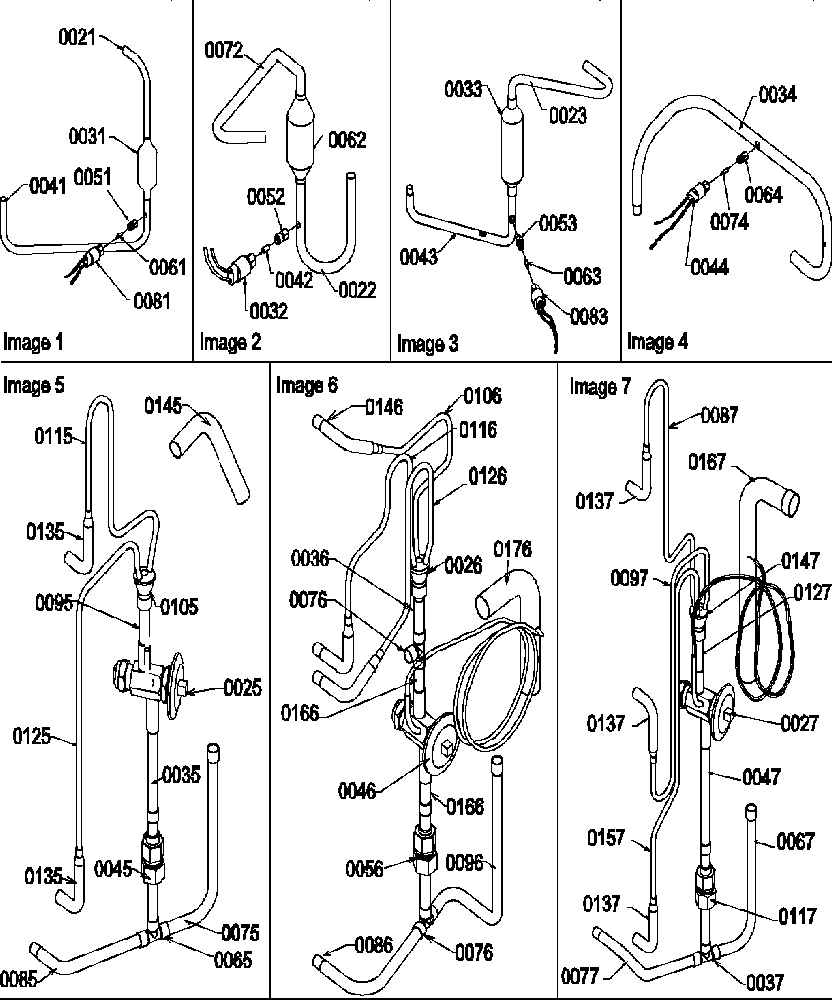

Tubing diagram
Condenser Assembly
Part #11049102
The manufacturer no longer makes this part, and there's no substitute part
Outer cabinet/compressor/tubing diagram
Insulation
Part #B1369301
The manufacturer no longer makes this part, and there's no substitute part
Outer cabinet/compressor/tubing diagram
Rev Valve Weld
Part #11059804
The manufacturer no longer makes this part, and there's no substitute part
Control box diagram
Strap-capacitor
Part #C6300512
The manufacturer no longer makes this part, and there's no substitute part
Outer cabinet/compressor/tubing diagram
Disch Tube Weld
Part #11137102
The manufacturer no longer makes this part, and there's no substitute part
