Onkyo HTP-690 audio speakers Parts

Here are the diagrams and repair parts for Onkyo HTP-690 audio speakers, as well as links to manuals and error code tables, if available.

Onkyo HTP-690 audio speakers
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for HTP-690 Audio Equipment

  • Transf-pow for Onkyo HTP-690 - Part 2301948

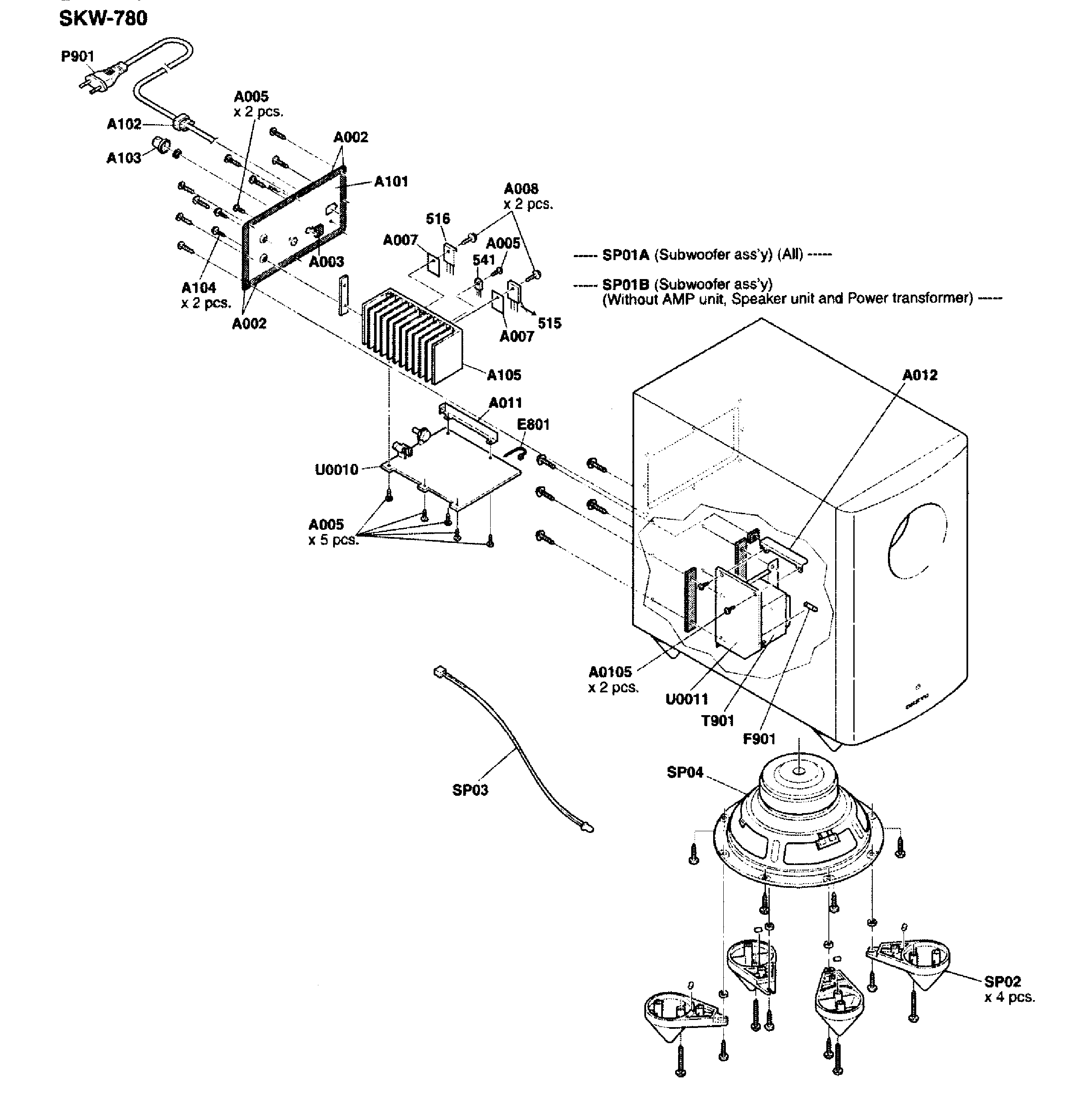

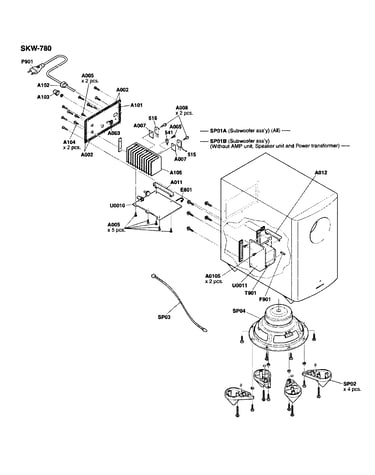

    Subwoofer diagram

    Transf-pow

    Part #2301948

    The manufacturer no longer makes this part, and there's no substitute part

  • Transistor for Onkyo HTP-690 - Part 2203083

    Subwoofer diagram

    Transistor

    Part #2203083

    The manufacturer no longer makes this part, and there's no substitute part

  • Spkr-fr-lt for Onkyo HTP-690 - Part ASF74690B-BM20

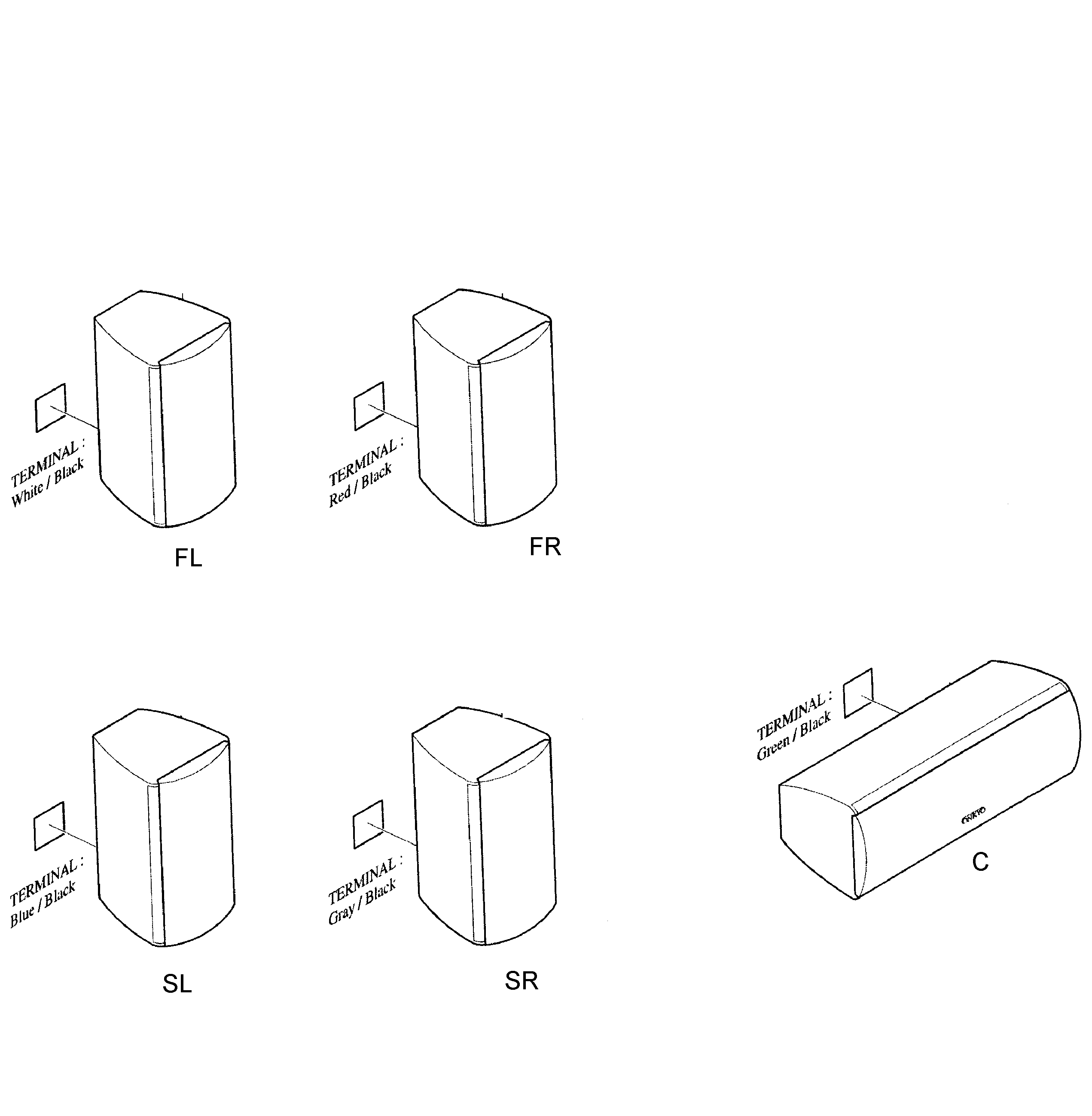

    Speakers diagram

    Spkr-fr-lt

    Part #ASF74690B-BM20

    The manufacturer no longer makes this part, and there's no substitute part

  • Foot for Onkyo HTP-690 - Part D249-W55001B-01

    Subwoofer diagram

    Foot

    Part #D249-W55001B-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Pcb Assembly for Onkyo HTP-690 - Part 1B139591-2H

    Subwoofer diagram

    Pcb Assembly

    Part #1B139591-2H

    The manufacturer no longer makes this part, and there's no substitute part

  • Home Theater System Subwoofer Speaker for Onkyo HTP-690 - Part W2302B

    Subwoofer diagram

    Home Theater System Subwoofer Speaker

    Part #W2302B

    The manufacturer no longer makes this part, and there's no substitute part

  • Spkr-sur-r for Onkyo HTP-690 - Part ASF75690B-BM20

    Speakers diagram

    Spkr-sur-r

    Part #ASF75690B-BM20

    The manufacturer no longer makes this part, and there's no substitute part

  • Fuse for Onkyo HTP-690 - Part 252326GR

    Subwoofer diagram

    Fuse

    Part #252326GR

    The manufacturer no longer makes this part, and there's no substitute part

  • Audio Speaker for Onkyo HTP-690 - Part ASF72690B-BM20

    Speakers diagram

    Audio Speaker

    Part #ASF72690B-BM20

    The manufacturer no longer makes this part, and there's no substitute part

  • Spkr-fr-rt for Onkyo HTP-690 - Part ASF73690B-BM20

    Speakers diagram

    Spkr-fr-rt

    Part #ASF73690B-BM20

    The manufacturer no longer makes this part, and there's no substitute part
