Model # SSD4CLB Official Hotpoint refrigerator

Here are the diagrams and repair parts for Official Hotpoint SSD4CLB refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

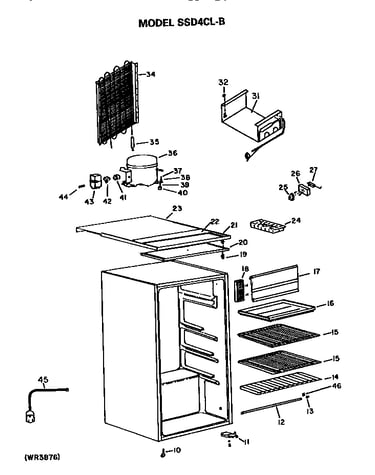

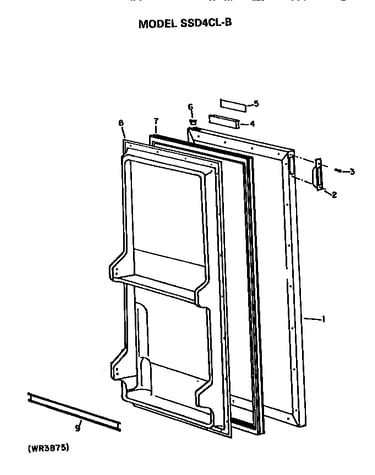

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Dryer Assembly WR86X86

#740

All parts diagram

Dryer assembly

Part #WR86X86

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X86. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
6% OFF Phone Price : $84.18
In Stock
Power Cord WR23X108

#626

All parts diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
18% OFF Phone Price : $27.68
In Stock
Relay WR7X5155

#42

All parts diagram

Relay

Part #WR7X5155

The manufacturer no longer makes this part, and there's no substitute part

Washer WR1X5702

#38

All parts diagram

Washer

Part #WR1X5702

The manufacturer no longer makes this part, and there's no substitute part

Ice Tray WR30X5122

#24

All parts diagram

Ice tray

Part #WR30X5122

The manufacturer no longer makes this part, and there's no substitute part

Inner Door Panel WR77X5679

#8

All parts diagram

Inner door panel

Part #WR77X5679

The manufacturer no longer makes this part, and there's no substitute part

Cap WR2X8055

#13

All parts diagram

Cap

Part #WR2X8055

The manufacturer no longer makes this part, and there's no substitute part

Nut WR1X5703

#44

All parts diagram

Nut

Part #WR1X5703

The manufacturer no longer makes this part, and there's no substitute part

Lo Side WR85X225

#31

All parts diagram

Lo side

Part #WR85X225

The manufacturer no longer makes this part, and there's no substitute part

Screw WR1X5705

#11

All parts diagram

Screw

Part #WR1X5705

The manufacturer no longer makes this part, and there's no substitute part
