KitchenAid
Wine & Beverage Cooler

Model # KUBR204EPA01 Official KitchenAid beverage center

Here are the diagrams and repair parts for Official KitchenAid KUBR204EPA01 beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Screw W10204865
#13

Door parts diagram

Screw

Part #W10204865

Replaced by #W10837731

?
Manufacturer substitution
This part replaces W10204865. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Prox Sensor W10780359
#38

Cabinet parts diagram

Prox sensor

Part #W10780359

$51.53
In Stock
Gasket W10797384
#15

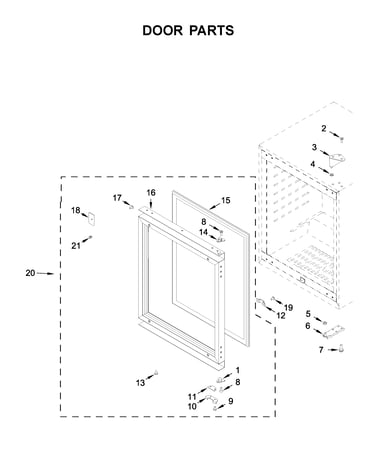

Door parts diagram

Gasket

Part #W10797384

$70.89 |
7% OFF Phone Price : $75.89
In Stock
Proximity Li W10797391
#37

Cabinet parts diagram

Proximity li

Part #W10797391

$36.87
In Stock
Refrigerator Compressor Overload And Ptc Start Relay W10287848
#5

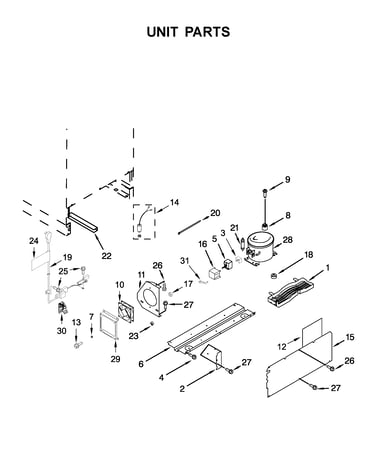

Unit parts diagram

Refrigerator compressor overload and ptc start relay

Part #W10287848

$75.59 |
6% OFF Phone Price : $80.59
In Stock
Control Panel Assembly (does Not Include Bottom Glass Shelf) W11506870
#6

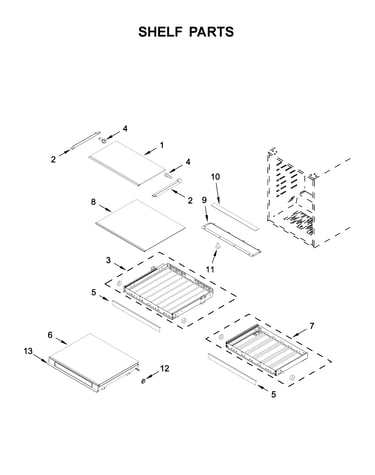

Shelf parts diagram

Control panel assembly (does not include bottom glass shelf)

Part #W11506870

Replaced by #W11522060

?
Manufacturer substitution
This part replaces W11506870. Substitute parts can look different from the original.
$334.70
In Stock
Led Light W10797323
#10

Shelf parts diagram

Led light

Part #W10797323

Replaced by #W11441723

?
Manufacturer substitution
This part replaces W10797323. Substitute parts can look different from the original.
$161.18
In Stock
Glass Shelf W10803988
#1

Shelf parts diagram

Glass shelf

Part #W10803988

Replaced by #W10807583

?
Manufacturer substitution
This part replaces W10803988. Substitute parts can look different from the original.
$170.67
In Stock
Screw 4344832
#27

Unit parts diagram

Screw

Part #4344832

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4344832. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Grommet 4344779
#8

Unit parts diagram

Grommet

Part #4344779

Replaced by #WP4344779

?
Manufacturer substitution
This part replaces 4344779. Substitute parts can look different from the original.
This item is not returnable
$4.89
In Stock
