Whirlpool WOEC7030PZ01 electric oven/microwave combo Parts

Here are the diagrams and repair parts for Whirlpool WOEC7030PZ01 electric oven/microwave combo, as well as links to manuals and error code tables, if available.

Whirlpool WOEC7030PZ01 electric oven/microwave combo
By Schematic
By Part

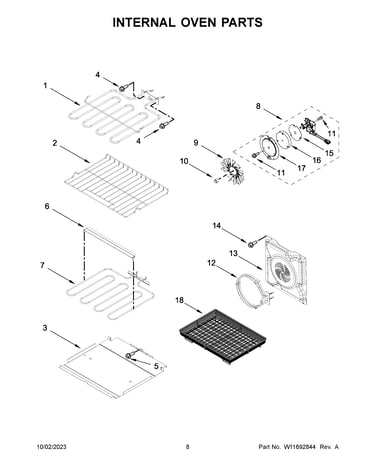

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WOEC7030PZ01 Electric Oven/Microwave Combo

  • Door Kit Ass for Whirlpool WOEC7030PZ01 - Part W11654087

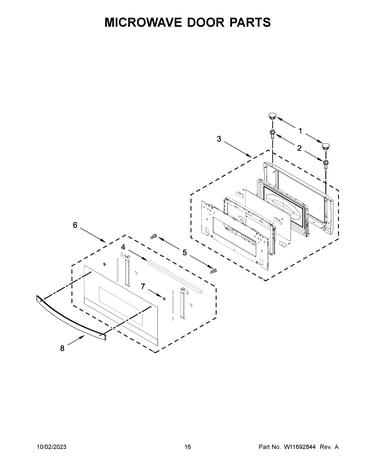

    Microwave door parts diagram

    Door Kit Ass

    Part #W11500262

    Replaced by #W11654087

    Info Icon
    Manufacturer substitution
    This part replaces W11500262. Substitute parts can look different from the original.
    In Stock
    $366.04
    Minus Item
    Qty
    Plus Item
  • Center Vent for Whirlpool WOEC7030PZ01 - Part W11743956

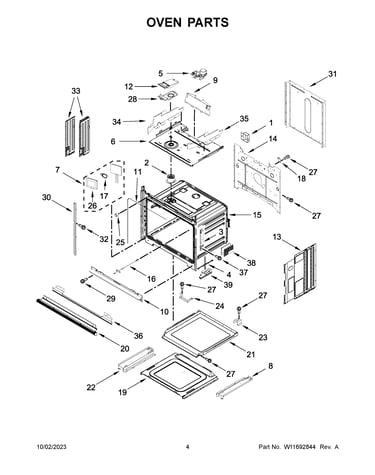

    Oven parts diagram

    Vent, Combo Center

    Part #W11518347

    Replaced by #W11743956

    Info Icon
    Manufacturer substitution
    This part replaces W11518347. Substitute parts can look different from the original.
    In Stock
    $141.86
    Minus Item
    Qty
    Plus Item
  • Range High-limit Thermostat for Whirlpool WOEC7030PZ01 - Part WP4449751

    Oven parts diagram

    Range High-limit Thermostat

    Part #4449751

    Replaced by #WP4449751

    Info Icon
    Manufacturer substitution
    This part replaces 4449751. Substitute parts can look different from the original.
    In Stock
    $75.39
    39% OFF Was : $123.71Info Icon
    Minus Item
    Qty
    Plus Item
  • 8-32 X .860 for Whirlpool WOEC7030PZ01 - Part W11602624

    Screw (black)

    Part #W11317731

    Replaced by #W11602624

    Info Icon
    Manufacturer substitution
    This part replaces W11317731. Substitute parts can look different from the original.
    In Stock
    $32.43
    Minus Item
    Qty
    Plus Item
  • Sliding Arm for Whirlpool WOEC7030PZ01 - Part W11607070

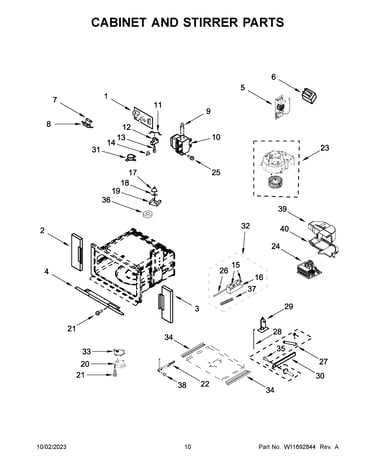

    Cabinet and stirrer parts diagram

    Arm, Sliding

    Part #W11213889

    Replaced by #W11607070

    Info Icon
    Manufacturer substitution
    This part replaces W11213889. Substitute parts can look different from the original.
    In Stock
    $39.18
    Minus Item
    Qty
    Plus Item
  • Chassis Foot for Whirlpool WOEC7030PZ01 - Part W11598170

    Oven parts diagram

    Foot, Base

    Part #W11245118

    Replaced by #W11598170

    Info Icon
    Manufacturer substitution
    This part replaces W11245118. Substitute parts can look different from the original.
    In Stock
    $42.56
    Minus Item
    Qty
    Plus Item
  • Hinge Assy-m for Whirlpool WOEC7030PZ01 - Part W11665209

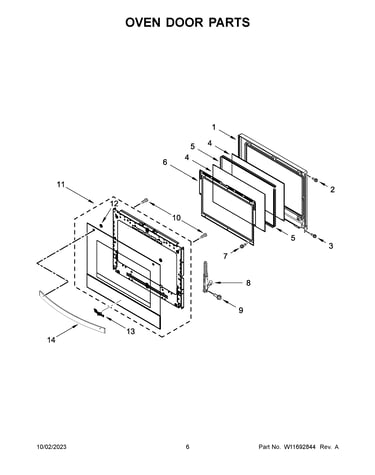

    Oven door parts diagram

    Hinge Assy-m

    Part #W11633417

    Replaced by #W11665209

    Info Icon
    Manufacturer substitution
    This part replaces W11633417. Substitute parts can look different from the original.
    In Stock
    $118.42
    Minus Item
    Qty
    Plus Item
  • Air Divider for Whirlpool WOEC7030PZ01 - Part W11598181

    Oven door parts diagram

    Spacer, Air Divider

    Part #W11302730

    Replaced by #W11598181

    Info Icon
    Manufacturer substitution
    This part replaces W11302730. Substitute parts can look different from the original.
    In Stock
    $29.78
    Minus Item
    Qty
    Plus Item
  • Screw Bag As for Whirlpool WOEC7030PZ01 - Part W11602626

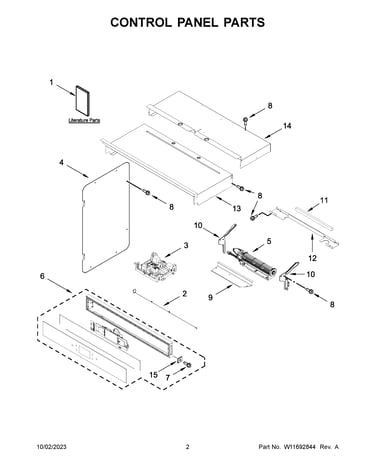

    Control panel parts diagram

    Bag, Hardware

    Part #W11394923

    Replaced by #W11602626

    Info Icon
    Manufacturer substitution
    This part replaces W11394923. Substitute parts can look different from the original.
    In Stock
    $36.27
    Minus Item
    Qty
    Plus Item
  • Foam Seal for Whirlpool WOEC7030PZ01 - Part W10491987

    Control panel parts diagram

    Foam Seal

    Part #4451758

    Replaced by #W10491987

    Info Icon
    Manufacturer substitution
    This part replaces 4451758. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $23.87
    Minus Item
    Qty
    Plus Item
