Amana PK5-1J/P55197-4C package unit - pk series Parts

Name: Amana PK5-1J/P55197-4C Parts | Diagrams | Sears PartsDirect
Brand: Amana
SKU: PK5-1J/P55197-4C
Availability: InStock

Here are the diagrams and repair parts for Amana PK5-1J/P55197-4C package unit - pk series, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

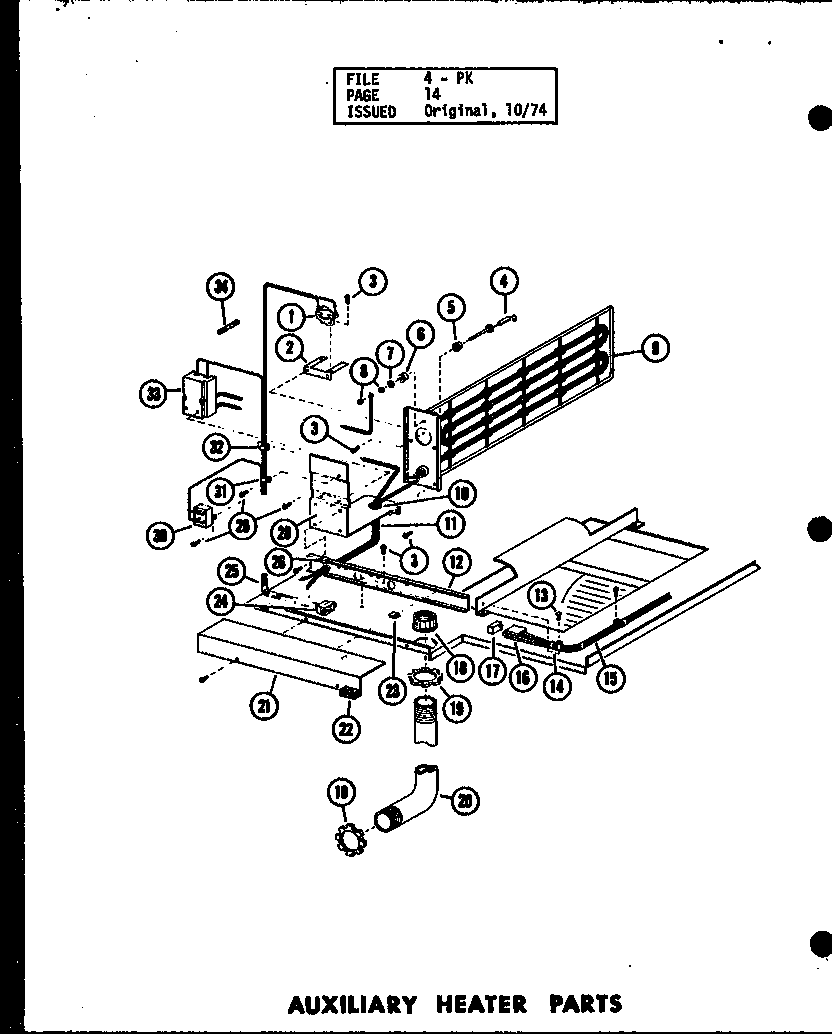

Browse Parts for PK5-1J/P55197-4C Package Unit - PK Series

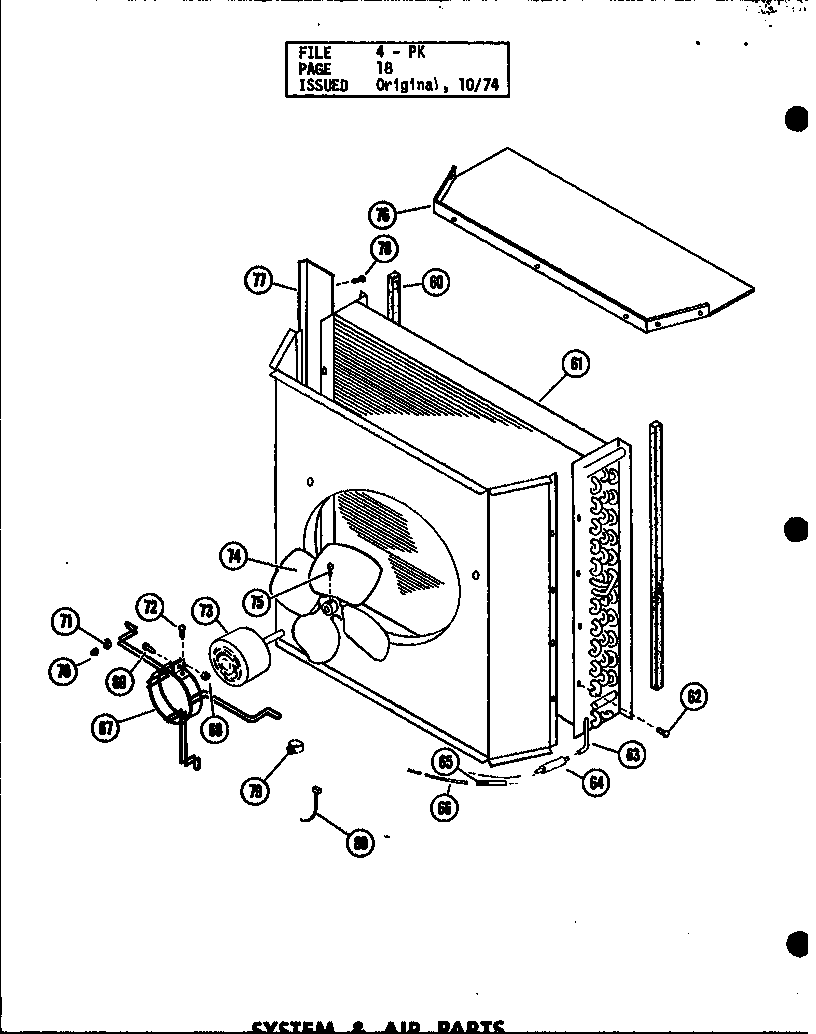

System & air parts (pk3.5-1k/p55197-1c) (pk3.5-1k/p55197-7c) (pk4-1j/p55197-2c) (pk4-1j/p55197-8c) (pk4-3j/p55197-3c) (pk4-3j/p55197-9c) (pk5-1j/p55197-4c) (pk5-1j/p55197-10c) (pk5-3j/p55197-5c) (pk5-3j/p55197-11c) (pke5-3k/p55197-22) diagram
Capillary Assembly, Preformed
Part #D5483701
The manufacturer no longer makes this part, and there's no substitute part

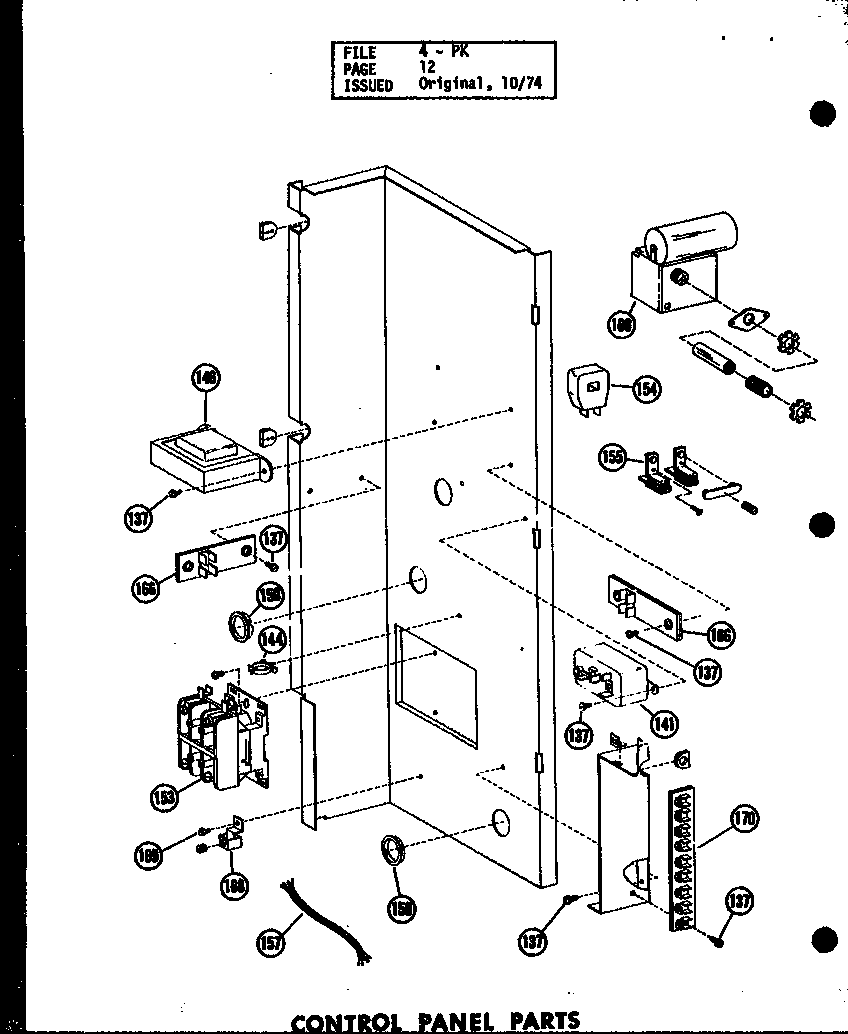

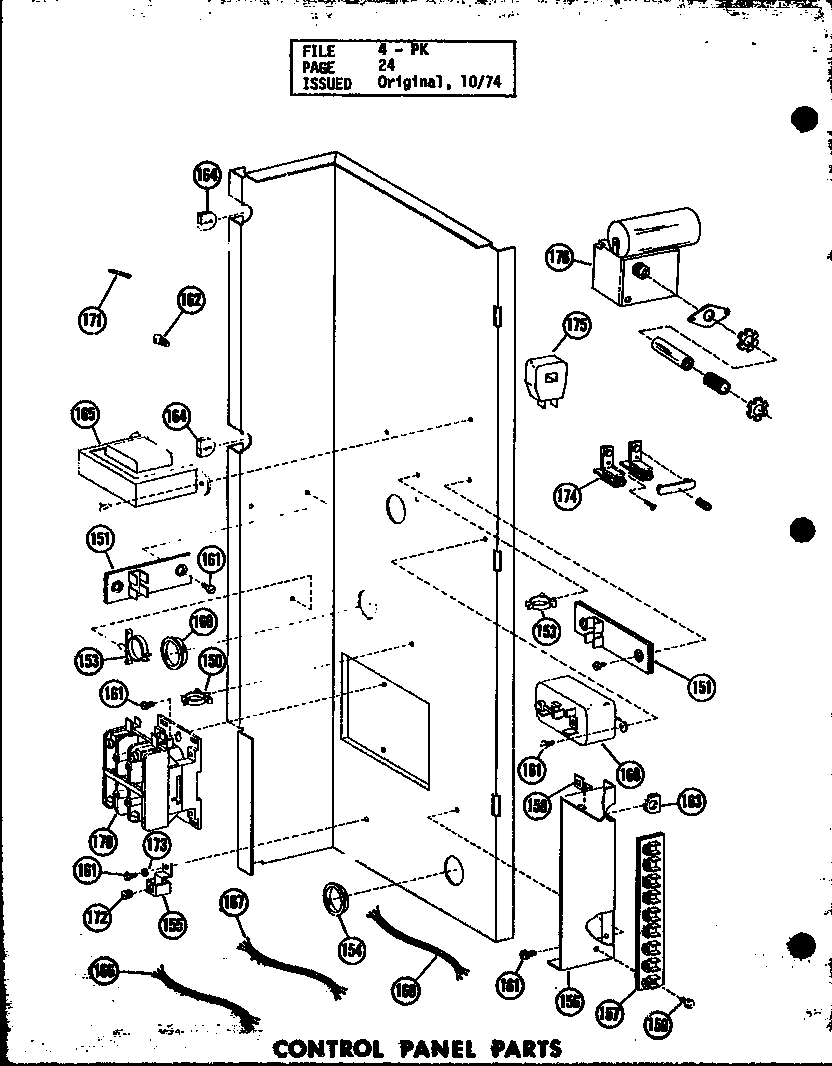

Control panel parts (pk3.5-1k/p55197-1c) (pk3.5-1k/p55197-7c) (pk4-1j/p55197-2c) (pk4-1j/p55197-8c) (pk4-3j/p55197-3c) (pk4-3j/p55197-9c) (pk5-1j/p55197-4c) (pk5-1j/p55197-10c) (pk5-3j/p55197-5c) (pk5-3j/p55197-11c) (pke5-3k/p55197-22c) diagram
Twist-on Wire Connector
Part #A4617501
The manufacturer no longer makes this part, and there's no substitute part

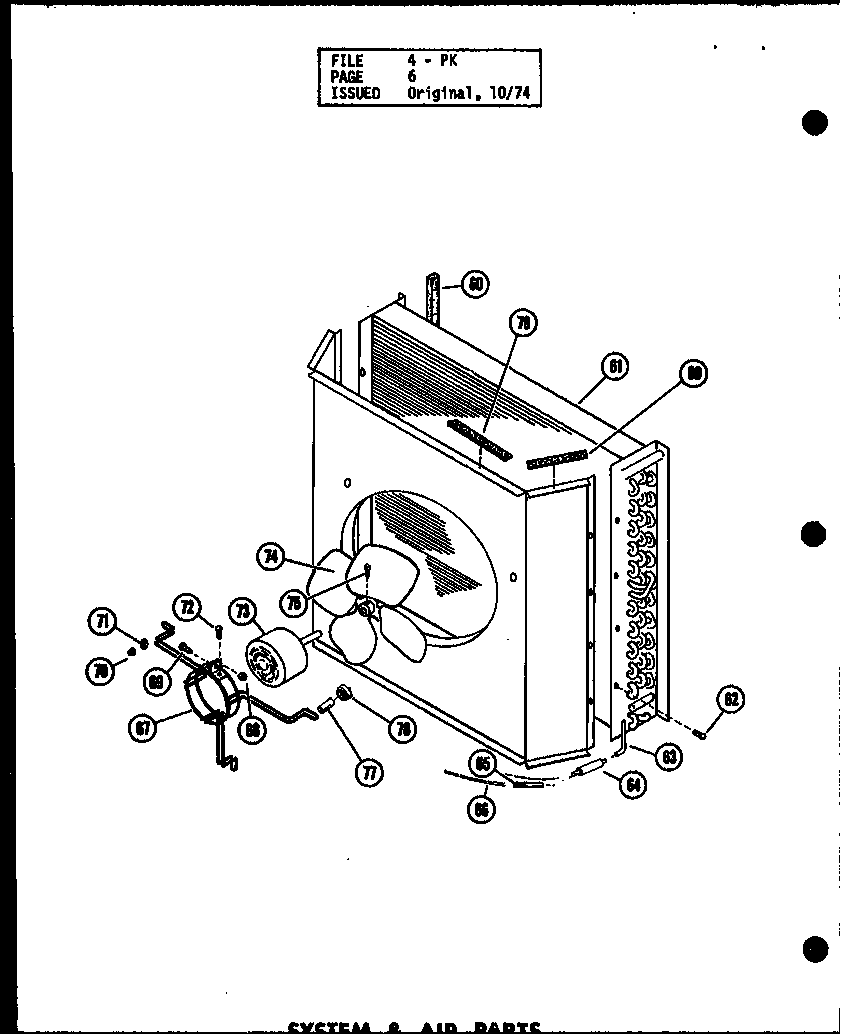

System & air parts (pk2-1h/p55196-1c) (pk2-1h/p55196-7c) (pk2.5-1h/p55196-2c) (pk2.5-1h/p55196-8c) (pk3-1h/p55196-3c) (pk3-1h/p55196-9c) (pke3-3h/p55196-18c) diagram
Bracket, Evap, Blower Motor, Mounting (2 Hanger Section,
Part #B9203702
The manufacturer no longer makes this part, and there's no substitute part
System & air parts (pk2-1h/p55196-1c) (pk2-1h/p55196-7c) (pk2.5-1h/p55196-2c) (pk2.5-1h/p55196-8c) (pk3-1h/p55196-3c) (pk3-1h/p55196-9c) (pke3-3h/p55196-18c) diagram
Capillary Assembly Preformed
Part #D5471201
The manufacturer no longer makes this part, and there's no substitute part

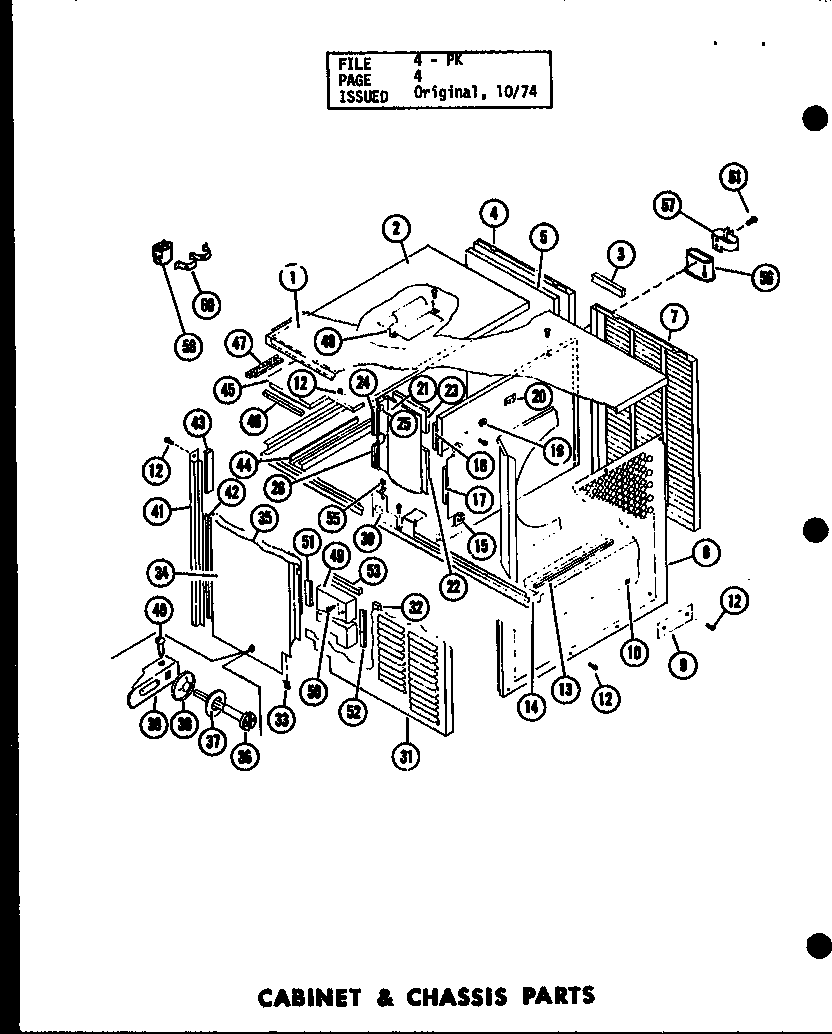

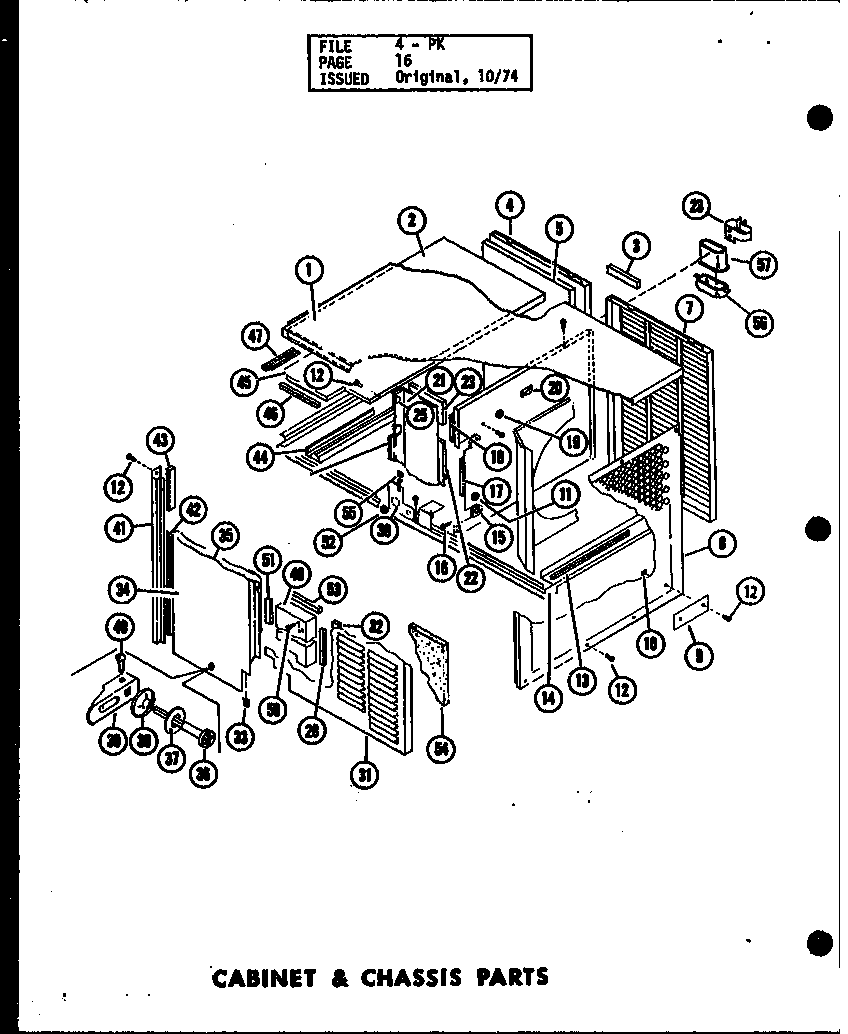

Cabinet & chassis parts (pk2-1h/p55196-1c) (pk2-1h/p55196-7c) (pk2.5-1h/p55196-2c) (pk2.5-1h/p55196-8c) (pk3-1h/p55196-3c) (pk3-1h/p55196-9c) (pke3-3h/p55196-18c) diagram
Insul. Fiberglas, Duct Panel Front, 27" X 2-5/16" X 1"
Part #B5189212
The manufacturer no longer makes this part, and there's no substitute part

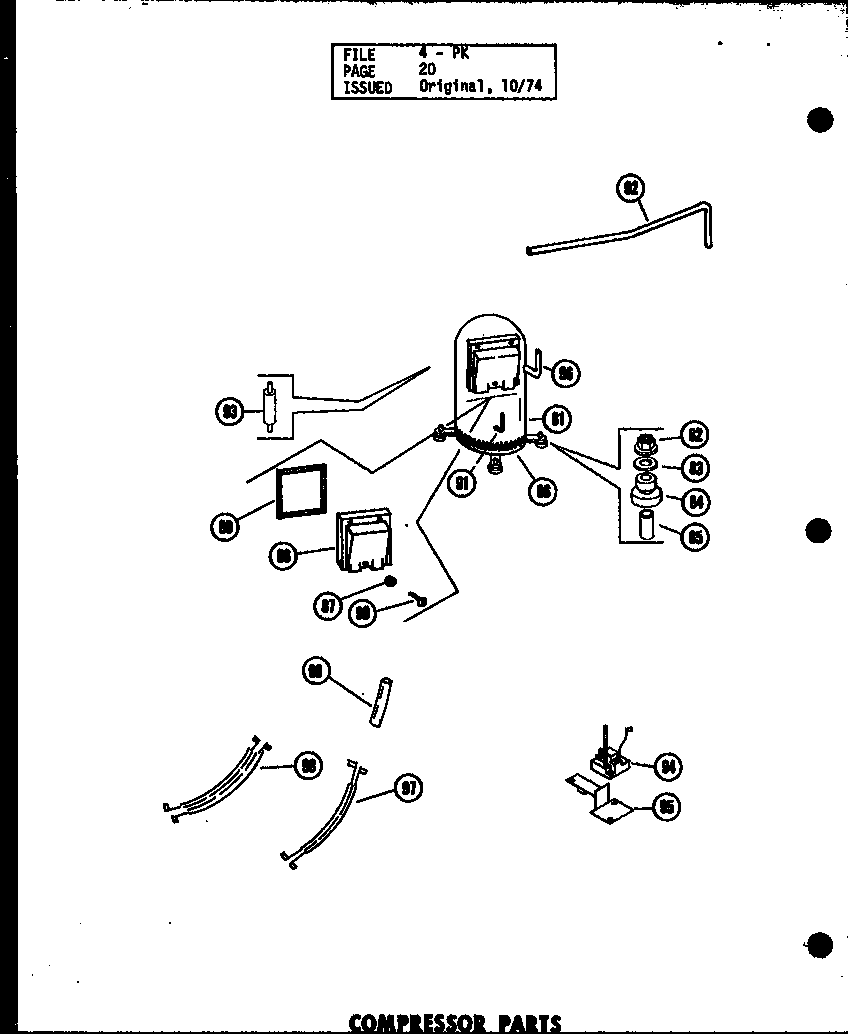

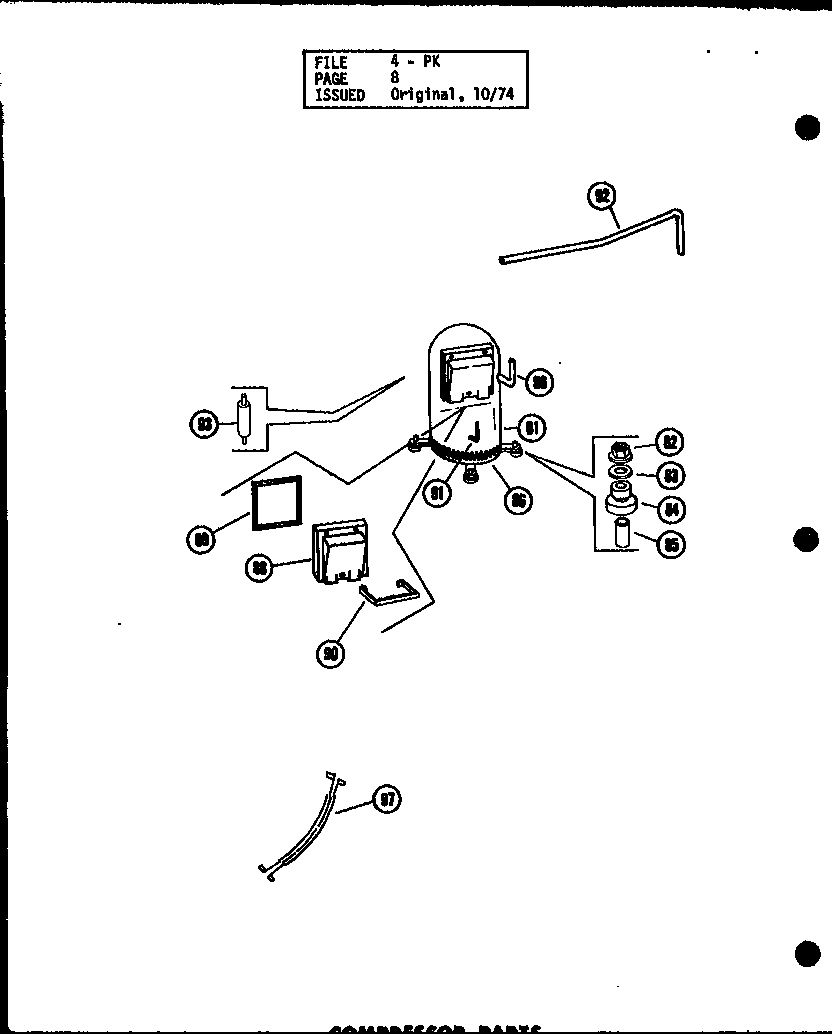

Compressor parts (pk3.5-1k/p55197-1c) (pk3.5-1k/p55197-7c) (pk4-1j/p55197-2c) (pk4-1j/p55197-8c) (pk4-3j/p55197-3c) (pk4-3j/p55197-9c) (pk5-1j/p55197-4c) (pk5-1j/p55197-10c) (pk5-3j/p55197-5c) (pk5-3j/p55197-11c) (pke5-3k/p55197-22c) diagram
Heater, Compressor Crankcase, W/grd. Terminal 60 W. 240
Part #B5190417
The manufacturer no longer makes this part, and there's no substitute part
Nut - Speed "u" Type
Part #M0288701
The manufacturer no longer makes this part, and there's no substitute part

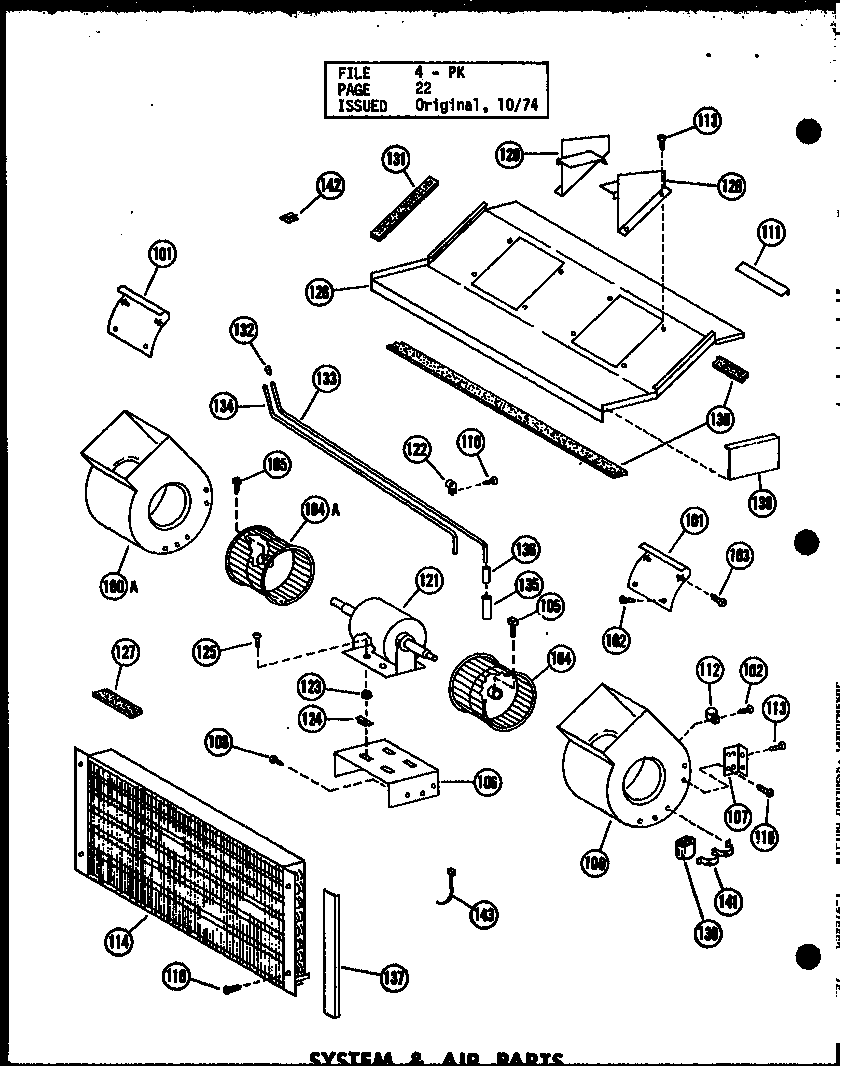

System & air parts (pk3.5-1k/p55197-1c) (pk3.5-1k/p55197-7c) (pk4-1j/p55197-2c) (pk4-1j/p55197-8c) (pk4-3j/p55197-3c) (pk4-3j/p55197-9c) (pk5-1j/p55197-4c) (pk5-1j/p55197-10c) (pk5-3j/p55197-5c) (pk5-3j/p55197-11c) (pke5-3k/p55197-22c) diagram
Coil, Evaporator Assembly
Part #D5454903
The manufacturer no longer makes this part, and there's no substitute part
Cabinet & chassis parts (pk2-1h/p55196-1c) (pk2-1h/p55196-7c) (pk2.5-1h/p55196-2c) (pk2.5-1h/p55196-8c) (pk3-1h/p55196-3c) (pk3-1h/p55196-9c) (pke3-3h/p55196-18c) diagram
Base Pan Assembly
Part #D5435203
The manufacturer no longer makes this part, and there's no substitute part
"d" Grommet
Part #A4568703
The manufacturer no longer makes this part, and there's no substitute part
