Model # CGTP3000 Official Devilbiss generator

Here are the diagrams and repair parts for Official Devilbiss CGTP3000 generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

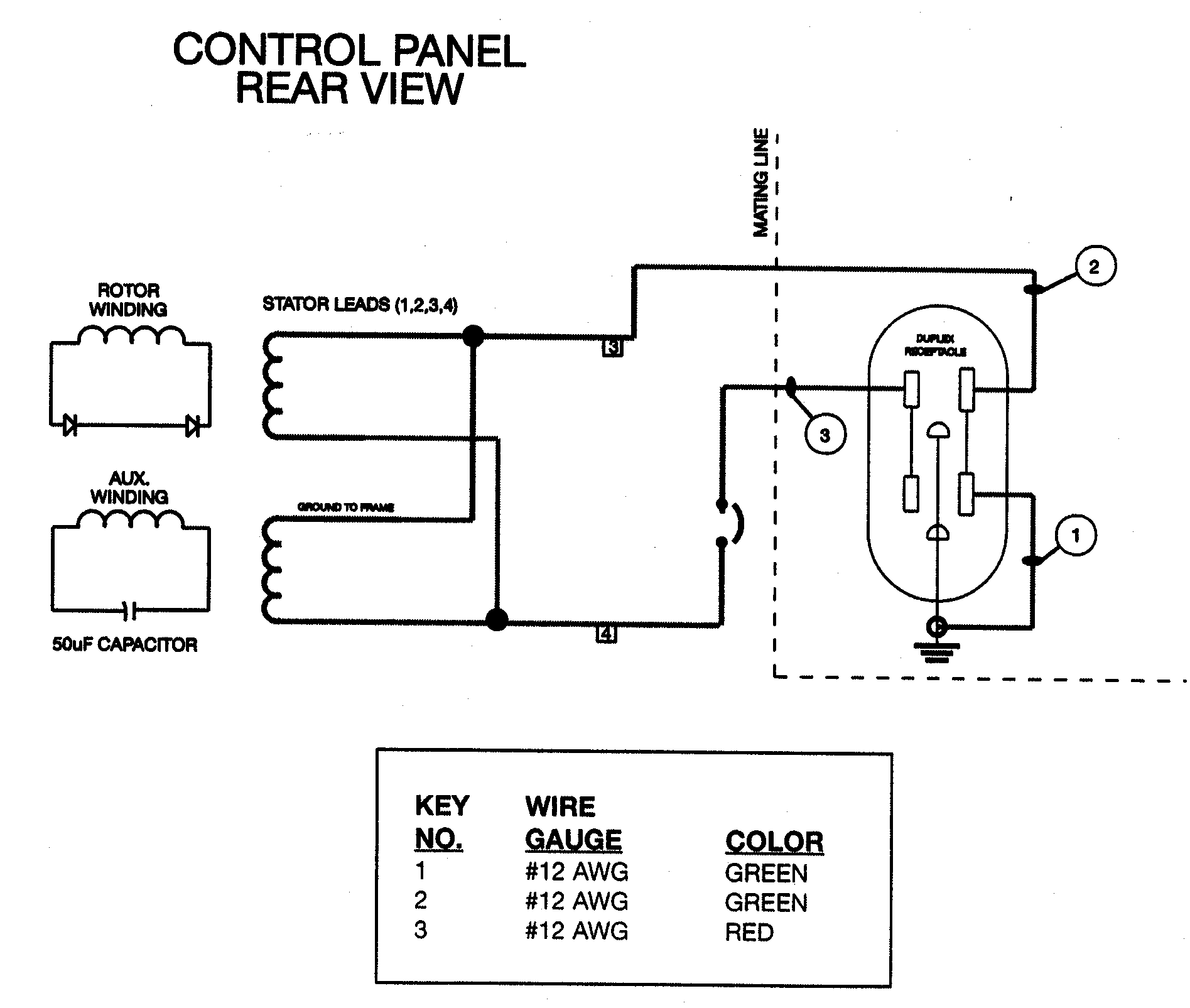

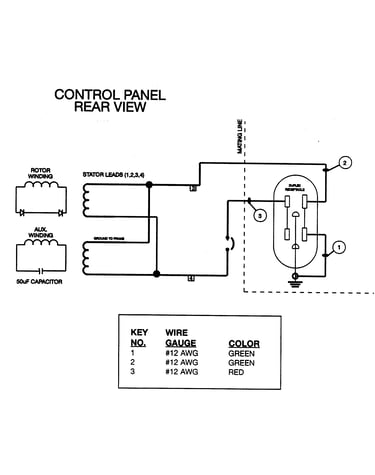

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Generator Run Capacitor GS-0592
#28

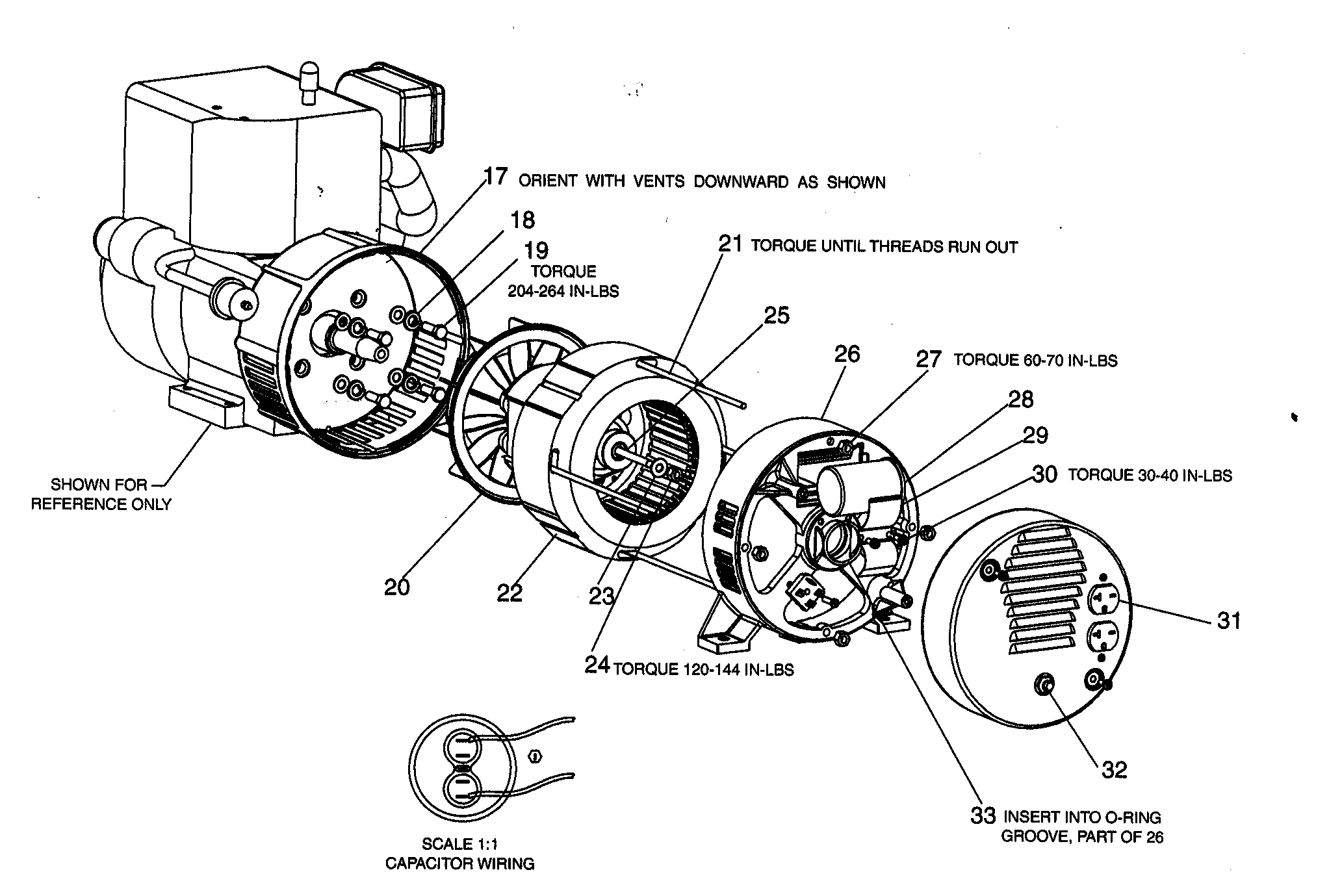

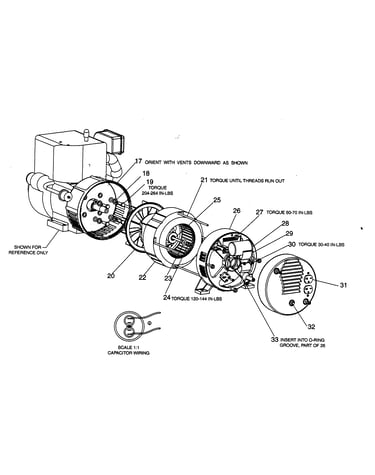

Engine diagram

Generator run capacitor

Part #GS-0592

The manufacturer no longer makes this part, and there's no substitute part

Adapter GS-0558
#17

Engine diagram

Adapter

Part #GS-0558

The manufacturer no longer makes this part, and there's no substitute part

Screw SSF-3140-ZN
#8

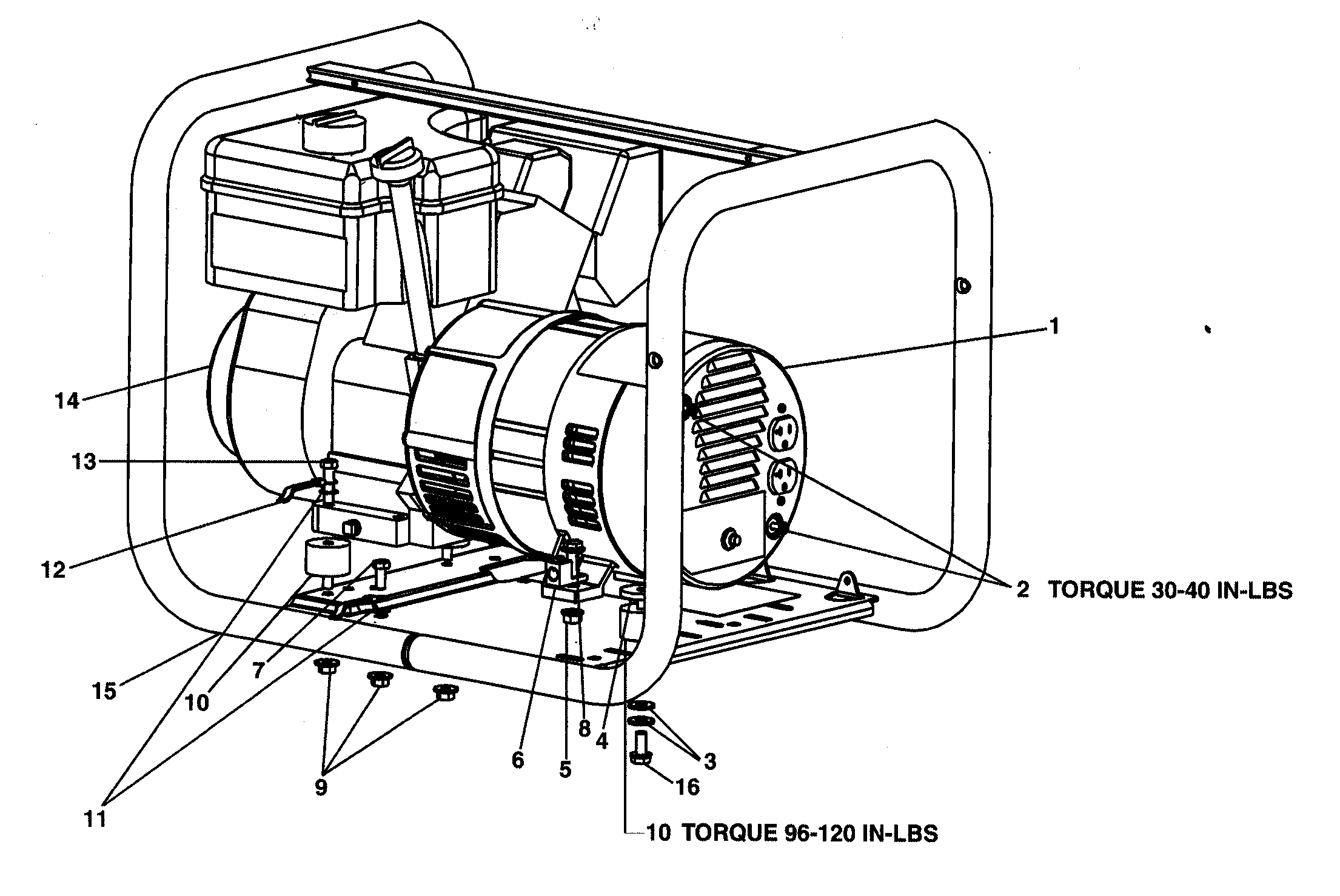

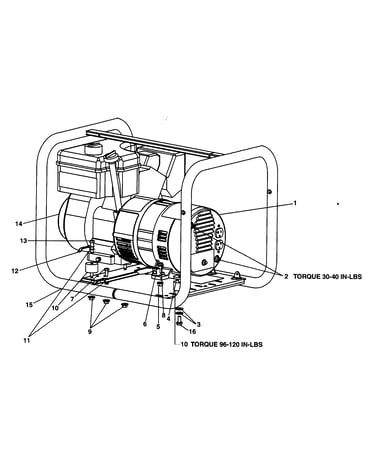

Generator diagram

Screw

Part #SSF-3140-ZN

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut SSF-8150
#9

Generator diagram

Lock nut

Part #SSF-8150

The manufacturer no longer makes this part, and there's no substitute part

Ground Str GS-0118
#12

Generator diagram

Ground str

Part #GS-0118

The manufacturer no longer makes this part, and there's no substitute part

Bolt GS-0415
#21

Engine diagram

Bolt

Part #GS-0415

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut SSF-8111-ZN
#5

Generator diagram

Lock nut

Part #SSF-8111-ZN

The manufacturer no longer makes this part, and there's no substitute part

Generator Screw, #10-24 X 9/16-in SSF-553-1
Generator screw, #10-24 x 9/16-in

Part #SSF-553-1

The manufacturer no longer makes this part, and there's no substitute part

Washer SSN-1014-ZN
#4

Generator diagram

Washer

Part #SSN-1014-ZN

The manufacturer no longer makes this part, and there's no substitute part

O-ring GS-0862
#33

Engine diagram

O-ring

Part #GS-0862

The manufacturer no longer makes this part, and there's no substitute part
